Old 04-24-2010, 05:57 PM   #11
Junior Member
Posts like a Ricer Type-R
Thread Starter

DankCorey22's Avatar

Join Date: Apr 2010
Location: Mocksville, NC
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
DankCorey22 is on a distinguished road
Default

Quote:
Originally Posted by roboticjunky View Post
Take off the panel under the steering column. It should be a orange tube (kinda like shrink wrap for wiring) coming out of the steering column. There should be 2 white wires inside the orange tube. Then I would use the bullet type wire connectors to connect the thermistor to the 2 white wires that are not connect to the steering column anymore. Set your thermistor to the right resistance then plug it in. VATS is now bypass. There could be always be something else wrong with the system, but you won't know until you start it. This bypass usually fix the security light/not starting problem.

Roboticjunkey what type of thermistor should i use theres hundreds of types, i found the orange wire, i think its the individual one not attached to any other wires. Because theres 2 orange wires and ones individual and ones attached to 5 wires im guessing this is the turn signal wires or something
DankCorey22 is offline   Reply With Quote
Old 04-24-2010, 07:47 PM   #12
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

It'* a orange sleeve and inside of it has the 2 white wires.

Here'* a better how to.
https://www.gmforum.com/electrical-133/bypass-vats-92-99-a-279119/

There'* 15 different resistances/key values your car can have. This thermistor will work with the all key values except for #15 since that one is higher than 10k.

http://www.radioshack.com/product/in...ductId=2062308
roboticjunky is offline   Reply With Quote
Old 04-26-2010, 06:44 PM   #13
Junior Member
Posts like a Ricer Type-R
Thread Starter

DankCorey22's Avatar

Join Date: Apr 2010
Location: Mocksville, NC
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
DankCorey22 is on a distinguished road
Default

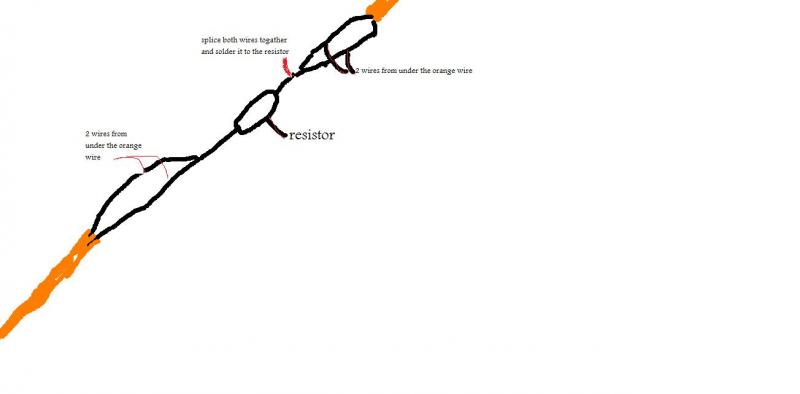

Okay i drew a picture of what i think is right, tell me if im wrong its just a sample picture.
dont laugh at my drawing
Attached Thumbnails
1992 ssei security light-untitled.jpg
DankCorey22 is offline   Reply With Quote
Old 04-26-2010, 08:24 PM   #14
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

No dice.

This is the correct way because you don't want the signal to go through the ignition lock cylinder any more.

roboticjunky is offline   Reply With Quote
Old 04-27-2010, 12:28 AM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

DankCorey22's Avatar

Join Date: Apr 2010
Location: Mocksville, NC
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
DankCorey22 is on a distinguished road
Default

Okay thank you for taking the time to help me! ill show or tell when i get it running
DankCorey22 is offline   Reply With Quote
Old 04-27-2010, 04:08 AM   #16
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

No problem.

I did this same thing to my Caddy about 2 1/2 years ago, but my VATS module was also bad, which might have been the my original problem.
roboticjunky is offline   Reply With Quote
Old 04-27-2010, 04:48 PM   #17
Junior Member
Posts like a Ricer Type-R
Thread Starter

DankCorey22's Avatar

Join Date: Apr 2010
Location: Mocksville, NC
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
DankCorey22 is on a distinguished road
Default

Okay heres what i got i took a video http://www.youtube.com/watch?v=O1_3jqevj_c
when i turn it on to start it sounds like the solenoid clicks
DankCorey22 is offline   Reply With Quote
Old 04-28-2010, 02:38 AM   #18
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

I would get the starter tested.

On my Caddy, sometimes my starter will click 2 or 3 times before it will start, but I think ripping out the Bose stereo system probably has something to do with my problem.
roboticjunky is offline   Reply With Quote
Old 04-30-2010, 04:49 PM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

DankCorey22's Avatar

Join Date: Apr 2010
Location: Mocksville, NC
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
DankCorey22 is on a distinguished road
Default

Well the starters good but the starter gear is worn so it doesnt engage the flywheel. Im done with messing with it... Im going to sell it for $350

Thanks for taking all this time to help me with it tho
DankCorey22 is offline   Reply With Quote
Old 04-30-2010, 09:48 PM   #20
Senior Member
Posts like a Turbo

roboticjunky's Avatar

Join Date: Aug 2009
Location: Indiana
Posts: 487
Thanks: 0
Thanked 0 Times in 0 Posts
roboticjunky is on a distinguished road
Default

Sorry to hear that. Hey, at least you tried.
