Default AC controls not working

I think I saw a mention of a similar problem on these forums somewhere, but I've no idea where. Anyway, I sued my AC for the first time today and the air refused to come out of the vents, it owuld only blow out of the defroster and out the bottom on the feet. The AC compressor was definitely on and working as the air was plenty cold, but it'd be nice if it blew out the right place. I'm hoping this is a quick/easy fix as I'm planning on leaving for a cross country road trip tomorrow.
theprodigalstranger is offline   Reply With Quote
Old 05-11-2005, 10:12 PM   #2
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

probably not quick and easy. Sounds like the door that diverts the air down the right passages in the air box is stuuck. ANd that'* not gonna be an easy task. Wait for someone who will know more about your era to chime in.


Nate
LakevilleSSEi is offline   Reply With Quote
Old 05-11-2005, 10:18 PM   #3
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

The air flow is diverted to defrost in the event of a vacuum loss to the system. Reconnect or repair the vacuum line at the vacuum reservoir under the hood.
randman1 is offline   Reply With Quote
Old 05-11-2005, 11:06 PM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2005
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
theprodigalstranger is on a distinguished road
Default

Ok. Where would I find these vacuum line and vacuum resevoir under the hood? I can't seem to find anything about vacuum lines or a box in my haynes manual, but I'm never eral good at finding stuff in this book.
I've found the blower motor and where that all seems to be, but I'll be damned if I can find any vacuum lines, I did look under the dust shield thats held on by the 7/32 nuts and jsut found a bunch of plugs.
Besides that, if there needed to be vacuum to operate the vents instead of the defroster, wouldn't the engine have to be on to run the vent? I know thats not supposed to be the case. I suppose it gets its vacuum from some other palce than the engine, the blower fan?
theprodigalstranger is offline   Reply With Quote
Old 05-11-2005, 11:34 PM   #5
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Quote:
Originally Posted by theprodigalstranger
Ok. Where would I find these vacuum line and vacuum resevoir under the hood? I can't seem to find anything about vacuum lines or a box in my haynes manual, but I'm never eral good at finding stuff in this book.
It'* not you... personally, I think the Haynes manuals blow.

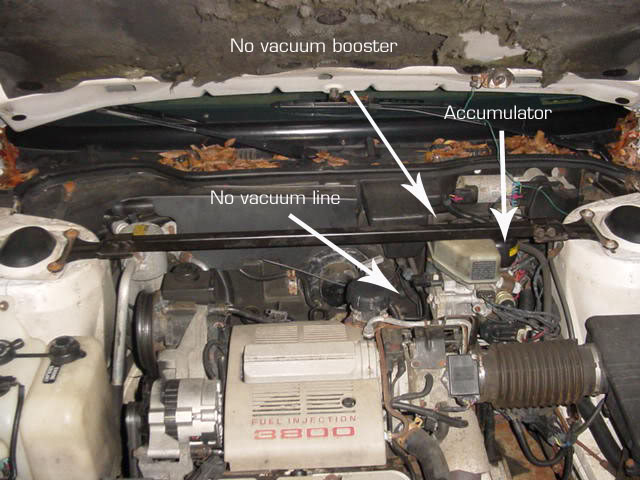

Here'* a pic that I used for another topic so the graffiti doesn't apply:
Name:  DSC01008_edit2.jpg
Views: 0
Size:  65.2 KB

The vacuum reservoir is the black thing to the left of the master cylinder. The arrowhead for "No vacuum booster" tag is partially on it. It is in the same relative position as the one in my 93 as shown below:
Name:  DSC00774_edit.jpg
Views: 0
Size:  62.9 KB

Quote:
Originally Posted by theprodigalstranger
Besides that, if there needed to be vacuum to operate the vents instead of the defroster, wouldn't the engine have to be on to run the vent? I know thats not supposed to be the case. I suppose it gets its vacuum from some other palce than the engine, the blower fan?
That'* the reason for the reservoir in the first place. It "stores" vacuum pressure so the vacuum operated accessories will work for a period of time without a source (the running engine)
randman1 is offline   Reply With Quote
Old 05-12-2005, 12:31 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2005
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
theprodigalstranger is on a distinguished road
Default

Cool, thanks. NOw if I can find my flashlight I'll be set
theprodigalstranger is offline   Reply With Quote
Old 05-12-2005, 12:51 AM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Feb 2005
Posts: 35
Thanks: 0
Thanked 0 Times in 0 Posts
theprodigalstranger is on a distinguished road
Default

Well by jove that was easy. One of the hoses was disconnected, no idea how that happened. Didn't even need a flashlight, did it by lighter fire. Thanks for the help.
theprodigalstranger is offline   Reply With Quote
Old 05-12-2005, 07:46 PM   #8
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

The line deteriorated. Mine will occasionally pop off, too. Makes my car idle like it has a radical cam too. If it comes off again, you can replace it, or use a zip-tie or rubber band to hold it on.


-justin
opensourceguy is offline   Reply With Quote
Old 05-15-2005, 01:11 PM   #9
Junior Member

Join Date: Jan 2005
Posts: 5
Thanks: 0
Thanked 0 Times in 0 Posts
Danboy is on a distinguished road
Default

I think I may have the same problem but the only difference is when i slap the dash hard sometimes the air will come out the right vents. Do i have the same problem or is mine the door?
Danboy is offline   Reply With Quote
Old 05-15-2005, 01:24 PM   #10
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

My guess would be a sticking vacuum diaphragm but it'* very easy to check the line as indicated above.

I recall another thread several months ago where someone had a faulty servo. You may want to try the search function to locate it.
randman1 is offline   Reply With Quote
