Default Turbo GMC Envoy ONE OF A KIND!

To my knowledge the only GMC Envoy ever turbocharged.

I have done all the work myself from welding to wiring. The only thing I did not do was tune the computer. that was done by Lime-swap.com.
Engine Modifications:
- '06 Trailblazer SS P12 PCM Computer Swap
- Entire '06 Engine Wiring Harness
- Speed Limiter Removal, Etc
- 93 Octane tuned + 10-degree Cam retardation under boost
- Siemens Deka EV6 80lb / hr 875cc Injectors
- LS7 Lingenfelter Corvette complete MAF conversion
- Lingenfelter o2 Sensor + Lingenfelter Wideband Air/Fuel Ratio Sensor
- Vortec 80mm Throttle Body, IPG Custom Vacuum Block, Oil Catch Can
- GT45r Professionally built Turbo currently at 3 - 10 PSI of boost
- Godspeed housing with GARRETT wheels swapped and balanced in MI.
- Compressor Trim .70 ar - Exhaust trim 1.00 ar
- Comp Wheel 63.71/84.20 - Turbine Wheel 63.56/73.60
- 4" Turbo Intake | 3.25" Downpipe | 2.5" AMS intercooler piping
- 30" x 7" x 3" Intercooler

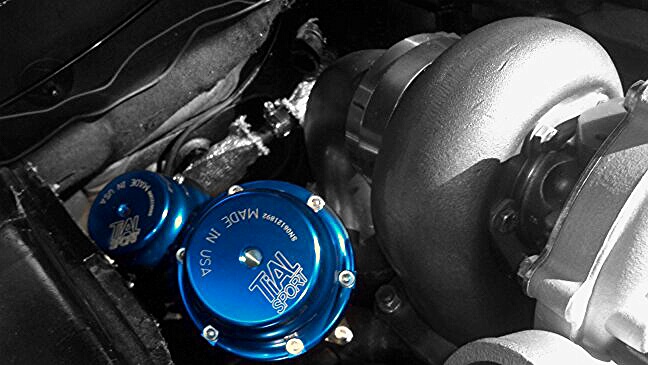

- 2 x TiAL 38mm Wastegates
- HKS SSQV III Blow Off Valve
- A/C System Removed + Idler Pulley Removed + Heater/AC bypassed
- Goodyear Gatorback Short-belt Installation (70.5" from 90.5")
- 4" Aluminum intake
- 20lb NOS tank Was used for 25-50 hp shot of Nitrous
- Nissan Skyline R33 Aluminum shroud and electric fan conversion (2700 + cfm)
Transmission | Differential Modifications
- 4L60E 4 - Speed Automatic Transmission
- 3.42 gearing
- Adjusted for shift stiffness and Shift points
- Transgo 4L60E Complete Rebuild Kit
- Corvette Servo upgrade
- Sonnax Pinless Accumulator Piston Kit + Separator plate
- 3.42 10-bolt Open Rear Differential ( grenaded previous limited slip )
- TB SS 17" x 11" Transmission Oil Cooler
- Drilled / Slotted Brake Conversion
Exhaust Modifications
- Custom Full Exhaust - 3" Borla Piping
- 3" highflow Magnaflow Cat - Dual out 2.5 Greddy piping to the back
- 3" Flowmaster super40 Series Muffler - Dual Flowmaster dual 3" Corvette tips
- 3.25" Downpipe - Hot wired o2 Sensor
- EVAP / AIR System deletion - Custom fabbed turbo up piping

Body / Lighting / Interior / Weight
- 22" Forte Rims Wrapped in 265 / 35 ZR / 22

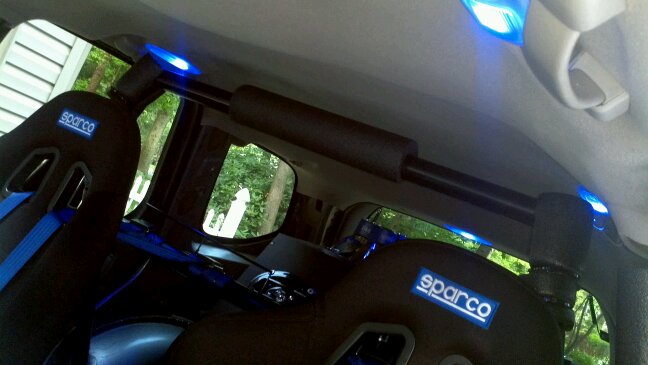

- Sparco Racing Seats + 4 Point Harnesses + Seatbelt Harness Bar
- Blue CCFL gas halo lights + 10k HID BiXenon Projector Headlights
- Switchback LED turn signals + LED running + LED Reverse Lights + LED License Plate
- Trailblazer SS Dash conversion + Blue LED Dash conversion
- LED Dome Lighting
- Relocated Battery/Wash Fluid res + Removed ALL Seating, Tire, AC System, Carpet
- Relocated HVAC Controls + 4wd Switch
- Bilstein Shocks HD'* all the way around

learned so much and had so much fun

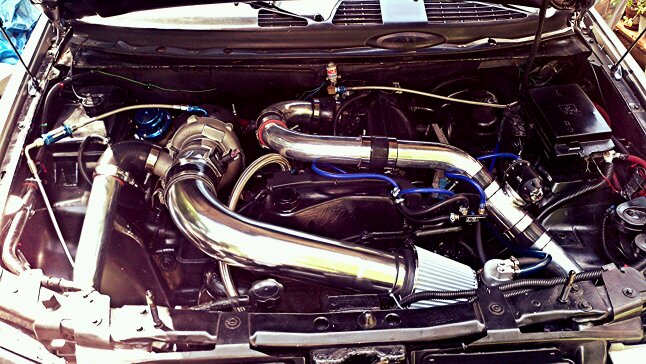

Turbo GMC Envoy   ONE OF A KIND!-img_20130625_051103_resized.jpg

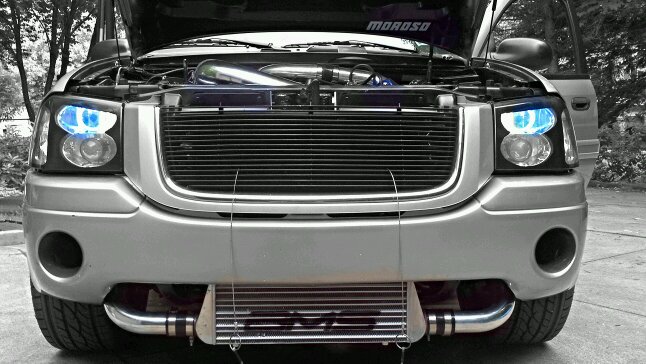

Turbo GMC Envoy   ONE OF A KIND!-img_20130625_050627_resized.jpg
Turbo GMC Envoy   ONE OF A KIND!-2013-05-19_17-39-22_314_resized.jpg
Turbo GMC Envoy   ONE OF A KIND!-img_20130521_093437.jpg

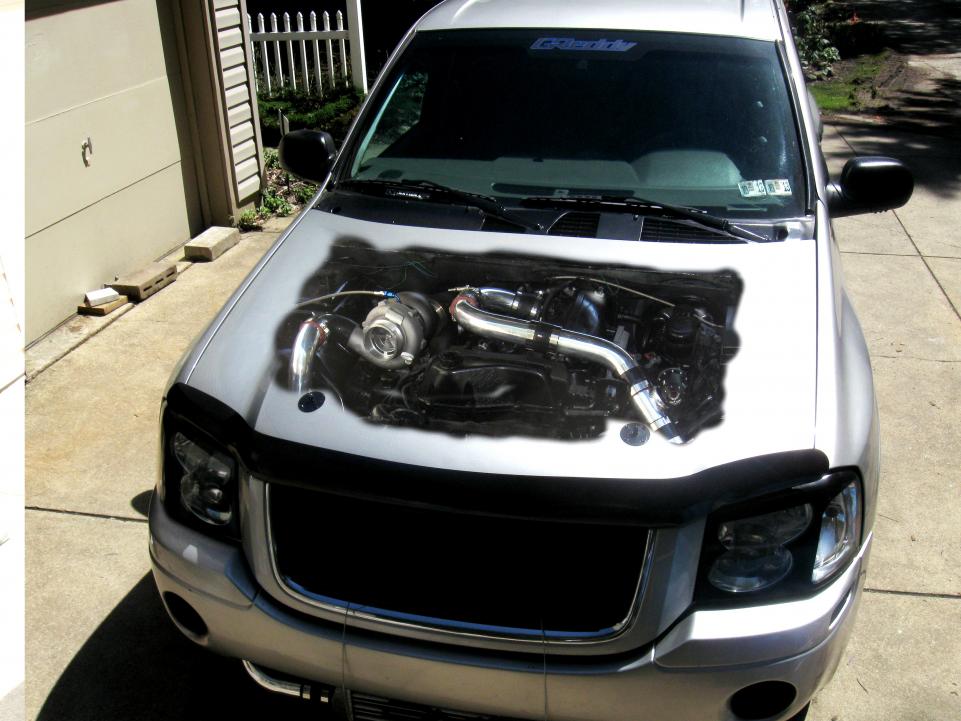

Turbo GMC Envoy   ONE OF A KIND!-2.jpg
Turbo_Envoy is offline   Reply With Quote
Old 06-27-2013, 01:03 AM   #2
Senior Member
Posts like a Turbo

LoveNutz's Avatar

Join Date: Mar 2011
Location: Rochester, NY
Posts: 261
Thanks: 0
Thanked 0 Times in 0 Posts
LoveNutz is on a distinguished road
Default

Wow. Amazing. That is one mean ride.
LoveNutz is offline   Reply With Quote
Old 06-27-2013, 07:48 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Turbo_Envoy's Avatar

Join Date: Jun 2013
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
Turbo_Envoy is on a distinguished road
Default

Quote:
Originally Posted by LoveNutz View Post
Wow. Amazing. That is one mean ride.
Thank you! I spent a long time looking through pages of other members rides and after seeing so many cool rides I decided to post pics of mine. Everyone on this forum is great. So many interesting and awesome projects.
Turbo_Envoy is offline   Reply With Quote
Old 06-27-2013, 08:49 AM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i can see why you blew up the oem diff. i dont think the open one is going to be much help though. i have a auburn limited slip that has stood up to some abuse, but my car is pretty light. you may want to get one of the mechanical types
jwfirebird is offline   Reply With Quote
Old 06-27-2013, 08:56 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Turbo_Envoy's Avatar

Join Date: Jun 2013
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
Turbo_Envoy is on a distinguished road
Default

Yes, I agree for sure. I will be keeping an eye out. I am also currently working on my police interceptor daily driver so money is tight right now but down the road I can see a 4l80e or fully built trans in addition to the rear end
Turbo_Envoy is offline   Reply With Quote
Old 06-27-2013, 09:06 PM   #6
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the 10 bolt might be fine for a while with 3.42 gears and a open rear. i have a ten bolt but its got the main cap support, better axles, and 4.10 gears and the eaton limited slip. ive got a whole bunch of strip launches on it. a bunch of people run ten bolts, and turbos are a bit easier on drivetrain stuff too
jwfirebird is offline   Reply With Quote
Old 06-28-2013, 12:49 AM   #7
Member
Posts like a V-Tak

Lusitania's Avatar

Join Date: Apr 2013
Location: Glen Rock, PA
Posts: 45
Thanks: 0
Thanked 1 Time in 1 Post
Lusitania is on a distinguished road
Default

Looks amazing! I saw you video on another post and showed it to my friend and he says, "And that'* an ENVOY??" Hahaha
Lusitania is offline   Reply With Quote
Old 06-29-2013, 01:01 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Turbo_Envoy's Avatar

Join Date: Jun 2013
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
Turbo_Envoy is on a distinguished road
Default

Quote:
Originally Posted by Lusitania View Post
Looks amazing! I saw you video on another post and showed it to my friend and he says, "And that'* an ENVOY??" Hahaha
haha thanks for the compliment. It is funny to see/hear peoples responses to it. some love it some hate it and some are just not sure about it lol.
Turbo_Envoy is offline   Reply With Quote
Old 06-29-2013, 09:44 PM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i think its cool, i think that if you got into the tuning of it you could 20-22 mpg hwy and still be fast when on it or at the track
jwfirebird is offline   Reply With Quote
