Default Puddle lights

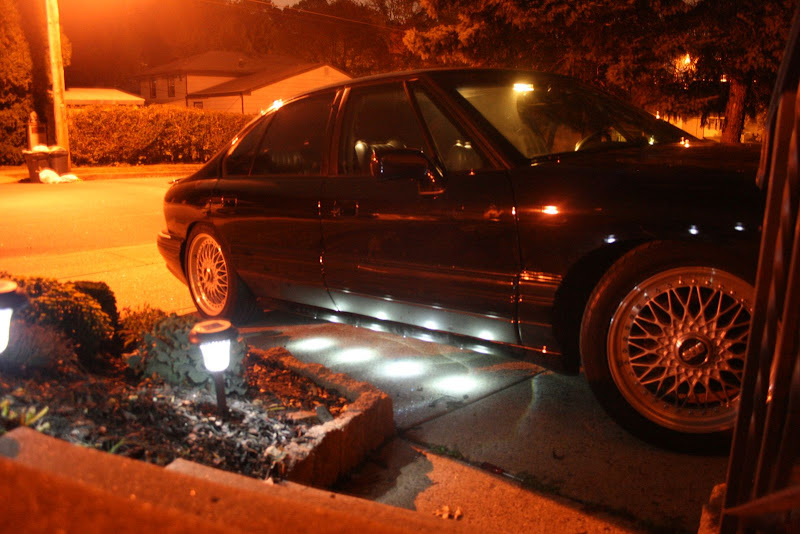

I got these done today after work. I have them wired in to come on with the interior lights. So, lock/unlock/dash switch, they come on.

Sorry for the crappy pics. I need a tripod in a bad bad way..
The second pic is a bit deceiving light output wise. Driver/Passenger sides are the same.
The car is super dirty too.





I'm thinking about adding two more per side which would be very easy at this point.
95naSTA is offline   Reply With Quote
Old 10-12-2010, 10:20 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That looks really good. Great work.
Danthurs is offline   Reply With Quote
Old 10-12-2010, 10:49 PM   #3
Senior Member
Posts like a Camaro

CPR8's Avatar

Join Date: May 2010
Location: Grant, Fl.
Posts: 941
Thanks: 0
Thanked 0 Times in 0 Posts
CPR8 is on a distinguished road
Default

That looks very good. Although I would imagine that they would be very fragile.
CPR8 is offline   Reply With Quote
Old 10-12-2010, 10:58 PM   #4
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Thanks.

Each light is 4 LEDS and water proof. And the wiring is all adhesive lined shink tubed. It should be pretty rugged.
95naSTA is offline   Reply With Quote
Old 10-12-2010, 11:00 PM   #5
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Two more per side would set it off. Fa sho!
Black Pearl is offline   Reply With Quote
Old 10-13-2010, 12:25 AM   #6
Member
Posts like a V-Tak

97 park ave's Avatar

Join Date: Feb 2010
Location: Duluth, MN
Posts: 79
Thanks: 0
Thanked 0 Times in 0 Posts
97 park ave is on a distinguished road
Default

Quote:
Originally Posted by Black Pearl View Post
Two more per side would set it off. Fa sho!
^x2, maybe one for each mirror too?
97 park ave is offline   Reply With Quote
Old 10-13-2010, 12:30 AM   #7
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Looks great. Nice work!
yutzybrian is offline   Reply With Quote
Old 10-13-2010, 12:36 AM   #8
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Awesome! Can we get a pic up her skirt?
rjolly87 is offline   Reply With Quote
Old 10-13-2010, 12:43 AM   #9
Senior Member
Posts like a Turbo

Join Date: May 2009
Posts: 245
Thanks: 0
Thanked 0 Times in 0 Posts
airlife9 is on a distinguished road
Default

possible write-up?
airlife9 is offline   Reply With Quote
Old 10-13-2010, 01:15 AM   #10
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Lol. Here'* a pic of the skirts.



For a write up,
Search for VIP Puddle Kit on ebay. You'll find kits just like the one in the pic above.

They come all ready to wire up in parallel with connectors that have rubber shields.. This didn't really do it for me though. I cut, soldered, and adhesive lined shrink tubed almost everything.

Drill, mount, and wire up each rocker so that the LEDs are in parallel and the positive and negative are pointing to the front of the car. Leave two connectors so that I can remove the rocker.

For the ground, drill one hole per side, use a self tapping screw, eyelet electrical connector, and a section of wire with the corresponding connector to plug into the negative side of the rocker. In addition to the supplied rubber shielding, use dielectric grease to seal the connector. It'* also a good idea to remove the paint where the eyelet connector makes contact with the body and use dielectric grease there as well.

For the positive, run lines up through the front fender, and into the cabin to where the interior light relay is located. For my 95, I ran the lines up into the bay and through the firewall hole located behind the drivers shock tower. Make sure to protect the wires with loom. Using a relay (not supplied), take power post interior light fuse, and use an interior light to trigger it. I just used the floor light right near the fuse panel. I didn't bother upping the amp of the fuse since the LEDs don't really draw much current. (had the interior light ground bus been easy to get to I wouldn't have used a relay)

Going back to the rocker, use the corresponding connector at the end of the positive lead, rocker side, and connect with rubber and dielectric grease, same as the ground.
