Default Pictures from engine build

These are just some pictures from my cell during my engine and tranny build

UIM failure
Name:  0819071541a.jpg
Views: 1
Size:  68.0 KB

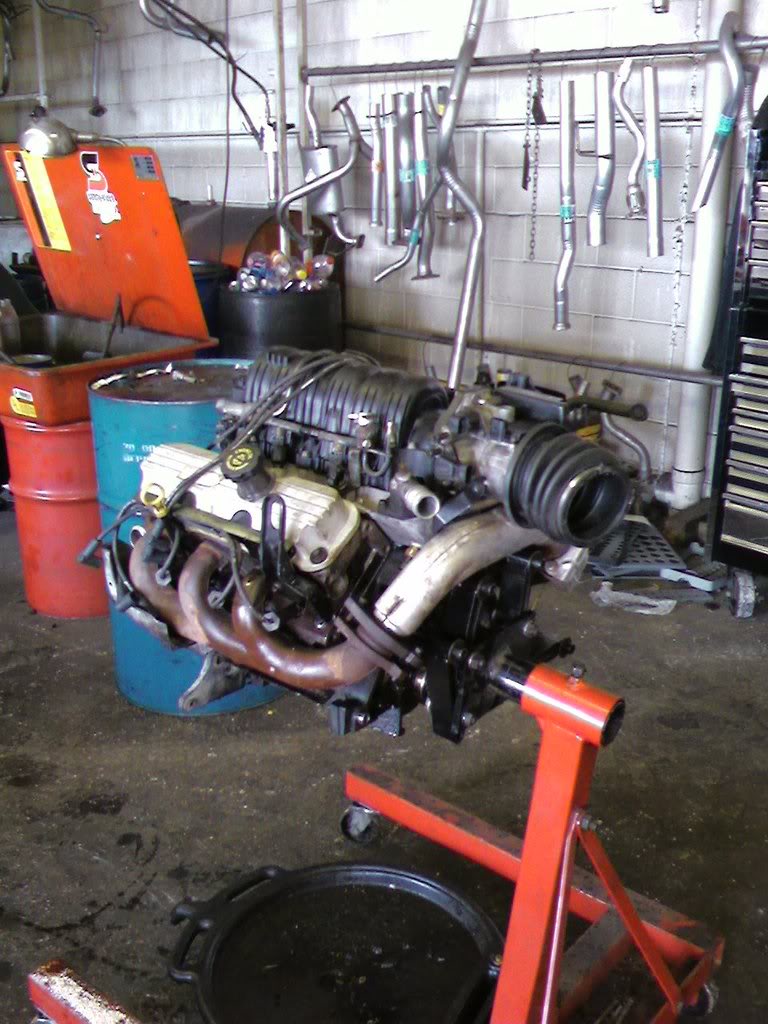

Pretty ugly!!
Name:  0828071259.jpg
Views: 1
Size:  129.5 KB

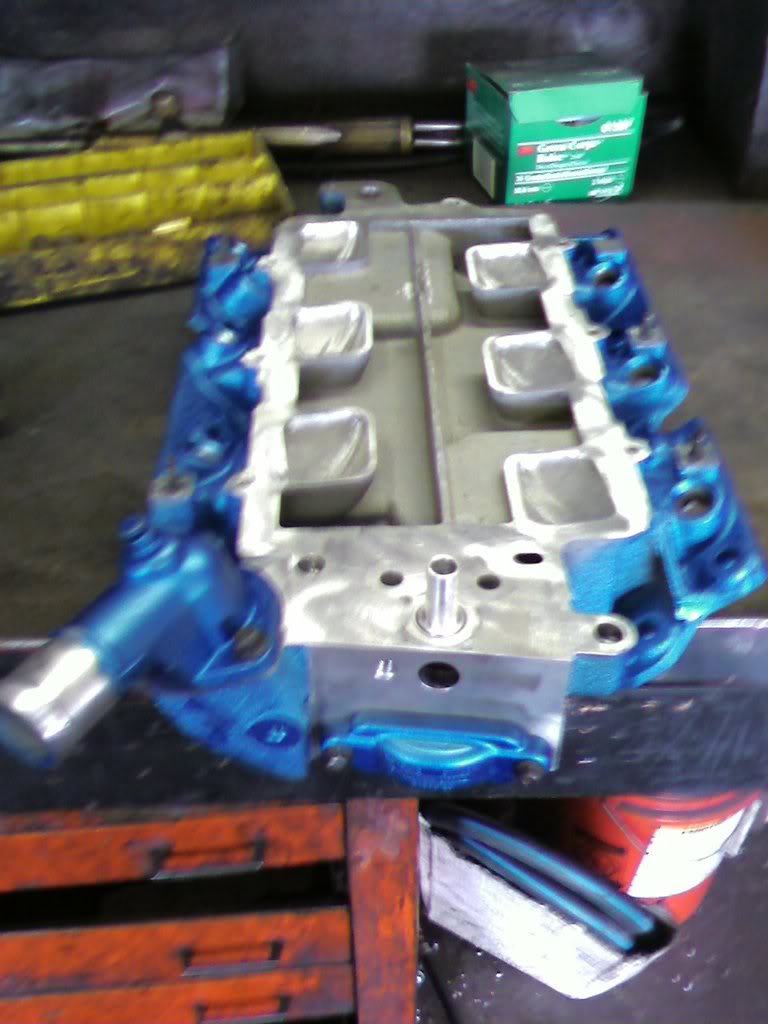

Painted Ported And Polished intake.
Name:  0912071238.jpg
Views: 1
Size:  78.9 KB

Fresh Coat
Name:  0913071106.jpg
Views: 1
Size:  82.0 KB

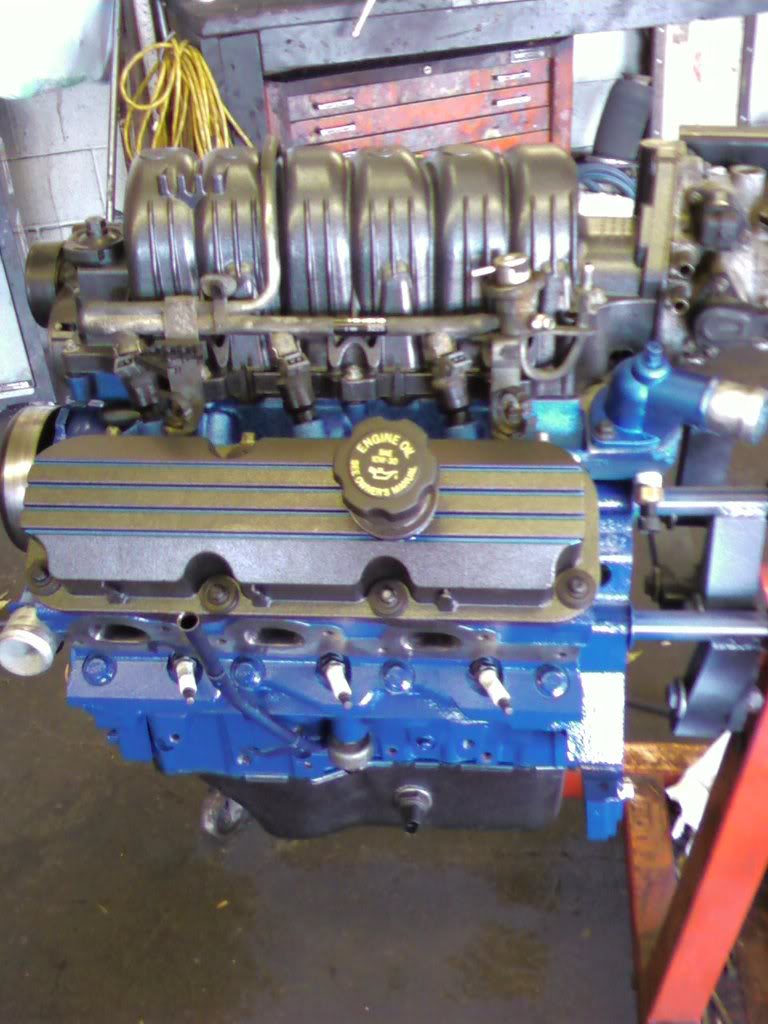

Almost back together
Name:  0913071441.jpg
Views: 1
Size:  104.3 KB

Ready to go back in
Name:  0918071550.jpg
Views: 1
Size:  108.1 KB

Freshly painted and built tranny
Name:  1207071016.jpg
Views: 0
Size:  49.7 KB

Phantom Grip LSD installed in the HD diff with 3.33 gears
Name:  1207071904.jpg
Views: 0
Size:  56.5 KB
TheDude is offline   Reply With Quote
Old 02-18-2008, 02:07 PM   #2
Senior Member
True Car Nut

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

Wow, that engine looks pretty damn good!

Very nice work
93-SSE is offline   Reply With Quote
Old 02-18-2008, 03:01 PM   #3
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

nice indeed i really like that blue
and what can you tell me about those headers are they custom
wakefieldl is offline   Reply With Quote
Old 02-18-2008, 06:56 PM   #4
Senior Member
Posts like a Northstar

Join Date: Aug 2007
Location: Ladysmith B.C. Canada
Posts: 620
Thanks: 0
Thanked 0 Times in 0 Posts
JMH1950 is on a distinguished road
Default

ford blue??


Looks good.
JMH1950 is offline   Reply With Quote
Old 02-18-2008, 07:36 PM   #5
Senior Member
Posts like a 4 Banger

Join Date: May 2004
Location: Maquoketa,IA
Posts: 108
Thanks: 0
Thanked 0 Times in 0 Posts
91_bonneville_le is on a distinguished road
Default

n/a ftw!
91_bonneville_le is offline   Reply With Quote
Old 02-18-2008, 08:33 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2007
Location: Saginaw, MI
Posts: 345
Thanks: 0
Thanked 0 Times in 0 Posts
TheDude is on a distinguished road
Default

Ypu, thats Ford Blue. I did it to **** off the Ford guys Actually, I thought it looked better than the Pontiac Blue, which is lighter. The intake was painted with a metal speck blue.

And yes, that front header was made by yours truely. Turned out pretty good for my first attempt. My next project for it is a set of long tube headers
TheDude is offline   Reply With Quote
Old 02-18-2008, 09:28 PM   #7
Senior Member
Posts like a Corvette

Join Date: Feb 2007
Location: Sanford Michigan
Posts: 1,200
Thanks: 0
Thanked 0 Times in 0 Posts
crash93ssei is on a distinguished road
Default

I can personally say that the pics do no justice to how good it looks in the vehicle in person
crash93ssei is offline   Reply With Quote
Old 02-18-2008, 10:22 PM   #8
Senior Member
True Car Nut

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

I got some ford blue on my Bonnie as well, shocks and brake calipers are ford blue, but that was my dad'* doing

But again very nice work
93-SSE is offline   Reply With Quote
Old 02-18-2008, 11:02 PM   #9
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Bloomington, MN
Posts: 3,693
Thanks: 0
Thanked 0 Times in 0 Posts
GoldenBullet is on a distinguished road
Default

that looks pretty awesome
GoldenBullet is offline   Reply With Quote
