Default My Vortec TPI motor build- updated -running vid!

I have 2 camaros 1 is the 1LE I've posted before the the other is my IROC that is Rosco.
IT has been a gruleing project that has/had many things go wrong that ended with crappy Edelbrock parts causeing headers to glow and warping a set of '88 vette heads. After letting the car sit for the last 10 months I attacked it again after watching the IROC'* in the History channel. I love my 3rd gens and BTW the SSEi is the only other car that could keep the speed withdraws away. I decided to go a diffent dir and go Vortec heads and matching intake http://www.sdpc2000.com/ had a whole kit gaskets and bolts inc for $1,200! My headers are getting recoated by JETHOT due to heat damage so they will get put on later.

I resoaked the lifters to start.
Name:  lifters.jpg
Views: 15
Size:  47.5 KB

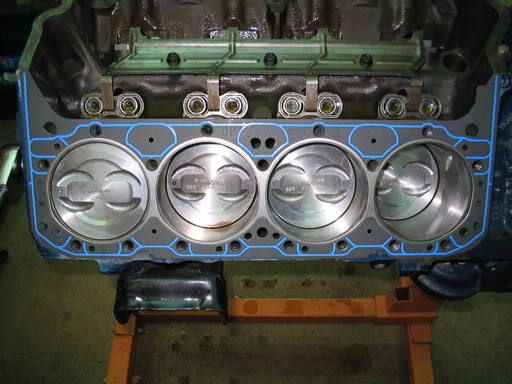

Cleaned up the block and put on the GM Preformance Parts head gaskets
Name:  headgasket.jpg
Views: 18
Size:  47.4 KB

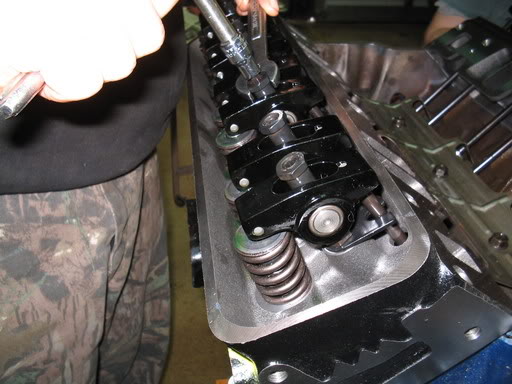

Set the valve lash on the 1.6/1.5 Trick Flow roller rockers-
Name:  valvelashlocks.jpg
Views: 12
Size:  44.0 KB

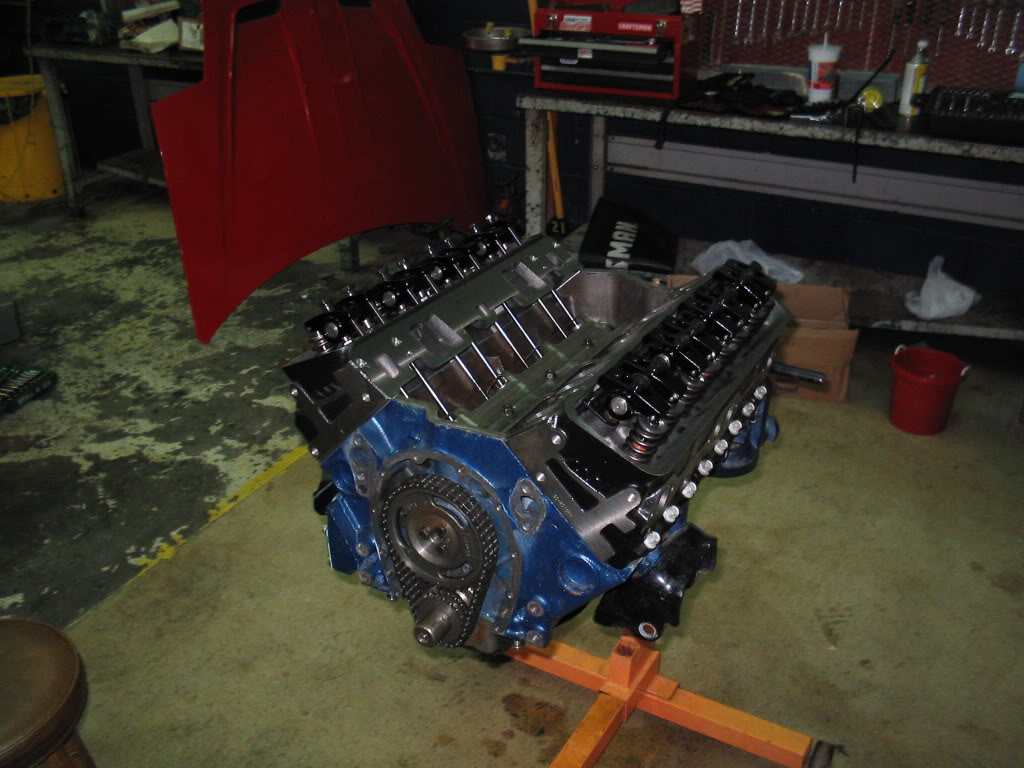

Name:  valvetrain.jpg
Views: 13
Size:  115.6 KB

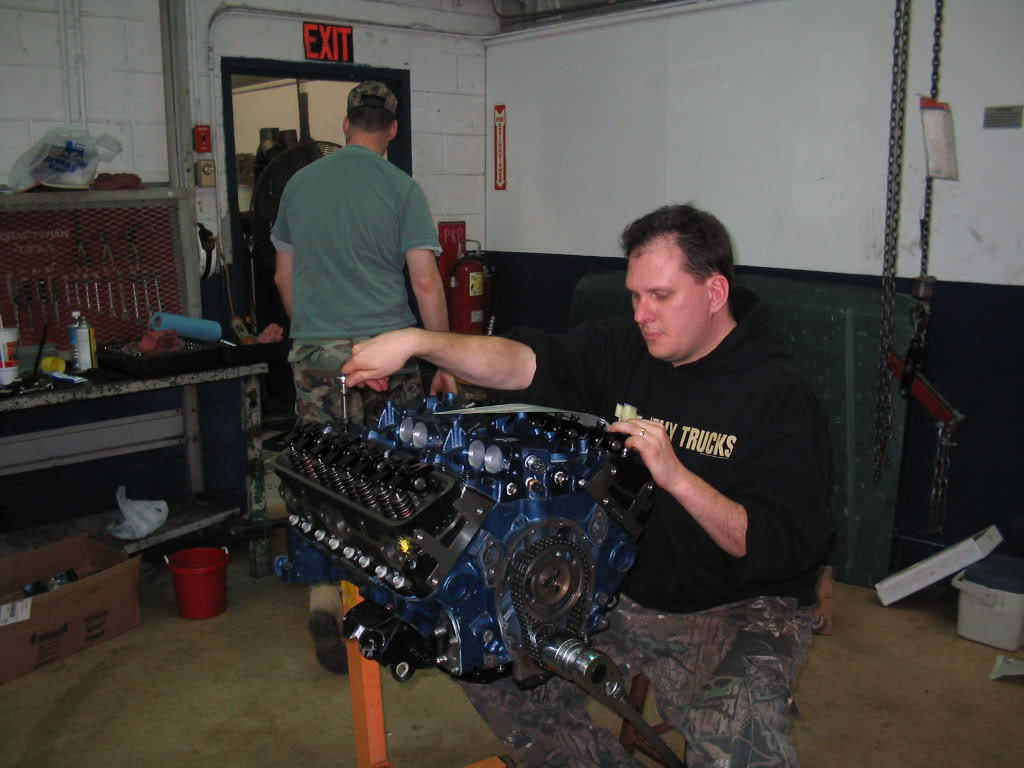

The Vortec intake only has 8 bolts that you have to set just right.
Name:  intake.jpg
Views: 11
Size:  104.5 KB

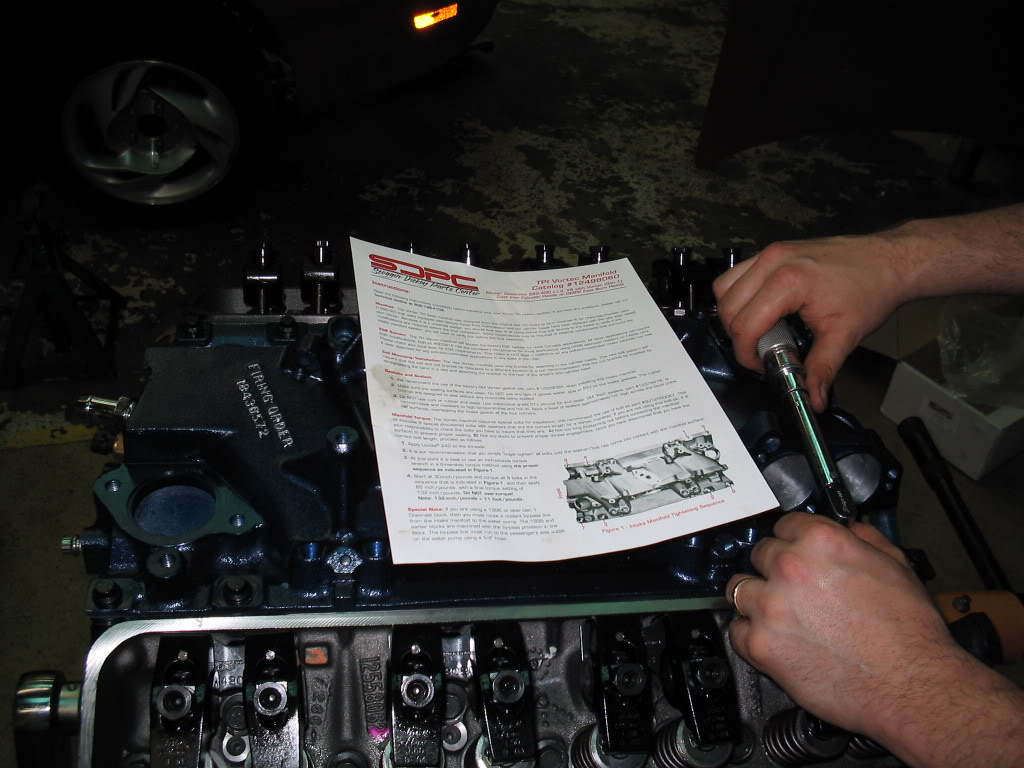

Name:  intakespecs.jpg
Views: 10
Size:  117.4 KB

Looks GOOD again!
Name:  looksgood.jpg
Views: 13
Size:  124.7 KB

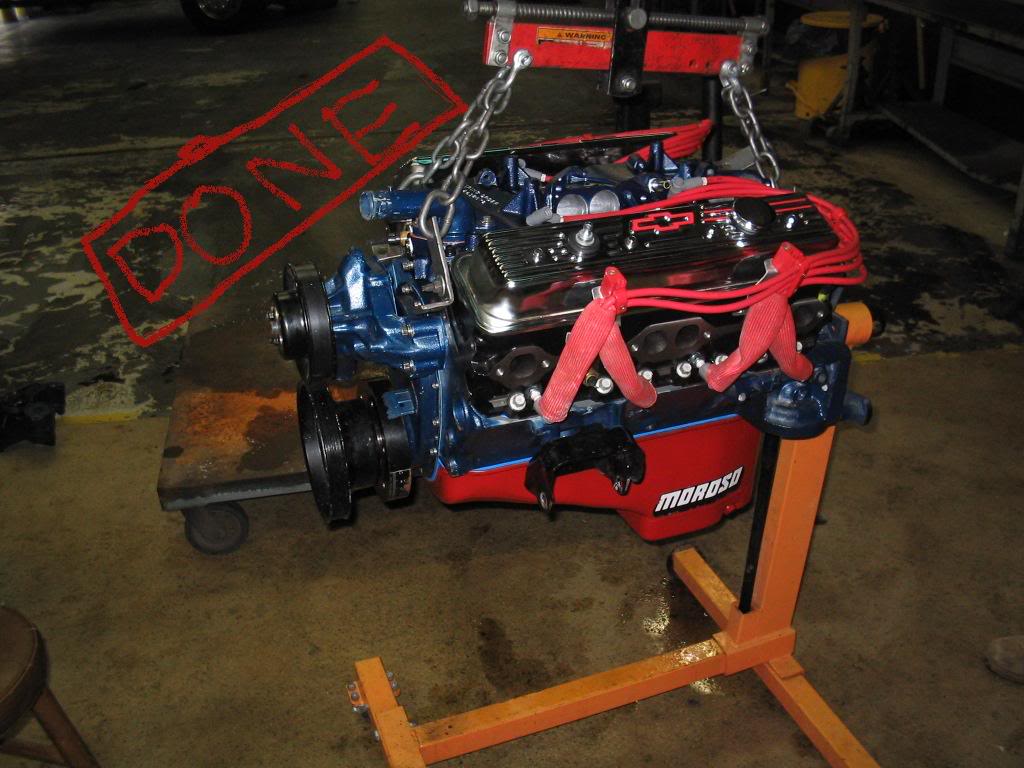

Monster Garage my way:
Name:  done.jpg
Views: 12
Size:  103.6 KB
Rosco the Iroc is offline   Reply With Quote
Old 03-14-2005, 12:11 AM   #2
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Looks DAMN nice. Great work!
willwren is offline   Reply With Quote
Old 03-14-2005, 12:34 AM   #3
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Lakeville, MN
Posts: 4,328
Thanks: 0
Thanked 1 Time in 1 Post
fantastic88 is on a distinguished road
Default

Mmmm.. rockers. That engine looks awsome. Are you going to butt dyno it?
fantastic88 is offline   Reply With Quote
Old 03-14-2005, 01:02 AM   #4
Senior Member
Posts like a Turbo

Join Date: Dec 2003
Location: Monroe, MI
Posts: 230
Thanks: 0
Thanked 0 Times in 0 Posts
1994ta is on a distinguished road
Default

Thats a really clean looking motor. Nice job!
1994ta is offline   Reply With Quote
Old 03-14-2005, 03:14 AM   #5
Senior Member
Posts like a Camaro

Join Date: Dec 2004
Location: Mankato MN.
Posts: 1,005
Thanks: 0
Thanked 0 Times in 0 Posts
Midnight Express is on a distinguished road
Default

Nothing looks better to a gear head like myself than a fresh engine.
props
Midnight Express is offline   Reply With Quote
Old 03-15-2005, 07:14 PM   #6
Senior Member
Certified GM nut

Join Date: Jun 2004
Location: Grand Haven, Michigan
Posts: 1,719
Thanks: 0
Thanked 0 Times in 0 Posts
beckstyle is on a distinguished road
Default

That'* hot. I wish I had the time, money, and space to do that. Too bad I'm still in school and it'* illegal to have an extra garage in my subdivision.
beckstyle is offline   Reply With Quote
Old 03-16-2005, 11:18 AM   #7
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

What kind of cam are you using in that Tuned Port motor? As well as the pistons are those .020 or .030 overbore and what kind of compression are you looking at?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-16-2005, 01:35 PM   #8
Sol
Senior Member
True Car Nut

Join Date: Sep 2002
Posts: 8,909
Thanks: 0
Thanked 0 Times in 0 Posts
Sol is on a distinguished road
Default

Looks great!

Looks like it was a lot fun to put that together too.
Sol is offline   Reply With Quote
Old 03-16-2005, 04:54 PM   #9
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Nov 2002
Location: Va Beach VA, Where ever I may Roam!
Posts: 773
Thanks: 0
Thanked 0 Times in 0 Posts
Rosco the Iroc is on a distinguished road
Default

Thanks I take great pride in my motors!
Yea it'* a LOT of $$$.
I'm building it at a auto hobby shop on my base. Basic idea is you can rent a flat stall for $2 and a frame lift stall for $3 a hr and work on your car in a full garage. My other thread about a small busness was to get info so I can open one of my own when I retire from the Navy in a few years.

The block is .030 over, ARP studs and windage trayName:  holes.jpg
Views: 11
Size:  37.3 KB
Crank is .010 balanced rotating ASM .

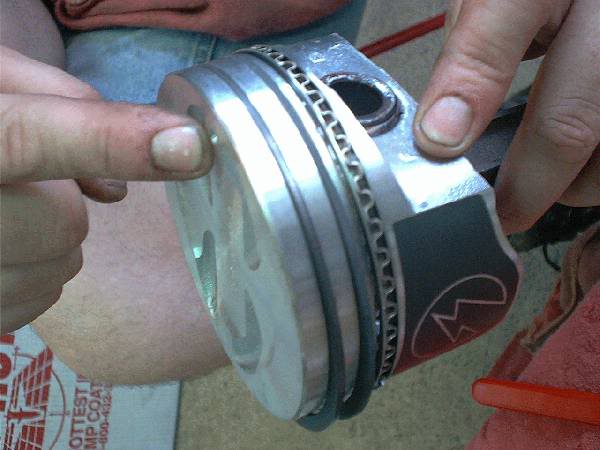

Pistons-Name:  piston.jpg
Views: 10
Size:  34.9 KB
Speed pro hypereutectic with side coating. With the block decked and 58cc Corvette heads I should of been 10:1 but I think I got a bit more, the Vortec heads I switched to are 64cc so I should be back down to around 9:6:1.

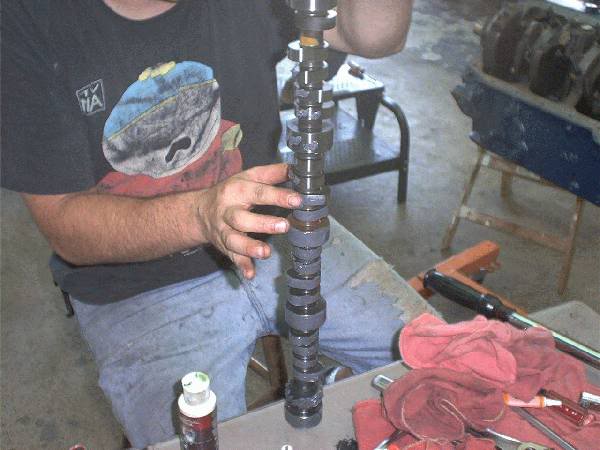

CAM-Name:  cam.jpg
Views: 11
Size:  38.7 KB
Crane PN#104224 Powermax 2032
Duration 214/220 lift 452/465 intake /ext
I'm using 1.6/1.5 Trick Flow full rollers
Also dbl roller timing chain. Steuart stage 2 water pump. MSD wires / coi l/ billet dist / 6AL box.
Jet-hot coated Edelbrock headers to a Catco high flow 3" cat and the new Flowmaster #" to the tips with a cross flow muffler cat back.
Induction: gutted MAF/52mm Holley TB, Ported/polished plem and Edelbrock runners.
LT1 injectors and adj fuel press reg, JET stage 2 chip.
Rosco the Iroc is offline   Reply With Quote
Old 03-16-2005, 04:58 PM   #10
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Very nice.... That cam will give you some nice power... Man you just have to love a 350... Drool... How about a sound sample when you get it fired up?

And I look at it this way... Stock L36 3800 II with 9.4 to 1 compression makes 205 Hp...

I would think you'd be in the 300hp range? And ideas how much power you will make?
