Old 05-30-2005, 10:07 AM   #11
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

That is absofrigginlutely cool!!!!!!!!

on the work and creativlty!!!!!!
dbeast420 is offline   Reply With Quote
Old 05-30-2005, 10:22 AM   #12
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by randman1
Nice job. Can you get a daytime shot of the monitor? I was considering a VIA mini-itx board for a car PC. Any thoughts on those??

DISCLAIMER: Im in the process of building this into the dash (see progress below) im putting the screen where the A/C controls were and moving the radio down a bit to accomodate

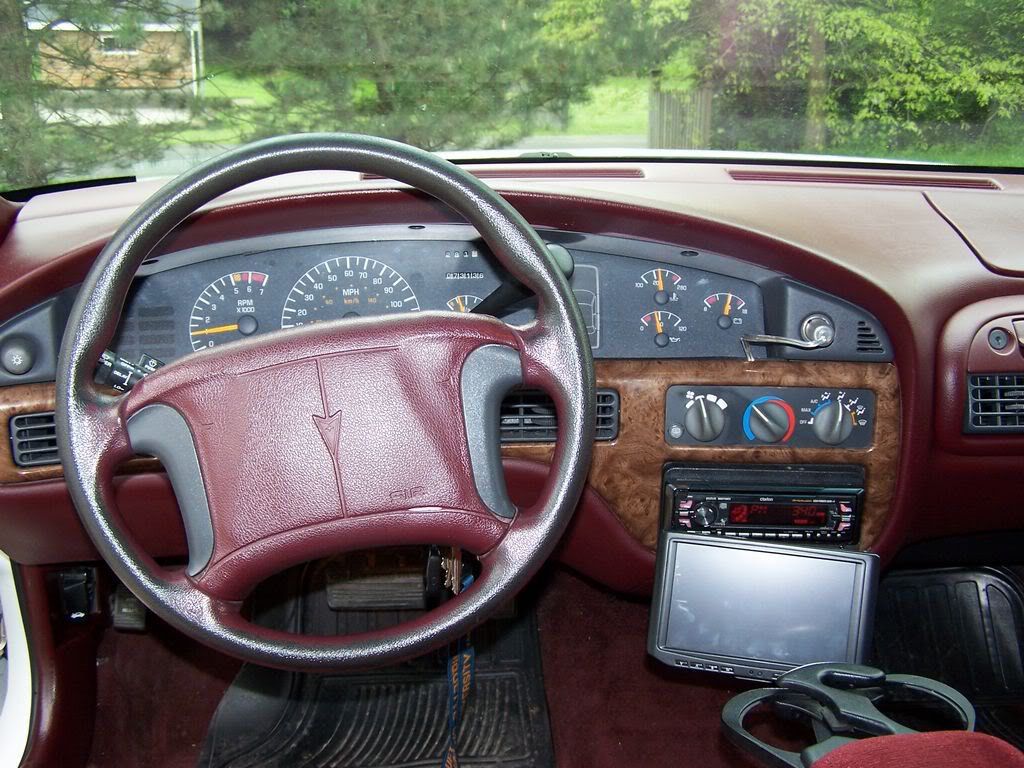

Here is the screen hung. There is no toolbox computer there either (ill get some updated later today after the parade)
Name:  100_0325.jpg
Views: 0
Size:  155.7 KB
bmsgaffer86 is offline   Reply With Quote
Old 05-30-2005, 10:32 AM   #13
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Looks good so far. Keep takin' pics of your progress. You have the more difficult dash... not as much room as those of us that have consoles. It ought to be a challange.

My 90 has a similar setup and I've thought of a screen in there. Where are you going to relocate the climate control? If you need to extend the vacuum lines, I can help you out.
randman1 is offline   Reply With Quote
Old 05-30-2005, 10:58 AM   #14
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by randman1
Looks good so far. Keep takin' pics of your progress. You have the more difficult dash... not as much room as those of us that have consoles. It ought to be a challange.

My 90 has a similar setup and I've thought of a screen in there. Where are you going to relocate the climate control? If you need to extend the vacuum lines, I can help you out.
First Idea- it is going to be mounted in place of my ashtray (it seems to fit OK in that spot)

Second Idea- convert my car to electronic climate control (i knw exactly HOW to do it, bit DOING it is quite a daunting task)

Third Idea - use the vacuum solenoids that come in the electronic climate control to computer control it.
bmsgaffer86 is offline   Reply With Quote
Old 05-30-2005, 11:29 AM   #15
Senior Member
True Car Nut

Join Date: Feb 2004
Location: Western MA
Posts: 2,708
Thanks: 0
Thanked 1 Time in 1 Post
randman1 is on a distinguished road
Default

Yea, yuck, yuck... in that order for me. I considered moving mine to the left in place of the vent just to the right of the steering colimn. That might be difficult to operate on your car with the column shifter though.

If you convert to ECC, consider surface mounting ONLY the control panel face and extending the wires to the chassis of the control head which can be mounted damn near anywhere. I've had mine apart and there is only a ribbon cable with about 8 wires that connect the face with the chassis. Heck, you could probably mold the face right into the dash trim. Hmmmm.....
randman1 is offline   Reply With Quote
Old 05-30-2005, 12:23 PM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I'm liking it..love what I'm seeing and hearing...

But you guys are outta control...lol

How soon before BONNIE picks you up at the front door?
BillBoost37 is offline   Reply With Quote
Old 05-30-2005, 01:06 PM   #17
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Hrm... Ideas in my head... and a spare bonneville with which to try them... hrm... now for the money.

I like the setup. I'm interested to know the makes and models of the equipment you bought and where you bought it from. I have been contemplating this for a while (mostly when I was looking for a suburban and with the Regal) I was also looking at the Via boards like Randman.
JimmyFloyd is offline   Reply With Quote
Old 05-30-2005, 01:59 PM   #18
Junior Member

Join Date: May 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
SSEi95 is on a distinguished road
Default

How do you plan on having it control door locks, windows, etc? I've been contimplating turning my seat controls, door locks, windows, etc... all over to a small (maybe 4") touchscreen control in place of where the seat sontrols normally are. Is there some sort of programable PC controller that can use relays you have in mind?
SSEi95 is offline   Reply With Quote
Old 05-30-2005, 07:28 PM   #19
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

How did you connect the OBD 2 connector to the computer?And isn't the 1994 and 1995 the weird year for the pcm?
OLDsman105 is offline   Reply With Quote
Old 05-30-2005, 11:26 PM   #20
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

94 is still OBD1. 95 is when it changed. I am interested in the Door lock question as well.
