Old 01-31-2013, 11:27 AM   #61
Member
Posts like a V-Tak
Thread Starter

Tricked-T's Avatar

Join Date: Apr 2008
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
Tricked-T is on a distinguished road
Default

So I am finally getting back to my T and this site! It has been some time since I have done any work to it. Life kinda got hectic and it had to be put on hold. Currnetly balancing time and $$ between the T, fixing my bike from the wreck, and my daily Lincoln LS.

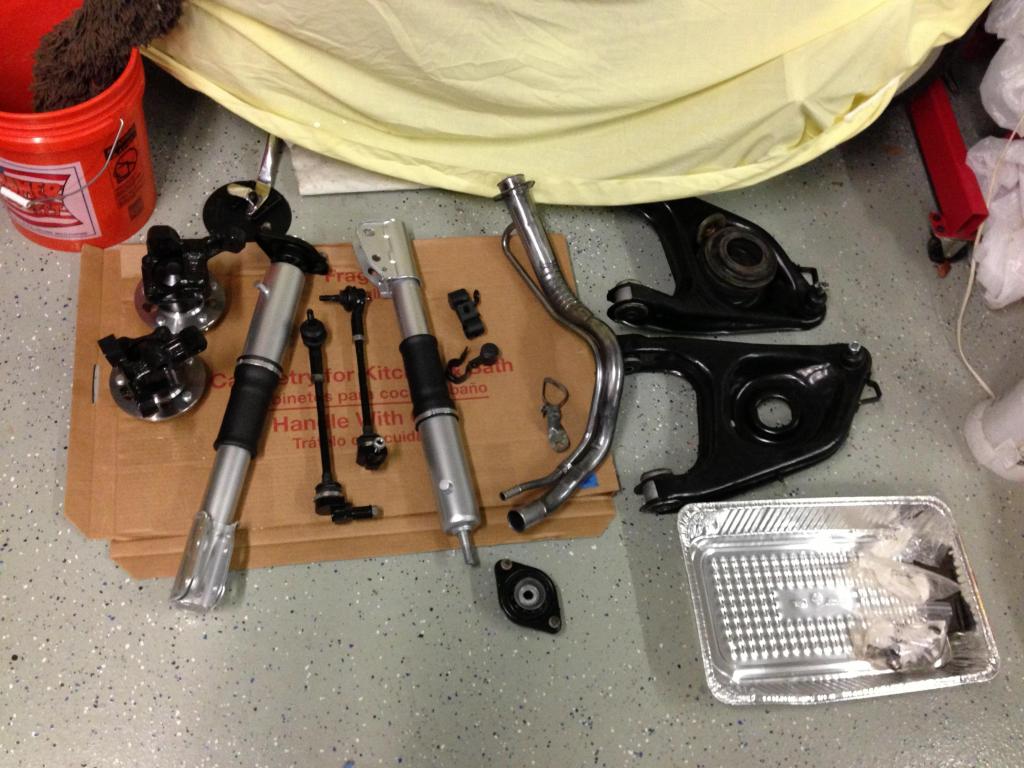

Anyway this is this weekends project:
Wire in fuel pump, and install gas tank and filler.
Install A-arms, rear sway, rear struts and springs.

I am still figuring out the rear disc conversions (hoping George gets back to me)

Current hiccup is that I have seemed to mis place the large nuts that bolt the strut to the strut mount, anyone have any laying around I could get?


I hope to have more frequent updates soon.
Attached Thumbnails
L67 Lesabre T-type-photo_zpsd7a5d035.jpg
Tricked-T is offline   Reply With Quote
Old 01-31-2013, 11:41 AM   #62
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you are supposed to get new ones every time, they should have came with the struts
jwfirebird is offline   Reply With Quote
Old 01-31-2013, 12:26 PM   #63
Member
Posts like a V-Tak
Thread Starter

Tricked-T's Avatar

Join Date: Apr 2008
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
Tricked-T is on a distinguished road
Default

I did and I have lost them or temp misplaced them... As organized as I have been it is missing
Tricked-T is offline   Reply With Quote
Old 01-31-2013, 12:34 PM   #64
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

everybody throws the old ones out, i had a strut not come with one, and i went around looking for one at the hardware store, parts stores, ended up going back to the place i bought it from and opening up other ones for the nut, which is probably what happened to mine. aside from the dealer or going to a junk yard i cant think of anywhere
jwfirebird is offline   Reply With Quote
Old 01-31-2013, 03:49 PM   #65
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I'm glad to see this project is back on! I wouldn't get a used one from a junkyard if I already have to buy new parts, but I've reused those nuts and bolts without much happening. The torque spec is something like 160 ft-lbs, so I assumed it should all hold. You're talking about the huge bolt with the splines on its shaft, right?
radomirthegreat is offline   Reply With Quote
Old 02-02-2013, 11:57 PM   #66
Member
Posts like a V-Tak
Thread Starter

Tricked-T's Avatar

Join Date: Apr 2008
Posts: 78
Thanks: 0
Thanked 0 Times in 0 Posts
Tricked-T is on a distinguished road
Default

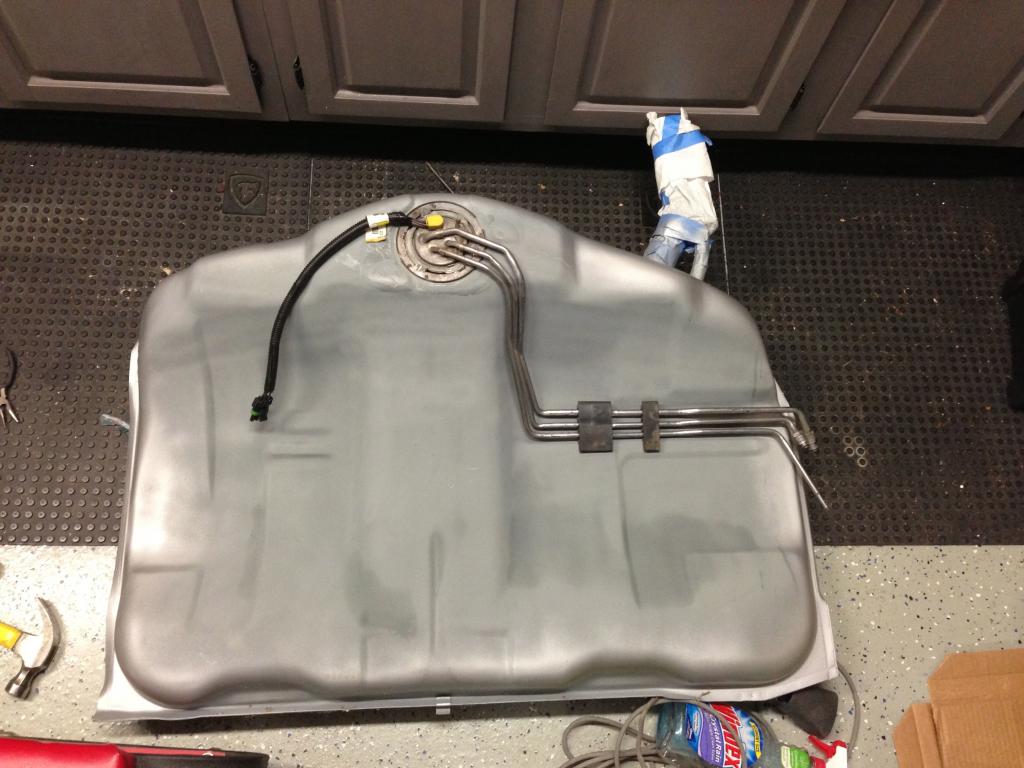

I got a little more done this evening on the T. I finished wiring in the new weatherpack connectors so that I can run the grand national fuel pump hot wire kit. I also got the pump all assembled and put in the tank and the tank is ready to install tomorrow. I hope to have the tank and lower control arms and possibly the struts all installed tomorrow. Here are some pics from this evening:

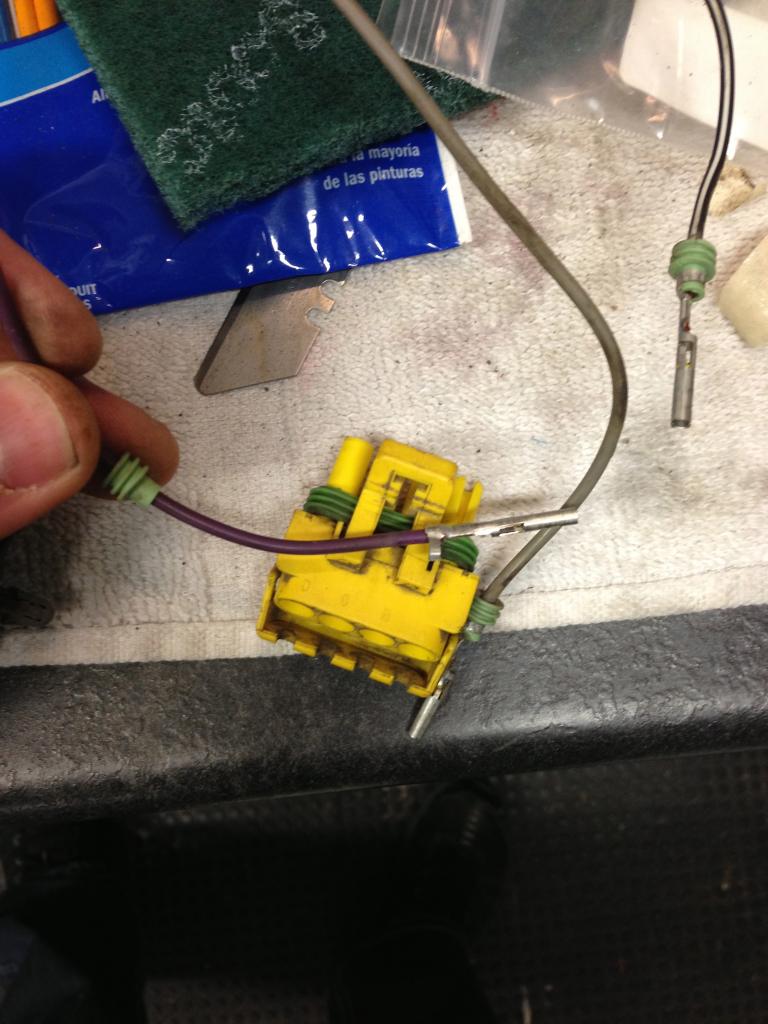

Taking apart the weather packs:

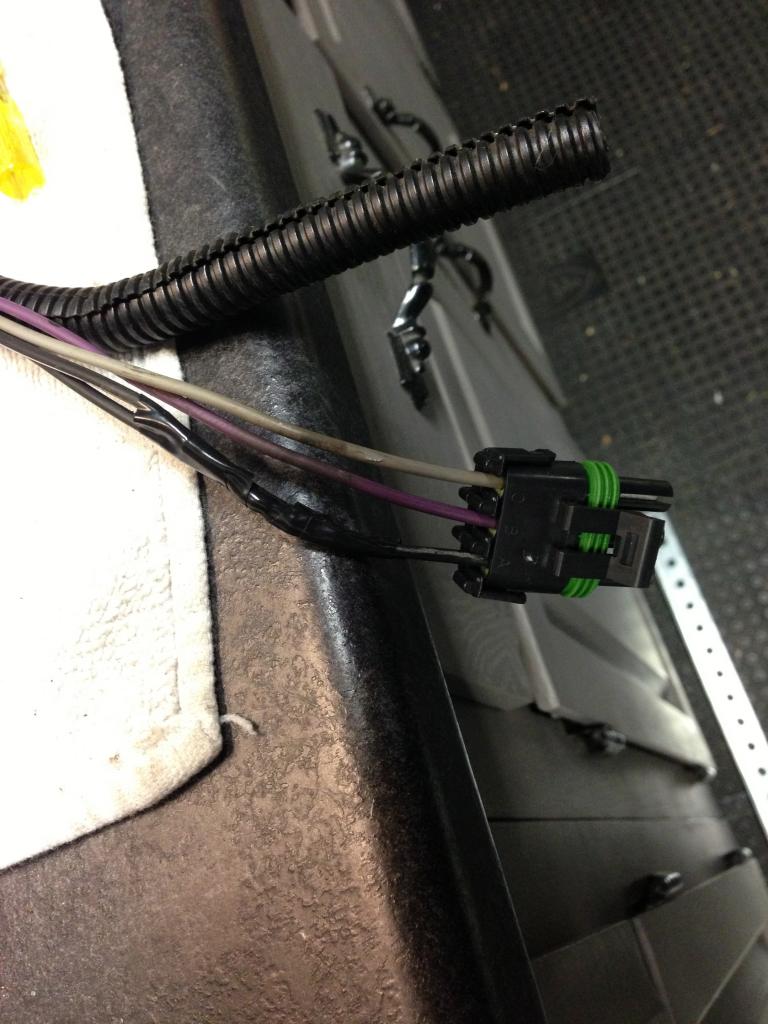

installing the new connection on the body harness:

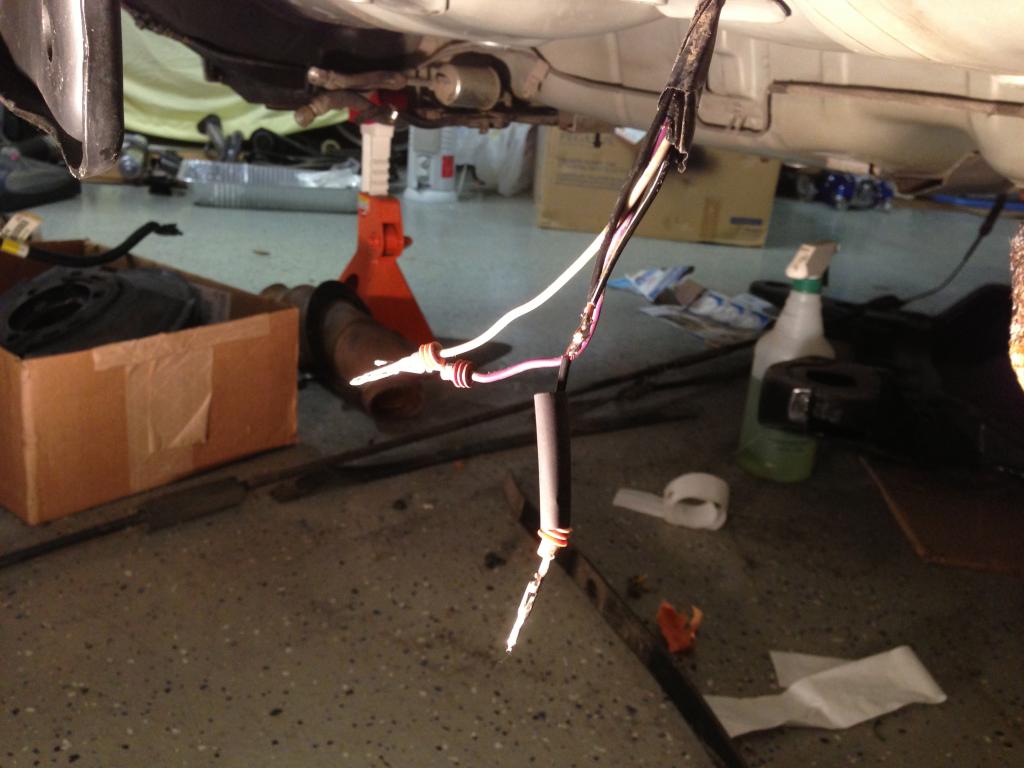

installed the new connection on the body harness:

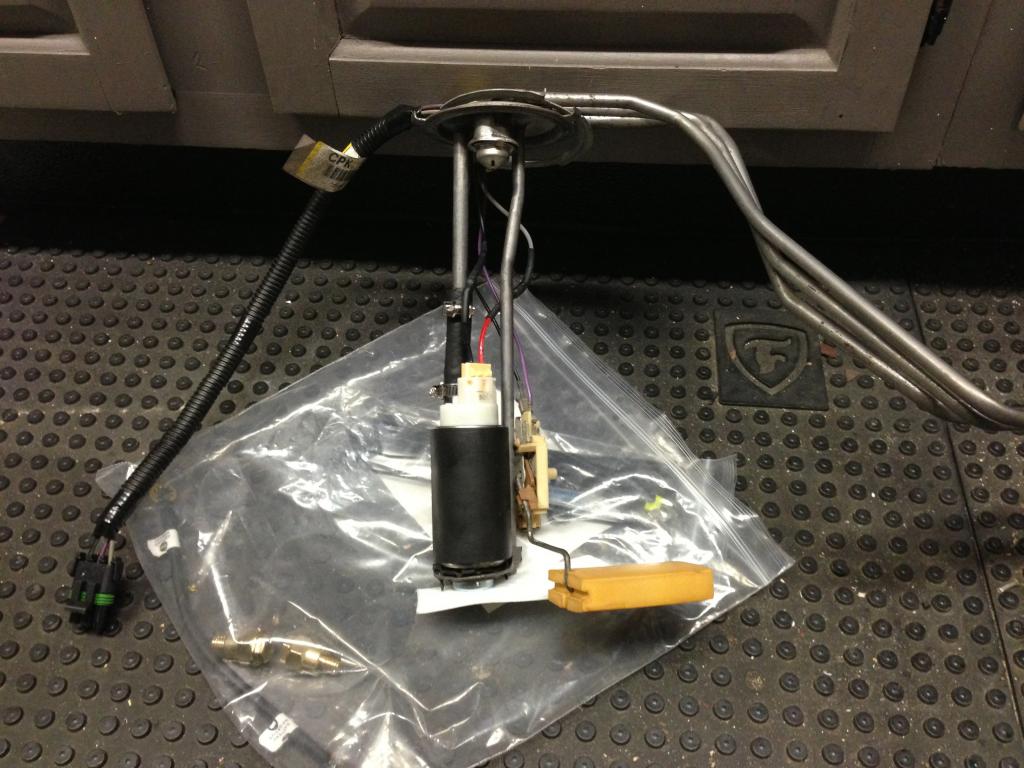

Fuel pump in the tank ready to go:


In order to use the GN hot wire kit which provides more voltage and more consistent voltage to the pump I had to go from a 4 port weather pack connection to a 3 port. On the Lesabre there are 2 grounds. One for the sending unit and another for the pump. I just combined them. Oh dont worry the heat shrink in on the pump connection that will be in the tank is gasoline safe. Now on to the next step...
Attached Thumbnails
L67 Lesabre T-type-weatherpack1_zps8874a8c5.jpg   L67 Lesabre T-type-newfuelharness_zpseafcc943.jpg   L67 Lesabre T-type-fuelpump_zps25bf1196.jpg   L67 Lesabre T-type-bodyweatherpackfuelharness_zps48e4569e.jpg   L67 Lesabre T-type-0d87ea4a-800f-4e2e-b97c-c743ea3b1771_zpsb3b58ec0.jpg

Tricked-T is offline   Reply With Quote
Old 09-28-2014, 02:08 AM   #67
Member
Posts like a V-Tak

GM-Ryder's Avatar

Join Date: Jun 2014
Location: Maryland
Posts: 66
Thanked 1 Time in 1 Post
GM-Ryder is on a distinguished road
Default

Would Like Someone to Help Me Make This Swap That I've been Wanting to Do. SmH
Its a Dodge Though.
GM-Ryder is offline   Reply With Quote
Old 09-28-2014, 09:30 AM   #68
Senior Administrator


Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,641
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Quote:
Originally Posted by GM-Ryder View Post
Would Like Someone to Help Me Make This Swap That I've been Wanting to Do. SmH
Its a Dodge Though.
It would be better for you to start your own thread instead of someone else'*.
Mike is offline   Reply With Quote
