Default Got around to changing my coupler (with Pics, 56k warning!)

Oldsman and I finally got around to changing the coupler. It wasn't as hard as we thought at first, but it was an interesting experience after all. First thing we noticed is that the casing for the injectors was melted. When we took of the supercharger belt we were shocked by the amount of play the pulley had which gave us an idea of how shot the coupler was. Before we lifted the supercharger we noticed that the supercharger gaskets had a fold that was at plain view. We figured this may be the cause to the high idle the car is having, but after all the work it seems it was not. When we finally lifted the supercharger we saw that the gasket had been cooked off and only small pieces of gasket were left. One of the O-rings was also miss-shapen. The insides of the spercharger were all black covered in gunk.

Here are some pics of the supercharger when we got it off.

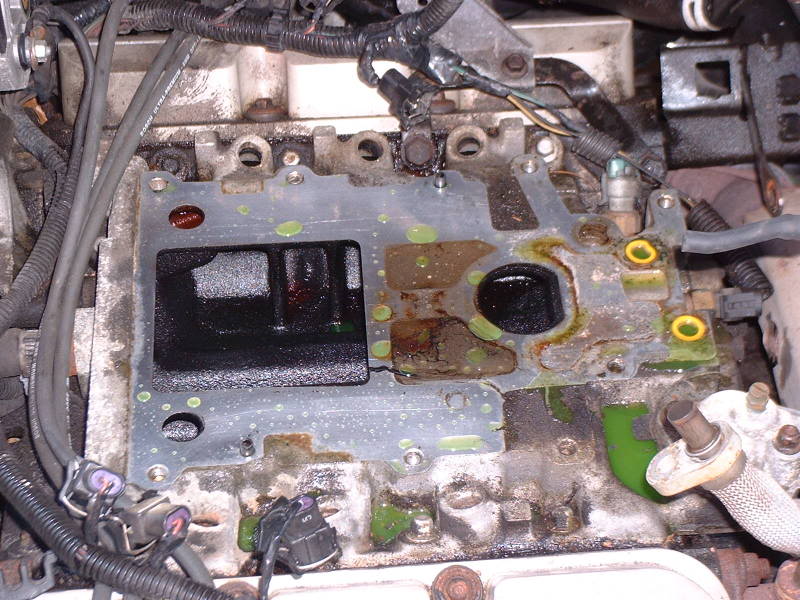

This is what we saw when we just got the supercharger off
Name:  DSCF0001.jpg
Views: 0
Size:  102.0 KB

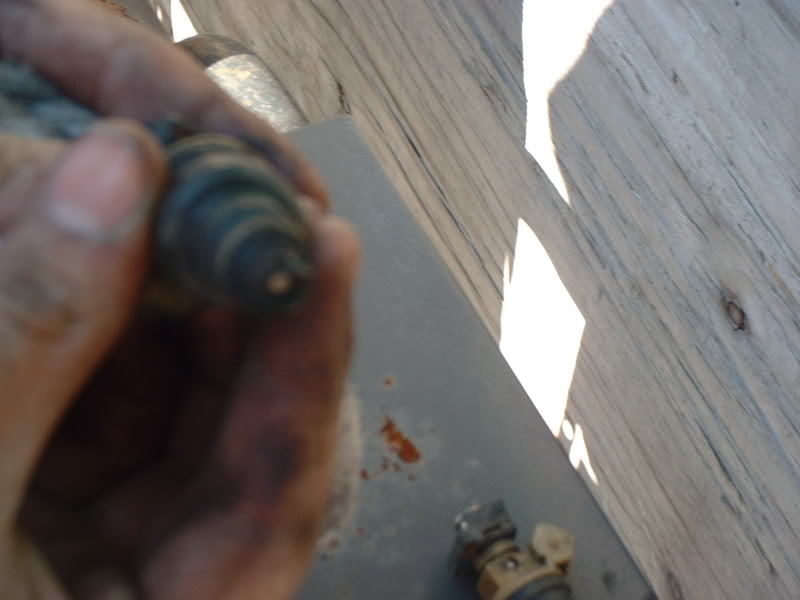

Part off the casing for the injectors was melted. The car problably had detonation issues.
Name:  DSCF0003.jpg
Views: 0
Size:  43.8 KB

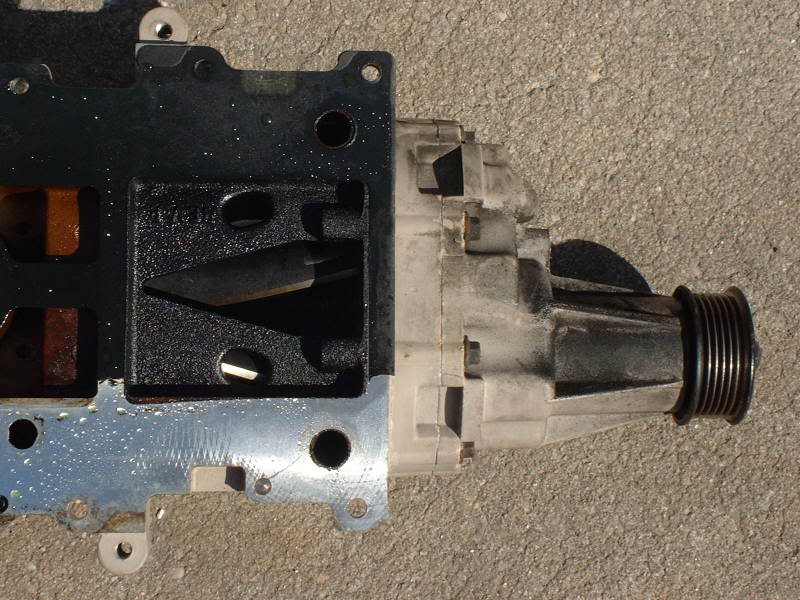

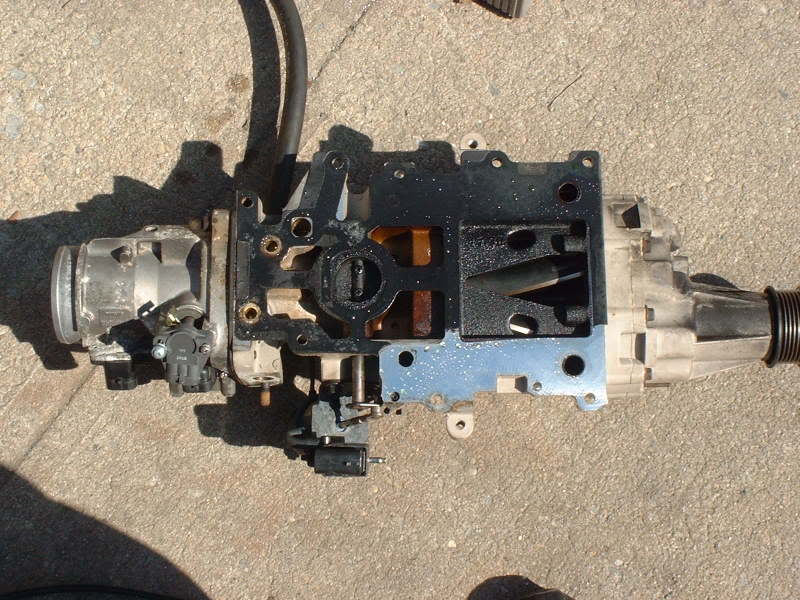

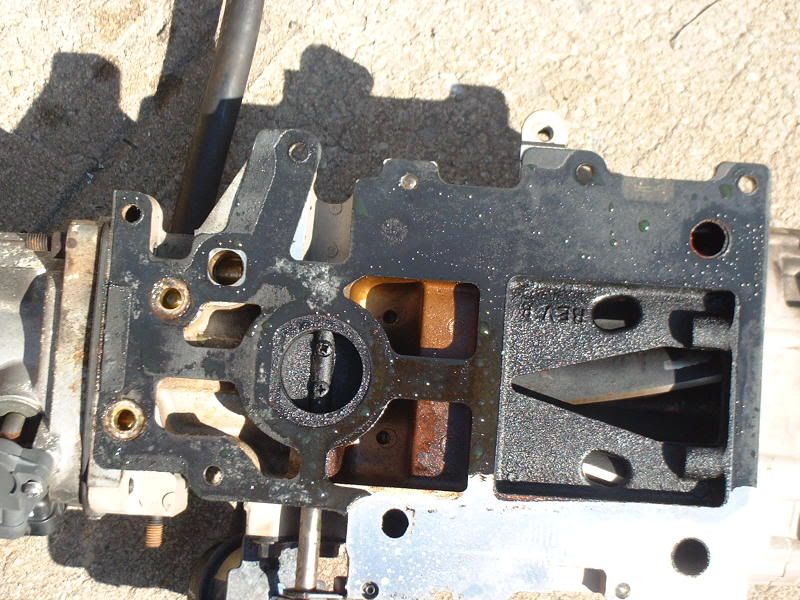

The dirty supercharger insides
Name:  DSCF0005.jpg
Views: 0
Size:  91.3 KB
Name:  DSCF0006.jpg
Views: 0
Size:  99.5 KB
Name:  DSCF0007.jpg
Views: 0
Size:  89.9 KB

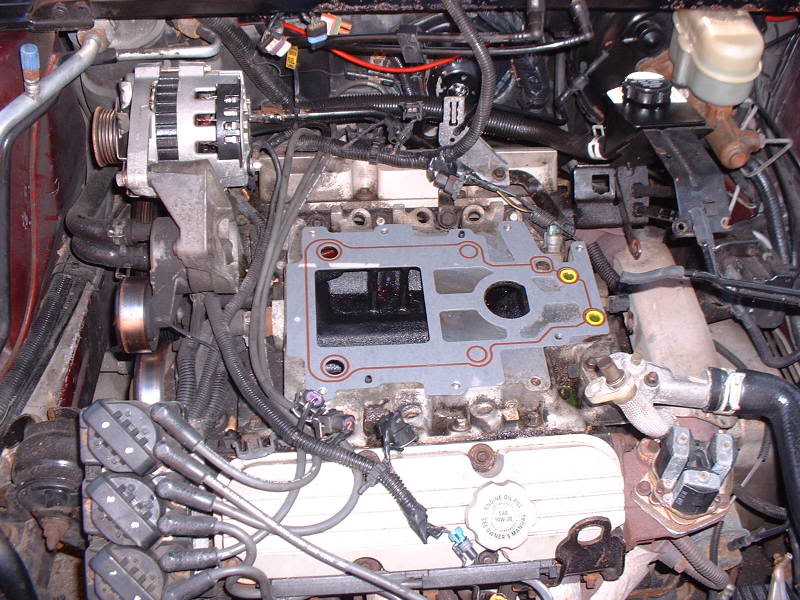

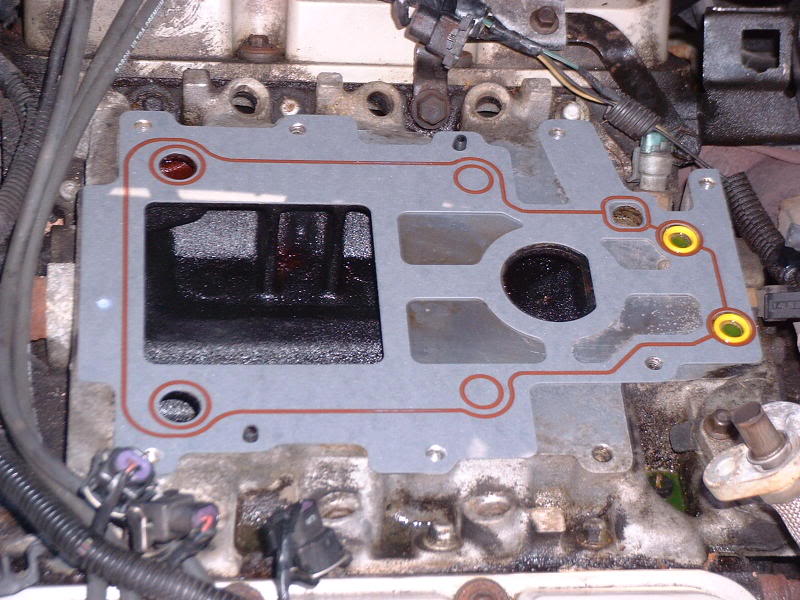

Once we were done with some clean up and a new gasket
Name:  DSCF0011.jpg
Views: 0
Size:  105.0 KB
Name:  DSCF0012.jpg
Views: 0
Size:  94.5 KB

It was a good experience and now we are going to do this process for Oldsman'* Riviera since he found that his coupler does have some play.
Buickman104 is offline   Reply With Quote
Old 04-05-2006, 03:14 AM   #2
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

I think you should have posted this in Forced induction. Damn you didn't take a picture of the old coupler .
OLDsman105 is offline   Reply With Quote
Old 04-05-2006, 04:14 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Admins I am sorry if I posted this on the wrong topic.

Oldsman I left the original coupler in the trunk of the car. We should be a ble to take pictures next time we stop by the car.
Buickman104 is offline   Reply With Quote
Old 04-05-2006, 08:46 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

It fits here just as well.
willwren is offline   Reply With Quote
Old 04-05-2006, 08:50 AM   #5
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If you want a picture of a coupler I've got some. First time I saw one I said "That'* a coupler"...
BillBoost37 is offline   Reply With Quote
Old 04-05-2006, 12:36 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Thanks guys. The reason that Oldsman wanted a picture of the coupler was due to how shot it was. When we check to see how much play there was it felt as if there was no coupler there to begin with. Then when we got to the coupler it just fell right out. The holes on the coupler were not only oval the actual material from the coupler was chipping off!
Buickman104 is offline   Reply With Quote
Old 04-06-2006, 07:14 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2006
Location: NY
Posts: 400
Thanks: 0
Thanked 0 Times in 0 Posts
Buickman104 is on a distinguished road
Default

Do you guys think that running seafoam through the car will help get that black gunk in the supercharger and the rest of my engine? Any imput would be appreciated.
Buickman104 is offline   Reply With Quote
