Mar 23, 2006 | 02:23 PM

#21

BillBoost37

DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005

Posts: 41,391

Likes: 30

From: Enfield, CT

BillBoost37 is a glorious beacon of light

I mean the blue led'* you are installing. Or I thought you were. ???

Mar 23, 2006 | 02:29 PM

#22

harofreak00

Thread Starter

BANNED

Joined: Mar 2004

Posts: 0

Likes: 5

From: Purgatory

the only blue LED in the radio is the theftlock... installed that last time i had it apart

i have it apart not to see why half of the screen wasnt working... im guessing it was that one bad wire..

Mar 23, 2006 | 02:34 PM

#23

harofreak00

Thread Starter

BANNED

Joined: Mar 2004

Posts: 0

Likes: 5

From: Purgatory

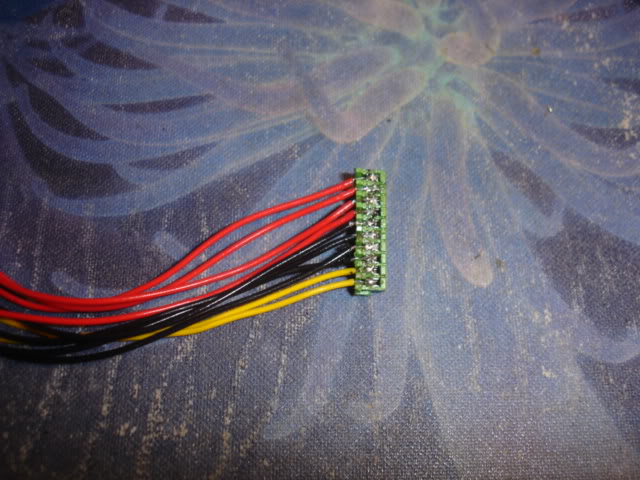

it also looks like they are not made to go in without a special crimper.. i improvised and soldered them in there

Name: DSC00630.jpg
Views: 34
Size: 68.1 KB

Name: DSC00630.jpg
Views: 34
Size: 68.1 KB

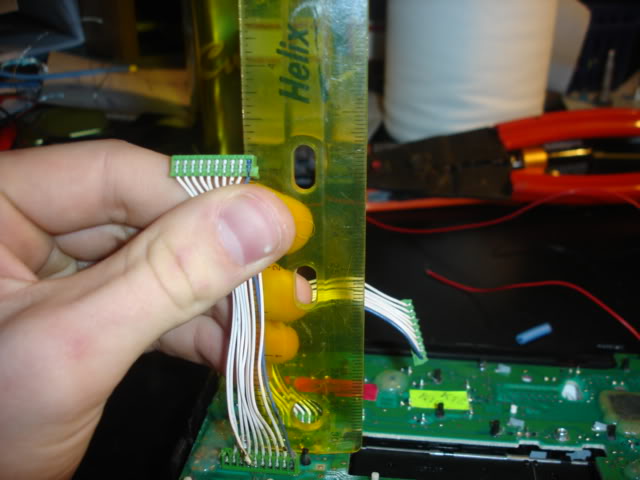

3 inches

Name: DSC00623.jpg
Views: 30
Size: 43.5 KB

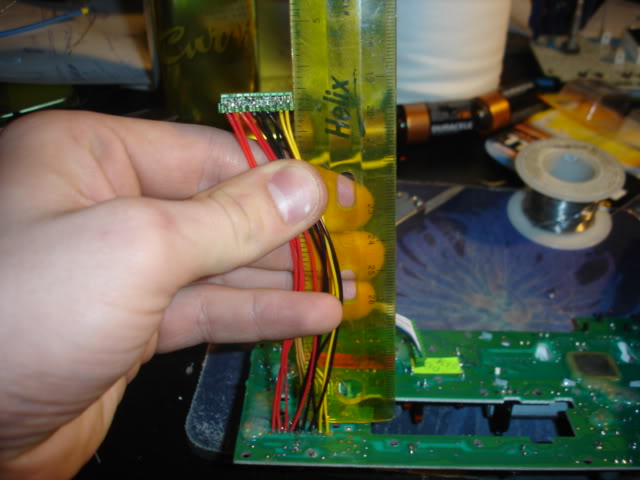

to 4 inches
Name: DSC00631.jpg
Views: 33
Size: 44.3 KB

Mar 23, 2006 | 03:12 PM

#24

harofreak00

Thread Starter

BANNED

Joined: Mar 2004

Posts: 0

Likes: 5

From: Purgatory

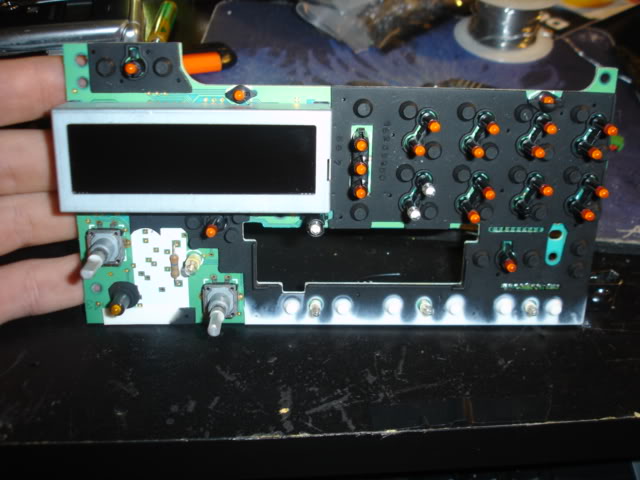

WELL... i installed new blue LED'* in 2 of the 3 bad spots shown here
Name: DSC00632.jpg
Views: 32
Size: 50.0 KB

they dont work... neither does the display screen.. same as before...

there are 3 bulbs behind the screen, 1 of them works, 2 of them dont

at least i have the wires longer so i can keep taking it apart easier :*

Mar 23, 2006 | 03:34 PM

#25

BillBoost37

DINOSAURUS BOOSTUS

Expert Gearhead

Joined: Mar 2005

Posts: 41,391

Likes: 30

From: Enfield, CT

What do you need help with?

Mar 23, 2006 | 03:47 PM

#26

harofreak00

Thread Starter

BANNED

Joined: Mar 2004

Posts: 0

Likes: 5

From: Purgatory

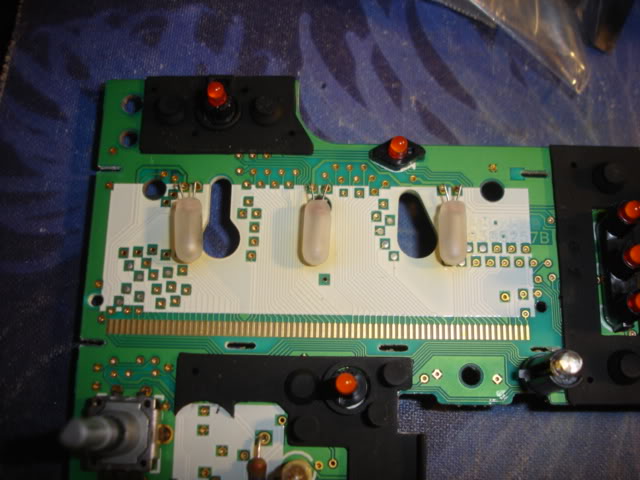

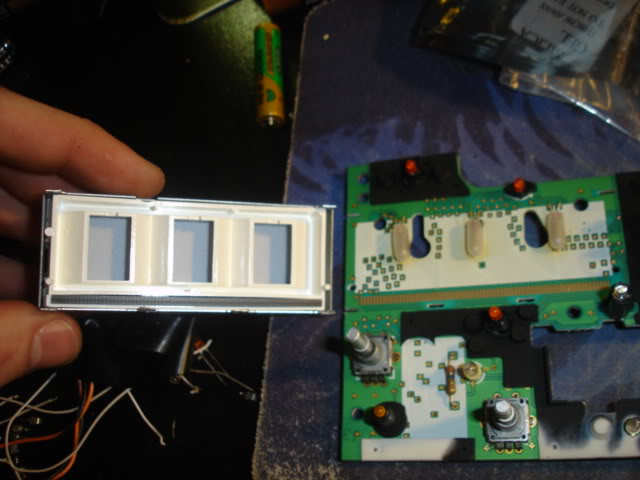

ummm im not really sure.. at this point right now.. ordered these replacement bulbs

Name: DSC00635.jpg
Views: 29
Size: 42.8 KB

Name: DSC00634.jpg
Views: 31
Size: 54.2 KB

Mar 23, 2006 | 03:48 PM

#27

GXP Venom

Administratus Emeritus

Certified Car Nut

Joined: Jan 2006

Posts: 16,539

Likes: 18

From: Purgatory, Pennsylvania

WOW! Tech pics, I feel comfy w/Soldering iron but hate tearing into newer dashs and components. I always seem to snap little plastic pieces that cant be fixed. and now that I see this

........red lites arent so bad, I can live with red.....Good luck Harofreak and keep us visually informed.

Mar 23, 2006 | 03:50 PM

#28

harofreak00

Thread Starter

BANNED

Joined: Mar 2004

Posts: 0

Likes: 5

From: Purgatory

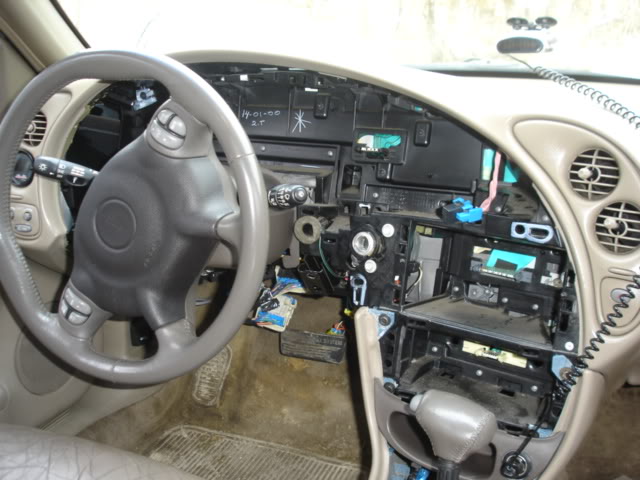

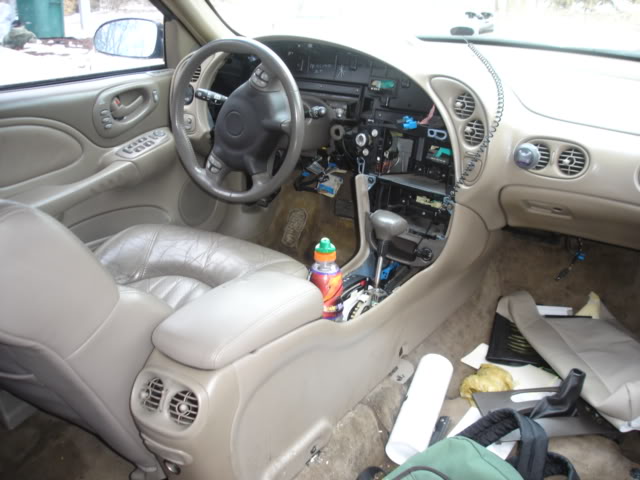

pat requested this shot

Name: DSC00638.jpg
Views: 31
Size: 50.0 KB

Name: DSC00639.jpg
Views: 31
Size: 59.1 KB

Mar 23, 2006 | 04:16 PM

#29

Darrel

Guest

Posts: n/a

Quote:

Originally Posted by harofreak00

Umm... you're missing a seat there...

and HOLY COW! i don't know if i could/would take the dash that far apart... might have a few extra parts when done.
