Default 00+ Center Tail light up??

you bet your ***...

yes folks im at it again. I finally completed a project that i have been wanting to finish for over a year. Even since i have gotten the car back in 05, my Dad and i thought that the center should be illuminated. I did my research, and put a plan in place. The Caddy Catera from the Mid 90'* had the center section of the Tail lights light. Low and behold i found a few in the JY, and the rest is history.....

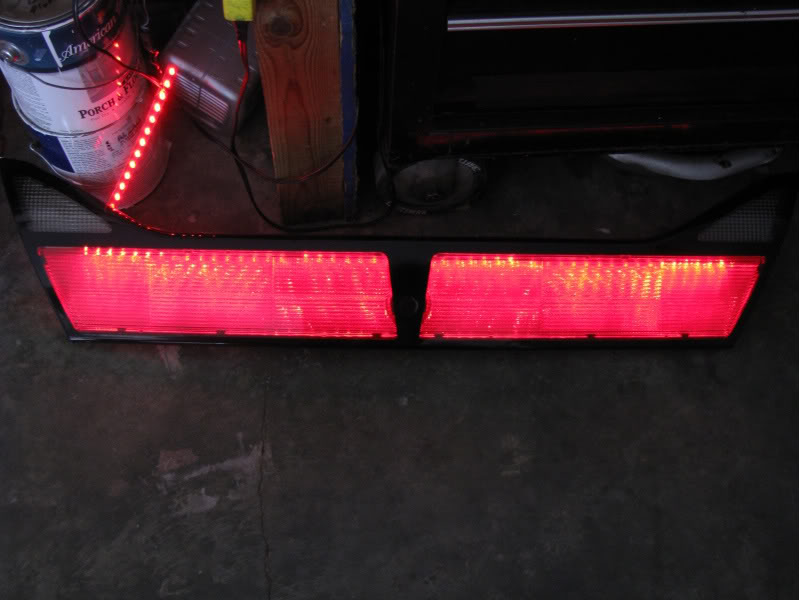

NO flash
Name:  IMG_0390.jpg
Views: 13
Size:  57.2 KB

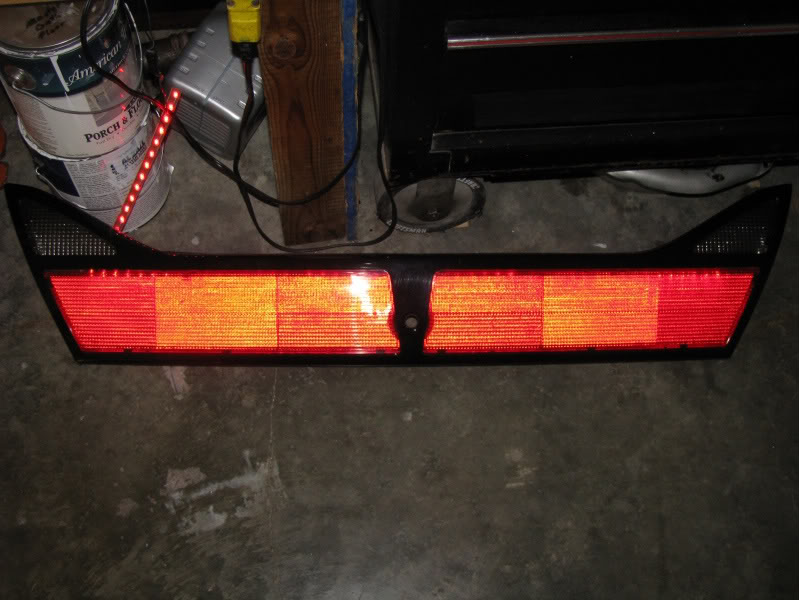

FLASH
Name:  IMG_0391.jpg
Views: 15
Size:  77.2 KB

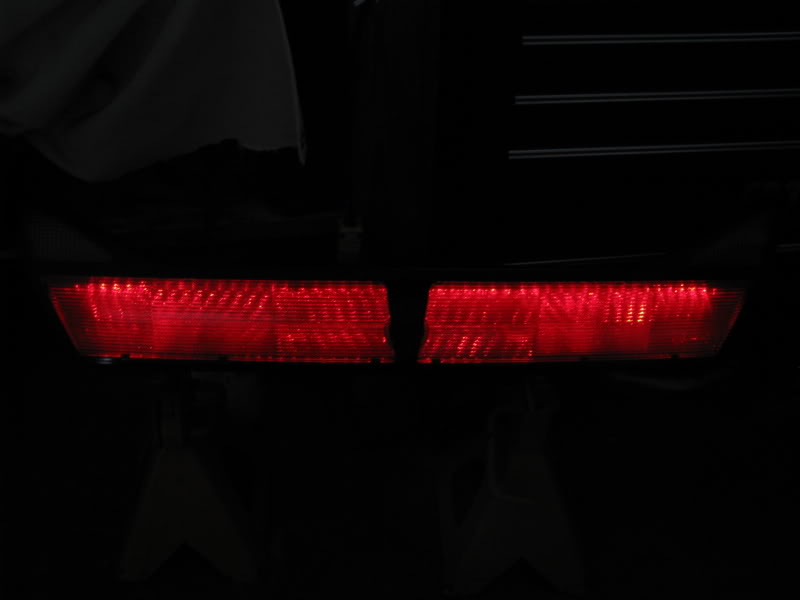

Dimmed down
Name:  IMG_0392.jpg
Views: 10
Size:  25.6 KB

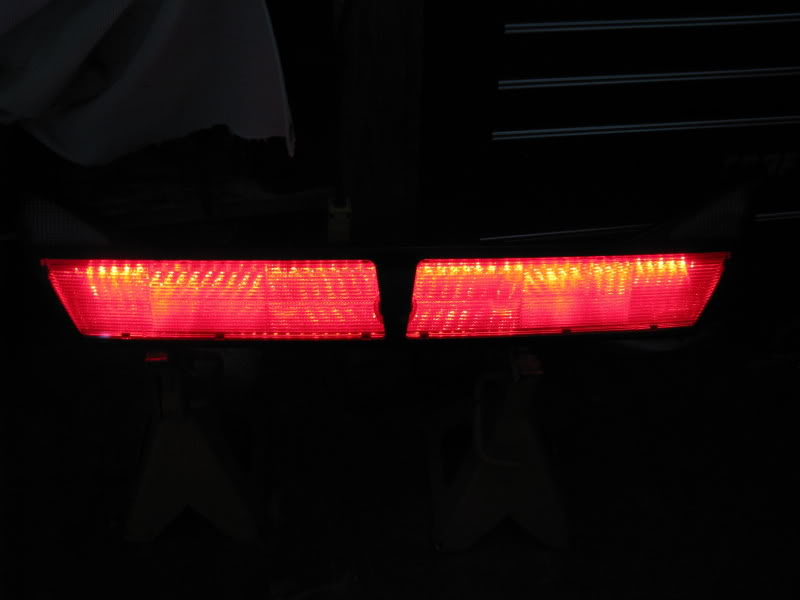

Final Product, not installed
Name:  IMG_0393.jpg
Views: 10
Size:  33.6 KB

The camera looks as there are patterns of light in the tail, this is not the case, its a solid glow

I have to decide if i want to do it so that it works on the brake lights, or just on the parking lights

should be on the car soon, its gonna be crappy this week all i have to do is run the wiring up into the trunk lid
1993 SLE is offline   Reply With Quote
Old 05-04-2009, 09:16 PM   #2
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

very nice Pat, I might have to make an attempt at that lol, how long and how many LED strips are there? and how are the strips mounted?

one more thing, how are the projectors coming?
crunkfrunk is offline   Reply With Quote
Old 05-04-2009, 11:59 PM   #3
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Nice job Pat! That'* just what the center trunk piece needed!
Purplehazeir is offline   Reply With Quote
Old 05-05-2009, 09:10 AM   #4
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by crunkfrunk View Post
very nice Pat, I might have to make an attempt at that lol, how long and how many LED strips are there? and how are the strips mounted?

one more thing, how are the projectors coming?
the LED strips are from the Cadillac Catera'* center taillight

and the projectors are coming along, having a difficult time getting things ligned up correctly, so its alot of 2 steps forward, one back
1993 SLE is offline   Reply With Quote
Old 05-06-2009, 11:21 AM   #5
Senior Member
Posts like a Camaro

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

Must take some balls tearin into a gxp center peice tail. Looks great, I forget what the caterra'* look like at night, I'll have to keep my eye out for one.
Can't wait to see finish product.
looong4 is offline   Reply With Quote
Old 05-06-2009, 11:42 AM   #6
Senior Member
Posts like a Northstar

Nobotada84's Avatar

Join Date: Apr 2009
Location: Indianapolis, Indiana
Posts: 699
Thanks: 0
Thanked 0 Times in 0 Posts
Nobotada84 is on a distinguished road
Default

Not to piggy back on Pat'* thread but does anyone know if you can buy individual LED strips?
Nobotada84 is offline   Reply With Quote
Old 05-07-2009, 07:11 PM   #7
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ya i actually have 2 complete sets of the GXP Tails, One Set will be for sale now

and the Catera
1993 SLE is offline   Reply With Quote
