Default Transgo Shift Kit 4T65E

Since I have a 2006 Grand Prix GT with Supercharger, I have the 4T65E-HD transmission, will this same shift kit work for my transmission?
I am considering installing it when I do my pan drop and fluid change for the 2nd time.

http://www.amazon.com/Transgo-T84167...3170809&sr=1-1

I found a good write up on the grandprix forums, I am pretty sure we have one as well, I'll have to look for it, unless somebody already has the link on hand..
WilliamE is offline   Reply With Quote
Old 05-13-2016, 10:23 PM   #2
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

That GP forums post is good!
Dan has a write up, but I found one of my reply posts with directions that shows spacer placements etc...
https://www.gmforum.com/2000-2005-90...-4t65e-306901/
INTENSE™ Street/Strip Shift kit does indicate works for both 4T65E and 4T65E-HD Transaxles .
Soft Ride is offline   Reply With Quote
Old 05-14-2016, 12:09 AM   #3
Senior Member

True Car Nut
Thread Starter

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,087
Thanked 418 Times in 376 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Yeah it is, I'll most likely use it if I get the kit.
I am pretty sure that INTENSE Shift kit is exactly the same as the TransGo one, the TransGo one I think comes with harder spacers, unlike the ones with the INTENSE kit, at least that is what it sounded like.

On the instructions page, the pic says something about a rubber grommet needing installation, I am wondering if that really has to be done?
I don't see any write-ups mentioning that it needs to be done...
And the spacers, I wonder why in that thread Mike makes his own spacers.
Is that for people that do not want to install the TransGo kit?
I ask because the TransGo Kit says it comes with all you need...

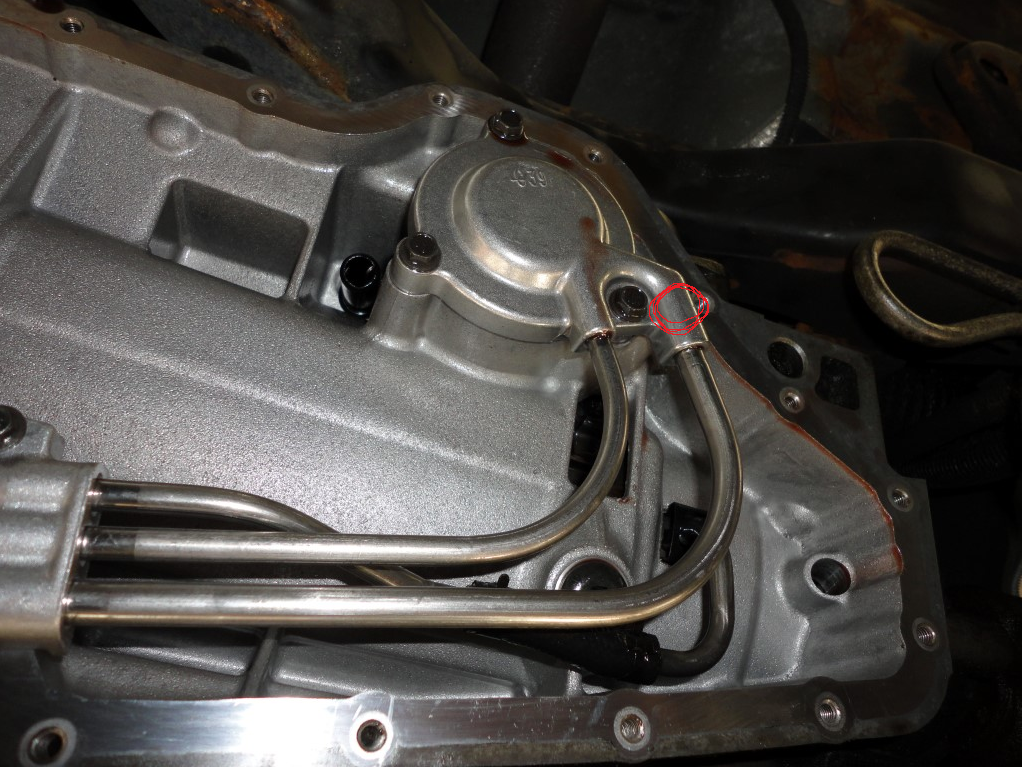

Attaching a pic of where it says that rubber grommet goes..
Attached Thumbnails
Transgo Shift Kit 4T65E-trans-grommet-area.png
WilliamE is offline   Reply With Quote
Old 05-14-2016, 01:15 PM   #4
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,586
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

The idea of making spacers was in belief that the spacers alone (without the spring kit) would solve the hard shifts/code, and did seem alone to fix the issue.
The rubber grommet hmmm, been a while since I did the work but, I think my interior grommet was fine without replacement.
Soft Ride is offline   Reply With Quote
