Default Supercharger generations

How can you tell by looking at an m90 supercharger what generation it is? I have one from a park avenue but I don't know what year it was. It is slightly different than the one on my Bonne.
buffstuffbuddha is offline   Reply With Quote
Old 04-25-2012, 10:00 AM   #2
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

My bonne is a 2002
buffstuffbuddha is offline   Reply With Quote
Old 04-25-2012, 10:34 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

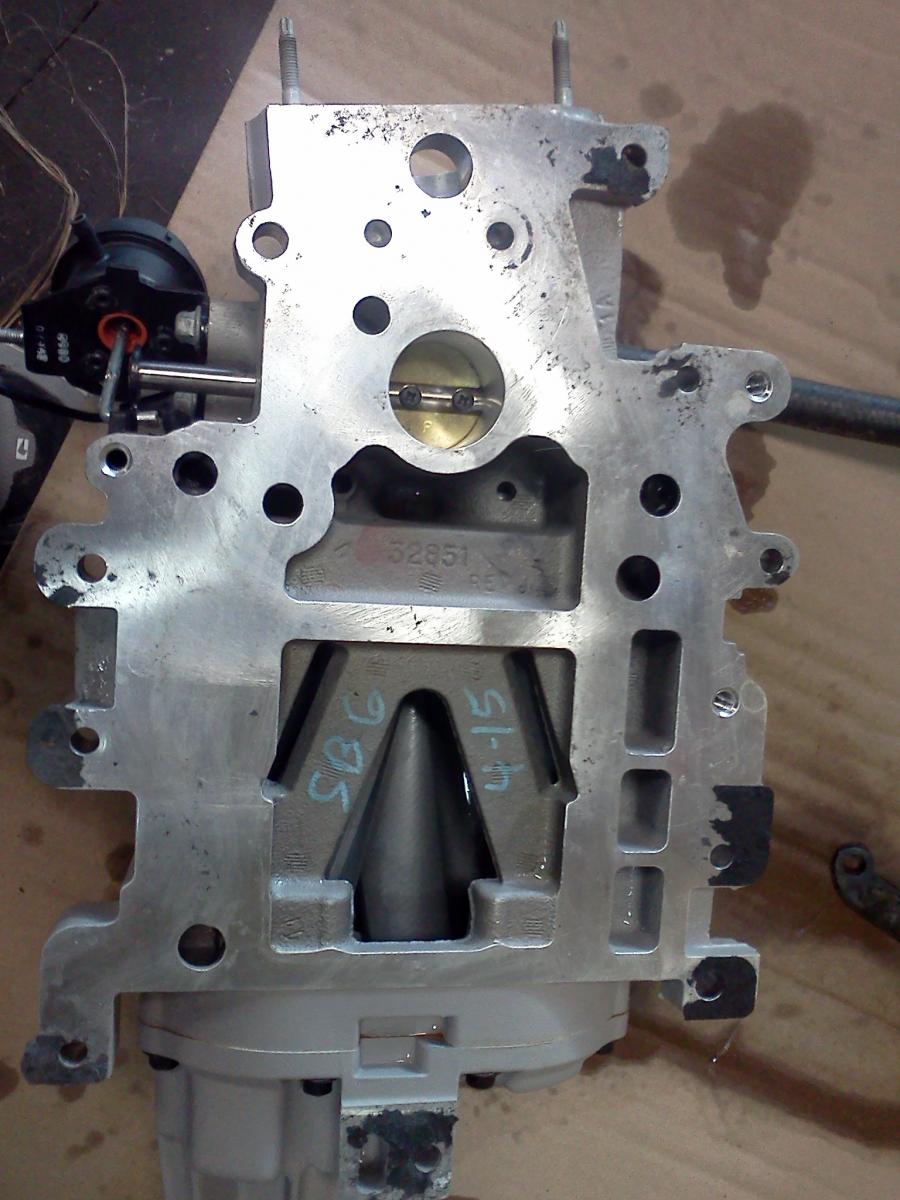

that is the one off of the Buick
Attached Thumbnails
Supercharger generations-091511182125-1-.jpg
buffstuffbuddha is offline   Reply With Quote
Old 04-25-2012, 11:15 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The M90 Gen 3 was found on GM cars from 97-08. The only cars to get a Gen V M90 ws the Grand Prix from 04-08. All other cars got the Gen 3 M90.

Best ways to tell the Gen 3 from the Gen V is the
Gen 3 has a painted snout the Gen V does not.
Gen 3 has a bolt boss in the top center of it to hold the fuel rail, Gen V does not
Gen 3 has a 3 bolt setup for the TB, Gen V is a 4 bolt setup.
Gen 3 snout is longer than a Gen V

Now..on the Gen 3 there were changes made to it, but the generation was never changed.
96 the charger body was painted, later years it was not
96-97 there was a vacuum tree near the throttle body on the charger. 98+ there was no tree.
BillBoost37 is offline   Reply With Quote
Old 04-25-2012, 11:18 AM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,643
Thanked 995 Times in 772 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

From what you said Bill, the supercharger you gave me is a "mutt"?

Snout is painted, body is not.
I have no vacuum tree. (wish there was)
Mike is offline   Reply With Quote
Old 04-25-2012, 11:36 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

Awesome thank you. The bottom end of the motor didn't change right? Will any of the generations work on any series 2 motor?
buffstuffbuddha is offline   Reply With Quote
Old 04-25-2012, 12:42 PM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Mike..I believe I gave you the very normal 98+ aka the one off my 2000 regal or one off a 99 GTP

Teh Gen V has a slightly different LIM opening than the Gen 3 so it won't just fit. You need to open the LIM hole about 3/4" toward the passenger side of the car and then it fits and uses a couple of longer bolts. Then you need a TB adapter as well.
BillBoost37 is offline   Reply With Quote
Old 04-25-2012, 12:43 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2007
Location: Cleveland, OH
Posts: 80
Thanks: 0
Thanked 0 Times in 0 Posts
buffstuffbuddha is on a distinguished road
Default

Thanks a bunch man
buffstuffbuddha is offline   Reply With Quote
Old 04-25-2012, 03:56 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

If you would like pics..just holler...
