Default Pontiac Aztec speedo keeps jumping

Hello,
I'm new here, i have have a 2001 pontiac Aztek and my speedo keeps jumping around while im driving, can someone please tell me if its the VSS and if so where on the transmission abouts its located on this piticular vehicle if thats what it is.... any help would be appreciated
stevem is offline   Reply With Quote
Old 10-22-2011, 03:03 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if its your vss, the car wouldnt shift right, is that the only thing its doing? havent worked on an aztek but i would guess down toward the pass side on the diff
jwfirebird is offline   Reply With Quote
Old 10-22-2011, 04:26 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2011
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
stevem is on a distinguished road
Default

Yeah its only the speedo thats jumping up and down when driving and it'* shifting ok....what do you think it is? Thanks
stevem is offline   Reply With Quote
Old 10-23-2011, 04:52 AM   #4
Retired Administrator

True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,856
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Thread moved to Pontiac mechanical and maintenance section.
GunsOfNavarone is offline   Reply With Quote
Old 10-23-2011, 10:53 AM   #5
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

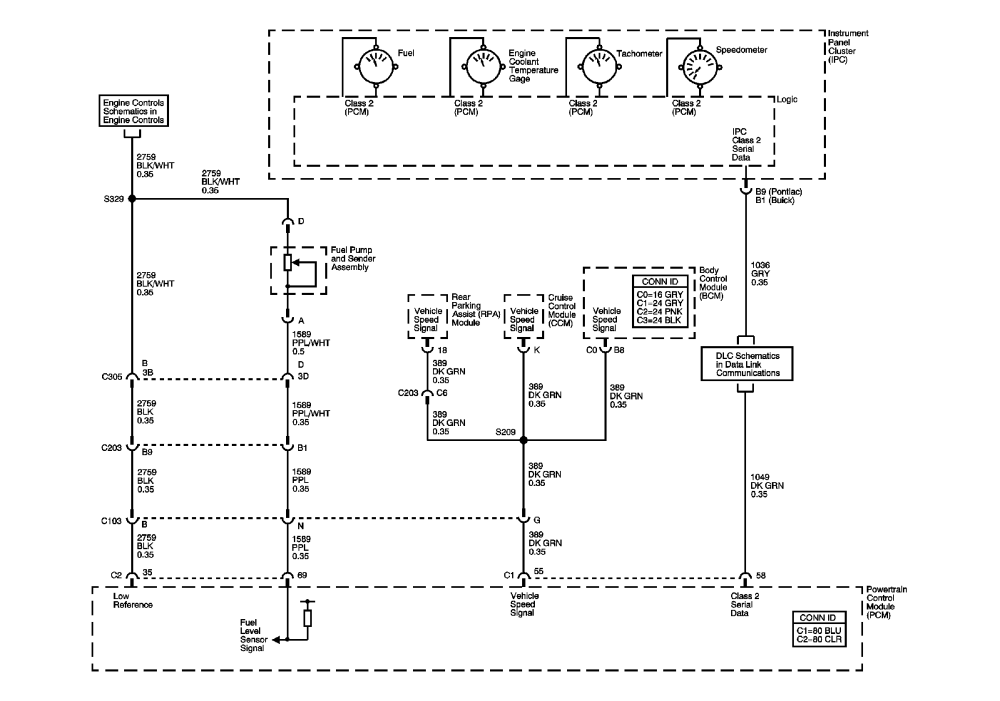

if nothing else is going on with your car it seems likely that the ip itself is bad, the vss signal goes to the pcm and is used for several things. then the computer talks to the ip via a serial bus.
Attached Thumbnails
Pontiac Aztec speedo keeps jumping-2002ip.gif
jwfirebird is offline   Reply With Quote
Old 10-23-2011, 07:36 PM   #6
Junior Member
Thread Starter

Join Date: Oct 2011
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
stevem is on a distinguished road
Default

Damn!!! that sucks....I would have to replace the IPC? I guess i would have to live with the erratic speedo...Thanks for your help JWFirebird
stevem is offline   Reply With Quote
Old 10-24-2011, 07:35 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if every thing else is working on it then probably. ive heard of people being able to replace the stepper motors but i dont have any experience with that.
jwfirebird is offline   Reply With Quote
Old 11-29-2011, 02:00 PM   #8
Junior Member

Join Date: May 2011
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
usacamaro is on a distinguished road
Default

it was the speed sensor on my wheel if i remember correctly. I bought a new one, but didn't put it on. it was just loose. i think it was on the passenger wheel by the hub. its been a few months now and no problems
usacamaro is offline   Reply With Quote
