Default Horn not working

2003 grand am GT- horns are good, fuse is good. Had to take it to shop to get wheel bearings done & I asked they to check horn. They say the whole air bag/ horn assembly needs to be replaced. For $850!! There has got to be a better (cheaper) way. Any ideas??
97BONNIESE is offline   Reply With Quote
Old 04-21-2013, 09:26 AM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

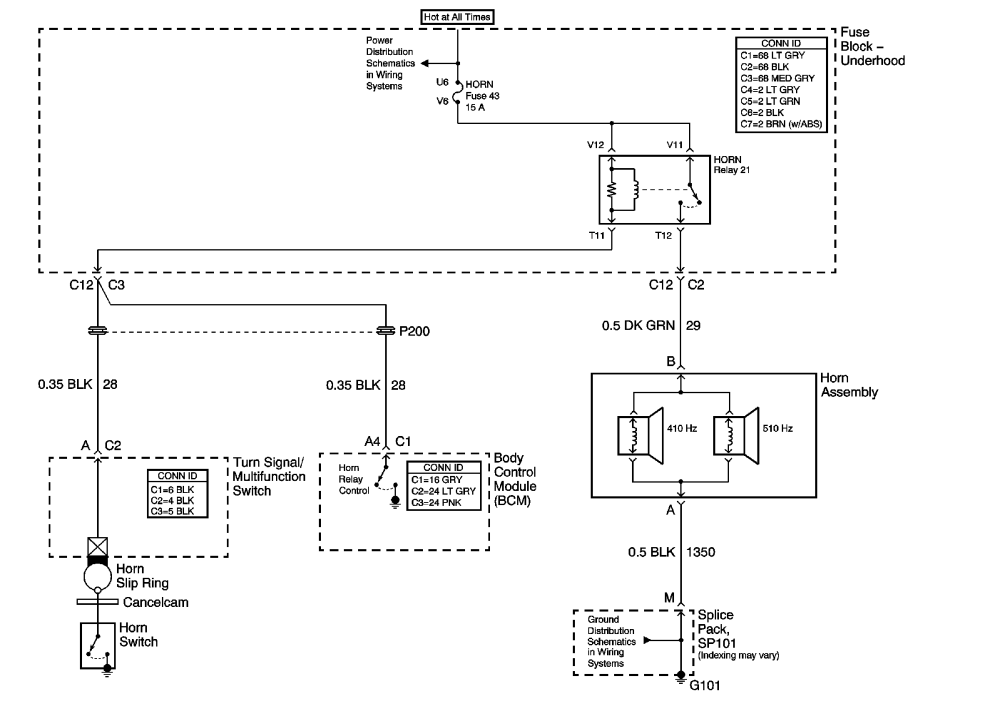

cut the black wire to your horn or bcm if its easier to get at and wire it to one side of a momentary contact switch the other side to ground

Attached Thumbnails
Horn not working-03gahorn_zps0c246539.gif
jwfirebird is offline   Reply With Quote
Old 04-21-2013, 11:20 AM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2007
Location: JACKSON, OH
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
97BONNIESE is on a distinguished road
Default

Thanks jwfirebird for the idea & the wiring diagram. I would like to try to repair problem in steering wheel if possible.
97BONNIESE is offline   Reply With Quote
Old 04-21-2013, 11:25 AM   #4
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

I believe the ring where the steering wheel meets the column is known for losing contact after a while. You should be able to bend the pins back out to fix the problem. I'll see if i can find a step by step guide later.
2k2cse is offline   Reply With Quote
Old 04-21-2013, 12:36 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2007
Location: JACKSON, OH
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
97BONNIESE is on a distinguished road
Default

Cool! I definitely need a step by step. Thanks!
97BONNIESE is offline   Reply With Quote
Old 04-21-2013, 06:10 PM   #6
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

I couldn't find a step by step guide yet (still looking). But I have a couple leads. Does the relay click when you push the horn? Did you try pushing on different spots on the steering wheel? or try pushing it while the wheel is turned at different spots?

I saw a video on youtube of an Alero who'* horn pad inside the wheel went bad, and the horn would randomly go off. That would probably be what the mechanic is talking about.

As I mentioned in my last post, there'* a ring on the column and a pin on the wheel that controls the horn. When the horn is pressed on the wheel, the pin makes contact with the ring. The ring is known to get dirt on it, causing a bad connection. From what I read on a couple other forums, you can take the plastic off of the column, and see the ring to see if it'* dirty.

EDIT:

With a little more digging, I found that removing the multifunction switch (turn signal switch) and cleaning the contacts have solved the problem in a couple cases.

Here'* something to look at and check into. http://www.gaownersclub.com/forum/sh...d.php?t=147019
2k2cse is offline   Reply With Quote
Old 04-21-2013, 06:24 PM   #7
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

I'm with Travis, I'm suspecting the horn contacts to be inside the airbag. Which is unserviceable.
Mike is offline   Reply With Quote
Old 04-22-2013, 07:33 PM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jun 2007
Location: JACKSON, OH
Posts: 94
Thanks: 0
Thanked 0 Times in 0 Posts
97BONNIESE is on a distinguished road
Default

Before the horn stuck on, The horn worked when I hit the key fob but not when I pressed on steering wheel. fuse, relay are good. will check horn button & ring this weekend.
I think if I remove the airbag fuse & disconnect the connector then I can safely remove the steering wheel cover. I will also look at the multi-function switch. Thanks!
