Pontiac When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

98 Pontiac gran prix needs ac evaporator

Thread Tools

Search this Thread

Old Aug 4, 2022 | 02:28 PM
  #1
Eap1998's Avatar
Thread Starter
Junior Member

Joined: Aug 2022
Posts: 2
Likes: 0
From: North Carolina
Eap1998 is on a distinguished road
Default 98 Pontiac gran prix needs ac evaporator

98 Pontiac Grand Prix with 3.8 engine, super charge
can someone send me a link or explain how to replace the ac evaporator on my model car.

I search utube and the web. I have found how to do a heater coil. But no changing out. And no models with dual air bags.

Evaporator is leaking freon so no cleaning
Reply
Old Aug 4, 2022 | 04:50 PM
  #2
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,243
Likes: 1,602
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

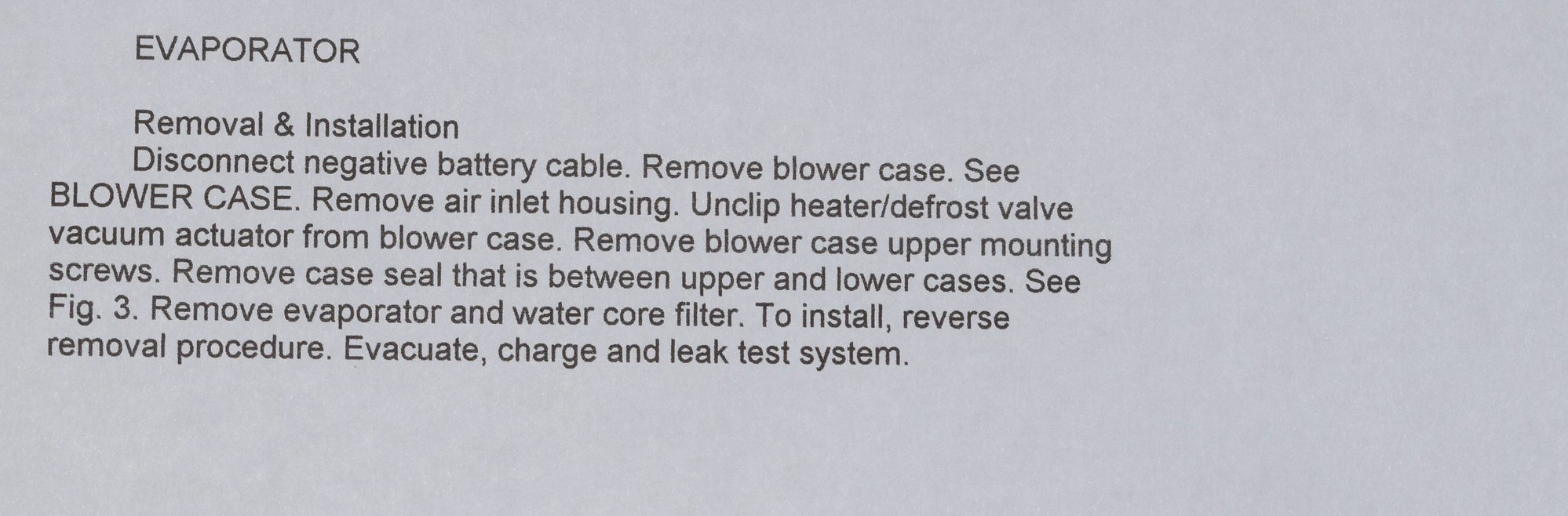

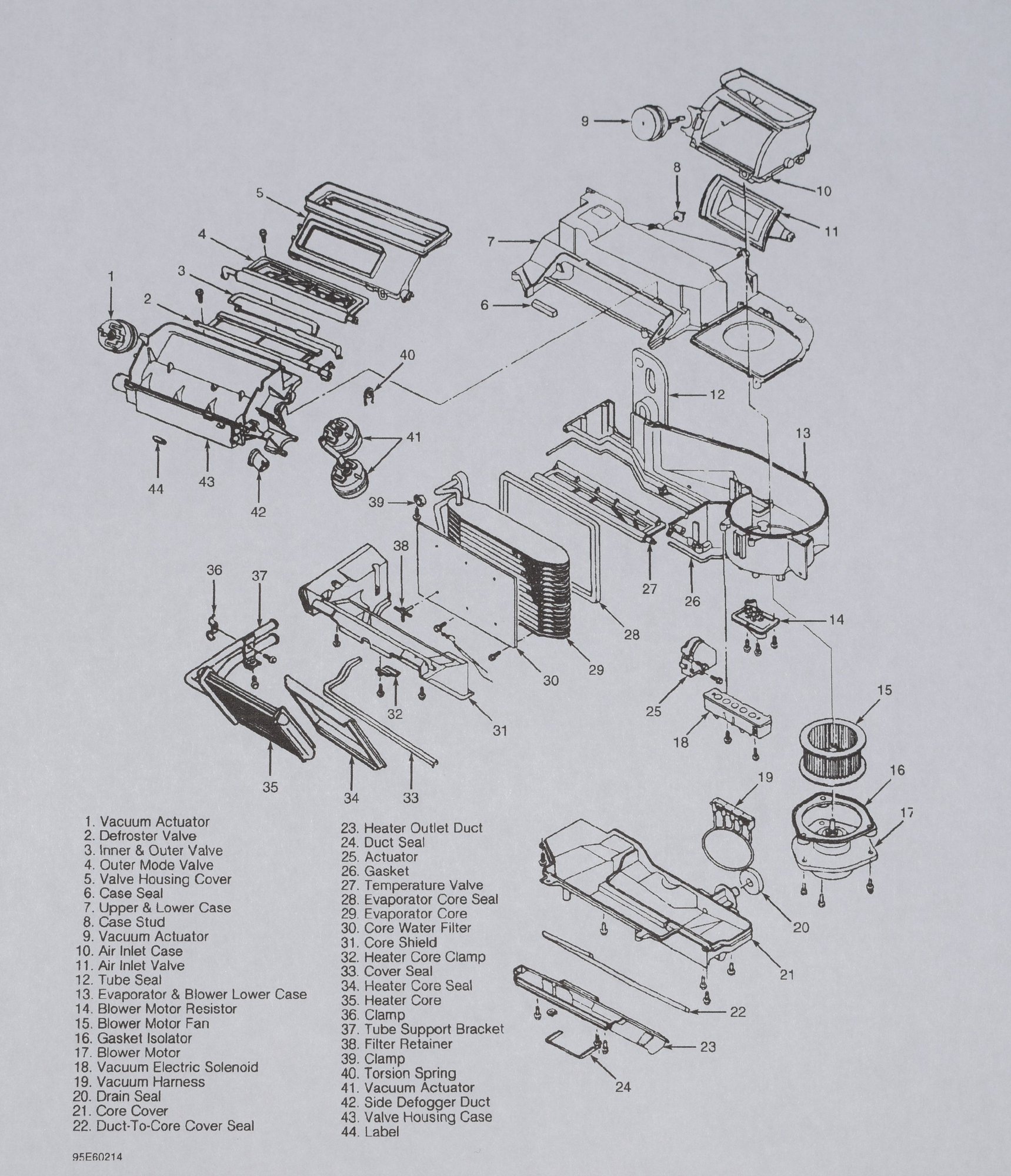

This is it. Not as bad as going through the dash.



Reply
Old Aug 5, 2022 | 09:51 AM
  #3
Mike's Avatar
Retired
Certified Car Nut

Joined: Jul 2003
Posts: 17,960
Likes: 1,839
From: Dark Side, AZ
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Are you sure it is broken/leaking?? And not just leaking at a sealed connection?
Reply
Old Aug 5, 2022 | 02:41 PM
  #4
carfixer007's Avatar
Senior Member


True Car Nut

Joined: Dec 2018
Posts: 3,243
Likes: 1,602
From: Flint, MI USA
carfixer007 is on a distinguished road
Default

If there was ever dye in the system you'll see it at the drain if the evaporator is leaking.
I'd put some dye in it if you can't tell now and make sure the core is bad.
Reply
Old Aug 5, 2022 | 03:18 PM
  #5
Eap1998's Avatar
Thread Starter
Junior Member

Joined: Aug 2022
Posts: 2
Likes: 0
From: North Carolina
Eap1998 is on a distinguished road
Default Yes leaking

Originally Posted by Eap1998
98 Pontiac Grand Prix with 3.8 engine, super charge
can someone send me a link or explain how to replace the ac evaporator on my model car.

I search utube and the web. I have found how to do a heater coil. But no changing out. And no models with dual air bags.

Evaporator is leaking freon so no cleaning
A AC man attached a thing in it to check for leaks.
He told us it was coming out the inside of the car. He said the core needed fixing.
Reply
Old Aug 5, 2022 | 04:12 PM
  #6
Mike's Avatar
Retired
Certified Car Nut

Joined: Jul 2003
Posts: 17,960
Likes: 1,839
From: Dark Side, AZ
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Once the evap is replaced, how do you intend on vacuuming the system and recharging?
Reply
