Old 06-19-2013, 04:32 PM   #11
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

the diagram doesnt show any security in the start circuit.
jwfirebird is offline   Reply With Quote
Old 06-19-2013, 05:19 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Shelton's Avatar

Join Date: Jun 2013
Location: Spokane, WA
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Shelton is on a distinguished road
Default

Sweet that sounds like a good start. Do you have a copy of the diagram that you could post???
Shelton is offline   Reply With Quote
Old 06-19-2013, 06:56 PM   #13
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

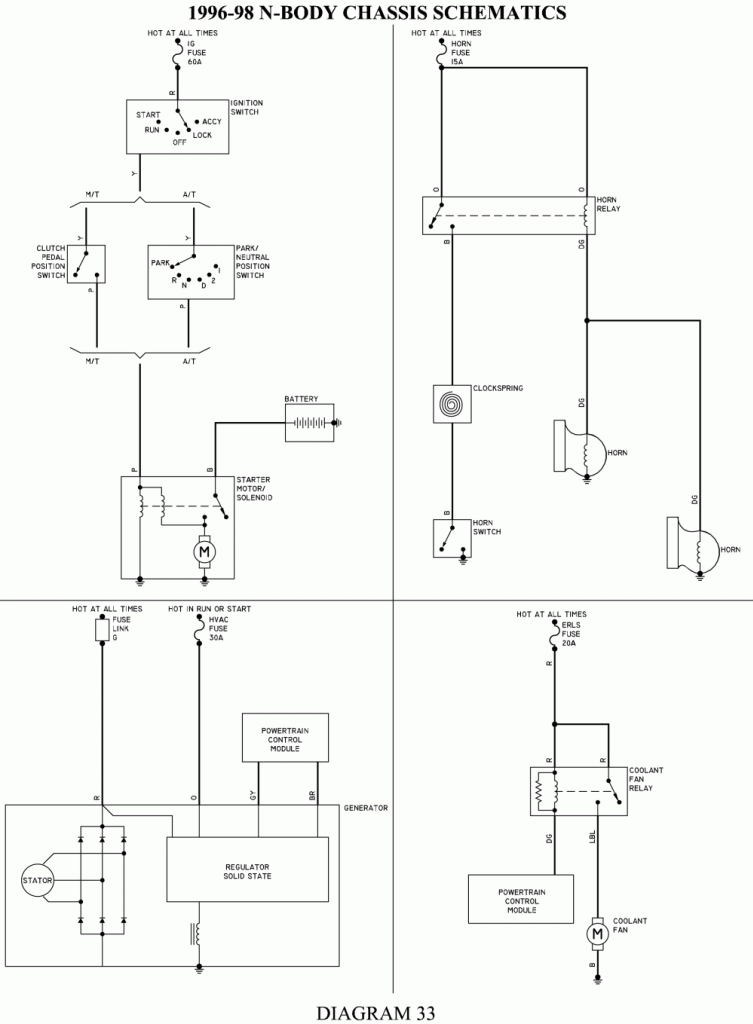

thats not to say you dont have any passkey or vats, i have no idea. some just shut down the injectors. you are around the year though that may not have anything.

Attached Thumbnails
97 Grand Am GT Security Lockout-97gastart_zps538128fc.gif
jwfirebird is offline   Reply With Quote
Old 06-19-2013, 07:15 PM   #14
Junior Member
Posts like a Ricer Type-R
Thread Starter

Shelton's Avatar

Join Date: Jun 2013
Location: Spokane, WA
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Shelton is on a distinguished road
Default

You're awesome. And I know my injectors activate when I turn the key because you can hear them...just nothing from the ignition. I'm checking now. Get back to you in a few.
Shelton is offline   Reply With Quote
Old 06-19-2013, 08:29 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Shelton's Avatar

Join Date: Jun 2013
Location: Spokane, WA
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Shelton is on a distinguished road
Default

I checked the fuse box and the ignition module isn't getting power at the box. Where is that located?
Shelton is offline   Reply With Quote
Old 06-20-2013, 08:44 AM   #16
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

i dont have a diagram for the power distribution, you could take the box off and see if there is a fusible link or a metal bus from another fuse
jwfirebird is offline   Reply With Quote
Old 06-20-2013, 09:39 AM   #17
Junior Member
Posts like a Ricer Type-R
Thread Starter

Shelton's Avatar

Join Date: Jun 2013
Location: Spokane, WA
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Shelton is on a distinguished road
Default

Just kidding, it was I just didn't have everything hooked up right. K, so everything is hooked up and as far as I know it'* getting power. I talked to one of my buddies who used to work on a lot of Pontiacs and he said try checking the safety neautral switch.
Shelton is offline   Reply With Quote
Old 06-20-2013, 07:56 PM   #18
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

he said was going to do it for you or thats what he suggested you do? because thats why i said check the purple with it plugged in. if you have the 12v there when someone hits the key you know the ign and nuetral switch is good
jwfirebird is offline   Reply With Quote
Old 06-21-2013, 10:22 AM   #19
Junior Member
Posts like a Ricer Type-R
Thread Starter

Shelton's Avatar

Join Date: Jun 2013
Location: Spokane, WA
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Shelton is on a distinguished road
Default

He said for me to check it and I told him already did. Not with a voltmeter because I don't have one right now, just with that little screw driver that lights up haha.
Shelton is offline   Reply With Quote
Old 06-22-2013, 08:13 AM   #20
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

that works, if you have a light on the purple than everything to that point and the neutral switch is good. what did you get there?
jwfirebird is offline   Reply With Quote
