Question 2001 Grand Prix 3.8 - Multiple Codes!

Hi everyone. Let me start off by saying sorry for what will be a long post and please be somewhat detailed in responses as I am just about clueless where certain parts are in an engine or their abbreviations.

I have a 2001 Grand Prix with a 3.8 engine - no modifications but has California Emissions Standards. I have had a few problems in the last year and some that started up just today and am not sure what to do about them.

I live in Western NY and last winter my blower stopped working along with the seat warmer. I noticed it would intermittently work at times but not sure how or why it started working. It progressively became worse and now the blower will only work on 5 only if it is set to 5 before I turn the car on. During last winter I also noticed the day time running lights were not turning on even at night - I would manually have to turn the lights on - and my wipers would stop in the upright position, and the key would not disengage from the ignition. Please note that no Service Engine Soon light had been on at this point. I have done some research and associated these problems to the ignition switch and plan to replace sometime within the next month or two. Does this sound correct? I don't believe these problems happened all at the same time.

Early this past summer smoke started coming from the engine just one minute out of my driveway and an awful high pitched sound was coming from the drivers side of the hood. No check engine light was on. I noticed a black plastic cap had melted near the firewall that has a hose leading near the wheel well. I forget what the melted cap was, but I picked one up at a junk yard and replaced it. The catalytic converter went and the hot gases backed up and melted the cap. It wasn't until I drove the car off the wheel ramp when the SES light came on. We pulled it to the dealership and they replaced the converter but the SES light was still on. I got around to checking the SES light and it was P0140. Some air pump problem. I believe the high pitched sound was the air pump seizing up.

The car was running fine without a fix until early August maybe. I have been getting worse gas mileage and the car started to violently jolt on the thruway. The engine also started revving by itself when it jolts. It also occasionally stalls out after 10 minutes of driving, but not every time. When it does rev up It fluctuates - it will rev and then relax, rev, relax... It will sometimes relax to a point where it drops under 1,000 rpm and I have noticed when it does that it will likely stall. I however try to rev it with the gas pedal when it wants to drop this low. I have also tried giving it a lot of gas to kick it out of its sluggish state.

Just yesterday I started the fix for the P0410 code. I checked the fuse under the hood and sure enough the "AIR" fuse was blown. I replaced it. I then took out the air pump and heard the dreaded water in it. I took it apart and let it dry. I hooked it up to the battery and it ran great. I used an air compressor to blow out some of the gunk that was built up near the plastic fan. I also blew out a couple of hoses since they had water on the sides of them. At some point during the disassembly I tried starting my car while jacked up on the front driver side. It only made a click and wouldn't turn over. I figured the battery may be slightly loose as I was loosening it earlier. I reassembled the car and noticed a faint gasoline smell but couldn't pin point its location in the engine. I un-jacked the car and it stared right up and no more SES light!!!!! I figured I had solved the worlds problems!!!! That is until I turned the car off and started it again... the SES light back on!!!! - Oh great!!! I checked the "AIR" fuse and it is okay.

I went to AutoZone today and they pulled the following codes:
P0102 - MAF or Vaf A circuit: Low Input
P0446 - EVAP Emission Control Sys. Vent: Circuit Malf.

Are the two new codes related? Are either new codes related to the air pump code? Any suggestions? I have heard the check valve can go bad and let water into the air pump, where is the valve located? Any pictures?

Thank you if you have made it this far!
roundbox52 is offline   Reply With Quote
Old 09-13-2010, 05:01 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

First, start with the first code, read this and it should help you correct the problem.
https://www.gmforum.com/showthread.p...77#post1390963

The next one is a bit more involved.
https://www.gmforum.com/showthread.p...02#post1391439

I suggest correcting the first code then get them cleared. Then see if the other code comes back. If it does then start going threw the second list.
Danthurs is offline   Reply With Quote
Old 09-13-2010, 05:14 PM   #3
Senior Member
True Car Nut

raptor660's Avatar

Join Date: Mar 2010
Location: Eaton Rapids MI
Posts: 2,964
Thanks: 0
Thanked 0 Times in 0 Posts
raptor660 is on a distinguished road
Default

Welcome to the post RoundBox52! Hope u find the info ur looking for! Make urself at home.. If u dont mind post an Intro of urself in the New Members section.. And maybe a couple pics of your vehicles.
raptor660 is offline   Reply With Quote
Old 09-13-2010, 09:41 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2010
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
roundbox52 is on a distinguished road
Default

Quote:
Originally Posted by roundbox52 View Post
. I reassembled the car and noticed a faint gasoline smell but couldn't pin point its location in the engine.

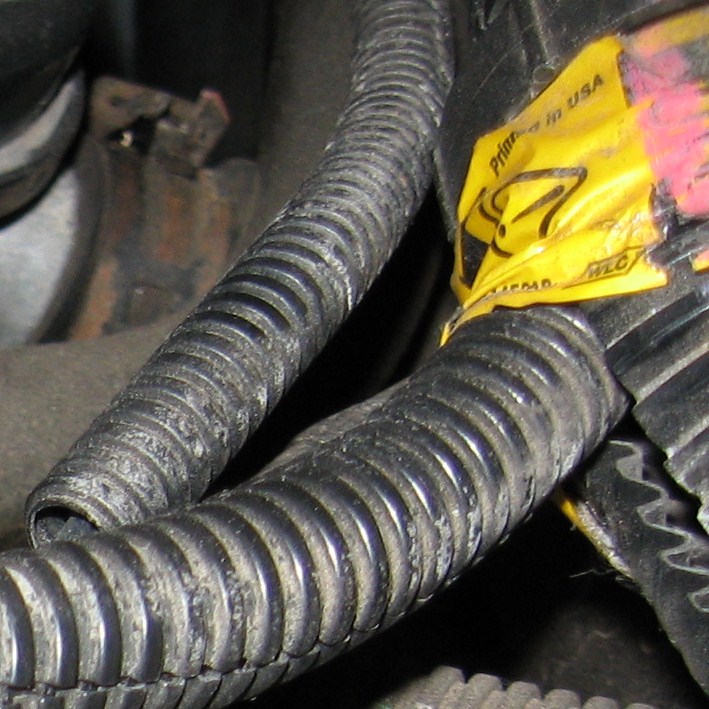

I found where the gasoline smell is coming from. There is a smaller gas line coming from the larger 'group' (top right of photo). This connects to a small 90 angle and another attachment. When I take hold of the assembly I can lift it up and push down slightly. When I do this I notice some gas drips from the black/silver attachment. Is this a problem? Does anyone know what this is called? How do I remove it to repair it?

Thank you.
Attached Thumbnails
2001 Grand Prix 3.8 - Multiple Codes!-img_0775.jpg   2001 Grand Prix 3.8 - Multiple Codes!-img_0775-copy.jpg
roundbox52 is offline   Reply With Quote
Old 09-15-2010, 12:16 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2010
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
roundbox52 is on a distinguished road
Default

I cleaned the MAF with some MAF cleaner and reinstalled yesterday evening. Took the car to Advance Auto to clear the codes as well. So far no problems. I will keep praying.
roundbox52 is offline   Reply With Quote
Old 09-15-2010, 09:31 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2010
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
roundbox52 is on a distinguished road
Default

Well... not even 3 minutes into driving home from work this evening and the SES light came back on. I will be going to back to advance auto parts tomorrow to pull the code.
roundbox52 is offline   Reply With Quote
Old 09-16-2010, 05:12 PM   #7
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2010
Posts: 15
Thanks: 0
Thanked 0 Times in 0 Posts
roundbox52 is on a distinguished road
Default

The new SES light turns out to be P0446 - EVAP Emission Control Sys. Vent: Circuit Malf.

At least the P0102 hasn't returned so far. I have only driven about 90 miles since I cleaned the MAF sensor. I have read others that have cleaned theres and the code eventually comes back around 150 miles or so.

I did not test the MAF for electrical problems, should I still continue to go onto the second list (P0446 checklist) as Dan suggestsd?
roundbox52 is offline   Reply With Quote
