Old 11-18-2007, 06:22 PM   #81
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by Peterg22000
Bill how did you get them looking like that so fast?. my were rough as all H***, and took forever to get smoth

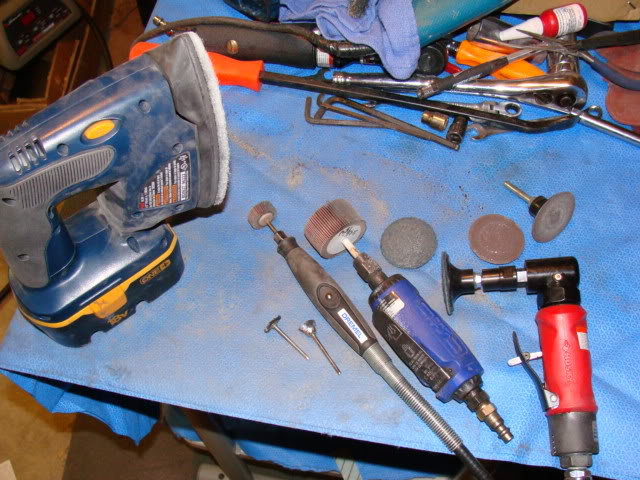

My bag of tricks:

Name:  DSC00063.jpg
Views: 0
Size:  86.3 KB

Dremel flap sander in the 'pockets' for the bolts. Narrow brush for the grooves on the top. Wide brush for the pocket bottoms (around the bolt hole in the corners). Air tools for roughing in (one pass each tool), then 120 and 240 grit on the Ryobi sander, then two grits of scotch-brite pads.

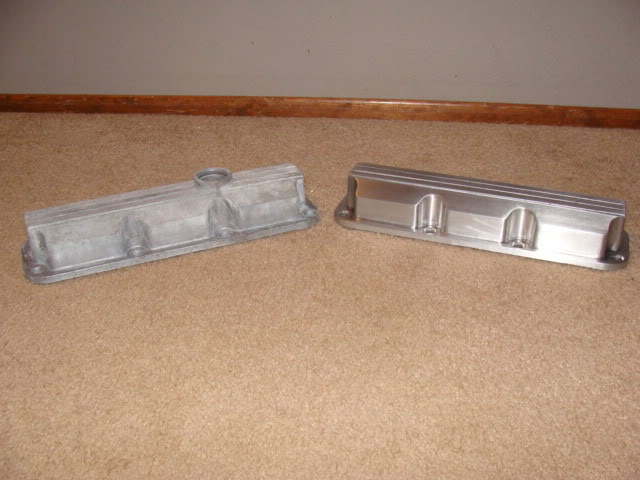

Total time invested is about 30-35 minutes each valve cover to go from both looking like the left:
Name:  DSC00059.jpg
Views: 0
Size:  58.4 KB

To this:


Just one pass with each tool/grit.
willwren is offline   Reply With Quote
Old 11-18-2007, 06:30 PM   #82
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

ok, you used many of the things I did, just didnt spend as much time since im going High polish finnish
Peterg22000 is offline   Reply With Quote
Old 11-18-2007, 06:35 PM   #83
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'm deliberately avoiding a high polish considering the coating I have planned. I would spend about another 20 minutes on each one for high polish. No more than an hour each cover from crap to high-polish.

I don't feel like fighting corrosion long-term, and want a durable finish that will hold up to alot of contact:

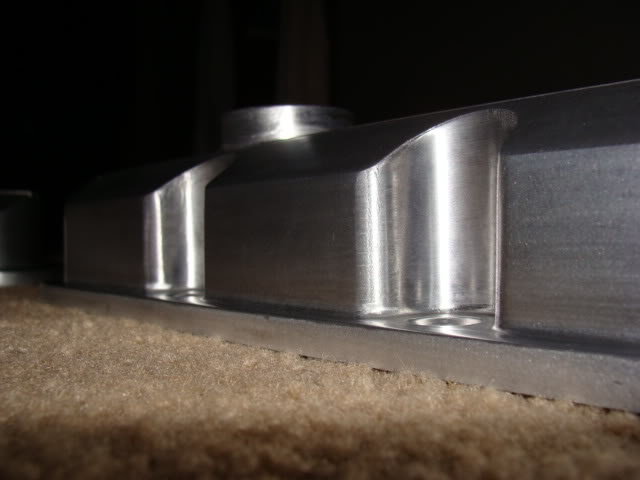

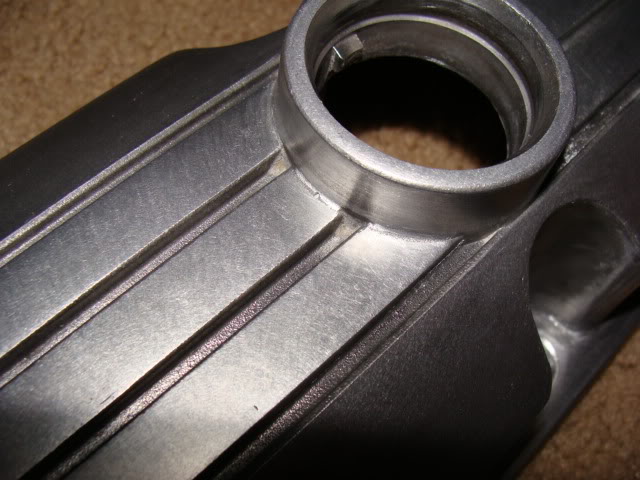

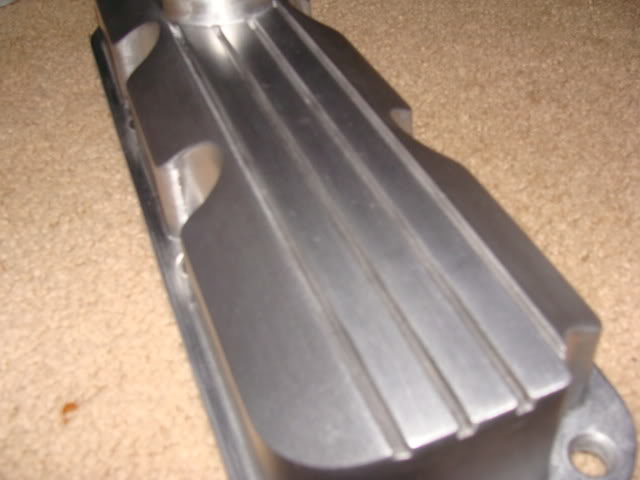

Name:  DSC00064.jpg
Views: 0
Size:  67.2 KB

Name:  DSC00065.jpg
Views: 0
Size:  40.7 KB

Name:  DSC00066.jpg
Views: 0
Size:  38.3 KB

That'* about a 600-grit final finish. Mirror from there is easy.
willwren is offline   Reply With Quote
Old 11-18-2007, 06:47 PM   #84
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

alright, so whats this coating your getting?
Peterg22000 is offline   Reply With Quote
Old 11-18-2007, 07:09 PM   #85
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I'll show you in a couple days or three. Typical well-known coating. Renowned for it'* durability and resistance to corrosion.
willwren is offline   Reply With Quote
Old 11-18-2007, 07:50 PM   #86
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

They would look good like that with just a clear coat.

You sure can polish.
2000SilverBullet is offline   Reply With Quote
Old 11-18-2007, 08:18 PM   #87
Senior Member
True Car Nut

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Quote:
Originally Posted by willwren
I'll show you in a couple days or three. Typical well-known coating. Renowned for it'* durability and resistance to corrosion.
POR 15




kidding
Peterg22000 is offline   Reply With Quote
Old 11-18-2007, 08:26 PM   #88
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

Quote:
Originally Posted by willwren
I'll show you in a couple days or three. Typical well-known coating. Renowned for it'* durability and resistance to corrosion.
Rhino-liner. Tough and durable. Able to stand up to all the tools that'll get knocked off the SC or drpped onto it.
JimmyFloyd is offline   Reply With Quote
Old 11-18-2007, 09:02 PM   #89
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I used that on my front lower scoops.
willwren is offline   Reply With Quote
Old 11-18-2007, 09:05 PM   #90
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

I don't think you're getting them anodized so.....

Powder Coated is my guess.

It'* tough and hard.
If it was any other kind of coating, you'd be doing it yourself.
2000SilverBullet is offline   Reply With Quote
