Flipping the switch shuts it all off. However, I have learned something. It seems that if I flip the switch after starting, it shuts off that WSS, that'* why only the right tire spun and the left still had TC. If I shut it off and then start the engine, both are shut off.
Danthurs is offline   Reply With Quote
Old 10-13-2009, 11:02 AM   #12
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

2000'* may have a problem trying to do this mod.

Do you hear the braking system kicking in? I have only one disabled and have no issues with any TC. Dan, please check the FSM (at work here) I'm pretty sure when I checked it, it says that if one faults, then entire system faults because if the system worked only one side that could pose a safety issue. If that proves out then the below should apply.

When I did this, I already had the LSD. Being that you have an open diff, one side can and will spin more than the other if the wheel is turned, traction is slightly different etc etc.
BillBoost37 is offline   Reply With Quote
Old 10-13-2009, 10:55 PM   #13
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I did not hear the brake kicking in. But looking at the tire mark on the driveway I can see the pulse, it gets dark then lightens up and does this over and over. The other side was solid and dark. Starting the car with the switch off I got two even marks.
Danthurs is offline   Reply With Quote
Old 10-14-2009, 10:58 AM   #14
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

now children stop tweaking the cars to do better burnouts, you dont want to spin the tires, you want to launch out of the hole! hehe the 1/4 mile drag isnt a burnout contest for a 1/4 mile lol
j/k
the GTP burns both solid with the TCS off, and pulses both with it on but will boil them no prob either way.... sadly ive been having to baby her cuz its rained for the past 2 weeks... wet roads, lots of torque, not good for tires lol
tlsheff is offline   Reply With Quote
Old 10-14-2009, 11:23 AM   #15
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

So does the GXP TL. Wren use to say you had to pull the WSS as well, (to defeat other programed limits) ???? I dont know if it was his typical "I know more than You" runaround, or if it'* a year/model thing, or ??? Doesnt seem pulling one WSS does any more for me than just turning of the T/C.
GXP Venom is offline   Reply With Quote
Old 10-14-2009, 11:38 AM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

And oddly enough I have different experiences with 97 than Dan. Dan, I'd like to see you test it the other way. Unhook your driver side and leave the passenger hooked up. See if you get a weak right wheel burn.
BillBoost37 is offline   Reply With Quote
Old 10-15-2009, 12:42 AM   #17
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I pulled the drivers side and got even burn outs. However I pulled it and then started the car. When I shut down the left side it was with the engine running. I'll try to get some pictures and a few more tests.
Danthurs is offline   Reply With Quote
Old 10-15-2009, 08:21 AM   #18
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

And a little FSM info?
BillBoost37 is offline   Reply With Quote
Old 10-15-2009, 08:41 AM   #19
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll try to get that, a bit busy today.
Danthurs is offline   Reply With Quote
Old 10-15-2009, 12:23 PM   #20
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

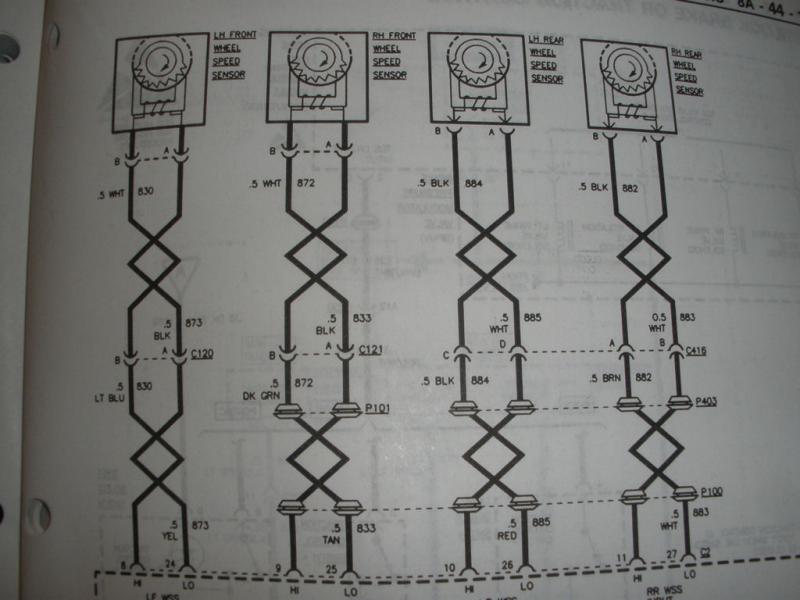

OK bill, this is what I got. I'm no expert on reading schematics. But, it sure looks like the LH WSS is different from the rest.
Attached Thumbnails
Wheel spin sensor cut out switch-pa150008.jpg
