Wheel spin sensor cut out switch - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

Reply



Thread Tools Search this Thread
Old 10-11-2009, 11:27 AM   #1
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default Wheel spin sensor cut out switch

Decided to install a wheel spin sensor cut out. But noticed a problem. Let em go threw the mod and make sure I did it right. It seems straight forward enough. The problem will show up near the end.

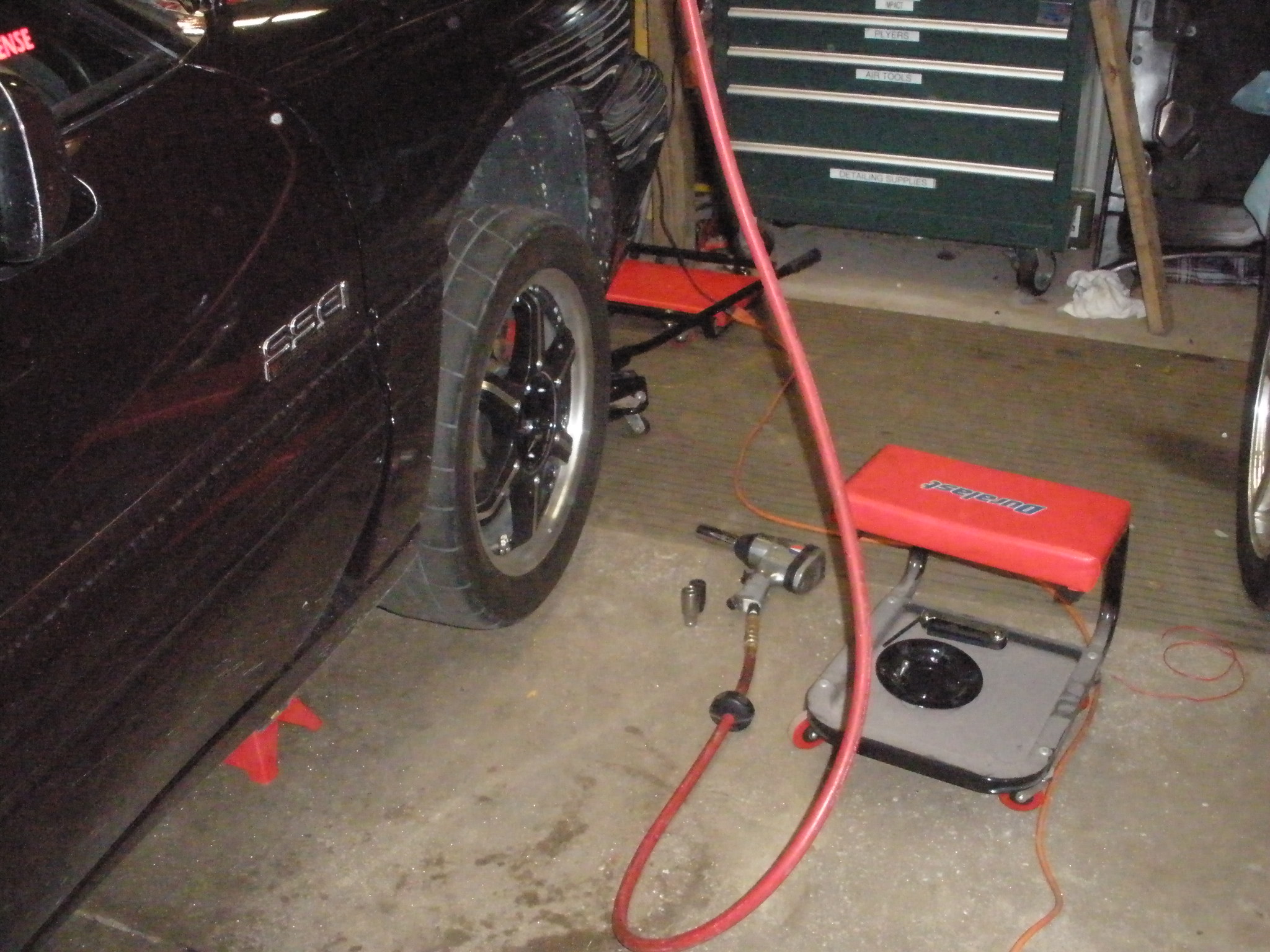

Started by jacking up the car and removing the wheel.


Located the WSS

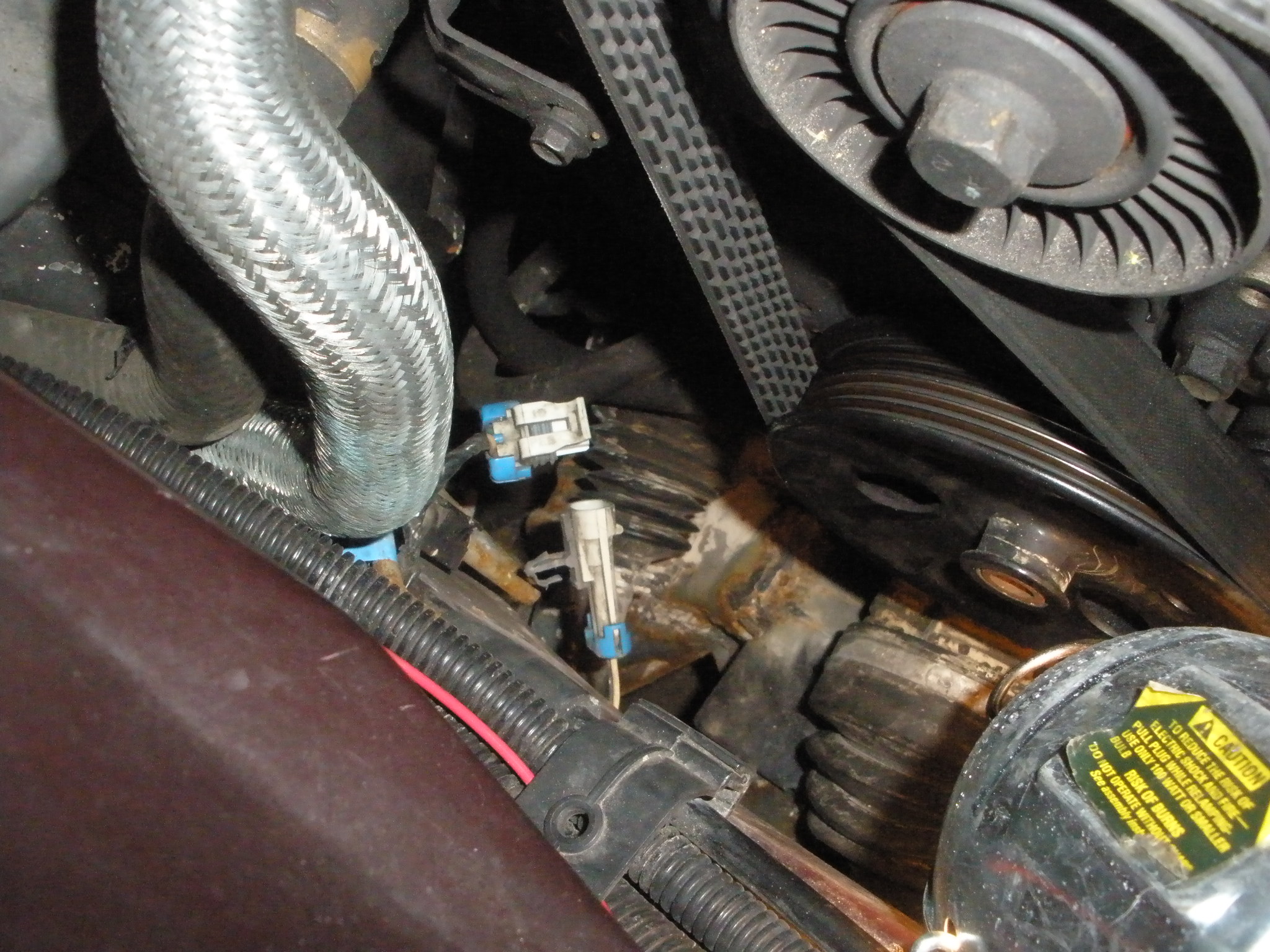

Found the other end in the engine compartment.


Then I removed the wire so it was easy to work on.


Cut the wire and soldered in what I need to reach my switch.


Then ran the wires and hooked it up.


All worked well, the WSS shut off with the switch. However, I found you can't use the LED in the switch. With only half a volt there'* not enough to turn on the LED and run the WSS, so it was cutting out on it'* own. disconnect the ground on the switch and it works fine.

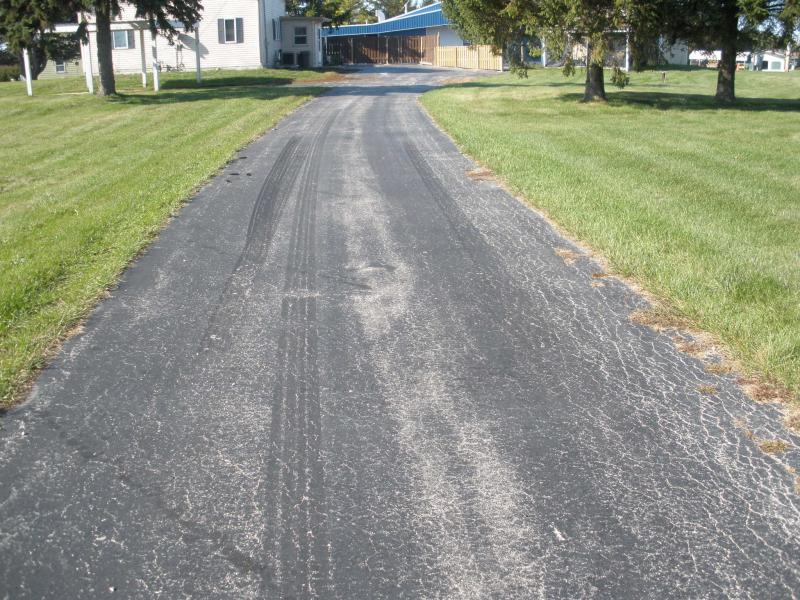

Now for the problem. Ignore the long center mark, it'* a old one. The tire on the right has the switched WSS, and it spun no problem. But the wheel on the left looks like it was still in traction control. Now I'm not sure if I remembered to turn off traction control before I flipped the switch.


I'll try again today but if only one tire spins again I'm going to try something different. I'll take 2 relays and power them closed and each one will go to a WSS. I flip the switch and the relays open. Unless there'* a easier way. Thoughts?
Danthurs is offline   Reply With Quote
Old 10-11-2009, 12:30 PM   #2
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Turn the switch so the right WSS is disconnected and try spinning the tires (which is what you already did and observed spinning on right only).

Turn the switch so the right WSS is disconnected, disconnect the connector from the left WSS and try spinning the tires (you should get spinning on both sides).

Turn the switch so the right WSS is connected, disconnect the connector from the left WSS and try spinnng the tires (you should get spinning on the left side only).

Our common knowledge tells us if one WSS is disconnected, traction control is disabled. Your three trials will test that theory, and tell you if you have to install a switch to the left WSS as well.
2kg4u is offline   Reply With Quote
Old 10-11-2009, 12:31 PM   #3
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

relays sounds like a good idea
crunkfrunk is offline   Reply With Quote
Old 10-11-2009, 01:03 PM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I've got the relays wired up and ready to go. I just happed to have 2 spares that were exactly what I needed. Guess I'll do a write up once I get this all figured out. I'm kind of liking the relay idea as well because then I can use the lighted switch again. It'* not as easy and cheap as I had hoped it would be. But I don't want to do a write up that has the potential of damaging the diff. Spinning 1 tire is bad.
Danthurs is offline   Reply With Quote
Old 10-11-2009, 01:43 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Go figure, my wife made a list for me. Guess I'll be finishing this project next week. You know how it is, your projects mean nothing.
Danthurs is offline   Reply With Quote
Old 10-11-2009, 02:08 PM   #6
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

just watch out when you use the lighted switch to energize the relays, well the problem is when you take away power there is a magnetic pulse that knocked out the LED on a switch I had one time, it was a weird one time thing for me
crunkfrunk is offline   Reply With Quote
Old 10-11-2009, 04:44 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

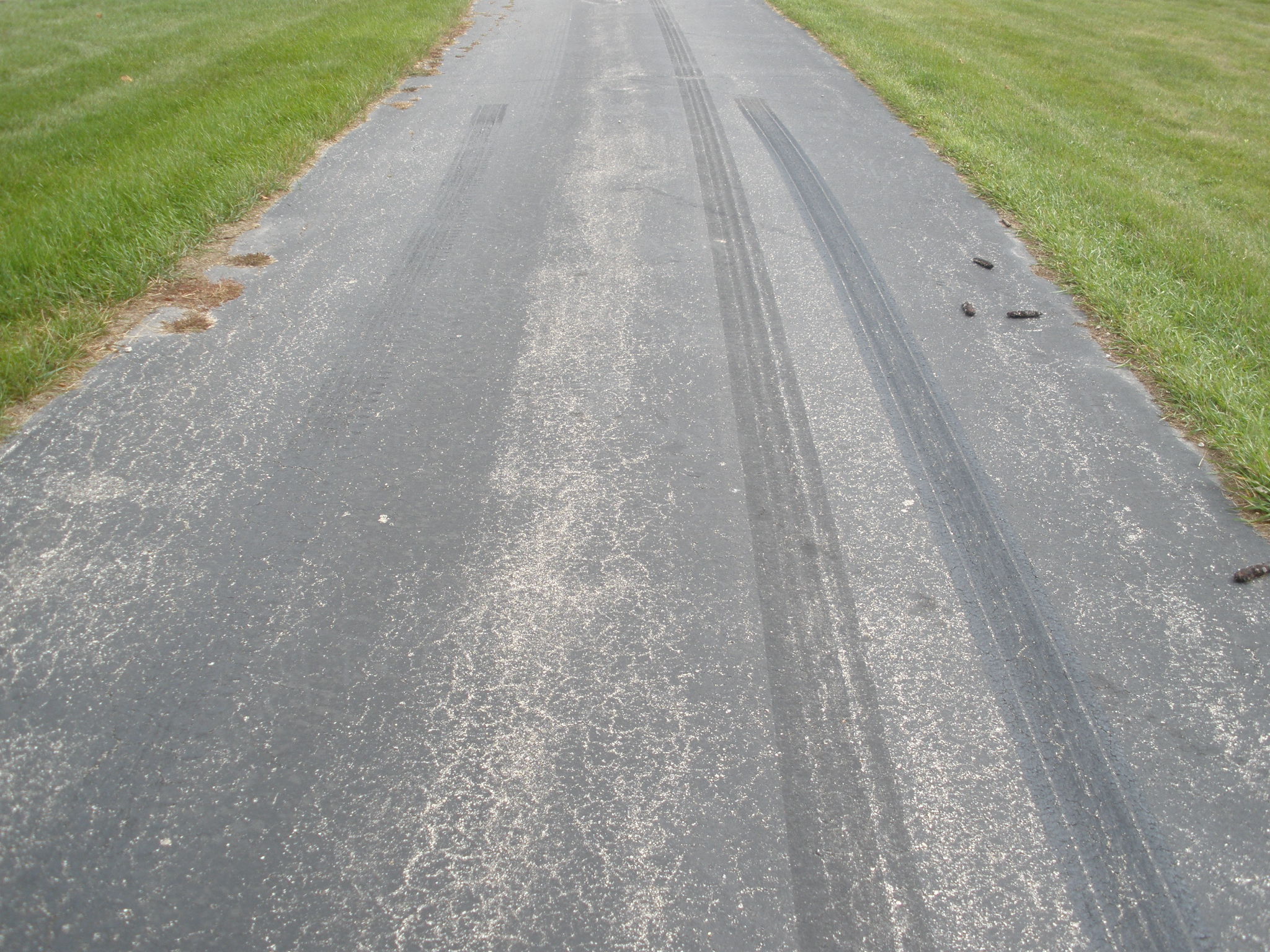

OK, I took the advice or 2K and I disconnected the drivers side WSS leaving the switch on for the passenger side WSS. This time both tires spun no problem, a bit of smoke and then they started to grab as I got off of it.

Now I'm not sure if the two sensors are handled differently. But I think I may just need to switch the wires I have the switch on. That makes everything much easier.

My driveway is starting to look like a landing strip. These tires are worn out so I may have to do a few more tests.
Attached Thumbnails
Wheel spin sensor cut out switch-pa110040.jpg
Danthurs is offline   Reply With Quote
Old 10-11-2009, 06:39 PM   #8
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
My driveway is starting to look like a landing strip. These tires are worn out so I may have to do a few more tests.
you should make a video too!!!!!
judgemikdredd is offline   Reply With Quote
Old 10-11-2009, 07:06 PM   #9
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hmm, there'* a thought.
Danthurs is offline   Reply With Quote
Old 10-11-2009, 10:17 PM   #10
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Dan are you turning off T/C as well as disconnecting the WSS?
GXP Venom is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
WSS wheel spin sensor test Danthurs Trouble shooting + Test Procedures 0 11-30-2010 12:43 AM
WSS Wheel Spin Sensor testing Danthurs General GM Chat 0 11-28-2010 01:15 PM
WSS Wheel Spin Sensor cut off switch Danthurs Performance 0 10-11-2009 05:51 PM
Wheel spin sensors 96SSEi_tampa Performance, Brainstorming & Tuning 16 01-23-2005 03:00 PM
Wheel spin sensors on a 97? Unplugging for 1/4 mile runs 1997_LeSabre 1992-1999 6 01-20-2005 10:00 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 07:10 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
