Default Upgrading some parts

In case you don't know me, I'm BillBoost, finder of good deals on parts. If the part wasn't a good deal, it probably hasn't found it'* way onto my car yet. This helps contribute to my car being a bit confused as to it'* identity, since it has parts from a bunch of other years and models.

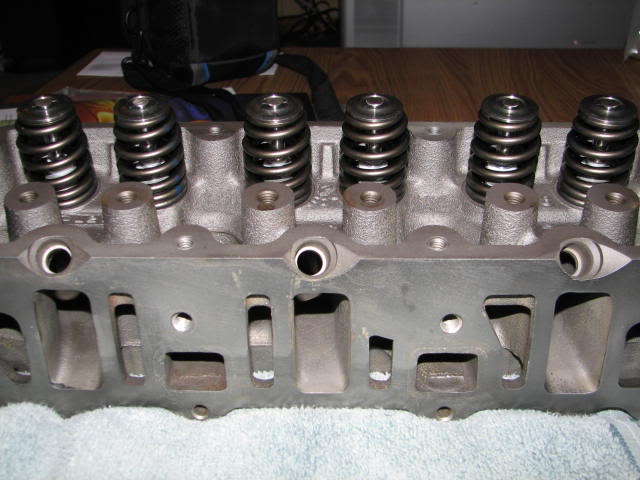

Anyhow the latest parts to find their way into my possesion was a set of PRJ stage 3 heads. This means they've had some porting work, hardened valve seats, larger valves and brass valve guides. Being used I brought them to the machine shop. They were cleaned, tanked and refreshed with a valve job, spring seat milled to correct for 1.800" expected install height of the springs and reassembled with 130# springs, titanium retainers and HD valve locks.

Name:  IMG_4142.jpg
Views: 4
Size:  53.5 KB

Name:  IMG_4143.jpg
Views: 3
Size:  48.8 KB

Name:  IMG_4154.jpg
Views: 4
Size:  47.6 KB

Pulled the heads off the car one at a time, cleaned the surface and the pistons.
Name:  IMG_4191.jpg
Views: 3
Size:  108.3 KB

Checked with friends regarding the numbers on the pistons. They confirmed them to be stock
Name:  IMG_4301.jpg
Views: 3
Size:  50.3 KB

The main reason the heads went to the machine shop as I could have cleaned them etc was to be measured for clearance between the spring retainer and the valve seal. This is known as the total amount of lift. Or the total distance the valve can be pushed down w/o binding the spring or hitting the valve seal and retainer. The number needed was .600", they were at closer to .700.

Having this much lift allowed me to factor in the Intense S1X cam already in the motor with 1.8 ratio rockers on top. This is known as extreme for a total lift in the .590'*.
Name:  IMG_4223.jpg
Views: 2
Size:  132.5 KB

The supervisor was on duty to ensure things went well
Name:  P3220295.jpg
Views: 4
Size:  82.6 KB

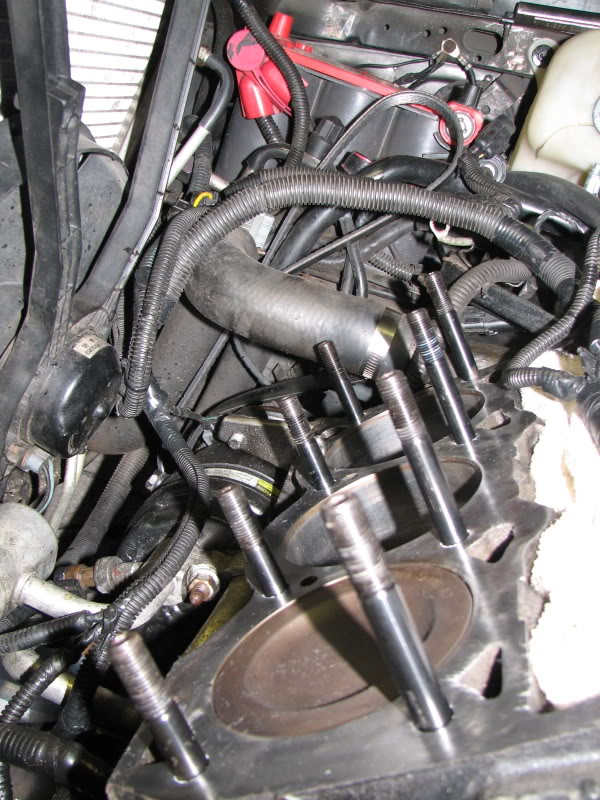

Heads are held down with an ARP head stud kit.
Name:  IMG_4193.jpg
Views: 3
Size:  126.7 KB

It'* been a couple of days and I'm poking along wasting time when I could finish a few things before other parts that I ordered late arrive. Instead it'* more enjoyable to take it a little at a time.
BillBoost37 is offline   Reply With Quote
Old 03-26-2009, 09:24 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looking good Bill. How far in to the 12s is this going to take you?
Danthurs is offline   Reply With Quote
Old 03-26-2009, 09:52 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not sure Dan. Only a true run at a track will tell, and if I can learn to drive it well with a good launch. According to local buddies it should move pretty nice.

HP increases are expected to be about 50hp for the heads due to flow and about another 20-30hp from the rockers and pulley size drop.

Last time I went to the track was pre intercooler, pre electric wp, pre urethane TA mount, or the short story..too long ago. I've no idea what the car is honestly capable of...after a thorough tune etc it'll be time to consider finding out.

Todd aka Rogue from Intense has the same motor setup (showed me it was possible) and he puts down a well tuned 423 wheel HP. I hope it'* not that much because traction never improves with mods.
BillBoost37 is offline   Reply With Quote
Old 03-26-2009, 09:59 AM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

If you can launch good, you might even be getting close to those 11s. Deep 12s should be possible.
Danthurs is offline   Reply With Quote
Old 03-26-2009, 10:41 AM   #5
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

both of you wanna make me cry... i wish i could find deals like that... but all the bonnies around here are falling apart not getting fixed up

good find bill and good luck at the track later on
tlsheff is offline   Reply With Quote
Old 03-31-2009, 10:57 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sidetracked as usual on a few other things tonight.

Progress while being deathly slow is moving somewhat.

First off..I got pics
Painted the valve covers
Touched up the LIM
Name:  IMG_4317.jpg
Views: 2
Size:  146.0 KB

Everything got a little molylube/engine assembly goop.
Name:  IMG_4318.jpg
Views: 2
Size:  105.3 KB

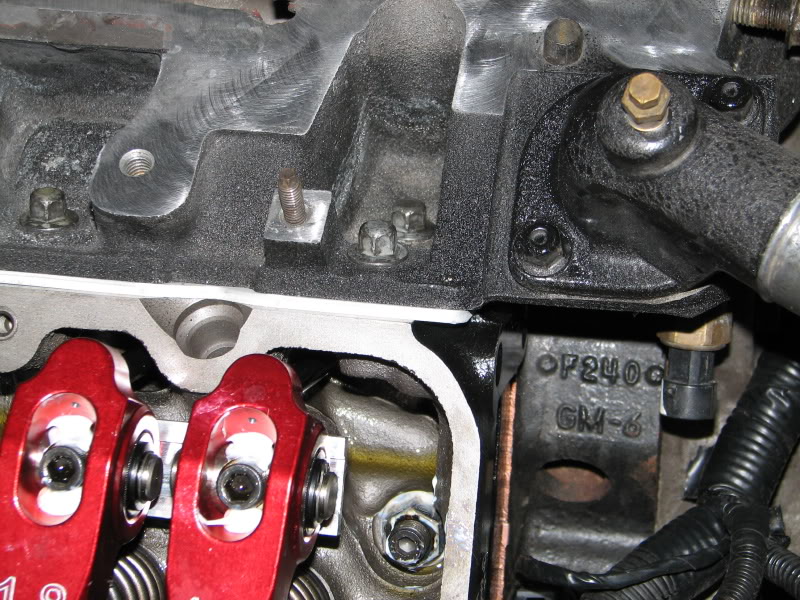

Aluminum gaskets installed and lined up with the LIM/Heads.
Name:  IMG_4321.jpg
Views: 2
Size:  143.0 KB

End seal in place (Check!) aka this is where I was leaking oil from, apparently I moved the manifold enough to have this end gasket fall into the lifter valley.

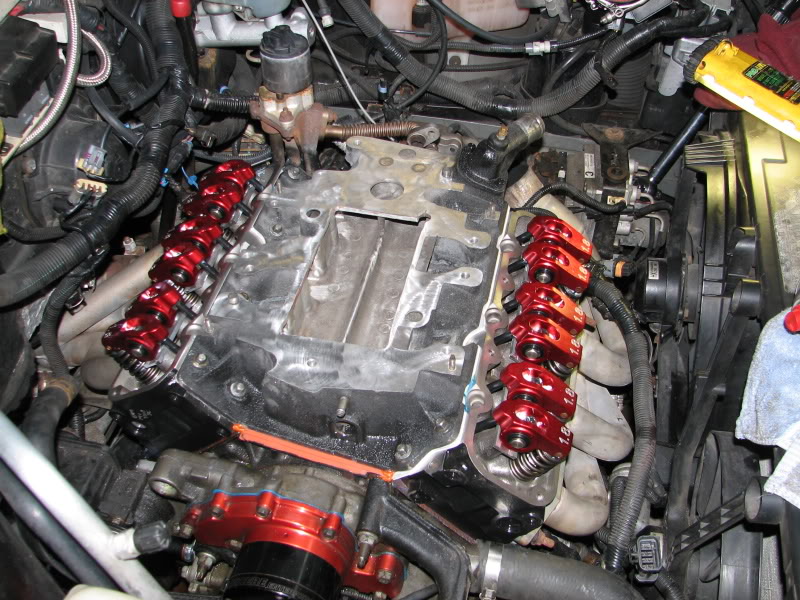

Overall pics
Name:  IMG_4327.jpg
Views: 3
Size:  138.8 KB

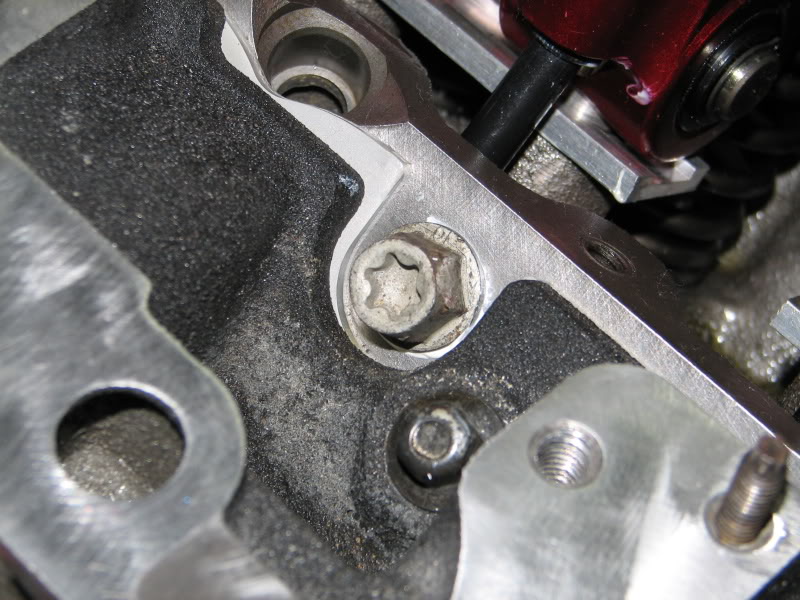

Oddly placed bolt

Name:  IMG_4335.jpg
Views: 3
Size:  101.7 KB

Called it a night
Name:  IMG_4337.jpg
Views: 2
Size:  80.2 KB

Things are moving along. Have a new condenser and radiator here to install along with intercooler fans, intercooler reservoir and a few other goodies.
BillBoost37 is offline   Reply With Quote
Old 03-31-2009, 11:01 PM   #7
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looking real good there Bill.
Danthurs is offline   Reply With Quote
Old 03-31-2009, 11:10 PM   #8
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Thanks for sharing Bill. It'* looking mighty fine!
Purplehazeir is offline   Reply With Quote
Old 04-01-2009, 12:21 PM   #9
Okie Hokie
Posts like a Camaro

tlsheff's Avatar

Join Date: Dec 2008
Location: Durant, Ok 74701
Posts: 1,107
Thanks: 0
Thanked 0 Times in 0 Posts
tlsheff is on a distinguished road
Default

excuse me while i go cry in the corner...

lookin good bill
tlsheff is offline   Reply With Quote
Old 04-01-2009, 01:56 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Lemme tell ya guys.. .600" lift is a lot. With this setup it will be pushing .592"-.594"ish. Rolling it over by hand watching the spriings compress to nearly nothing is amazing.

Todd pulled a 423WHP out of this setup. Hoping I'm close, if it'* only about 400whp I think I can handle living with that.
BillBoost37 is offline   Reply With Quote
