Default UIM Porting

SO I have a L26 Upper, I notice after I pull the runners out there is casting that holds the runners inline. Would it behoove me to Port my intake. I am going to be installing a HV3 insert.
Nighthwk12 is offline   Reply With Quote
Old 01-06-2011, 12:59 AM   #2
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Wish I had a real answer for you, but here'* what I know about the UIM (besides the fact that it gets old and leaks coolant before you discover the joys of GM Forum and socket sets).

The runners seem to direct airflow through the UIM. However, like the MAF post in your throttle body, directing airflow means either reducing volume due to obstruction, or reducing velocity*due to directing. At high RPM'*, there'* enough air velocity that the runners actually slow things down (hence the existence of the HV3); however, at low RPM'*, the runners are needed to properly move air through the manifold; otherwise, the air would just slow down and stagnate. Proof: It'* been shown (by ZZP themselves, I believe) that completely removing the runners adds high-end horsepower but absolutely kills low-end torque.

Long story short, it seems doubtful that you can port the UIM to get more power out of it. On stock runners, I think reducing its height and therefore shortening the path the air takes through the manifold would be your best bet. (But bear in mind that I studied computer science, not mechanical engineering.)

However, I would look into polishing. I forget what the inside of a UIM looks like, but like a LIM, smoothing out the air channels would help a tiny bit.

Last edited by SignOfZeta; 01-06-2011 at 01:00 AM. Reason: Clarification.
SignOfZeta is offline   Reply With Quote
Old 01-06-2011, 03:59 AM   #3
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Zeta, the L26 can't crack and leak coolant because it'* metal. I mean, it could crack with enough tons of weight on it, but then you've got other problems.

Polishing actually messes with the air velocity. You don't want very smooth stuff. The finest you should go is 120 grit if you are going to touch the intake ports, but it all depends on how the HV3 lets air out into the LIM. Could we have some pictures, please?
radomirthegreat is offline   Reply With Quote
Old 01-06-2011, 04:44 AM   #4
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by radomirthegreat View Post
Zeta, the L26 can't crack and leak coolant because it'* metal. I mean, it could crack with enough tons of weight on it, but then you've got other problems.
Oh yeah, I forgot he had a S3 UIM sitting around. Guess I'm just an old-schooler… barely.
SignOfZeta is offline   Reply With Quote
Old 01-06-2011, 04:50 AM   #5
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I remember my good old days with the nylon upper manifold. It cracked by the throttle body, and it didn't look as awesome as the metal one I have now. So, when are you top-swapping?
radomirthegreat is offline   Reply With Quote
Old 01-06-2011, 09:24 AM   #6
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

I'll get some pics up after the the devil game tonight
Nighthwk12 is offline   Reply With Quote
Old 01-06-2011, 10:11 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by SignOfZeta View Post
Oh yeah, I forgot he had a S3 UIM sitting around. Guess I'm just an old-schooler… barely.
Never too late to put on an S3 mani... you know where there'* a couple.
BillBoost37 is offline   Reply With Quote
Old 01-06-2011, 01:39 PM   #8
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Never too late to put on an S3 mani... you know where there'* a couple.
Don't forget to pick up an adapter plate and N* with a LQ4. Just saying.
Nighthwk12 is offline   Reply With Quote
Old 01-06-2011, 02:30 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I have two sittin here... next to the two L26 manifolds, next to the two Gen V'*... I have problems eh?
BillBoost37 is offline   Reply With Quote
Old 01-07-2011, 12:52 AM   #10
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Here'* with the runner'* in
Name:  SAM_0076.jpg
Views: 1
Size:  20.0 KB

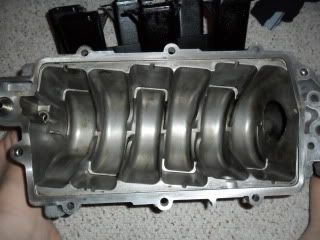

Here'* the casting I'm looking to eliminate

Name:  SAM_0078.jpg
Views: 1
Size:  19.9 KB
Name:  SAM_0077.jpg
Views: 1
Size:  17.3 KB

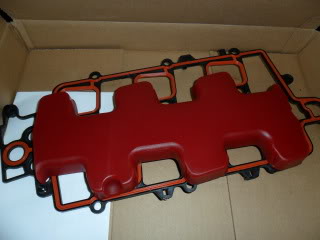

Here'* the insert.
Name:  SAM_0080.jpg
Views: 1
Size:  13.8 KB
Name:  SAM_0082.jpg
Views: 1
Size:  20.1 KB
Nighthwk12 is offline   Reply With Quote
