Old 10-12-2009, 09:34 PM   #31
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Ya, get the fuel trims set and move on from there.
Danthurs is offline   Reply With Quote
Old 12-04-2009, 12:03 AM   #32
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

Northstar TB installed 11-25-09. Dyno'd last night, picked up 20whp, same boost, but richer and less timing, only 11.5deg vs 14deg previously. It moved up to the next row in the timing table I guess. The fuel trim is now +10% and running about 11.2:1 a/f, where it was only +1% and 11.7:1 with the stock t.b. I need to tune it again! With the numbers back where they were, it'll be over 400whp easy.

The throttle response it nothing short of amazing! It rev'* quicker than the CTS-V (LS6) I was working on today. And it'* faster, too!

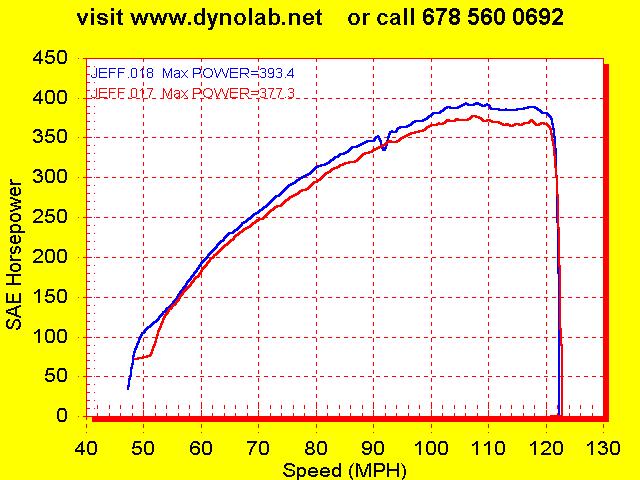

Before and after N* tb:

It still has the dip at 5600rpm, I saw 1.5deg KR at 5675rpm and it was gone by 6100rpm, which is the exact start and end of the dip. I think it'* false knock. I'll disable the KR and try a run to see if the power is affected. My guess is it won't be.
Attached Thumbnails
Twin-charged Bonneville Update-jeffs-throttle-body-change.jpg
pontiacjeff is offline   Reply With Quote
Old 12-04-2009, 07:57 AM   #33
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Dang, that is some serious power
Danthurs is offline   Reply With Quote
Old 12-04-2009, 11:15 AM   #34
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Dang, that is some serious power
...and I have not even turned up the boost yet. The turbo is barely above idle at this power level. It is only making 6-7psi. This thing will really start to sing at about 12psi. That'* where my combined boost will be about 22-24psi.
pontiacjeff is offline   Reply With Quote
Old 12-04-2009, 12:11 PM   #35
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

When do we get to see some pictures of this beast?
Purplehazeir is offline   Reply With Quote
Old 12-04-2009, 12:54 PM   #36
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default



This is an old picture, no N* tb, no header wrap, original fuel lines, tcm, pcm, and wires still hanging out... I'll take some pics this weekend and post a good one.
pontiacjeff is offline   Reply With Quote
Old 12-08-2009, 08:52 PM   #37
Junior Member

Join Date: Dec 2009
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
weston502 is on a distinguished road
Default

wow. your a little a head of me. im still pushing to break the 300 mark. im new here and looking to upgrade my 03 bonneville se.
weston502 is offline   Reply With Quote
Old 12-08-2009, 08:57 PM   #38
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I believe that'* his at the wheels HP, his crank HP is a lot higher.
Danthurs is offline   Reply With Quote
Old 12-09-2009, 12:36 AM   #39
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Nice Jeff. Totally unique and exciting. What in the hell are you going to do about actually getting all that power to the ground. LOL.
GXP Venom is offline   Reply With Quote
Old 12-10-2009, 07:52 AM   #40
Senior Member
Posts like a Supercharger

Join Date: Sep 2007
Location: Kansas City Mo
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
dscott2000 is on a distinguished road
Default

Very impressive!! I couldnt hardly believe the numbers!! Great work!
dscott2000 is offline   Reply With Quote
