Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

Reply



Thread Tools Search this Thread
Old 10-10-2009, 09:52 PM   #21
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

The turbo boost stacking the */C would make sense of it. How far is your pulley wheel shaved?

Edit...You beat me to it Jeff.......
GXP Venom is offline   Reply With Quote
Old 10-11-2009, 12:45 AM   #22
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

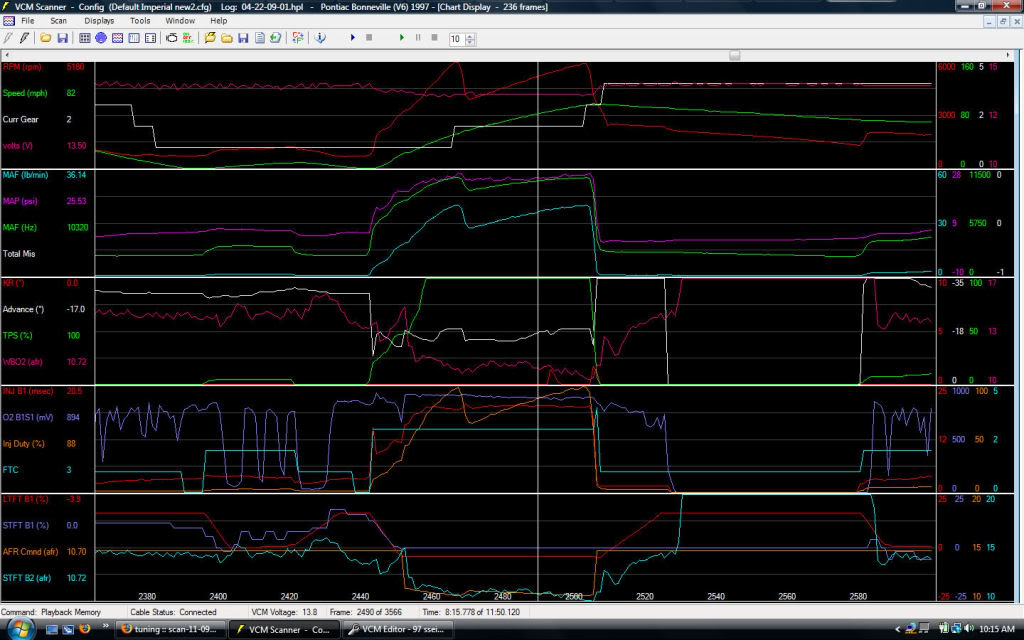

After thinking about it more, I really think he'* running out of MAF. This is from my car, the green line, second graph from the top I'm near the max of 10,500 on my MAF. And that'* without a turbo. Does your tech2 give you a graph like this?

Name:  scan-04-22-09-01.jpg
Views: 0
Size:  107.5 KB
Danthurs is offline   Reply With Quote
Old 10-11-2009, 06:25 PM   #23
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

The max MAF is 11,500Hz. It is a LS1 MAF. It is good for 500whp. I am only at about 10,100Hz. it was reading 318g/* at 5413rpm and the next value was -325g/* at 5600. It went -320g/*, -318g/*, then jumped to 326g/* at 6150 right before it hit the rev limiter. I have never seen this, but I talked to someone who said it'* reversion. I could move the MAF away from the t.b. a little, or use a real boost controller to eliminate the boost spike, or I might try opening the bypass valve at like 5200-5300 with a RPM activated switch. I don;t know, it' still runs great. The a/f did not go lean, it only showed 1deg KR from 5200-5500. I am only running 12-13deg timing right now.
pontiacjeff is offline   Reply With Quote
Old 10-11-2009, 07:05 PM   #24
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Where is the MAF located? 12-13 degrees of timing seems a bit low. I try to shoot for 15-18 degrees of timing. What tuning software are you using? Is that the tech2? I have no clue how that works, wish I had one though.
Danthurs is offline   Reply With Quote
Old 10-11-2009, 10:23 PM   #25
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

Maf is right in front of the t.b. 12-12deg is SAFE, you may not know, but I blew this thing up twice! :(

I don't want to kill it again. I have used a DHP Powertuner since 2004, but I am begrudginly making the switch to an HPTuner.

I am in the very early stages of tuning. i am set on an 11.5:1 a/f ratio and the aforementioned safe timing. I want to be able to drive this onthe street with varying fuel qualities and conditions without fear of detonation. What will be a better tune is when I go to the track and run 100-101 octane. I'll lean it out and bump the timing. The stated goal from the beginning was 500whp on 20psi or less. I should be able to do that given the current state of tune with only another 5psi, esp if I can do it with just a little more from the turbo.
pontiacjeff is offline   Reply With Quote
Old 10-11-2009, 10:33 PM   #26
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

This set up is kind of new to me, so I'm going to try and help best I can. I use HPT, so does billboost, and purplehaizer. So if you do make the switch you will have some help. Correct me if I'm wrong, but shouldn't the MAF be before the turbo? I seem to remember seeing a grand prix with a turbo/supercharger setup. and that was MAF, throttle body, turbo, supercharger. I'm not exactly sure how your'* is, can't quite tell from the picture. Perhaps I just need more info on your setup.
Danthurs is offline   Reply With Quote
Old 10-11-2009, 11:00 PM   #27
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

I chose to blow thru the maf. I personally think it'* the way to go. Plus, plumbing would be a bitch if I tried to put it in front of the turbo, I'd have no room for the a.f.

My fuel trims are 10% pretty much across the board at 11.5:1. I am skewing the fuel inj flow rate b/c i was having problems in the beginning. The first step is to get the inj flow rate correct and have the fuel trims near zero. then I'll start to balance the front and rear banks. Then I'll maybe lean it out to about 11.8-12.0 max and try a little more timing. I have not even installed the ice chest in the trunk yet, so all the i/c is is ambient temp.

I'm pretty good tuning, been doing this for over 6 years. Built and tuned the turbo GA, it makes 370whp on 17psi... from only 2.0 liters!
pontiacjeff is offline   Reply With Quote
Old 10-11-2009, 11:01 PM   #28
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

that should be "-10%" fuel trims.
pontiacjeff is offline   Reply With Quote
Old 10-11-2009, 11:25 PM   #29
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

-10 is pulling a fair amount of fuel. I don't think that'* your problem though. Any chance you can post a image of a scan, something like this.
Name:  scan-04-22-09-01.jpg
Views: 0
Size:  107.5 KB

I find this helps me find problems
Danthurs is offline   Reply With Quote
Old 10-12-2009, 11:31 AM   #30
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Jan 2005
Location: Atlanta, GA. USA
Posts: 368
Thanks: 0
Thanked 0 Times in 0 Posts
pontiacjeff is on a distinguished road
Default

Ya, as I said the inj sizing is skewed. I think I have in there 55# in flow rate, but I am running 65# injectors. I forgot it was this way until i was comparing and changing my file to a base file in HPT. I am -15% in the low fuel trim tables and -10% in the higher tables. I can change that in the Powertuner and reset the fuel trim. I might get better gas mileage, too, since the pcm won't be working as hard.
pontiacjeff is offline   Reply With Quote
