Old 05-28-2005, 12:59 AM   #11
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by footballplayer/Lowrider03
will your fans stay on if you leave the switch open?
Yes, its a manual fan switch - it will shut off when you turn off the car
llBlazin_llLo is offline   Reply With Quote
Old 05-28-2005, 01:42 AM   #12
Senior Member
True Car Nut

Join Date: Aug 2004
Location: The South
Posts: 3,281
Thanks: 0
Thanked 0 Times in 0 Posts
Lowrider0308 is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
Quote:
Originally Posted by footballplayer/Lowrider03
will your fans stay on if you leave the switch open?
Yes, its a manual fan switch - it will shut off when you turn off the car
i meant to ask the second answer in your post lol. I already knew the first.
Lowrider0308 is offline   Reply With Quote
Old 05-28-2005, 02:03 AM   #13
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Nate...send me a basic idea of your override switch...I think I know it..but would like to verify..
BillBoost37 is offline   Reply With Quote
Old 05-31-2005, 12:04 AM   #14
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
glad to hear the good news! Its awsome being able to stay at the temp of your stat at all times!
Ok....we gotta lil kink to work out....because when my car is off...the fans work fiune off the switch...turn the key to Run.....Fans turn off until PCM commands them on........Plus I'm not sure if this is the low speed or high wither I have going...but that doesn't bother me.

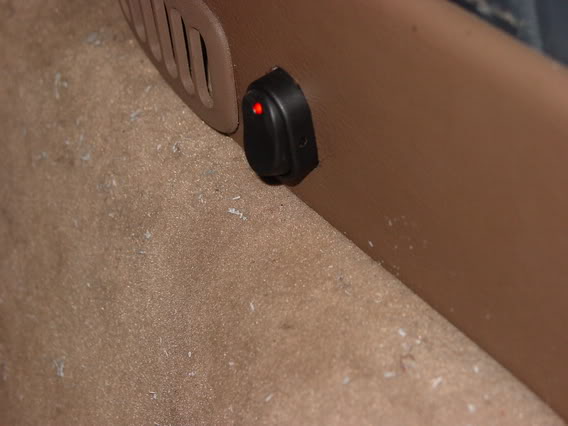

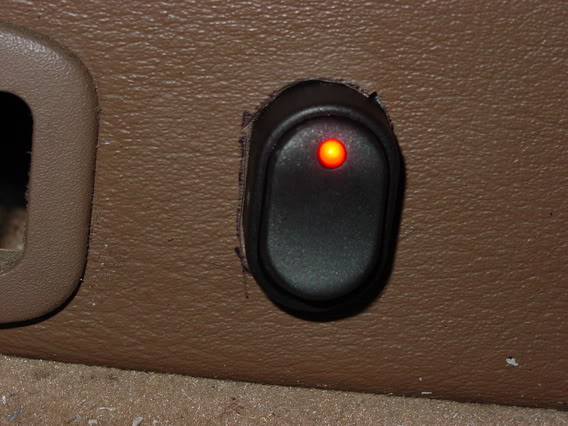

But here'* some pics of my switch.

Name:  FanSwitch.jpg
Views: 1
Size:  30.5 KB
Name:  FanSwitch1.jpg
Views: 1
Size:  50.0 KB
LakevilleSSEi is offline   Reply With Quote
Old 05-31-2005, 03:37 AM   #15
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

So when your key is in the "on" pos. or the car running the fans dont work but when your keys are not even in you can turn on the fans?

Also is that a led switch? (2 or 3 prongs on the back)?
llBlazin_llLo is offline   Reply With Quote
Old 05-31-2005, 09:52 AM   #16
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

fans will work when the car is running because of PCM control...just not at my command.

LED Switch, 3 prong.
LakevilleSSEi is offline   Reply With Quote
Old 05-31-2005, 01:48 PM   #17
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
LED Switch, 3 prong.
Are you running power to the back of the switch? You don't need power you are just completing a ground connection. There is your problem then. . . . . . . .get a two prong switch.

If you want a light when it is on - run power to a led light, take the ground of the led light and run it to the switch.
llBlazin_llLo is offline   Reply With Quote
Old 05-31-2005, 07:15 PM   #18
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
Quote:
Originally Posted by LakevilleSSEi
LED Switch, 3 prong.
Are you running power to the back of the switch? You don't need power you are just completing a ground connection. There is your problem then. . . . . . . .get a two prong switch.

If you want a light when it is on - run power to a led light, take the ground of the led light and run it to the switch.
If I don't run power to the back of the switch then nothing happens.....Switch is dead....I don't think I tried it with the key on when the power wasn't on the switch?
LakevilleSSEi is offline   Reply With Quote
Old 05-31-2005, 07:28 PM   #19
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
Quote:
Originally Posted by llBlazin_llLo
Quote:
Originally Posted by LakevilleSSEi
LED Switch, 3 prong.
Are you running power to the back of the switch? You don't need power you are just completing a ground connection. There is your problem then. . . . . . . .get a two prong switch.

If you want a light when it is on - run power to a led light, take the ground of the led light and run it to the switch.
If I don't run power to the back of the switch then nothing happens.....Switch is dead....I don't think I tried it with the key on when the power wasn't on the switch?
The green wire off the relay is a ground. When the PCM commands the fans to come on all it is doing is completing a ground - that is why you do not need power. Get rid of that 3 prong switch and get a 2 prong switch and put in inline with the wire that you spliced into the relay.

try this so you understand. . . . . . . .the wire that you spliced into the relay - take the other side and ground it out on the body. Your hand is now acting like the switch as you touch it to the body and remove it from the body.
llBlazin_llLo is offline   Reply With Quote
Old 05-31-2005, 07:37 PM   #20
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

All I need then is a switch with a load and ground wire then?


Nothing power wise?

This is gonna suck to find the exact same switch with 2 prong....because I had to cut up that center console piece for it to fit.
LakevilleSSEi is offline   Reply With Quote
