Default Someone With A 95 FSM Please Lend me your eyes.....

I need to install a fan overide switch in my car.....Have all the wiring and switches, connectors and stuff ready to roll. Just need to know the wiring diagram and what relays to activate for the fans to put my high speed fans (both fans) onto one switch in the car. So I can keep my in traffic temps to a minimal.

If someone can scan in or take pics of the wiring diagram and where the correct relay I need to energize that would be great.


Thanks,
Nate
LakevilleSSEi is offline   Reply With Quote
Old 05-27-2005, 06:22 PM   #2
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

If it is like Ryan'* '94 - pull off your relay cover, grab the first relay closest to the drivers side, splice the green wire.
llBlazin_llLo is offline   Reply With Quote
Old 05-27-2005, 07:21 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
If it is like Ryan'* '94 - pull off your relay cover, grab the first relay closest to the drivers side, splice the green wire.

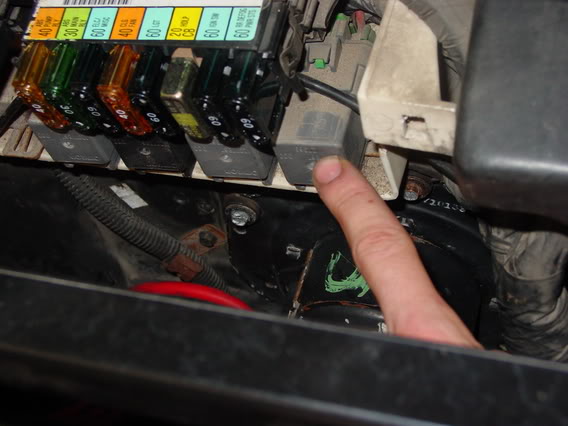

Is it the relay that I'm pointing to in this pic?

Name:  DSC01028.jpg
Views: 0
Size:  39.2 KB

Also can someone verify that IT IS THE GREEN WIRE in a 95 for the HIGH SPEED FANS?
LakevilleSSEi is offline   Reply With Quote
Old 05-27-2005, 08:38 PM   #4
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Yes - The green wire ground is used for all GM app. fan relays. So pop that relay out and look to see if there is a green wire coming out of it - if so hook it up - if not keep poping out the relays untill you seen one with the green wire sticking out.
llBlazin_llLo is offline   Reply With Quote
Old 05-27-2005, 08:40 PM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Pulled that one relay out that I was pointing at. All there is a small ga. green wire....thick light Blue...Thick Red, and a small ga brown wire. where do I go from here?
LakevilleSSEi is offline   Reply With Quote
Old 05-27-2005, 08:57 PM   #6
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by LakevilleSSEi
Pulled that one relay out that I was pointing at. All there is a small ga. green wire....thick light Blue...Thick Red, and a small ga brown wire. where do I go from here?
- small green wire -

splice another wire to the green one
run that wire into the cab of the car to the back of a two way switch
on the other side of the switch attach another wire to some ground point.
llBlazin_llLo is offline   Reply With Quote
Old 05-27-2005, 08:59 PM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Quote:
Originally Posted by llBlazin_llLo
Quote:
Originally Posted by LakevilleSSEi
Pulled that one relay out that I was pointing at. All there is a small ga. green wire....thick light Blue...Thick Red, and a small ga brown wire. where do I go from here?
- small green wire -

splice another wire to the green one
run that wire into the cab of the car to the back of a two way switch
on the other side of the switch attach another wire to some ground point.
Awesome....Thanks man.
LakevilleSSEi is offline   Reply With Quote
Old 05-27-2005, 10:37 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

Just finishefd...She works AWESOME!!!!!! Those instructions should be put into techinfo!
LakevilleSSEi is offline   Reply With Quote
Old 05-27-2005, 11:40 PM   #9
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

glad to hear the good news! Its awsome being able to stay at the temp of your stat at all times!
llBlazin_llLo is offline   Reply With Quote
