Old 04-17-2007, 12:30 PM   #21
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

LH..

I'll take every measurement you can take pics of or tell me how you measured.

Thanks
Bill
BillBoost37 is offline   Reply With Quote
Old 04-17-2007, 05:42 PM   #22
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Halifax, Canada 91SSE / 97SSEi
Posts: 5,857
Thanks: 0
Thanked 0 Times in 0 Posts
Merlin 91/97 is on a distinguished road
Default

Not sure if this helps or not, but I found out that my 97 takes the same brake pads as a 97 Firebird. Also the 97 Firebird uses rear disc brakes.
Again, not sure if it mean'* anything.... it probably doesn't.
Merlin 91/97 is offline   Reply With Quote
Old 04-17-2007, 06:39 PM   #23
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
LH..

I'll take every measurement you can take pics of or tell me how you measured.

Thanks
Bill
Well...something a bit more specific would be great, this topic started on rear brakes, now its about front brakes.

Want me to just start randomly measuring and taking pics of things? Haha
LittleHoov is offline   Reply With Quote
Old 04-17-2007, 07:36 PM   #24
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Rear knuckles etc. Stuff I would be looking into for a swap
BillBoost37 is offline   Reply With Quote
Old 04-17-2007, 11:49 PM   #25
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

Quote:
Originally Posted by Merlin 91/97
Not sure if this helps or not, but I found out that my 97 takes the same brake pads as a 97 Firebird. Also the 97 Firebird uses rear disc brakes.
Again, not sure if it mean'* anything.... it probably doesn't.
I did the same poking around at RockAuto you did Merlin, and much to my surprise the 97 Firebird uses the same pads, calipers, and even rotors as the Bonneville.

This did change in 98 though, so Im thinking its probably a 93-97 F-body that uses the same setup as the Bonneville.

The rear setup on a F-body of that era might also be something to look into, you never know.
LittleHoov is offline   Reply With Quote
Old 04-30-2007, 07:28 PM   #26
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

Finally got a chance to take some pics today, Im sorry it took so long. Didnt take any measurements, but I can if asked, but it might take a while, ive been busy lately and havent had much time to mess with the car.

On to the pics.

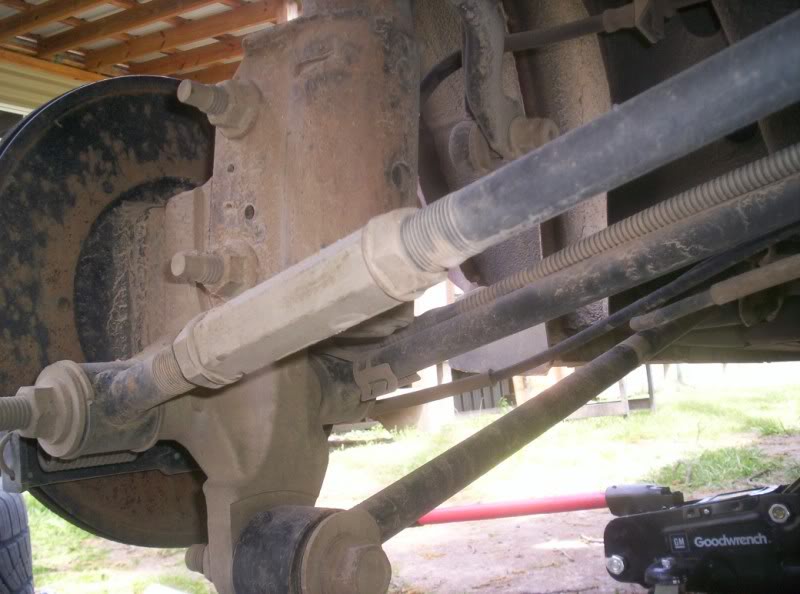

Name:  100_1503800x594-1.jpg
Views: 0
Size:  64.7 KB
This is the backside of the knuckle, you can see that the knuckle is supported on the bottom by the trailing arm, another arm on each side with a bolt that runs all the way thruogh both arms and the knuckle, and then what is essentially the strut on the top.

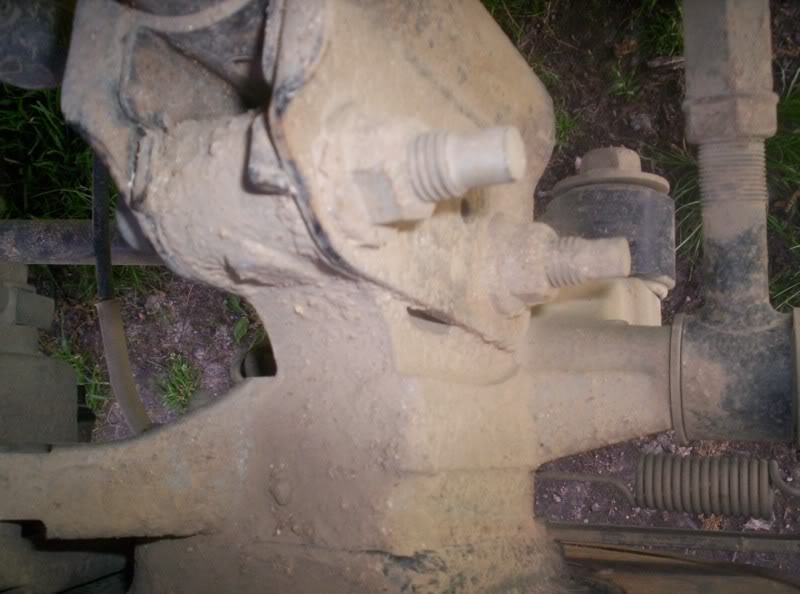

Name:  100_1505800x594.jpg
Views: 0
Size:  56.9 KB
Another shot of the top part of the knuckle, two bolts that attach to a bracket on the strut, in the very bottom of this pic you can see where the hub and the knuckle attach.

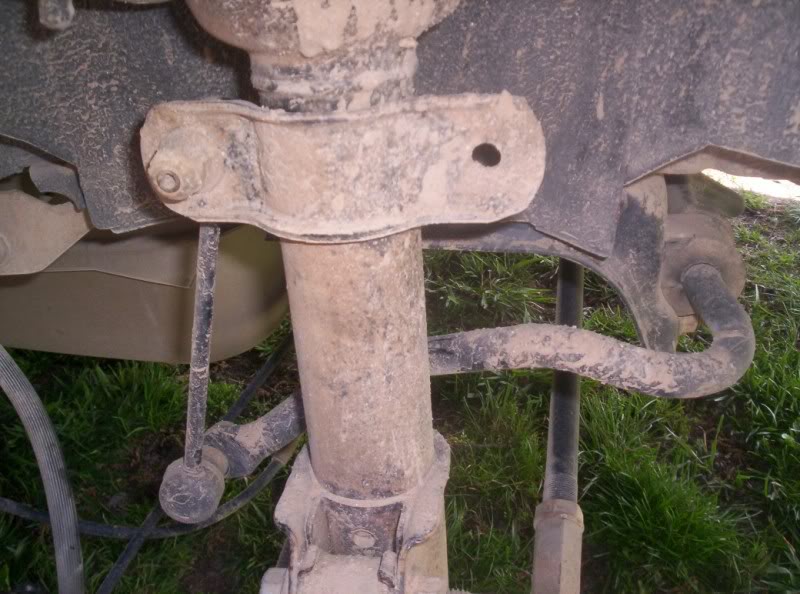

Name:  100_1508800x594.jpg
Views: 0
Size:  88.0 KB
Here you can see the bracket that the knuckle attaches too, it basically looks like it may be welded to the strut casing or something, the top bracket where my swaybar endlinks attach too is held on in a similar fashion.

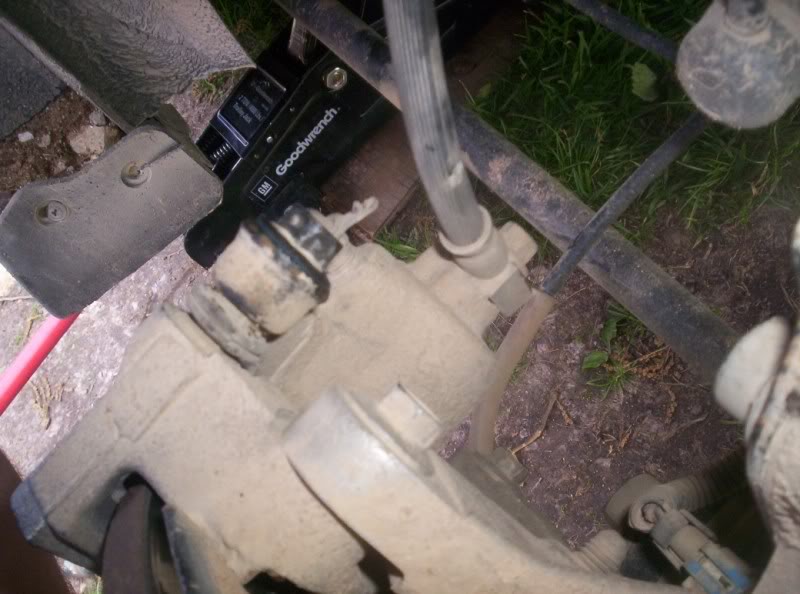

Name:  100_1509800x594.jpg
Views: 0
Size:  69.0 KB
Not the greatest shot, but you can see a little bit of where the caliper bolts to the caliper bracket.

I can take more pics and measure whatever, but like I said, dont expect instant results.
LittleHoov is offline   Reply With Quote
Old 04-30-2007, 09:08 PM   #27
Senior Member
Certified Car Nut

Join Date: Jun 2003
Posts: 15,928
Thanks: 0
Thanked 0 Times in 0 Posts
BonneMeMN is on a distinguished road
Default

[quote="LittleHoov"]
Quote:
Originally Posted by Merlin 91/97

I did the same poking around at RockAuto you did Merlin, and much to my surprise the 97 Firebird uses the same pads, calipers, and even rotors as the Bonneville.
This is encouraging... We may be able to use F body caliper mounts on our hubs, with larger rotors as well...
BonneMeMN is offline   Reply With Quote
Old 04-30-2007, 11:03 PM   #28
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Halifax, Canada 91SSE / 97SSEi
Posts: 5,857
Thanks: 0
Thanked 0 Times in 0 Posts
Merlin 91/97 is on a distinguished road
Default

So who'* going to be the first one and try this mod?

I'm out.... no cash flow... :(
Merlin 91/97 is offline   Reply With Quote
