Old 02-08-2010, 11:07 AM   #31
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

On the quest to make the best LED turn signal mirror possible, I didn't like the way peeling back the heater element always took up the black glue etc on the mirror and would let light bleed through. I decided I needed to cut a circle w/o taking up the heating element. Bought a set of leather punches,(thanks Dan) they are hollow circles and semi sharp. Trying to cut a piece of paper with them, I failed and didn't know how I could cut through the heater. Then a thought struck, when in doubt use heat! Pulled out the mapp gas torch and heated the punch of choice. Touching it to the element it burned a perfect circle. I readied the template, positioned it carefully and steadied my hand for the work.
Name:  IMG_5117.jpg
Views: 1
Size:  72.3 KB

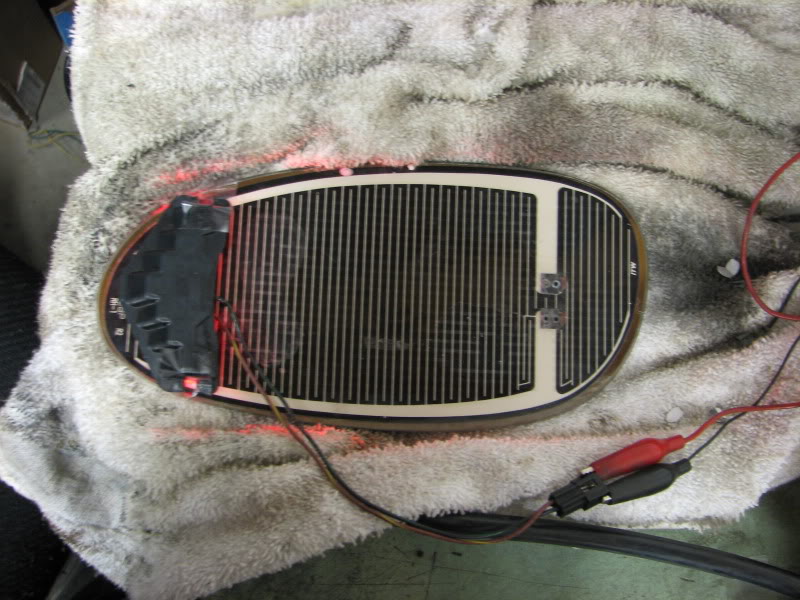

Taped the LED pod to the glass for placement checking.
Name:  IMG_5121.jpg
Views: 1
Size:  107.4 KB

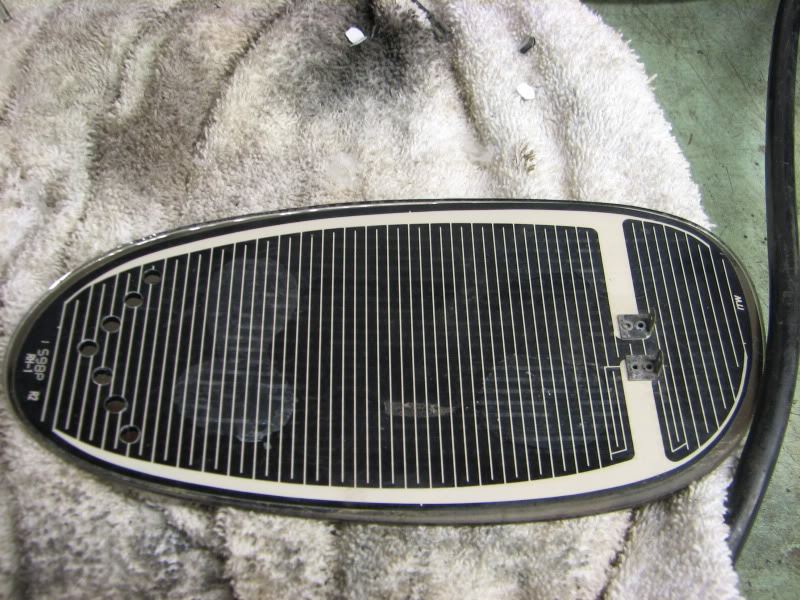

Notice this heating element is like the 2000 Bonnevilles and not the other Regal/Century elements I had gotten thus far.
Name:  IMG_5122.jpg
Views: 1
Size:  132.6 KB
Other Regal/Century

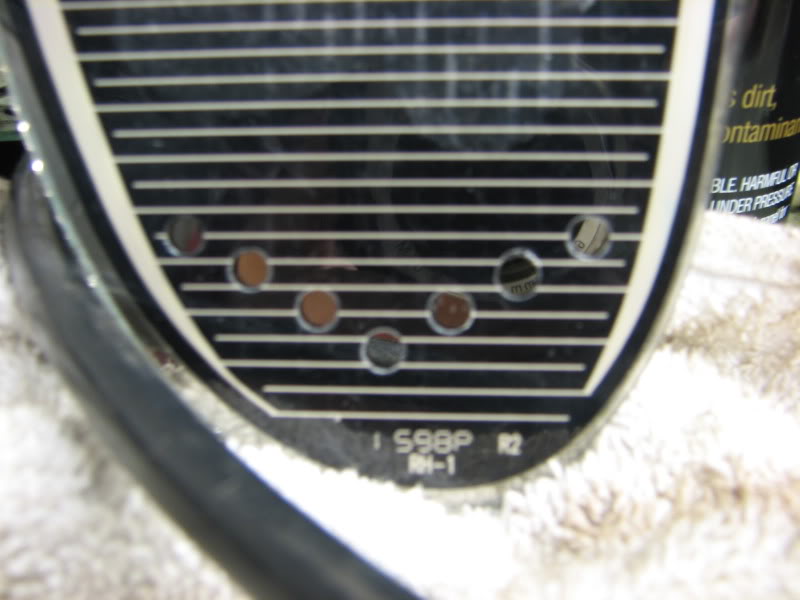

These holes came out perfect.
Name:  IMG_5125.jpg
Views: 2
Size:  63.5 KB

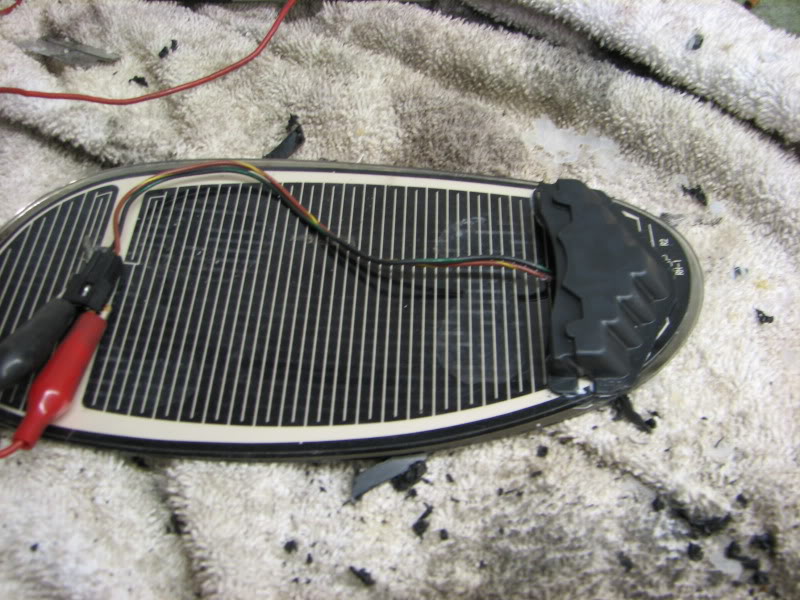

Glued the pod to the mirror after I cut the backing to fit nicely and help hold the pod.
Name:  IMG_5126.jpg
Views: 1
Size:  115.1 KB
Once this cures, the backing will go onto it and I'll have one side ready. Now to find a driver side glass with the good heating element. I lost a few lines of heating in the process, overall though the majority of the mirror will still heat w/o issues.

I did a few other things as well, they didn't amount to a lot picturewise though. Saturday at the yard I picked up a control arm bolt I was missing and the sway bar center bushing hold downs.

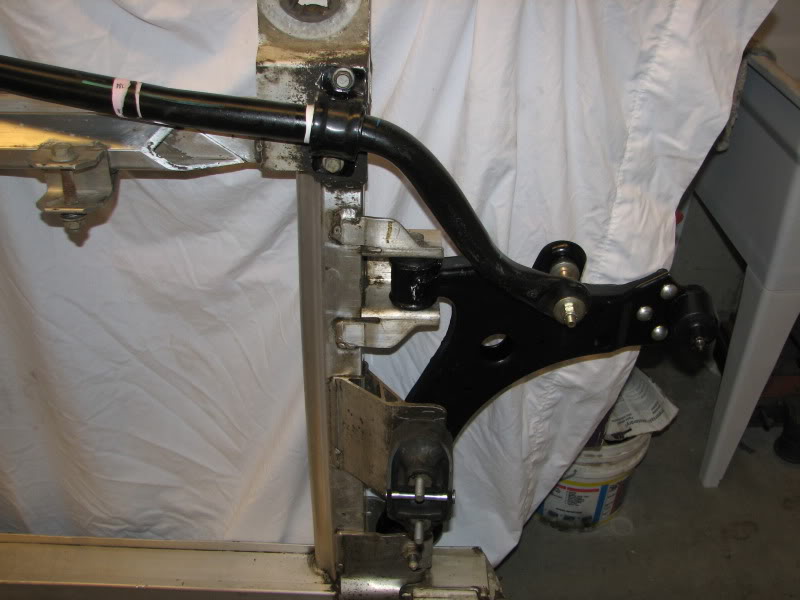

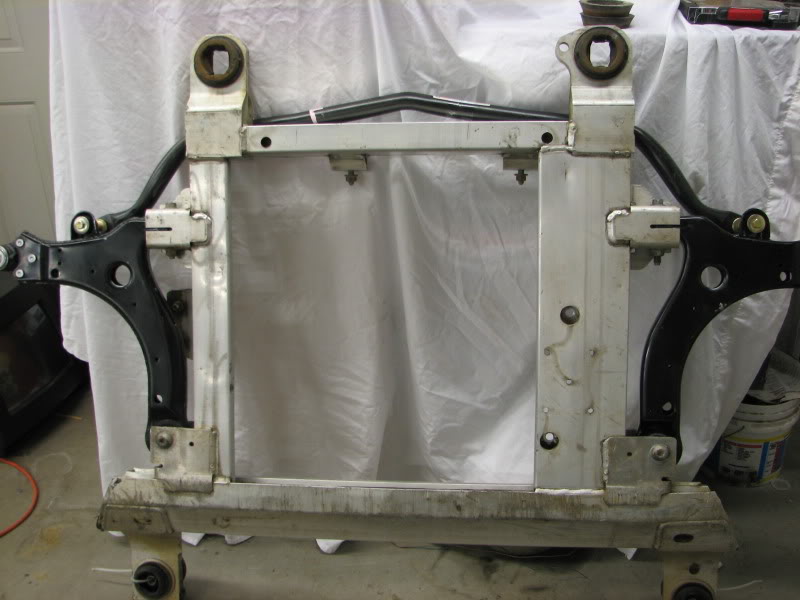

Tapped the sway holes and applied anti-seize to the bolts to keep corrosion down and from needing PB if they were to be removed. Anti-seized all the bolts for the control arms so they will hopefully provide years of flex before adhering to the bushings. Tigtened it all down.
Brandon (local buddy that had a Monte) stopped by in his new $100 Park Ave Ultra. We chatted stuff and he mentioned a sandblaster at work. I'll be tossing some of the stuff to him so it'll be clean and beautiful when I put paint on it. Should be a "nice to have".
Then I rearranged the stuff I've been collecting to get it all in one location for the most part.
Heck..here'* pics anyhow.
Name:  IMG_5134.jpg
Views: 8
Size:  71.2 KB
Name:  IMG_5136.jpg
Views: 1
Size:  67.9 KB

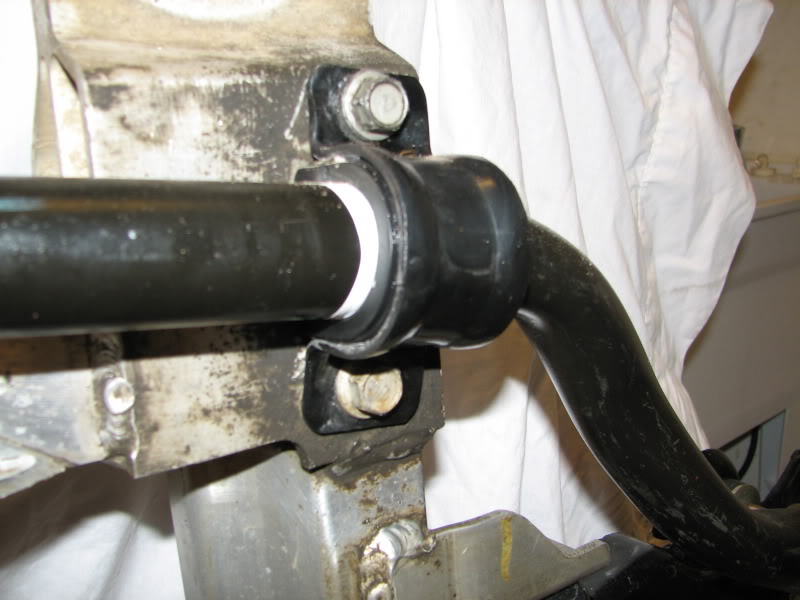

The white near the center bushing is teflon tape that I tossed on before the bushing grease. GM had a bulletin back in the early 90'* that if a sway had stuck to the bushing that they remove the bushing, teflon the bar and put it back together. If that worked for them, that plus the bushing grease will work for me.
Name:  IMG_5139.jpg
Views: 1
Size:  68.7 KB

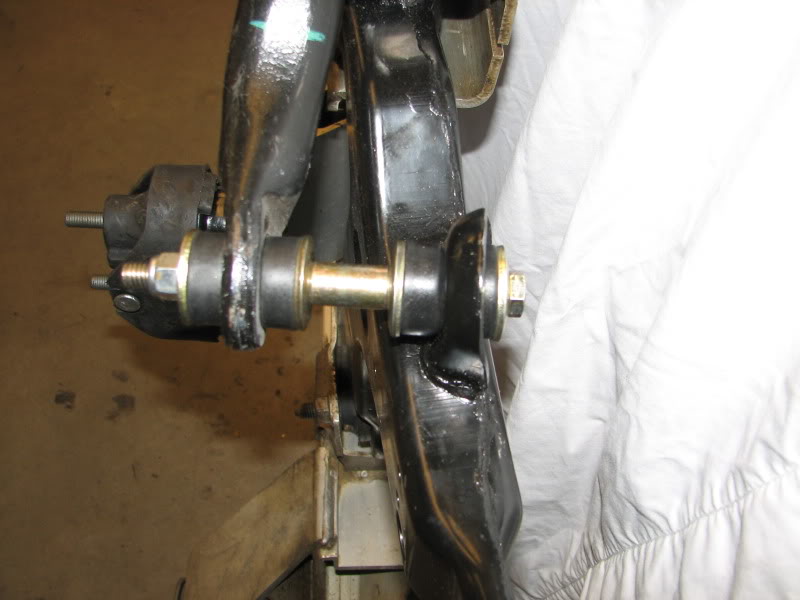

Name:  IMG_5140.jpg
Views: 1
Size:  61.1 KB

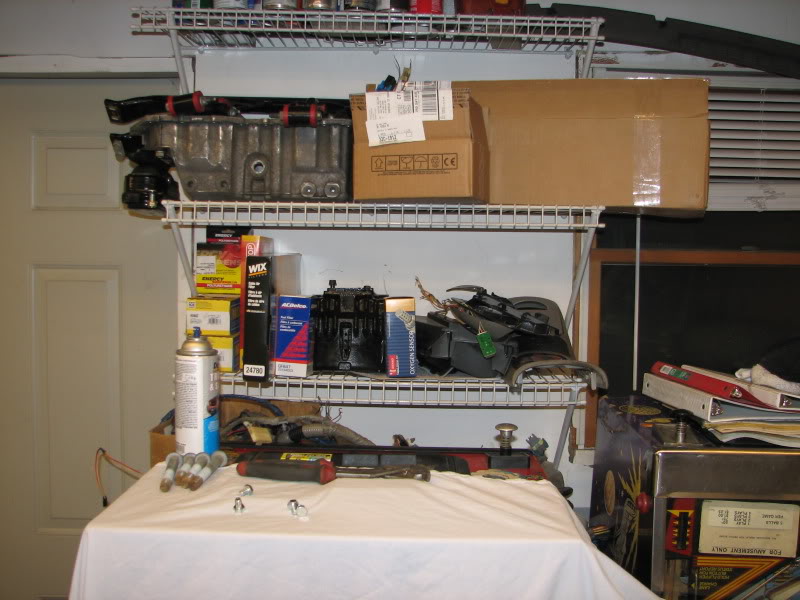

Shelf above
Name:  IMG_5141.jpg
Views: 3
Size:  93.6 KB
BillBoost37 is offline   Reply With Quote
Old 02-08-2010, 12:37 PM   #32
Senior Member
Posts like a Corvette

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

very nice what car or kit is that pod from?
Nighthwk12 is offline   Reply With Quote
Old 02-08-2010, 01:41 PM   #33
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I think gtpsupercharged said he got them from Caddies. Not sure. But email him. He was selling a pair with template for $20
BillBoost37 is offline   Reply With Quote
Old 02-08-2010, 03:59 PM   #34
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looking great Bill. Just funny how your building a car from pieces.
Danthurs is offline   Reply With Quote
Old 02-09-2010, 11:59 AM   #35
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I do plan to buy a whole car and then pull it apart if that helps any.

GM didn't put all these pieces on a single car though.
BillBoost37 is offline   Reply With Quote
Old 03-12-2010, 09:51 AM   #36
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Updated first post for
Rear brakes and knuckles
turn signal mirror
E46 fog lights
Projector head lights
Sequential turn signals
Struts and springs
Rockers
Powerlog
Plus I forget what else..lol
