Default New Intake - Air Box Question

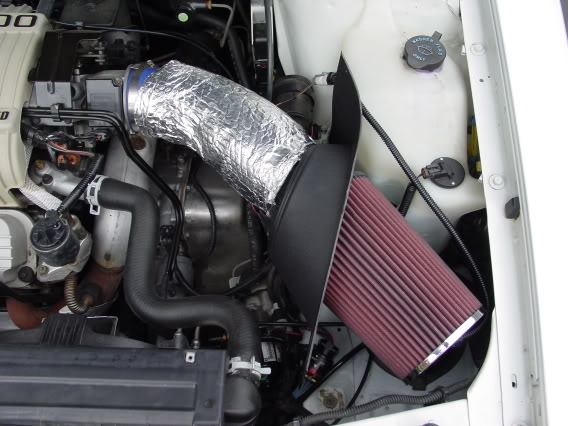

Here is a picture of my new intake...
Name:  DSC01864.jpg
Views: 8
Size:  52.3 KB

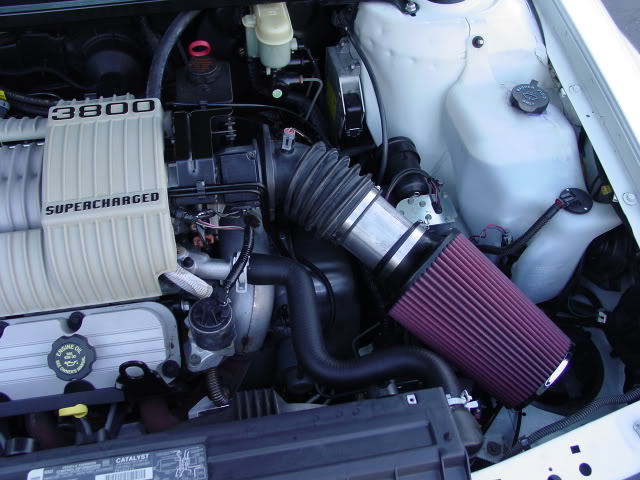

Versus my old one...
Name:  DSC01822.jpg
Views: 5
Size:  62.4 KB

I have used a 3.5" coupler and a tube with a K&N filter. I drilled a hole in the end of the filter for the IAT sensor...It seems to be working well.

How do I make a better air box? I am using a roofing duct after the filter, which keeps the air pretty cool compared to around the pipe...I could use poly, or plastic, but where do I get it, and what are good types to use. Thank you for the input...
duceyducese is offline   Reply With Quote
Old 07-31-2006, 05:30 PM   #2
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Actually, I like the roof pipe boot idea!

It just about completely shields the filter from the heat of the rest of the engine bay and that plastic is designed to take a good bit of heat without breaking down.

With that in place, I'd almost be tempted to use the plastic from another pipe boot and rivet/plastic wked it to that one to complete the closing at the front by the head lamp. Then use some auto weatherstripping to create a gasket to seal against the hood.

Hey, you asked for opinions and I'm one to brainstorm when provided with a decent idea...

IMO, that plastic is better than the hard plexiglas style stuff many have been forced to use. It is flexible enough to avoid the cracking/crazing some experience. Plus the black matches the rest of the interior bay trim.
lash is offline   Reply With Quote
Old 07-31-2006, 05:36 PM   #3
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Longmont, CO
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
duceyducese is on a distinguished road
Default

When I put my hand on the filter, or near the filter on the protected side it is fairly cool. (It was 102 in Denver yesterday and 92 today). When I put my hand on the pipe, it is very hot. I have the sensor in the filter, which keeps it cool too. I wish I had a heat gun to see the difference. I think by dumb luck that I have the hood working with this system to keep the heat out. I will try a top cover, but I am not sure how much it will benefit.

I have seen a lot of the plexi covers, and I know that they do retain and collect heat. This little piece of rubber does not get that hot.

There is also a gap above the headlight that flows directly to the filter under the hood and over the light. I wonder if by putting a top cover on will limit that flow...

Thanks for the input...

Now to get my 180 thermostat, colder plugs, and exhaust worked on...
duceyducese is offline   Reply With Quote
Old 07-31-2006, 09:43 PM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

It'* hard to tell from the pic, but I did the same thing a few years ago. You have the right idea, now just try to finish the box around the corners. I was able to score the ends and bend them to form a box. I never finished mine but I had it so I could slip a piece of Lexan or Plexi in the top and it would fit in the joint I made for it.

The roof flashing is a good place to start as the 3" pipe slips right through the hole, which is flexible and rubber-like, and it'* a nice tight fit to completely shield it from the engine bay. Keep going

bonnie94ssei is offline   Reply With Quote
Old 08-01-2006, 12:46 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Yeah, I may have been misunderstood there. I'm not suggesting that you put a top on it, only that you put a seal around the top edge so that your hood seals down onto it. Also, do some searching here on "CAI" to see what people have done to wrap their intake pipe to keep it from heat soaking that intake air.

Many wrap theirs in Reflectix or similar....some have purchased special laced heat wraps that are proven to keep out heat soak.
lash is offline   Reply With Quote
Old 08-01-2006, 06:15 PM   #6
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

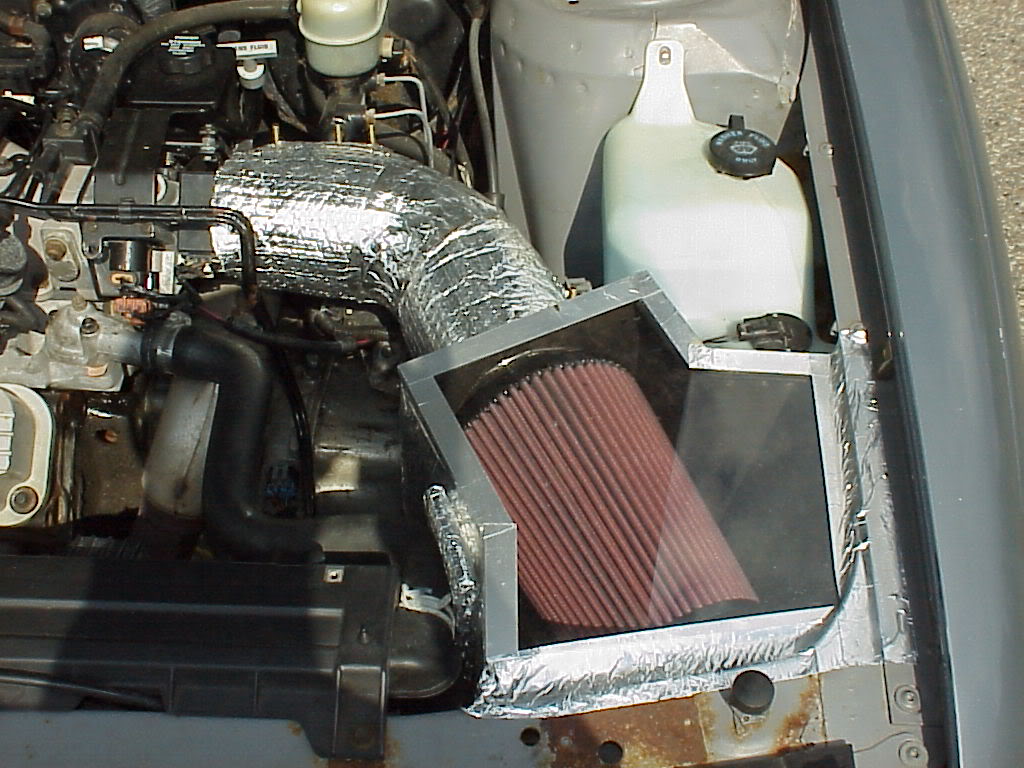

I used 1/4 Lexan. I wrapped 2 layers of Reflex on the outside and used sill plate foam foam the inside.

Name:  ThomasCAIOpening2.jpg
Views: 6
Size:  99.0 KB

Name:  ThomassCAITop.jpg
Views: 4
Size:  138.3 KB
llBlazin_llLo is offline   Reply With Quote
Old 08-01-2006, 08:10 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Jan 2006
Location: Longmont, CO
Posts: 62
Thanks: 0
Thanked 0 Times in 0 Posts
duceyducese is on a distinguished road
Default

Cool, where did you get the lexan? Home Depot...? Thanks,
duceyducese is offline   Reply With Quote
Old 08-01-2006, 08:26 PM   #8
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Yea basically everything was from their.
llBlazin_llLo is offline   Reply With Quote
