Default build your own air intake box? need help!!please!!

i have a 1994 bonneville SE and i just put a new intake system on it with a cone filter, I heat wrapped the intake tube but i want to create a box under the hood that will go over the top of the cone filter and the side exposed to the engine so I can keep the hot air from in the engine compartment out of the intake.......PLEASE HELP ME!!!!
Kill4Nuggs is offline   Reply With Quote
Old 01-24-2006, 08:47 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

you want to build something like this

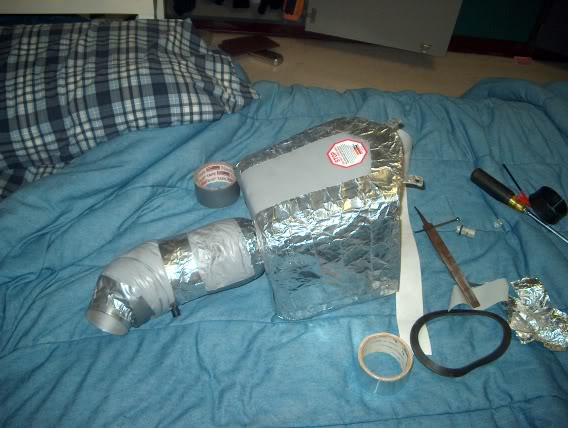

Name:  10-16newintake015.jpg
Views: 5
Size:  61.4 KB

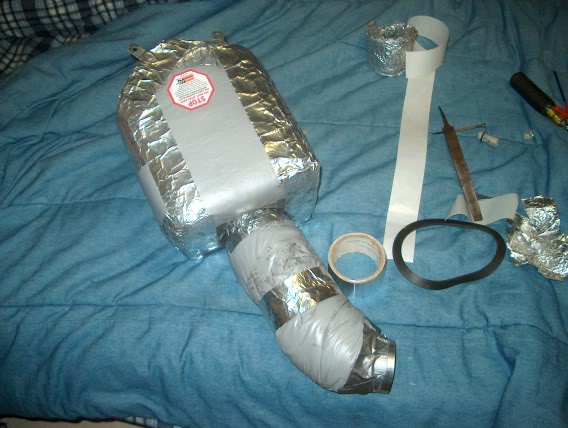

Name:  10-16newintake016.jpg
Views: 6
Size:  58.9 KB

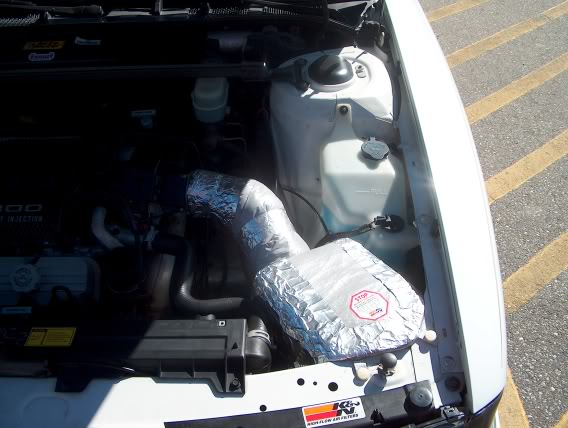

Name:  10-16newintake018.jpg
Views: 8
Size:  61.6 KB

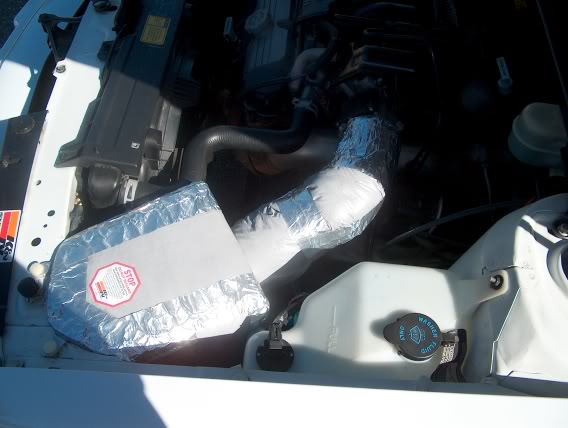

Name:  10-16newintake020.jpg
Views: 10
Size:  51.2 KB

its plastic underneath the insulation.....most ppl use lexan or something similar to make the box
1993 SLE is offline   Reply With Quote
Old 01-24-2006, 08:48 PM   #3
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

willwren is offline   Reply With Quote
Old 01-24-2006, 09:02 PM   #4
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Posts: 1,071
Thanks: 0
Thanked 0 Times in 0 Posts
Sully1742 is on a distinguished road
Default

You could use wood if that better suits you. I think that'* what I'll make mine from. It'* cheaper and easier to work with than lexan, but isn't as pretty. it retains good thermal properties though apparently.
Sully1742 is offline   Reply With Quote
Old 01-24-2006, 09:15 PM   #5
Senior Member
Posts like a Northstar

charliemax's Avatar

Join Date: Jan 2006
Location: Valley Forge, PA
Posts: 598
Thanks: 0
Thanked 0 Times in 0 Posts
charliemax is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
you want to build something like this



its plastic underneath the insulation.....most ppl use lexan or something similar to make the box
That is a work of art.

You have it attached to the lid shelf. Did you have to leave any room for torsion between the box and the pipe? Just thinking about the engine movement in Bill'* vid...
charliemax is offline   Reply With Quote
Old 01-24-2006, 10:19 PM   #6
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

thank you

and yes there is room for the pipe to move because the box is attached to the car because i didnt want the weight of the box pulling on the TB and
1993 SLE is offline   Reply With Quote
Old 01-25-2006, 12:23 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by 1993 SLE
thank you

and yes there is room for the pipe to move because the box is attached to the car because i didnt want the weight of the box pulling on the TB and
You'd be better off NOT attaching it to the car, but having it lift if it needed to, and come to rest in the non-motor-flex position.

The box doesn't have to be totally sealed if you provide a constant force-feed (ram-air) supply to it.
willwren is offline   Reply With Quote
Old 01-25-2006, 03:14 AM   #8
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

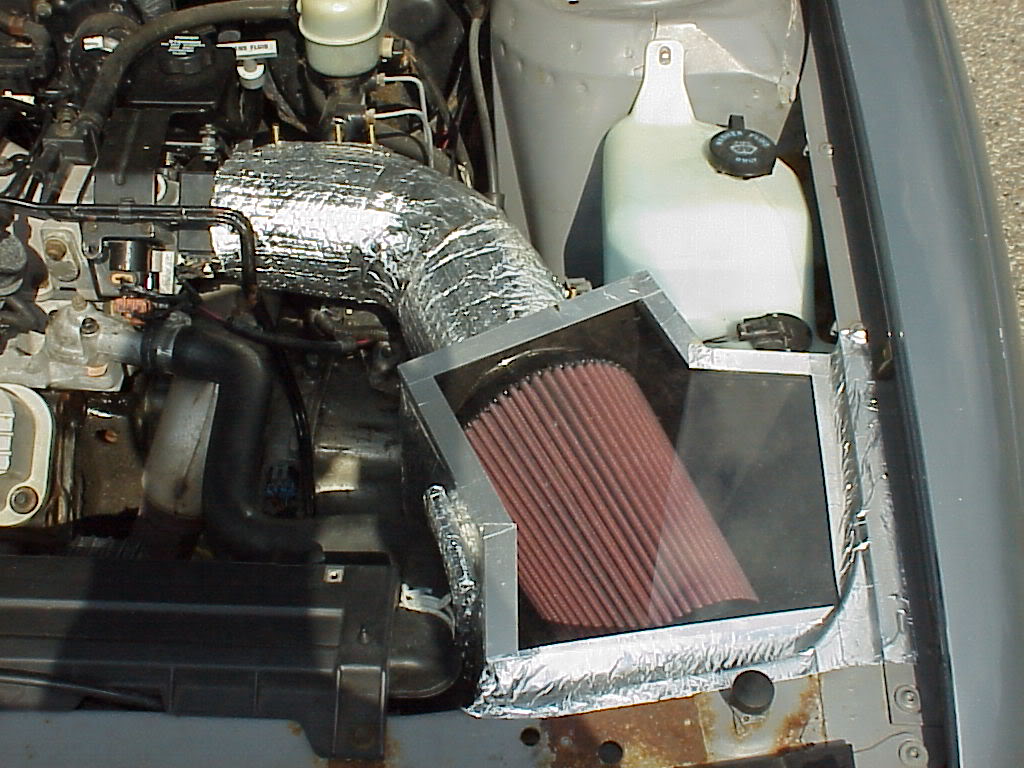

Name:  ThomassCAITop.jpg
Views: 6
Size:  138.3 KB

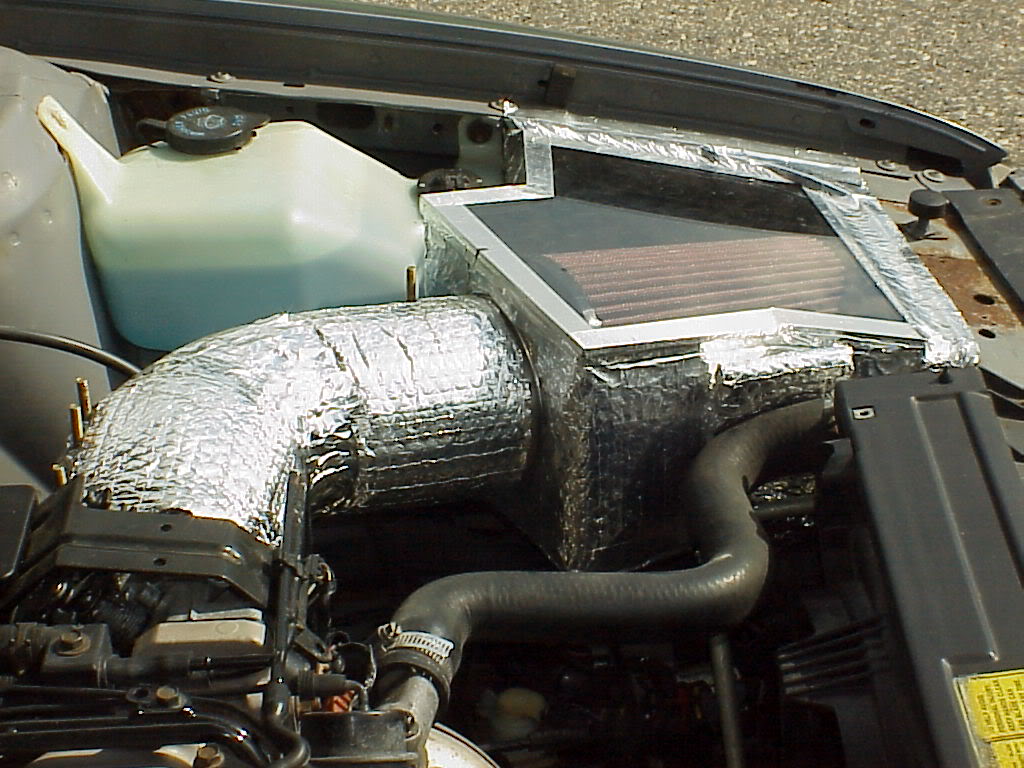

Name:  ThomasCAIBackside.jpg
Views: 6
Size:  142.5 KB
llBlazin_llLo is offline   Reply With Quote
Old 01-25-2006, 03:33 AM   #9
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

[quote="charliemax"]
Quote:
Originally Posted by 1993 SLE
Did you have to leave any room for torsion between the box and the pipe? Just thinking about the engine movement in Bill'* vid...
my l27 basically has no flex...well some bad we are talking less than an inch. The motor mounts are extremely solid compared to most engines I have seen. But either way it does move some.
Hans is offline   Reply With Quote
Old 01-25-2006, 10:27 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

My engine doesn't move that much now with new mounts, but it does move at least an inch.

If you replace all your mounts, flex will be reduced. Until then, plan for some flex. You don't want your box or pipe tearing loose, and you don't want force applied to the throttle body. If you want to attach the box, don't use a rigid pipe. Use INTENSE-style tubing instead.

If I ever do a CAI on the SLE, it'll be INTENSE-style tubing feeding a CAI. Too messy in the winter around here to run a FWI, and the 92-99 doesn't have the 'under skirting' in the fender area to keep a FWI clean like the 2k+ do.
willwren is offline   Reply With Quote
