Default My L36 modded intake runners

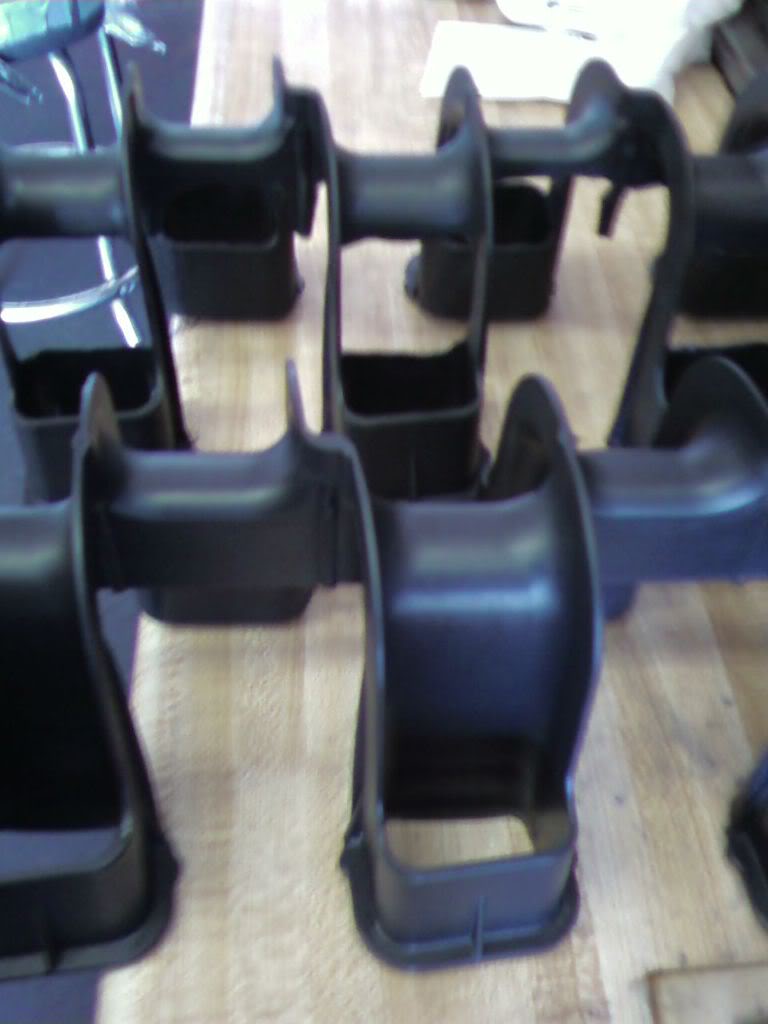

I finally got my pictures transfered from my phone so I posted a picture of my modded UIM runners on my L36. Now, I tested them back and forth between stock runners (Doorman intake) and my modded ones. The "seat of the pants feel" says the modded ones pull harder in the mid and higher RPM range with no lose to low end. And the best part is the cost.............free. About an hour of your time. The runner at the bottom is a stock Doorman piece and the one on top if my modded Doorman piece. You can see where I cut holes in to allow more flow but not disturbing the shape of the runners. I also did some trimming on the ends.
Name:  1020071301a.jpg
Views: 2
Size:  56.2 KB[/img]
TheDude is offline   Reply With Quote
Old 02-18-2008, 02:13 AM   #2
Senior Member
True Car Nut

Join Date: Jul 2006
Location: Granville, Ohio ~NEBF '07 Survivor~
Posts: 5,001
Thanks: 0
Thanked 0 Times in 0 Posts
petraman is on a distinguished road
Default

You.... are awesome... I've been wanting someone to do a writeup on this for a LONG time! Allow me to be your second subject
petraman is offline   Reply With Quote
Old 02-18-2008, 02:17 AM   #3
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

do me do me
this is really interesting, i have always wondered abotu the upper intake... the lower can be ported, but i didnt though you could do much with plastic. guess i was wrong!
Bonnevillan is offline   Reply With Quote
Old 02-18-2008, 02:28 AM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Sep 2007
Location: Saginaw, MI
Posts: 345
Thanks: 0
Thanked 0 Times in 0 Posts
TheDude is on a distinguished road
Default

I have about 3000 miles on this setup as of now and the motor runs really strong with no hesitations or problems. My current setup will stay right with most mild older SSEI'*. I recently pulled the plugs and they are a nice tan color. I dont see and issues with doing this. And there was no loss of power that I could feel. If you dont believe my, check out the videos I posted of my tranny build in the pics/ video section.
TheDude is offline   Reply With Quote
Old 02-18-2008, 11:07 AM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

This has been tried before. The question is do the 5 And 6 get more flow because of how close they are to the direct path of the TB? The only way to know is to inspect your plugs or install 6 wideband O2'*. The O2 idea isn't very practical.

I'm working on an L36 project along the same lines, and would very much appreciate a very good close pic of all six plugs laid out in order.
willwren is offline   Reply With Quote
Old 02-18-2008, 12:12 PM   #6
Senior Member
True Car Nut

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

Runners at the opening shouldn't receive any more flow thant he rest of the intake. When you go WOT, the intake still see'* 0-1" of vacuum. Balancing of flow should not be an issue.
MyLittleBlackBird is offline   Reply With Quote
Old 02-18-2008, 12:21 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The shape of the exit of the L36 TB is a potential issue. It'* wider opening is directly on-axis with his cutouts.

On the OEM runners, the runner inlets are significantly higher in the manifold than the wide axis of the TB.

I'd still like to see his plugs. I need a solid answer on this before moving forward on my next project.
willwren is offline   Reply With Quote
Old 02-18-2008, 01:18 PM   #8
Senior Member
True Car Nut

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

Draw should be the same across the board, since all the runners in question are behind the "choke point". Each cylinder will draw the same amount of air. Of course, that'* just the way I see it.
MyLittleBlackBird is offline   Reply With Quote
Old 02-18-2008, 05:21 PM   #9
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

If you get a radius on that opening somehow, you'll gain even more.

Maybe some epoxy or resin with something the size of a bic pen housing..
95naSTA is offline   Reply With Quote
Old 02-18-2008, 05:25 PM   #10
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

If the 5 and the 6 get more airflow due to the location like you said, why not restrict the opening a bit more only on those runners?
PRD2BDF is offline   Reply With Quote
