Default Motor swap & upgrades IT"* ALIVE!!!

you heard me right im FANALLY working on it 2+month after it went down and aout a month after getting the new motor.

Im putting this in the Performance & Brainstorming forum because im not just doing a a stock swap.
My current plans (some already underway) are P&P supercharger, PEM'*(homemade),94-95 heads(came with new motor ) and a P&P LIM

heres what we got done in the hour or so it was worked on tonight.

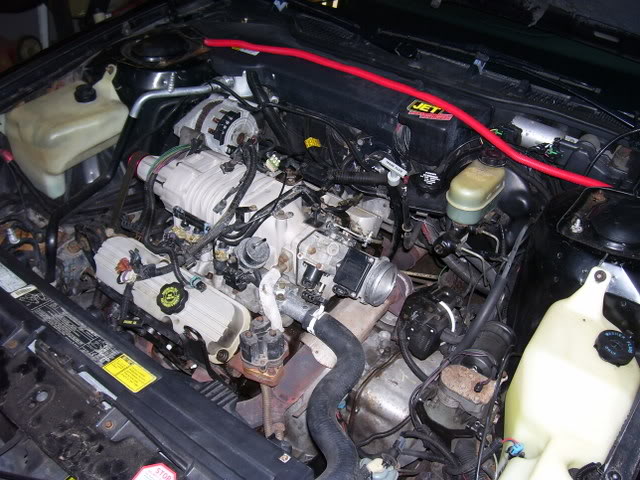

Name:  motortime002.jpg
Views: 0
Size:  80.4 KB

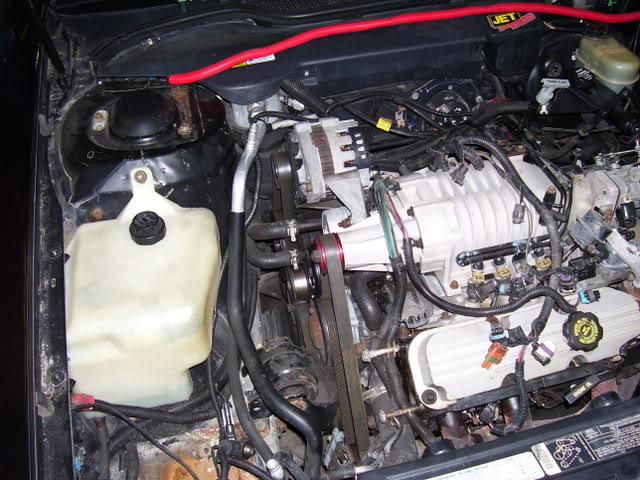

Name:  motortime003.jpg
Views: 0
Size:  82.8 KB
I know it doesnt look like much but we got most of the wireing harnes disconnected and some parts and vac line taken off.


More to follow...


All thoughts and comments welcome and encouraged
Peterg22000 is offline   Reply With Quote
Old 01-26-2007, 11:52 PM   #2
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

well not that you guys are all that interested as of yet,
..but i got more done.
all fluids drained and everything unbolted that needs to be other then the trans, motor mounts and exaust
Name:  motortime006.jpg
Views: 1
Size:  71.5 KB
Name:  motortime005.jpg
Views: 0
Size:  74.3 KB

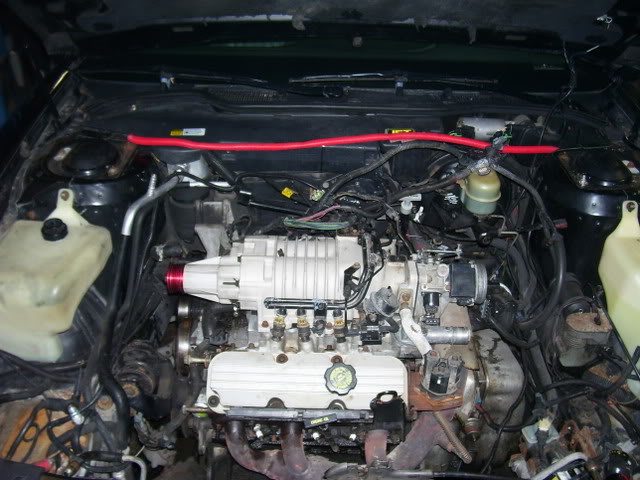

Name:  motortime007.jpg
Views: 0
Size:  70.4 KB
Name:  motortime008.jpg
Views: 0
Size:  58.7 KB
Peterg22000 is offline   Reply With Quote
Old 01-27-2007, 01:47 AM   #3
Senior Member
Posts like a Supercharger

Join Date: Oct 2006
Location: Alberta, Canada
Posts: 170
Thanks: 0
Thanked 0 Times in 0 Posts
Drunken Sailor is on a distinguished road
Default

Looks like you're making some headway! The 3800 is a pretty easy motor to pull. Just remember that last rear bellhousing bolt that you can't see. It goes in from the motor side and threads into the transaxle. Otherwise you'll be tugging away and wondering why the motor won't come loose! :P
Drunken Sailor is offline   Reply With Quote
Old 01-27-2007, 01:47 AM   #4
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Thanks for the pics! I'm curious to see it progress!
dillcc is offline   Reply With Quote
Old 02-01-2007, 12:00 AM   #5
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Ok guys now its starting to look like something
motors out(pulled it yesterday, camera was dead) and today i started striping it down.

i didnt get out the camera till after the */C was pulled, but im sure you all get the idea
Name:  motortime009.jpg
Views: 0
Size:  61.2 KB

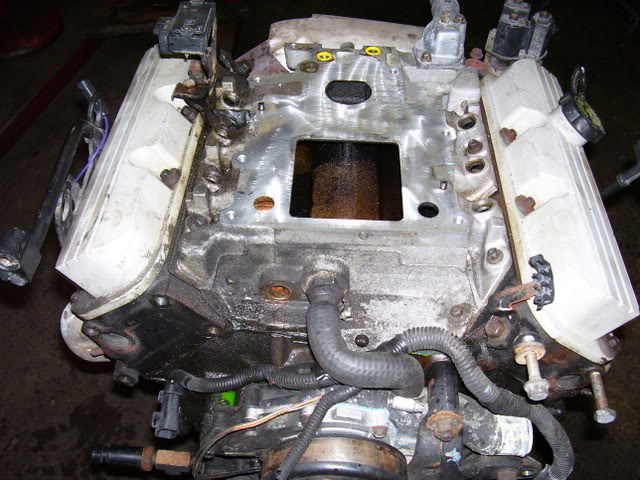

Name:  motortime014.jpg
Views: 0
Size:  76.5 KB
I did a quick comparison of the original front manny to my new one
Name:  motortime010.jpg
Views: 0
Size:  52.1 KB
Name:  motortime011.jpg
Views: 0
Size:  55.0 KB
Im going to lookinto taking the heat sheald off the old one(lower of the two in the pic) and put it on the new one (double it for better TB sheilding)
and it looks like ill need to get a 93+ EGR thingy since the new manny has a male thread and the old has a female thread

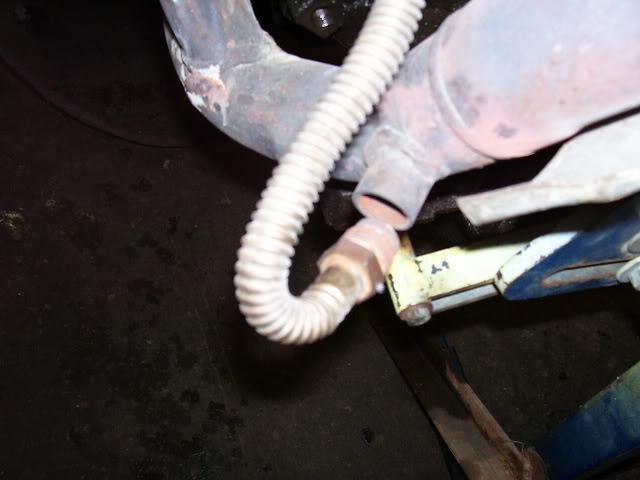

Name:  motortime012.jpg
Views: 0
Size:  37.8 KB
Name:  motortime013.jpg
Views: 0
Size:  33.8 KB

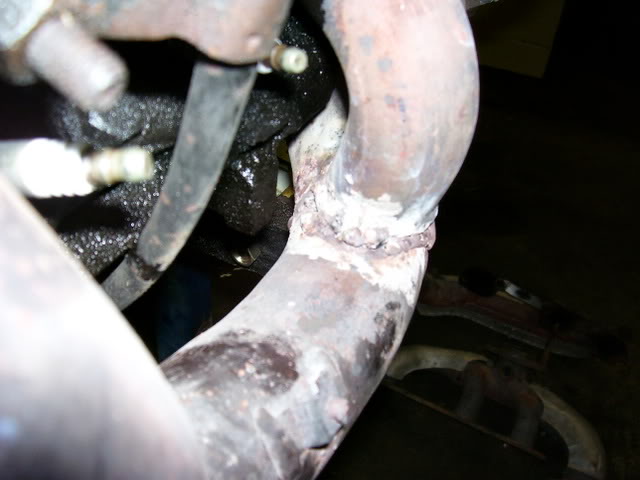

check out the cracks in the old one, you can see that at one time it was broken right off!
Name:  motortime016.jpg
Views: 0
Size:  40.0 KB

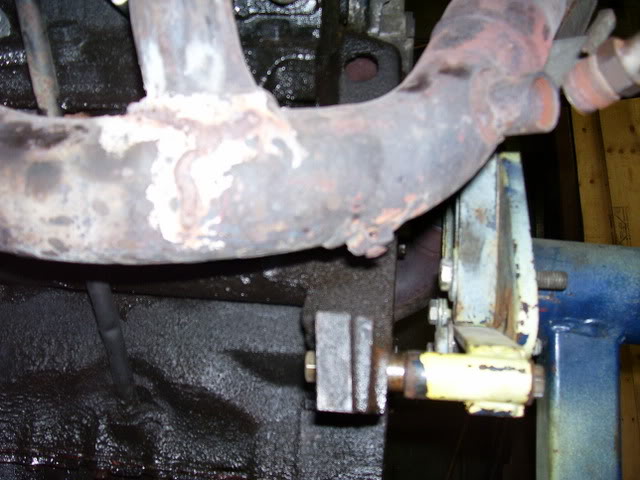

Name:  motortime017.jpg
Views: 0
Size:  59.4 KB
and a look at the rockers that the old motor has



that is al for now, more to come tomorrow
Peterg22000 is offline   Reply With Quote
Old 02-01-2007, 01:12 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Peter.. that water outlet coming out of the LIM.. tough to tell..looks like black plastic. If so..swap that out with metal before it strands you with no coolant in your new motor.
BillBoost37 is offline   Reply With Quote
Old 02-01-2007, 01:23 AM   #7
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

nope, its Metal, the hose was stuck on there good at first too
Peterg22000 is offline   Reply With Quote
Old 02-06-2007, 09:08 PM   #8
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

More news is good news.

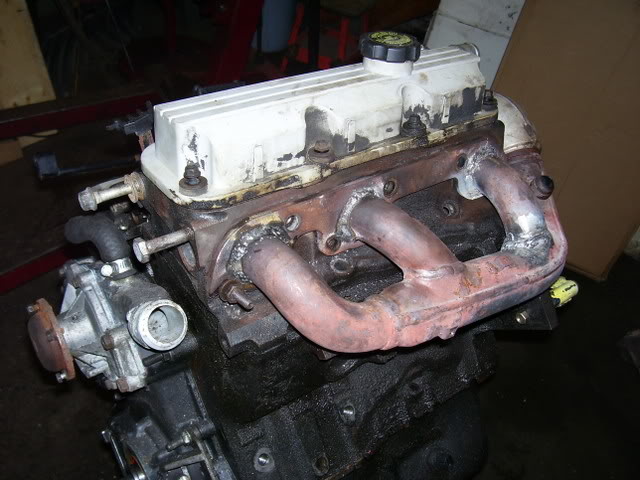

I got my front PEM done (other then sandblast and coating)
exterior welds done, I did ALL the welding with the manifolds bolted down to the old block to prevent warping... you should see how much **** went down the spark plug holes
Name:  motortime027.jpg
Views: 0
Size:  62.6 KB

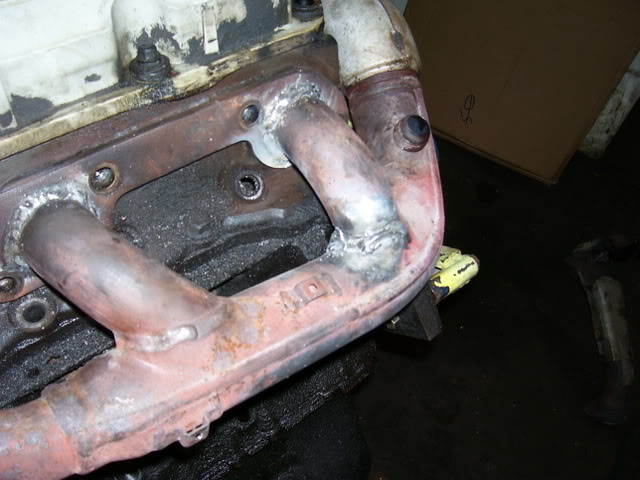

I had to flip over and rebolt the first two cylinder tubes to get a good weld on the bottom side (not compleated at time of picture)
Name:  motortime025.jpg
Views: 0
Size:  65.8 KB
Name:  motortime026.jpg
Views: 0
Size:  58.8 KB
had only one crack, but it was a bitch to get sealed up (used the water test to know when it was done)
Name:  motortime028.jpg
Views: 0
Size:  73.7 KB

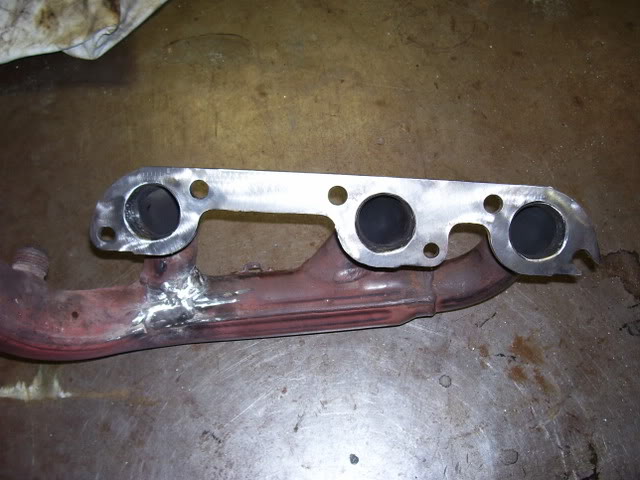

porting done, its now very smoth in there ad should flow nicely
Name:  motortime030.jpg
Views: 0
Size:  55.9 KB
Peterg22000 is offline   Reply With Quote
Old 02-06-2007, 09:26 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Pete...looks nice..

Any expected run date on the motor?
BillBoost37 is offline   Reply With Quote
Old 02-06-2007, 09:31 PM   #10
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2005
Posts: 5,797
Thanks: 0
Thanked 0 Times in 0 Posts
Peterg22000 is on a distinguished road
Default

Im shooting for the end of February *fingers crossed*
Peterg22000 is offline   Reply With Quote
