Default Making turbo log manis

I've been helping out a buddy make log manis for his soon to be turbo w-body regal.

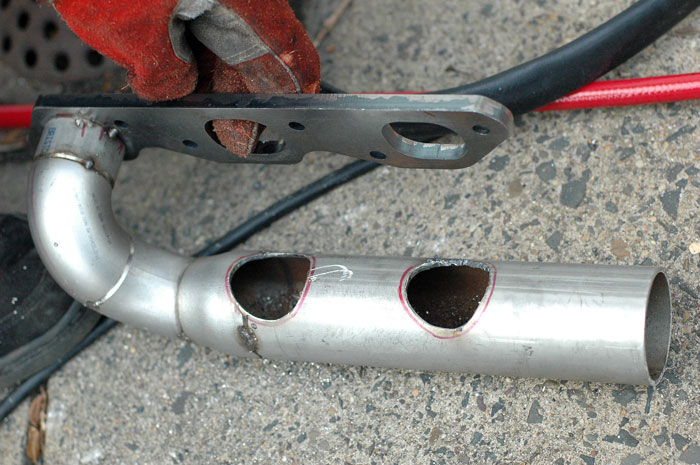

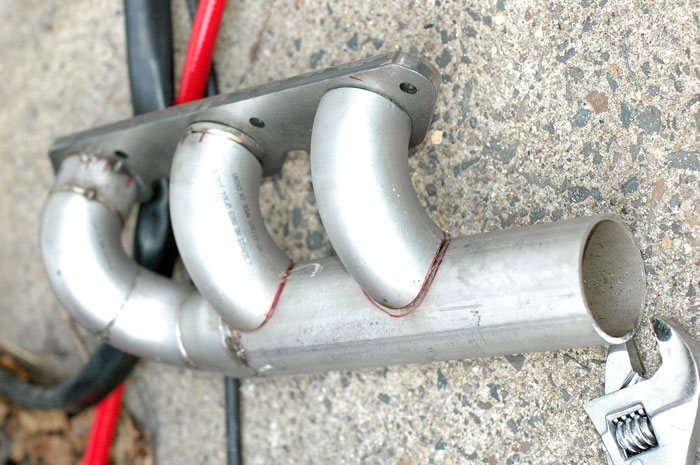

Heres the pics so far:




(yeah thats me holdin it)

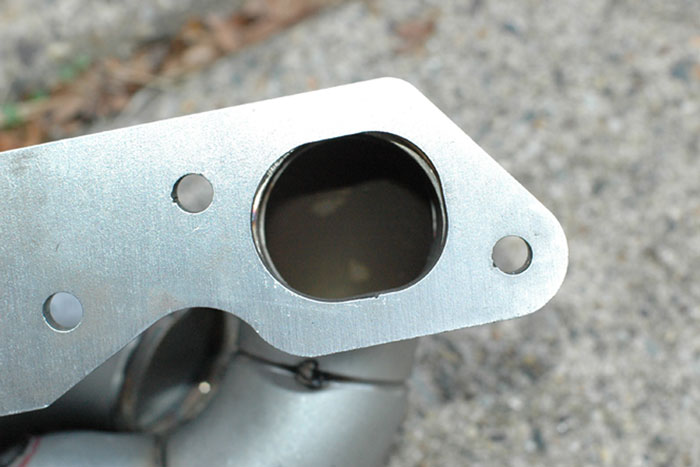

We decided instead of pinching the beginning of the primary to match the flange that we would just weld inside/out and grind it down smooth.
Hes still trying to decide if hes going to weld everything up or have someone in his family do it. He can lay a pretty good bead but wants it to look real good.
Whattcha think?
95naSTA is offline   Reply With Quote
Old 07-15-2006, 11:00 PM   #2
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Looks like ya just might have a winner there. Looks like a better flow than the one fromZZP
dbeast420 is offline   Reply With Quote
Old 07-16-2006, 02:20 AM   #3
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

that is going to be one quick w-body.

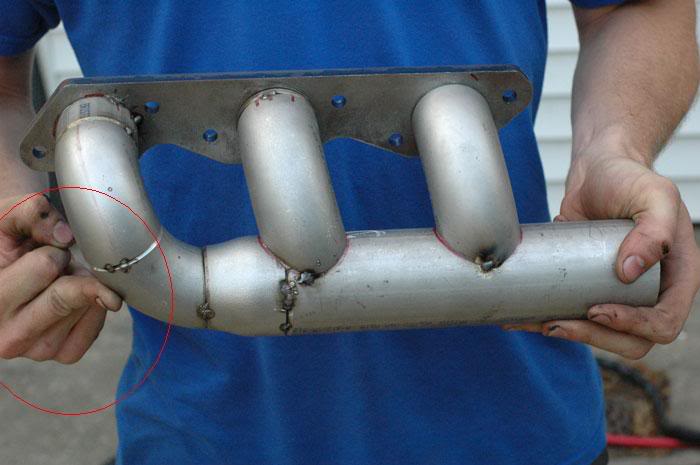

Name:  front-done.jpg
Views: 1
Size:  37.9 KB

right back at ya
OLDsman105 is offline   Reply With Quote
Old 07-16-2006, 01:46 PM   #4
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Mike would you guys build one that will bolt to an L36 stock crossover? I like the idea here... And we all know the front mani is bad on the L36 and L67, but the rear is not too bad...

Would be interesting to see options other than headers for the series II

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-16-2006, 07:50 PM   #5
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
Mike would you guys build one that will bolt to an L36 stock crossover? I like the idea here... And we all know the front mani is bad on the L36 and L67, but the rear is not too bad...

Would be interesting to see options other than headers for the series II
It may be a possiblity somewhere in the near future but It would be rather expensive. Its all SS besides the head flange. This friend priced just the parts out to be over $100 and thats not including the flange needed mate to the crossover. (I hear that specific type is expensive)
But.. those primaries and log are rather large and if your just trying to compliment the rear tubular, smaller pipe may drop cost?
For now we'll just see how this pans out.
95naSTA is offline   Reply With Quote
Old 07-17-2006, 01:38 PM   #6
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Quote:
Originally Posted by 95naSTA
Quote:
Originally Posted by jr's3800
Mike would you guys build one that will bolt to an L36 stock crossover? I like the idea here... And we all know the front mani is bad on the L36 and L67, but the rear is not too bad...

Would be interesting to see options other than headers for the series II
It may be a possiblity somewhere in the near future but It would be rather expensive. Its all SS besides the head flange. This friend priced just the parts out to be over $100 and thats not including the flange needed mate to the crossover. (I hear that specific type is expensive)
But.. those primaries and log are rather large and if your just trying to compliment the rear tubular, smaller pipe may drop cost?
For now we'll just see how this pans out.
All I can say is you guys sure have the right idea...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 07-17-2006, 06:55 PM   #7
Senior Member
True Car Nut

Join Date: Jan 2005
Posts: 3,295
Thanks: 0
Thanked 0 Times in 0 Posts
MyLittleBlackBird is on a distinguished road
Default

Looks good, Mike!

Try some mild steel next time round for your next super awesome setup. Should cheapen things up. And I'm not sure what you think of this, but I would say you'd want tighter tubes in the front to ramp up the velocity due to the fact that it has further to travel than the rear bank.
MyLittleBlackBird is offline   Reply With Quote
