I have 5 Throttle bodies in my posession. 92-94 L27, 92/93 L67, 94/95 L67, 95+ L36,
and 96+ L67.

jr's3800 asked me to make some throttle plate comparisons, and I found an interesting
item in the process.

The 94/95 L67 TB actually should flow slightly better than the S2 L67 TB based
on diameters (flowbench testing has not been done to determine any flow differences
due to MAF housings, but they look IDENTICAL in this regard).


Top row: 92-94 L27, 92/93 L67, 94/95 L67 (note modified throttle shafts on two of these)
Bottom row: 96+ L67, 95+ L36


Stacked foreground to background by size


Stacked by size from the side


The numbers

The 92-94 L27 throttle shaft is modified as is the 92/93 L67 in these pics. Just something
to compare to.

Bottom line is that we've found yet another reason why the 94/95 L67'* seem to be
posting very similar track numbers to S2 L67'*.
willwren is offline   Reply With Quote
Old 06-03-2006, 01:32 PM   #2
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

That'* very interesting. I see how the 94/95 L67 can stay with the S2 L67. I also find it interesting that the 95+ L36 throttle plate is larger than some of the other plates (not all of them) but is there anything interesting about the 95+ L36? I don't understand what exactly the asterisk is trying to say. Could you clarify?
PRD2BDF is offline   Reply With Quote
Old 06-03-2006, 01:34 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Look at the first pic. The L36 outlet is oval.

Remember that even though the L36 TB is a larger bore than the 92/93 L67, the L67
is forcing the air through and will actually see more CFM'*.
willwren is offline   Reply With Quote
Old 06-03-2006, 01:39 PM   #4
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

Quote:
Originally Posted by willwren
Look at the first pic. The L36 outlet is oval.

Remember that even though the L36 TB is a larger bore than the 92/93 L67, the L67
is forcing the air through and will actually see more CFM'*.
Oh, I didn't notice that. Crap, I thought the oval was the inlet. I see how the L67 would force more air.
PRD2BDF is offline   Reply With Quote
Old 06-03-2006, 01:46 PM   #5
Senior Member
Posts like a 4 Banger

Join Date: May 2004
Posts: 124
Thanks: 0
Thanked 0 Times in 0 Posts
T-Keith is on a distinguished road
Default

Remember thought that the L67 and L36 changed throttle bodies in 99.
T-Keith is offline   Reply With Quote
Old 06-03-2006, 10:10 PM   #6
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Nice comparison Bill
Quote:
Originally Posted by T-Keith
Remember thought that the L67 and L36 changed throttle bodies in 99.
Yep in 99 the maf post was switched to a hump at the base of the maf with the maf being exposed. This might mean a large crossectional area at the maf for the 99+ L36 and L67 TBs.
95naSTA is offline   Reply With Quote
Old 06-03-2006, 11:43 PM   #7
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Very good info Bill
1993 SLE is offline   Reply With Quote
Old 06-04-2006, 12:35 AM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

3 of the throttle bodies in that pic are dramatically different now.
willwren is offline   Reply With Quote
Old 06-04-2006, 01:00 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

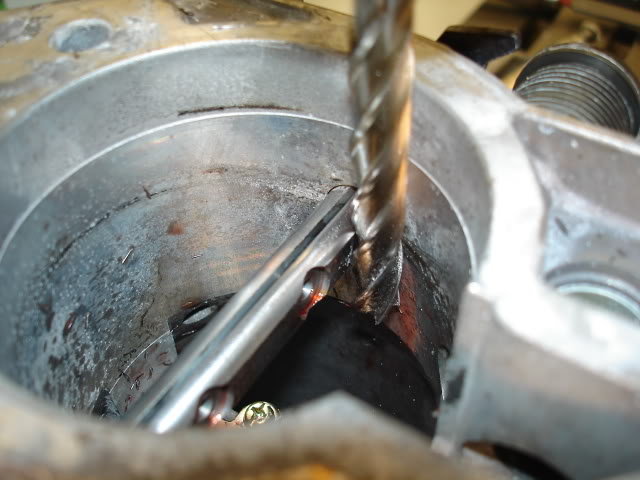

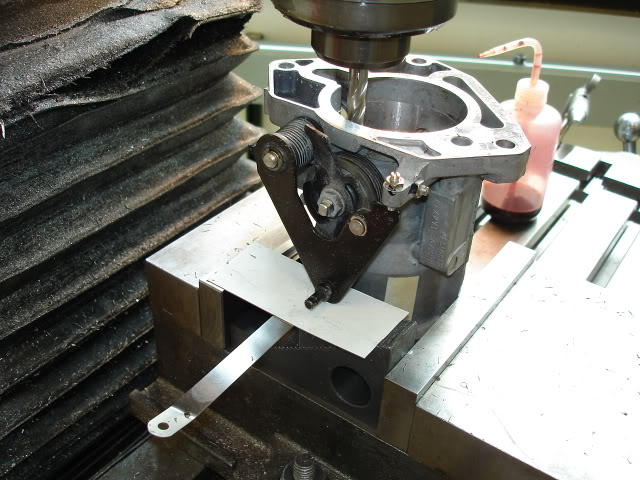

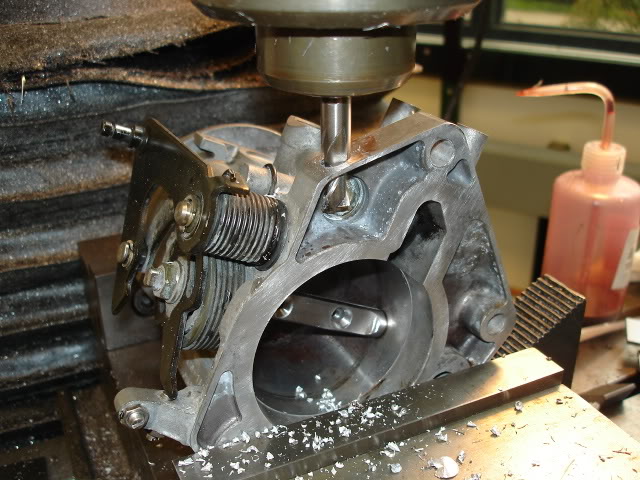

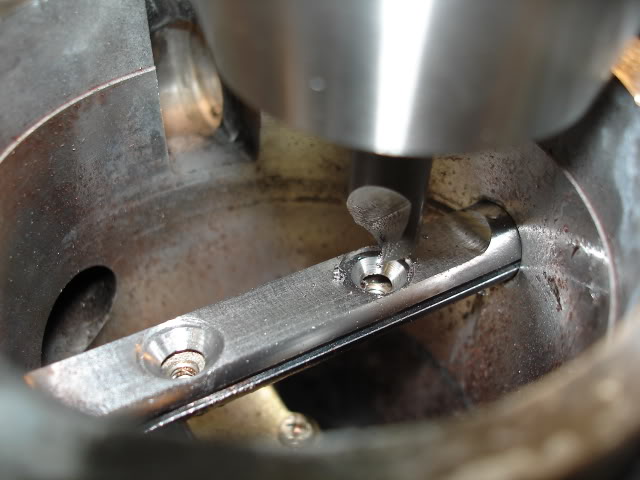

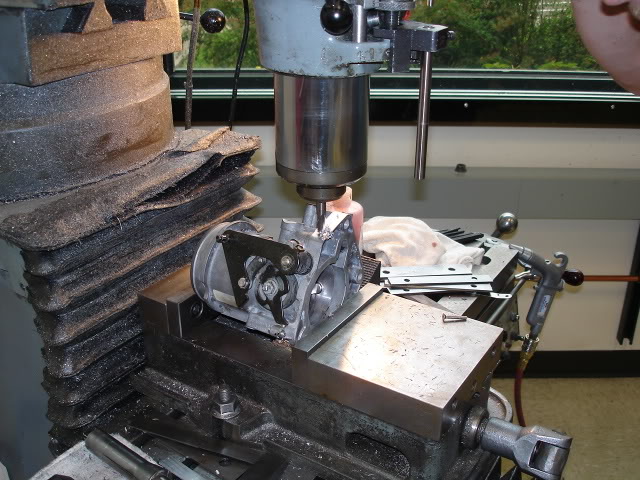

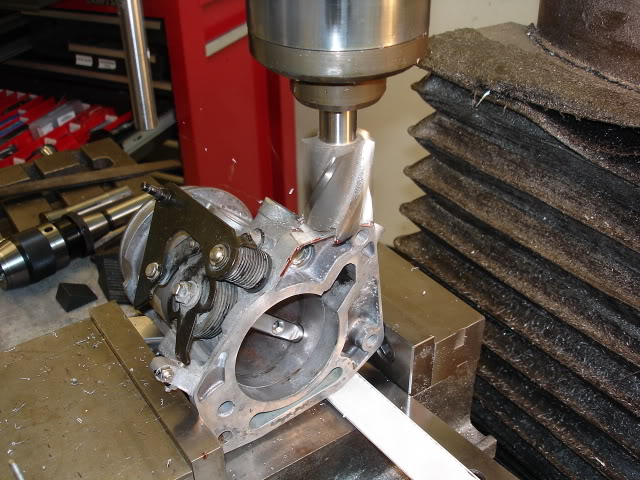

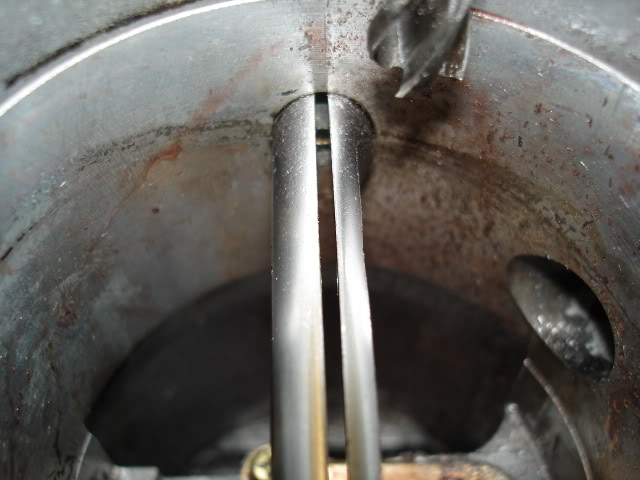

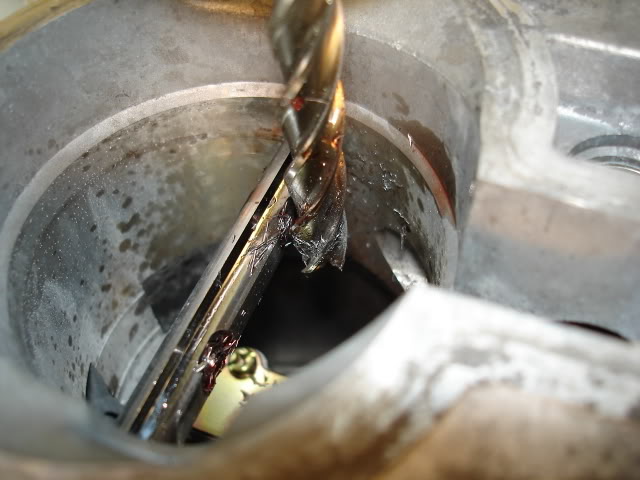

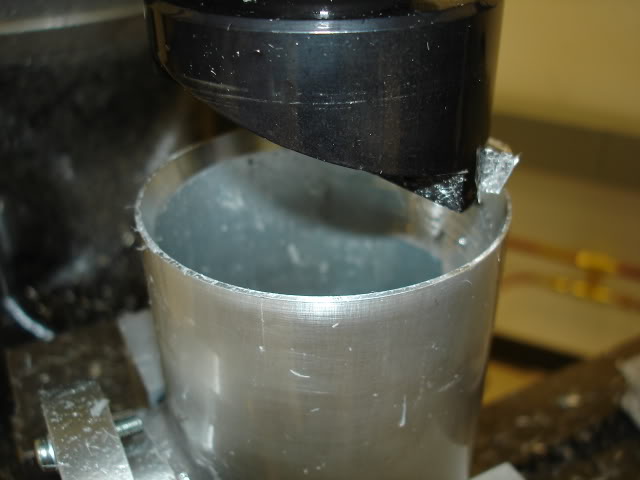

A few misc shots of 3 throttle bodies being modified (95 L67, L36, S2 L67) and a new MAF body for Greyhare'* M45 powered Jetta:

Name:  tb5.jpg
Views: 4
Size:  47.4 KB



Name:  tb7.jpg
Views: 4
Size:  36.3 KB



Name:  tb9.jpg
Views: 4
Size:  49.0 KB

Name:  tb10.jpg
Views: 4
Size:  62.8 KB

Name:  tb11.jpg
Views: 5
Size:  74.4 KB

Name:  tb12.jpg
Views: 4
Size:  42.1 KB

Name:  tb13.jpg
Views: 4
Size:  32.3 KB

Name:  tb14.jpg
Views: 4
Size:  45.7 KB

Name:  tb15.jpg
Views: 4
Size:  78.9 KB

Name:  tb16.jpg
Views: 4
Size:  86.5 KB

Name:  tb17.jpg
Views: 4
Size:  85.4 KB

Name:  tb18.jpg
Views: 4
Size:  61.6 KB

Name:  tb19.jpg
Views: 4
Size:  78.7 KB

Name:  tb20.jpg
Views: 4
Size:  52.3 KB



Name:  tb22.jpg
Views: 4
Size:  68.1 KB
willwren is offline   Reply With Quote
Old 06-04-2006, 04:26 AM   #10
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

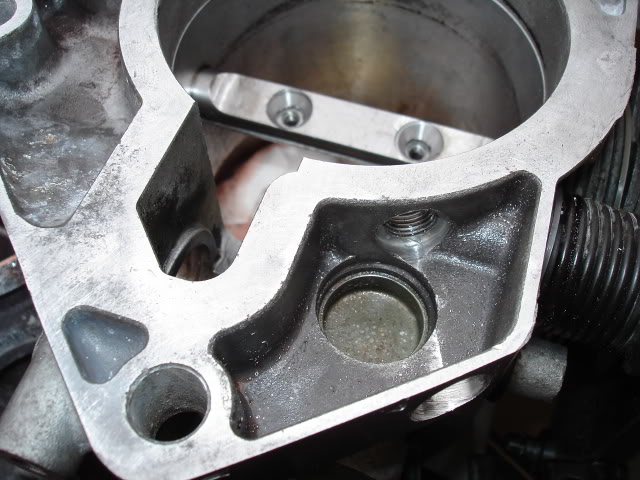

Whats this for?:
Name:  tb22.jpg
Views: 4
Size:  68.1 KB
An aftermarket boost gauge?
And whos getting the ported L36 TB?
