Default Instrument Panel Swap

In the on going effort to turn my 98 into the worlds only 1995 Touring Sedan, I have often wondered what I could do with the instrument panel. Currently, I have the standard 3 dial, with an analog odometer and no DIC. Looks something like this:

Name:  98ip.jpg
Views: 1
Size:  10.5 KB

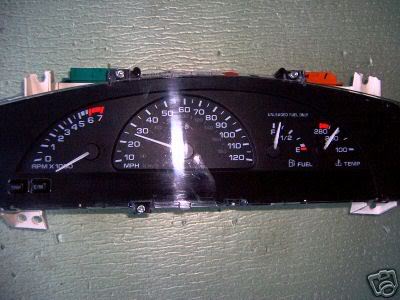

The Touring Sedan always had a tach, so the only IP I could put into it would be the one from the 88 LSS (and VERY few 98'*). Looks like this:

Name:  olds88instruments.jpg
Views: 1
Size:  24.1 KB

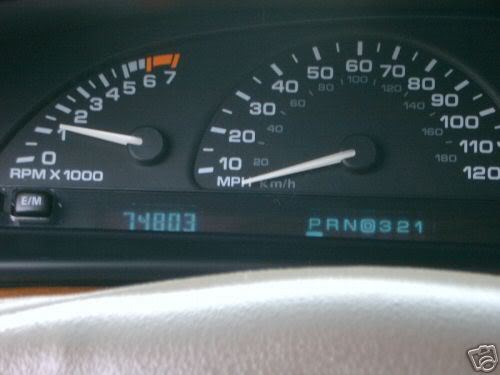

Among other things, you will notice it has a digital odometer and trip odometer, and also a digital gear indicator. Looks like this:

Name:  88instruments.jpg
Views: 1
Size:  19.9 KB

Now, while I can live without the gear indicator, I am wondering what to do about the odometer. Will this IP read the mileage off the computer? Is there something close to this in the Bonneville world? Any thoughts?
bigerik is offline   Reply With Quote
Old 06-11-2007, 09:45 AM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

On the bonne'* at least until 99 and I think into the 00'* the mileage you see on the cluster is part of the cluster and not the mileage that the pcm states.
BillBoost37 is offline   Reply With Quote
Old 06-11-2007, 10:35 AM   #3
Senior Member
Posts like a Turbo
Thread Starter

bigerik's Avatar

Join Date: Jul 2006
Location: Toronto
Posts: 442
Thanks: 0
Thanked 0 Times in 0 Posts
bigerik is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
On the bonne'* at least until 99 and I think into the 00'* the mileage you see on the cluster is part of the cluster and not the mileage that the pcm states.
Do any of them have a mechanical odometer?
bigerik is offline   Reply With Quote
Old 06-11-2007, 10:46 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Some are mech, some are digital. Nobody here has done the swap.
willwren is offline   Reply With Quote
Old 06-11-2007, 12:46 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

bigerik's Avatar

Join Date: Jul 2006
Location: Toronto
Posts: 442
Thanks: 0
Thanked 0 Times in 0 Posts
bigerik is on a distinguished road
Default

Quote:
Originally Posted by willwren
Some are mech, some are digital. Nobody here has done the swap.
I guess someone needs to be first!
So, if I understand correctly, the odometer on the digital ones is a self contained unit. That makes it easy. As my FSM seems to have been delayed, does anyone have any clue if the connectors are the same? Actually, I don't even know if the speedo is mechanical or electronic.
I am guessing it will be a plug in. I know there is a position switch on the floor mounted shifter that tells the IP what gear it is in. I wonder if that goes through the PCM or not.
Did any Bonnevilles come without a tach?
Thanks
bigerik is offline   Reply With Quote
Old 06-11-2007, 01:04 PM   #6
Senior Member
True Car Nut

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

I have personally seen one Bonneville in the scrap yard some time ago that did not have a tach. It pretty much had what you have in your car now, along with craploads of idiot lights.

Ahh, found it.


sandrock is offline   Reply With Quote
Old 06-11-2007, 01:08 PM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by bigerik
Quote:
Originally Posted by willwren
Some are mech, some are digital. Nobody here has done the swap.
I guess someone needs to be first!
So, if I understand correctly, the odometer on the digital ones is a self contained unit. That makes it easy. As my FSM seems to have been delayed, does anyone have any clue if the connectors are the same? Actually, I don't even know if the speedo is mechanical or electronic.
I am guessing it will be a plug in. I know there is a position switch on the floor mounted shifter that tells the IP what gear it is in. I wonder if that goes through the PCM or not.
Did any Bonnevilles come without a tach?
Thanks
I doubt the connectors are the same.
The PCM does know what gear you've selected.
willwren is offline   Reply With Quote
Old 06-11-2007, 04:02 PM   #8
Senior Member
Posts like a Turbo
Thread Starter

bigerik's Avatar

Join Date: Jul 2006
Location: Toronto
Posts: 442
Thanks: 0
Thanked 0 Times in 0 Posts
bigerik is on a distinguished road
Default

Quote:
Originally Posted by willwren

I doubt the connectors are the same.
The PCM does know what gear you've selected.
I guess I have to get a couple of them and compare. No other way to know.
