Default Installed Intense MPS

I installed my new Intense MPS and ZZP oversized tensioner today. Heres a few pics. How important is the plastic shaft plug? I lost it during the installation.

Name:  ssei069.jpg
Views: 1
Size:  53.9 KB

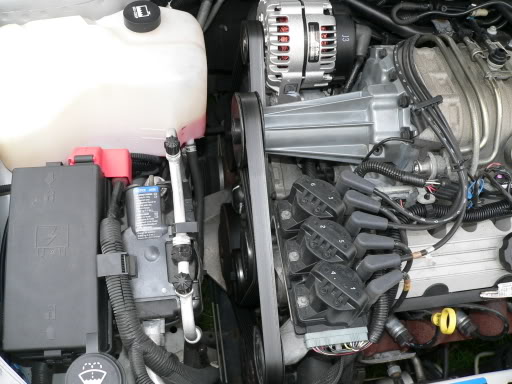

Before
Name:  ssei071.jpg
Views: 1
Size:  56.3 KB

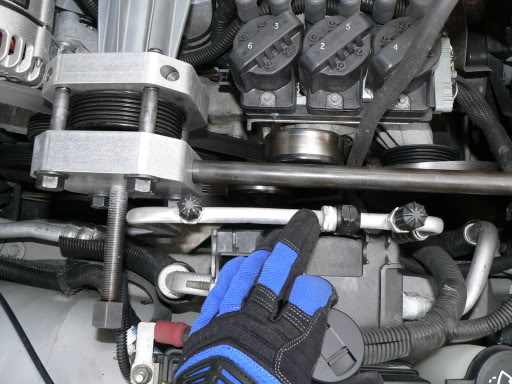

It'* a tight fit. I had to keep moving the AC line out of the way
Name:  ssei072.jpg
Views: 1
Size:  59.1 KB
Name:  ssei084.jpg
Views: 1
Size:  76.0 KB

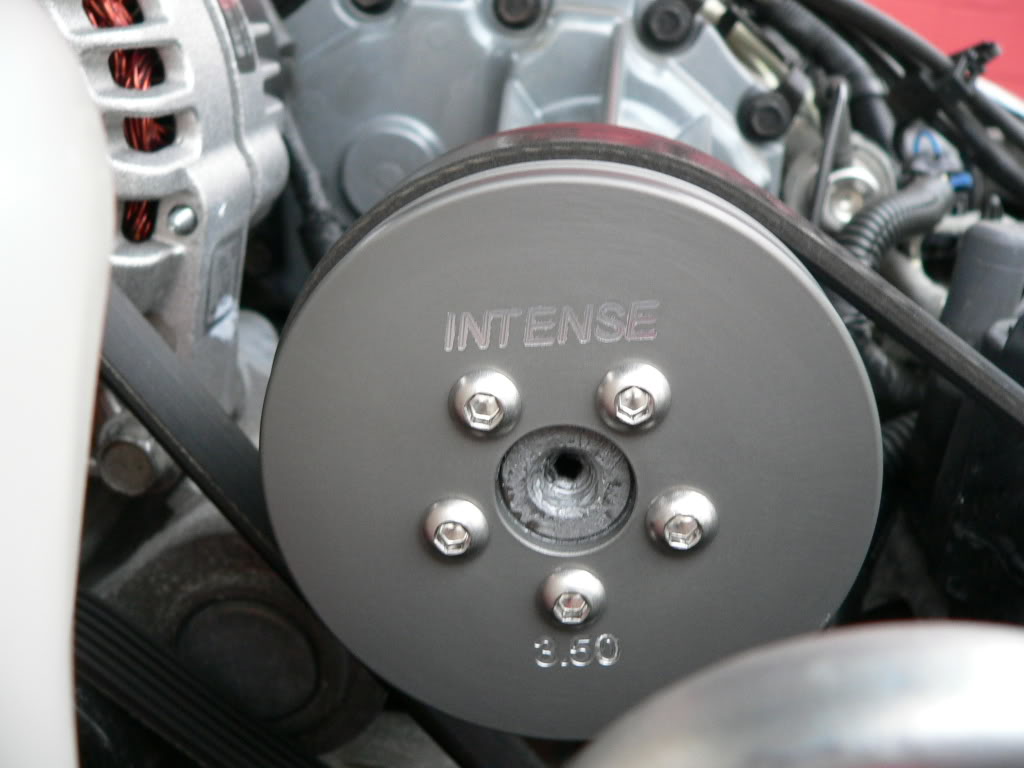

Lost the plug for the hole
Name:  ssei081.jpg
Views: 1
Size:  57.4 KB

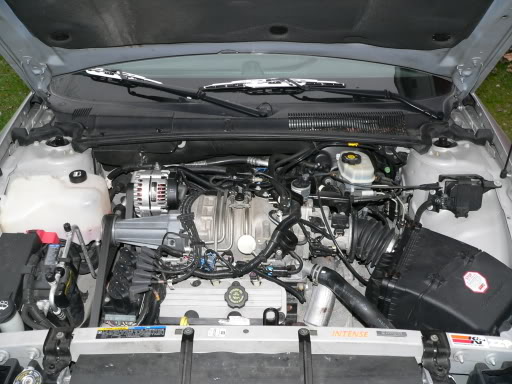

After
Explr1 is offline   Reply With Quote
Old 04-12-2006, 10:29 PM   #2
Senior Member
Posts like a Supercharger

Join Date: Dec 2005
Location: Ohio
Posts: 171
Thanks: 0
Thanked 0 Times in 0 Posts
GTPboy is on a distinguished road
Default

The plastic "door clip" is a breather for the snout. I ran thousands of miles without anything, but I would say its a good idea, just to keep dirt and stuff from getting in there.

Or you can just put your "breather nut" back in, that wont hurt anthing.


-jeremiah
GTPboy is offline   Reply With Quote
Old 04-12-2006, 10:30 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

install looks good.. can you feel a $129 difference?
harofreak00 is offline   Reply With Quote
Old 04-12-2006, 10:52 PM   #4
Senior Member
True Car Nut

Join Date: Jul 2003
Location: Westerville, Ohio 2000 Black SSEi
Posts: 6,127
Thanks: 0
Thanked 0 Times in 0 Posts
Rogue is on a distinguished road
Default

Looks like the inside threaded area of the snout is all buggered up. What happened?
Rogue is offline   Reply With Quote
Old 04-12-2006, 11:10 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Looks like the same thing that happened to Chadow427 at WCBF05. We almost didn't get the job done.
willwren is offline   Reply With Quote
Old 04-12-2006, 11:16 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by Rogue
Looks like the inside threaded area of the snout is all buggered up. What happened?
It'* anti seize compound. ZZP'* puller instructions said to lube the inside of the shaft. I guess so the guide bolt didn't get stuck in the shaft. I might clean it out by spraying intake cleaner inside if thats OK to use. Do you think I can get a new plastic plug when you send out my AeroForce scan guage next week? Thanks.........
Explr1 is offline   Reply With Quote
Old 04-13-2006, 01:04 AM   #7
jdq
Senior Member
Posts like a Corvette

Join Date: Nov 2005
Location: Hamilton, Ontario , Canada
Posts: 1,201
Thanks: 0
Thanked 0 Times in 0 Posts
jdq is on a distinguished road
Default

Ill be changing pulley tomorrow any tips with puller, did you notice a diff with 3.5.
jdq is offline   Reply With Quote
Old 04-13-2006, 08:56 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Oh gosh..there'* a huge difference with a 3.5 over the 3.8.

I picked up a regular pulley with my puller off ebay from another BC member and I have my doubts if it'* 3.4 or 3.5. Soon I'll know for sure.
BillBoost37 is offline   Reply With Quote
Old 04-13-2006, 12:29 PM   #9
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2004
Location: Wappingers Falls, NY
Posts: 231
Thanks: 0
Thanked 0 Times in 0 Posts
Explr1 is on a distinguished road
Default

Quote:
Originally Posted by jdq
Ill be changing pulley tomorrow any tips with puller, did you notice a diff with 3.5.
Just follow the instructions. They were really easy to understand. The only other thing is to remove the coolant bottle and unclip the AC line and keep it out of the way. After the install, I noticed a different right away. The car moves a lot easier now. I barely have to touch the gas. At WOT the boost gauge goes all the way to +10 and the car takes goes like a bat out of hell!!! I love it!!!
Explr1 is offline   Reply With Quote
Old 04-13-2006, 01:05 PM   #10
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

Quote:
Originally Posted by Rogue
Looks like the inside threaded area of the snout is all buggered up. What happened?
It'* more than just lubricant that'* in the hole, it look'* like the M8 stud for the puller is broken inside the shaft.

Cheers,
Foghorn is offline   Reply With Quote
