Default How to spot a chipped piston

If your car is running with a lot of KR when under WOT because you have to much boost, or your using low grade gas. chipping a piston is a possibility. This is why we say over and over again not to run a 3.4" pulley unless your scanning for KR.

You engine will run really bad, trust me, you will know something is wrong. The first thing we suggest is pulling all the spark plugs and inspect them. When a piston chips the spark plug is the first thing that goes. nothing else will do this, short of having the wrong plugs.
Name:  DSC00261.jpg
Views: 15
Size:  88.1 KB

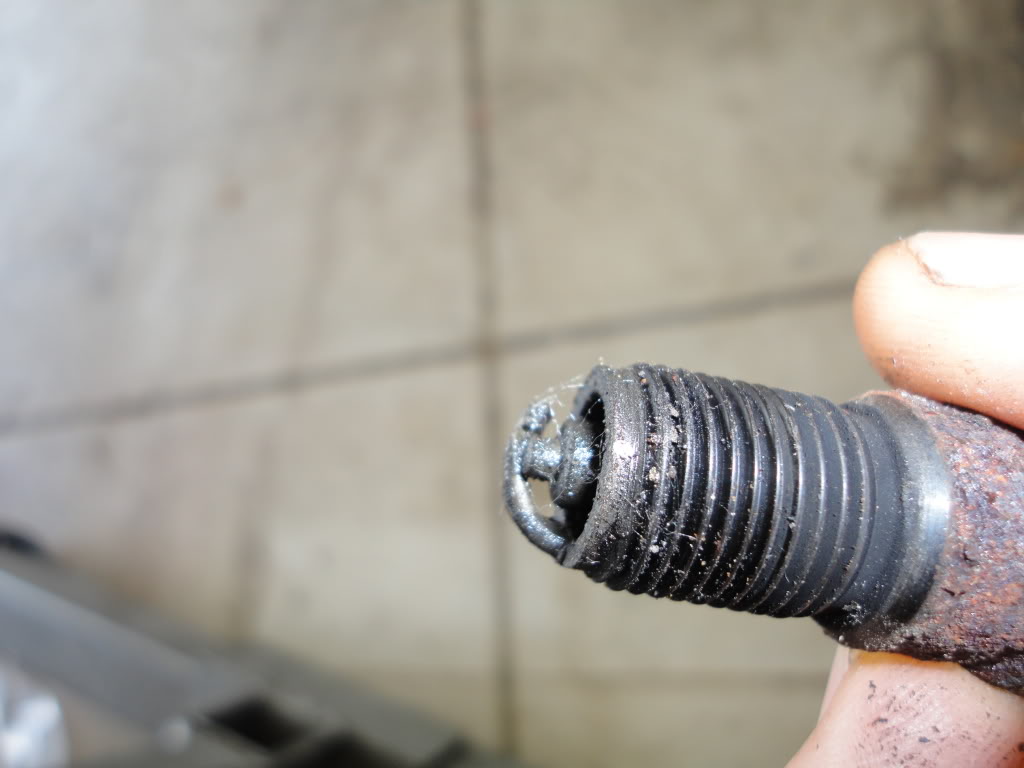

If you see a smashed plug, this is what you have.
Name:  DSC00263.jpg
Views: 20
Size:  190.0 KB

Time for a new lower end, or a rebuild.
Danthurs is offline   Reply With Quote
Old 06-16-2010, 02:11 PM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

I am guessing that something just got added to the Todo List de Danthurs?

And what is that stringy stuff all over the end of the spark plug? Has the motor been sitting a while?
rjolly87 is offline   Reply With Quote
Old 06-16-2010, 02:17 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I little dirt. I'm parting out the top and rebuilding the lower.
Danthurs is offline   Reply With Quote
Old 06-16-2010, 02:40 PM   #4
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

I'm new to the L67 thing. I've had the L27 in my car from when I bought it with 61k and till a week ago when it had 217k.

I'm now swapping an L67. I'm getting headers put in (speed daddy) with a 3" exhaust all the way back, Autolite 104'*, 180 t-stat, and a CAI. I'm having the guy doing the swap tune it for me as well.

I'm planning a 3.4" pulley. With the headers and the CAI, do you think I'll have much of a problem with KR?
xtremerevolution is offline   Reply With Quote
Old 06-16-2010, 02:45 PM   #5
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Like I said, scan for KR. Your engine with headers and a 3.4" might be OK, or it might not. Only a scan will say for sure. The biggest killer of engines is a 3.4" pulley on a stock engine with no scan.
Danthurs is offline   Reply With Quote
Old 06-16-2010, 02:45 PM   #6
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,857
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Usually you won't know until you scan it.
rjolly87 is offline   Reply With Quote
Old 06-16-2010, 02:46 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

With a smashed plug you will know. That cylinder wont be firing right.
Danthurs is offline   Reply With Quote
Old 06-16-2010, 03:01 PM   #8
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
Like I said, scan for KR. Your engine with headers and a 3.4" might be OK, or it might not. Only a scan will say for sure. The biggest killer of engines is a 3.4" pulley on a stock engine with no scan.
Sounds good. The guy that will be tuning will be also do the scanning. I was hoping the headers would be enough to get me from 3.5 to 3.4.

It was mentioned in the "in what order should I mod my engine" thread that a shift kit is recommended. Is there a correlation to the shift kit and KR, or is it just a recommended mod in general?

I'm planning on doing some light SC and LIM porting when the car comes home from Ohio in July. I've heard that it helps significantly in reducing heat and thereby reducing KR. I have a decent amount of experience porting.
xtremerevolution is offline   Reply With Quote
Old 06-16-2010, 03:36 PM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

X..the steps you are taking are in the right direction. Although 104'* are a bit cold for the mods. I'd think 605'* should work well for you.

I had a "chipped" piston in a Regal I picked up. Ran decent, but blowing smoke etc. I went to test compression, #4 had 0psi.

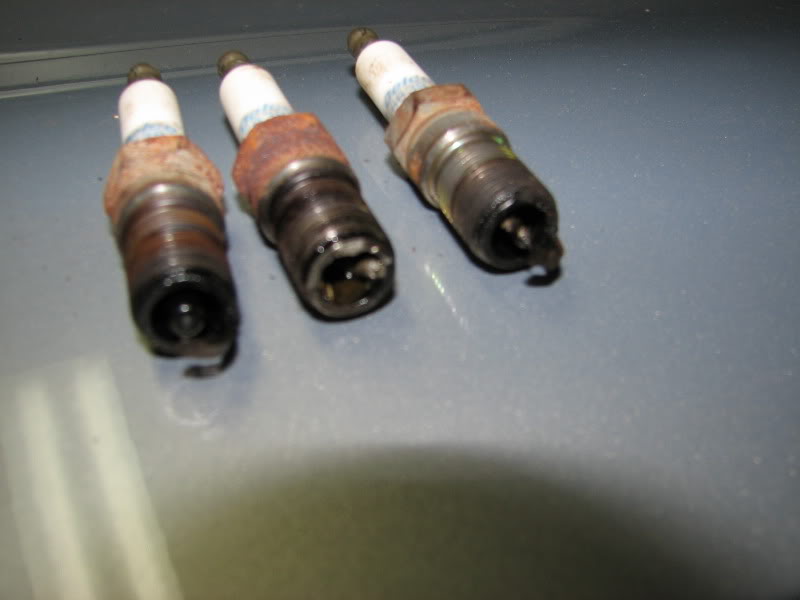

The plugs 2, 4, 6
Name:  IMG_4623.jpg
Views: 18
Size:  41.1 KB

The head
Name:  IMG_4651.jpg
Views: 17
Size:  154.3 KB

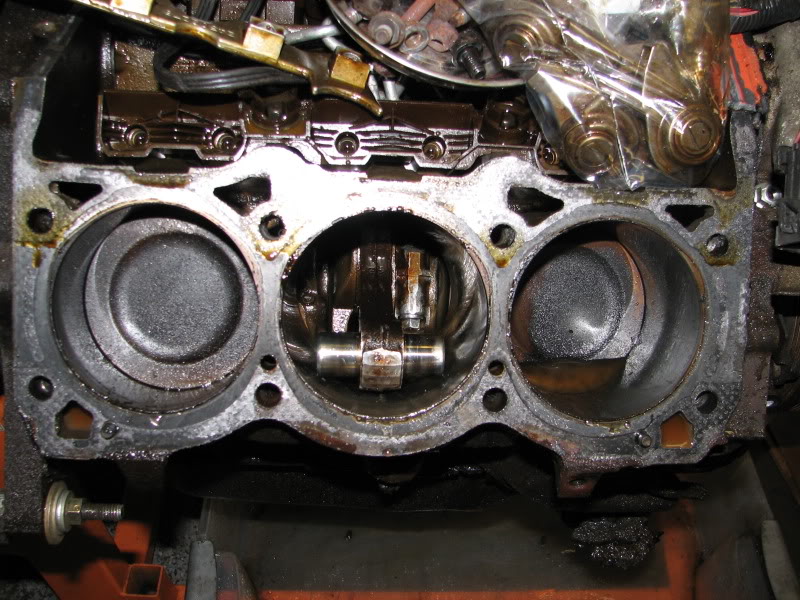

The chipped piston. (I stood there laughing when I pulled the head off)
Name:  IMG_4653.jpg
Views: 26
Size:  136.5 KB

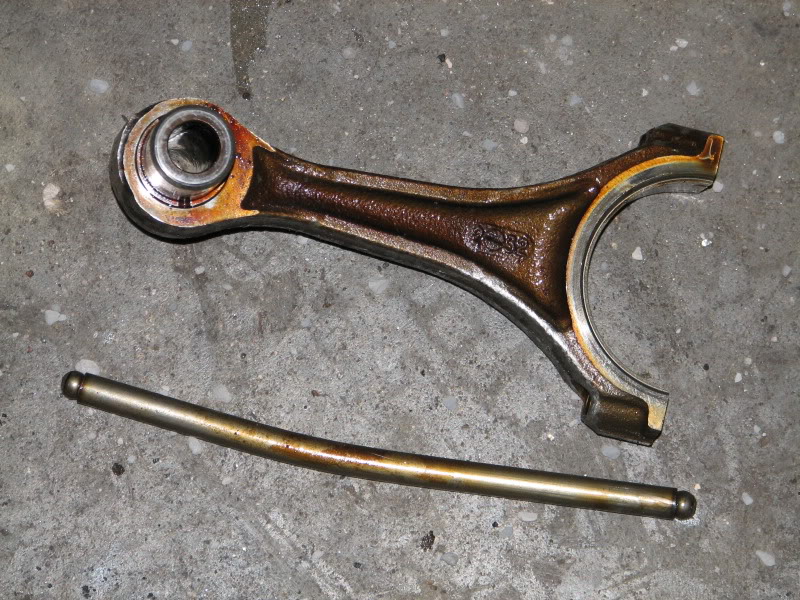

The piston rod and pushrod
Name:  IMG_4664.jpg
Views: 16
Size:  164.9 KB

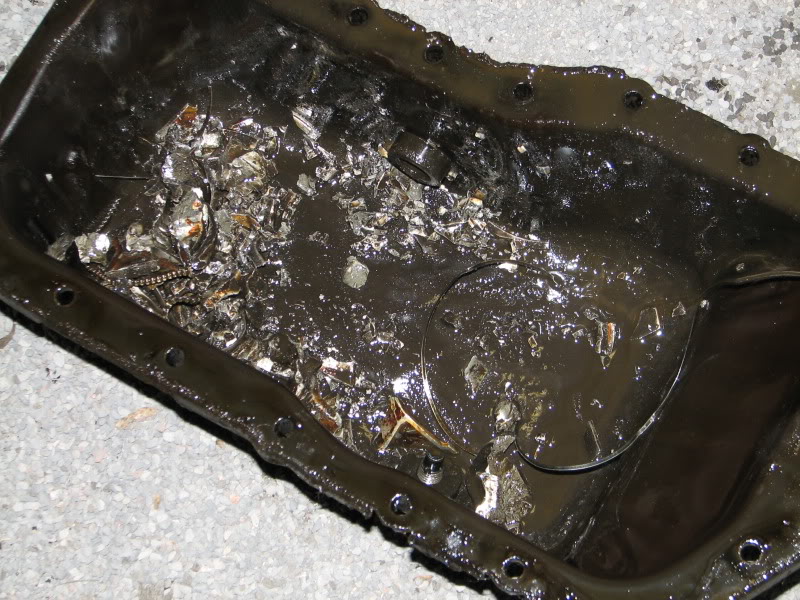

Found the chip that came off the piston.
Name:  IMG_4669.jpg
Views: 12
Size:  145.1 KB

There was nothing but a wrist pin left in the cylinder. Which is odd because they should be free floating once the retaining ring is out of the piston ....or the piston is totally missing lol

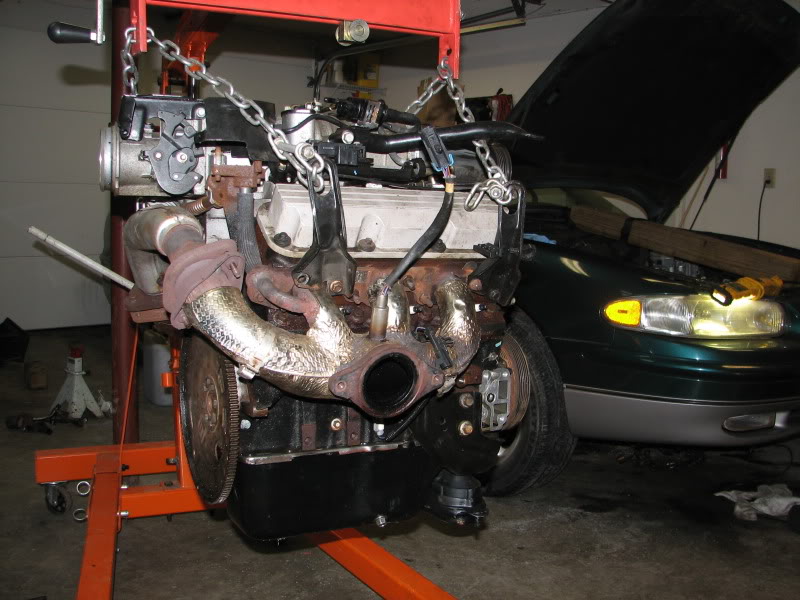

On a side note.. if you take a little off a spare engine lift bracket, you can bolt it up for the win on connecting the leveler to the fourth corner.
Name:  IMG_4678.jpg
Views: 12
Size:  101.4 KB
BillBoost37 is offline   Reply With Quote
Old 06-16-2010, 03:39 PM   #10
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Wow now thats bad. It just ate the entire piston lol
