Default Extreme changes

Many of you know that I've been disappointed in the cooling capabilities of the car since installing a 10% underdrive light-weight water pump pulley. It just doesn't cut the mustard (and yes, my cooling system is in perfect condition from top to bottom). I've resorted to keeping the pulley on, but making other changes to make up the difference, and also making another planned change. I just finished:

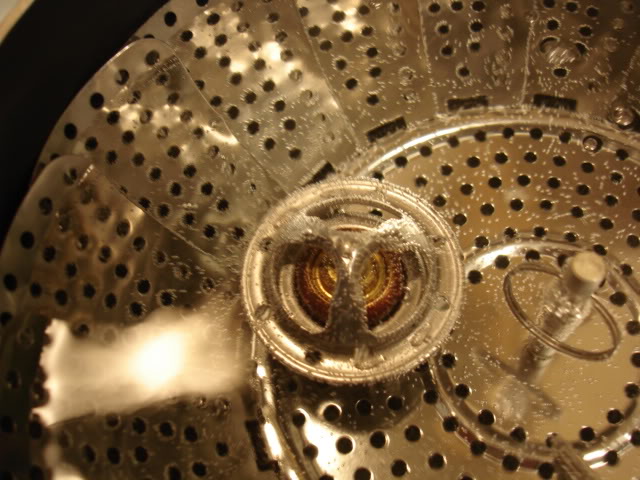

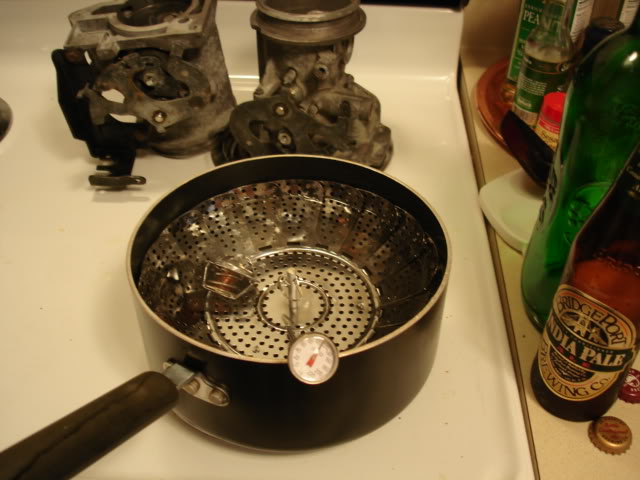

I'm anal enough about the Zilla, that I want to test the parts first:

Name:  extreme2.jpg
Views: 3
Size:  52.0 KB
Name:  extreme3.jpg
Views: 2
Size:  68.5 KB

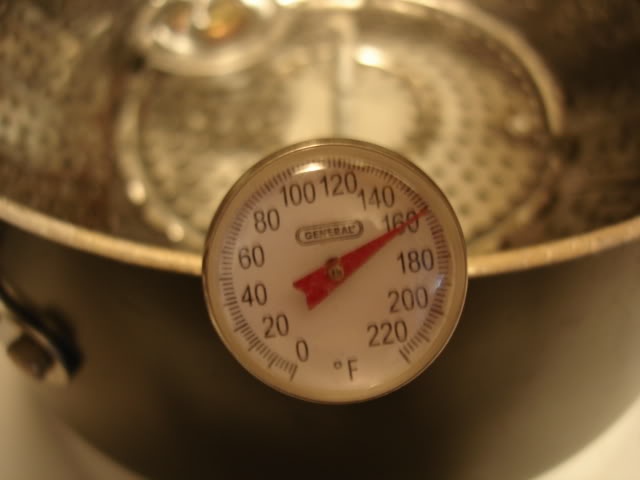

Name:  extreme4.jpg
Views: 2
Size:  27.7 KB

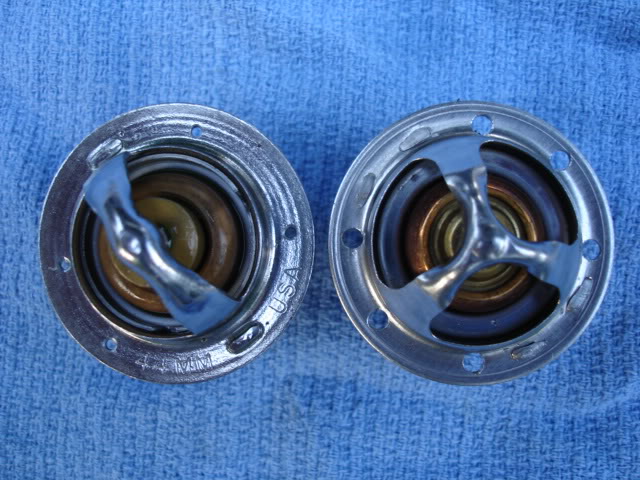

Can you see the difference? Ignore the bypass hole difference and the temp rating, as well as the '2 supports vs. 3 supports'. There'* another subtle difference:
Name:  extreme5.jpg
Views: 2
Size:  79.0 KB

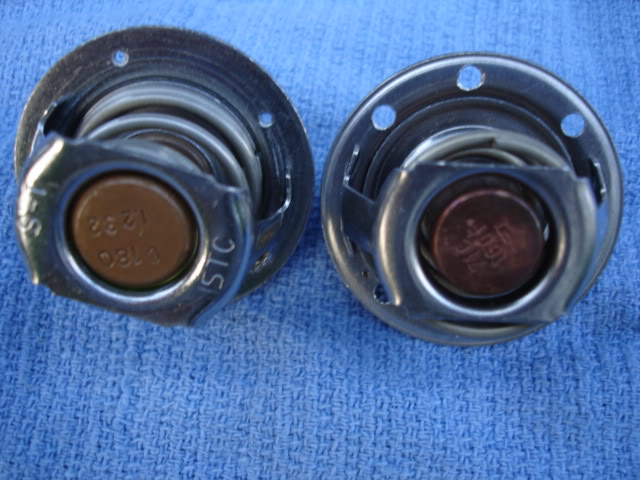

Name:  extreme6.jpg
Views: 3
Size:  58.9 KB

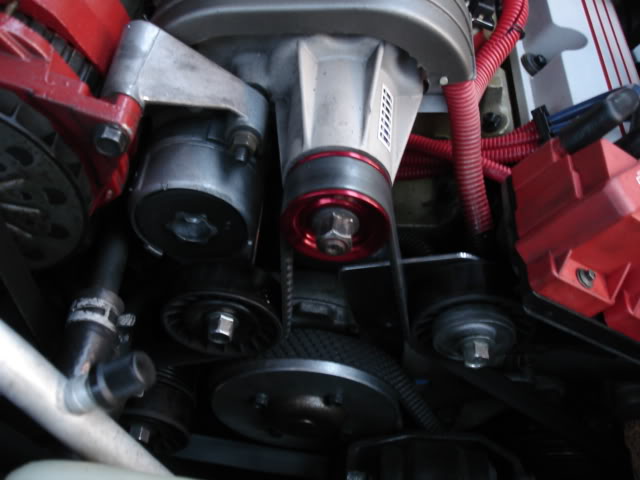

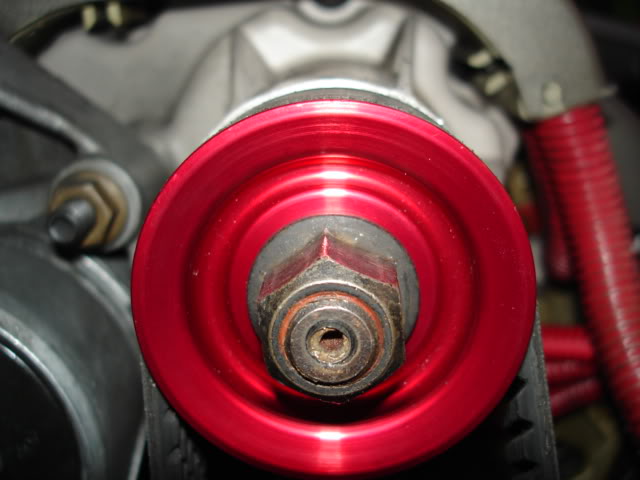

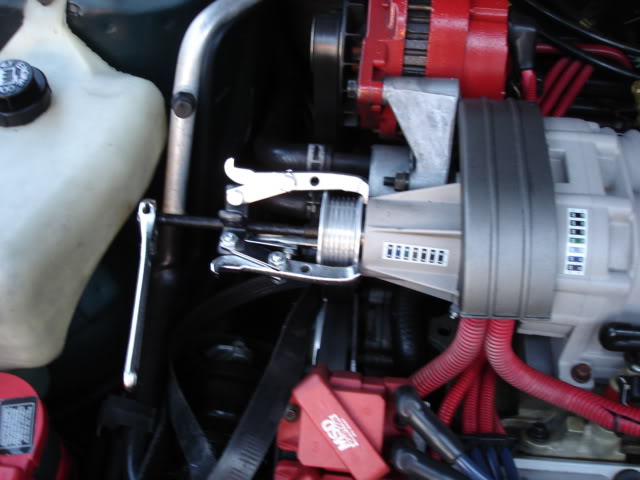

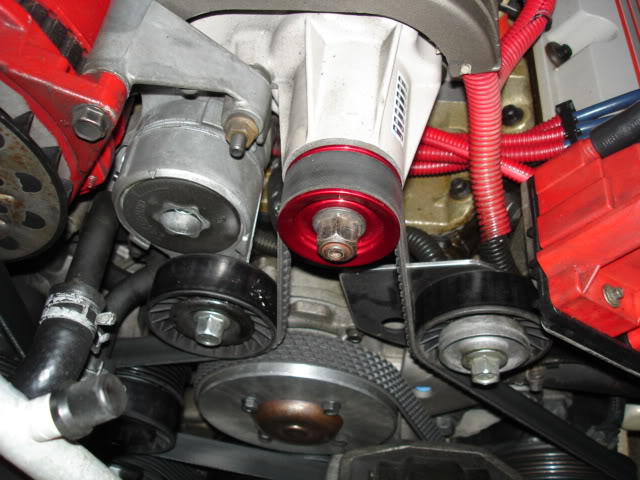

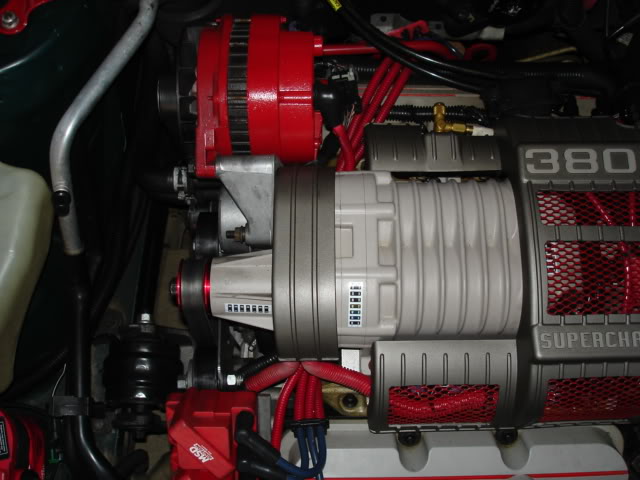

And the other little change:
Name:  extreme7.jpg
Views: 3
Size:  44.2 KB
Name:  extreme8.jpg
Views: 3
Size:  39.8 KB
Name:  extreme9.jpg
Views: 2
Size:  63.2 KB
Name:  extreme10.jpg
Views: 1
Size:  51.9 KB
Name:  extreme11.jpg
Views: 2
Size:  40.3 KB

God help me tomorrow while I turn the very first Bonneville-tested K&N RX-4750 inside-out, and God bless every person who attends WCBF06 and gets sucked into the M62 of death.

God help my hood when both rotors come through it, and pray that they don't hit the windshield as they spin at 20,100rpms. God have mercy on my ears on the way to work in the morning.
willwren is offline   Reply With Quote
Old 07-13-2006, 01:35 AM   #2
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

THATS AWESOME THAT THING IS LIKE DAMNED NEAR ON THE INPUT SHAFT..can u even call that a pulley..?!
nice Tstat..
But that pulley..... why not take the 95 tomorrow?
SSEimatt93 is offline   Reply With Quote
Old 07-13-2006, 01:37 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

95 needs a Cat and a Battery.

BTW, for those that are wondering, I've made my own E-stat, so this thermostat won't cause problems with open/closed loop modes in the PCM. The PCM will think I'm actually 10-15 warmer than it really is.
willwren is offline   Reply With Quote
Old 07-13-2006, 01:37 AM   #4
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Posts: 1,071
Thanks: 0
Thanked 0 Times in 0 Posts
Sully1742 is on a distinguished road
Default

How can you put that on and not take it for a spin? THat'* willpower.

Godspeed tomorrow. Those rotors could take your life.
Sully1742 is offline   Reply With Quote
Old 07-13-2006, 01:37 AM   #5
Junior Member

Join Date: Dec 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacMom is on a distinguished road
Default

OOOOOO MY car is going to be soooooooo good!!!! Thanks Bill
PontiacMom is offline   Reply With Quote
Old 07-13-2006, 01:38 AM   #6
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Quote:
Originally Posted by SSEimatt93
THATS AWESOME THAT THING IS LIKE DAMNED NEAR ON THE INPUT SHAFT..can u even call that a pulley..?!
Might as well take it off and just put the nut back on there and call it good. What'* the boost gauge gonna run??
dbeast420 is offline   Reply With Quote
Old 07-13-2006, 01:38 AM   #7
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Have u drove it yet..i hope so..id be so excited..
lol
Boost Gauge will PEG at the stop..it stops around 12psi, but, bill, even ported, will be putting out more than that
SSEimatt93 is offline   Reply With Quote
Old 07-13-2006, 01:39 AM   #8
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Fire it up and give it a few revs... with the camera. We NEED to hear it.
Bonneville92V688 is offline   Reply With Quote
Old 07-13-2006, 01:39 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Based on what the 2.2" did with the Gen 3 (94/95) SC and TB, I'd guess 13-14psi on the gauge. It would be higher if I hadn't ported the living snot out of the LIM and EM'*.
willwren is offline   Reply With Quote
Old 07-13-2006, 01:41 AM   #10
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

PSI is pointless without CFM
SSEimatt93 is offline   Reply With Quote
