Old 05-24-2010, 12:19 AM   #41
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I think if I went to that amount of work I would run dual exhaust all the way back.
Danthurs is offline   Reply With Quote
Old 05-24-2010, 01:06 AM   #42
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

IMO a 3" collector to cutout is better.

Plus I'm not looking to run dual cats/res/muffs.
95naSTA is offline   Reply With Quote
Old 08-14-2010, 05:11 PM   #43
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

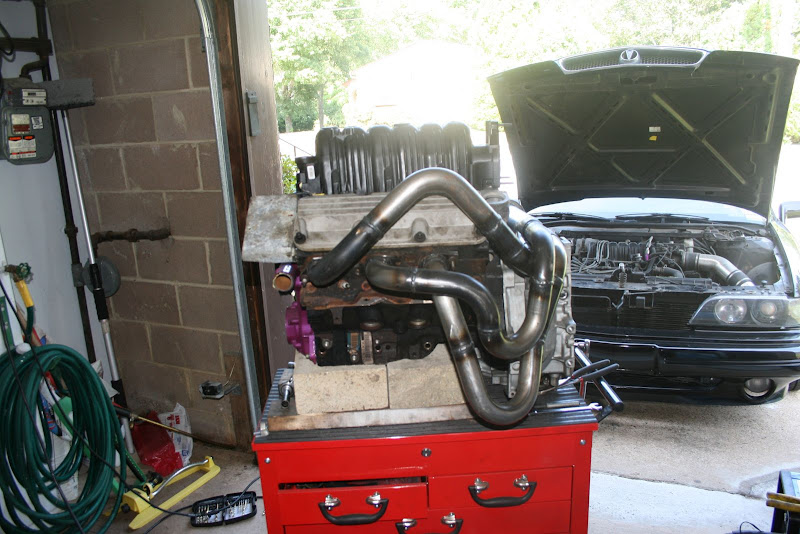

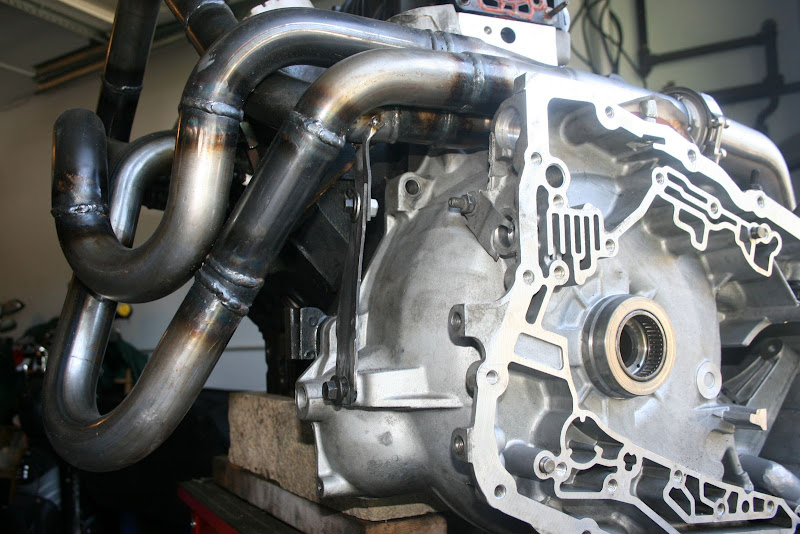

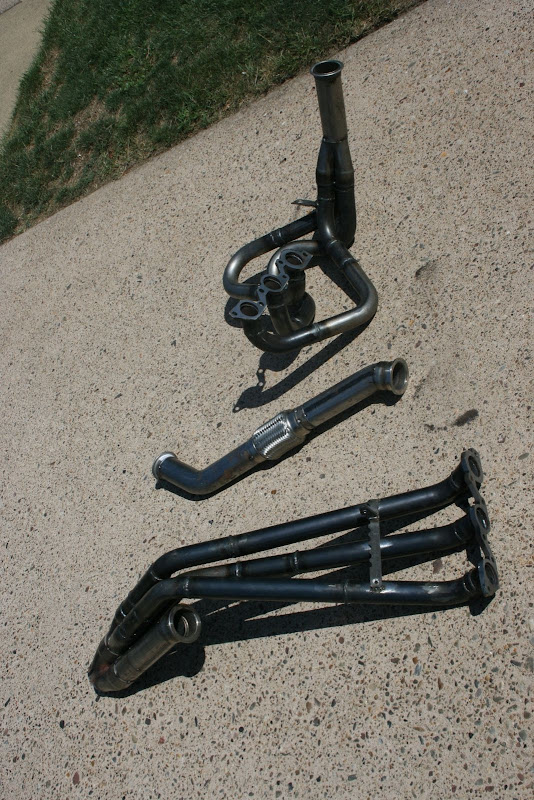

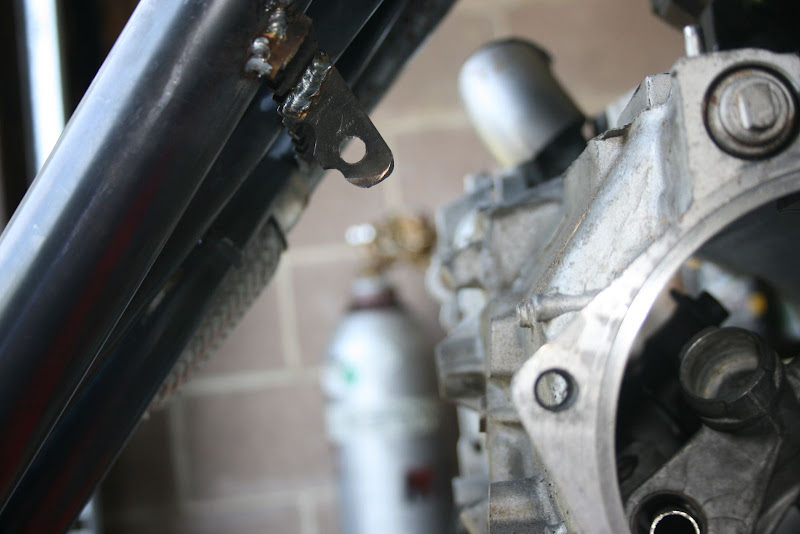

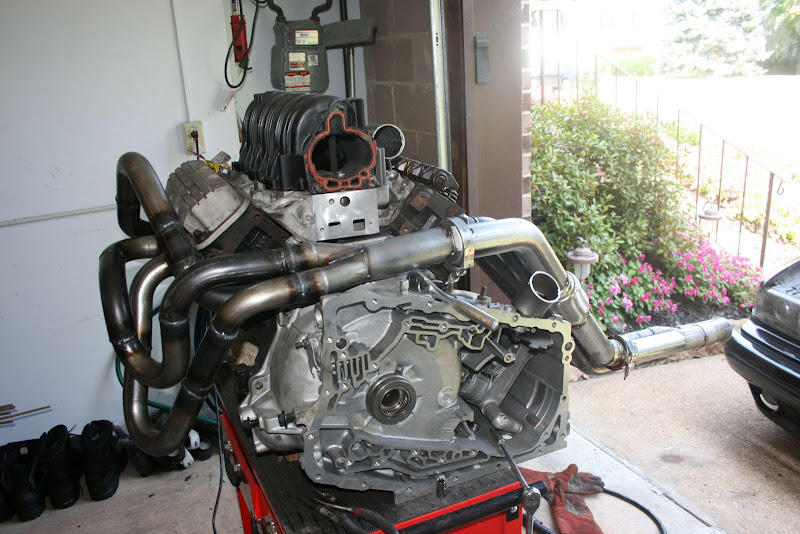

I wrapped up the x-over to the Y, made a front brace, and half of a rear brace. The other rear half I need the diff cover to engine bracket for.





















I'll take this stuff back to the welder soon and it should be good. I'm not going to have it coated till after I have done a test-fit. And that'* probably going to happen during the front end tear down. (who knows when)

Good news is, I do not need that mock engine/trans and cart now. So, once I get rid of that, my low mile L26 + engine stand will go in it'* place and I can get to work on that.

Crappy news is, that purdy polished side-pan that took me forever to do, and I had painted clear, has decided it wants to rust a tiny bit here and there under the clear.. So, it'* going to get stripped an powdercoated.. Probably black. At least it'* not in the car I guess.
95naSTA is offline   Reply With Quote
Old 08-14-2010, 05:49 PM   #44
Senior Member
Posts like a Supercharger

Addicted To Eaton's Avatar

Join Date: Jul 2010
Location: Chillicothe mo
Posts: 194
Thanks: 0
Thanked 0 Times in 0 Posts
Addicted To Eaton is on a distinguished road
Default

http://smg.photobucket.com/albums/v2...sonBurnout.flv


equal length long tube headers = AMAZING! SOUND!
Addicted To Eaton is offline   Reply With Quote
Old 08-14-2010, 06:11 PM   #45
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

That car does sound awesome!
ymmot04 is offline   Reply With Quote
Old 08-14-2010, 07:20 PM   #46
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Ohhhh dear god that is awesome
yutzybrian is offline   Reply With Quote
Old 08-14-2010, 10:50 PM   #47
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Very impressive work. Can't wait to see and hear the results.
Danthurs is offline   Reply With Quote
Old 09-07-2010, 12:35 AM   #48
Senior Member
Posts like a Turbo

Marks02bonneville's Avatar

Join Date: Aug 2010
Location: Glendale AZ
Posts: 315
Thanks: 0
Thanked 38 Times in 27 Posts
Marks02bonneville has a spectacular aura aboutMarks02bonneville has a spectacular aura aboutMarks02bonneville has a spectacular aura about
Default

Not sure if you want some turbo advice from a newbie but, the headers for a turbo do not need to be equal length on even a good street/strip car. A turbo plugs up the exhaust system from port to turbo and uses up all the capacity of the system. I just sold off my '73 Trans Am turbo that made 1065 hp on an old NOS set of tri-Y 1.5/8 in headers into a single 77 mm deael trubo TV 7101/8101 hybred. The turbes are near equal but off far enough that they were not a factor. The main thing is nice smooth flowing no restrictive headers. Even the stock logs will work really well. Once you get into an all out competitive build them all the equal length piping may add a small amount to the overall output. If you were going to run a turbo at the trans top location, I'd run the stock manifolds. I have a 2002 SSEi totally stock untouched so I have not really looked at the rear manifold to see what needs to be done to run it back up to the turbo. But am sure it can be done. Anywho, the equal length headers are more to help the scavaging affect in headers. A turbo system dos not use scavaging. Mark L
Marks02bonneville is offline   Reply With Quote
Old 09-07-2010, 12:36 AM   #49
Senior Member
Posts like a Turbo

Marks02bonneville's Avatar

Join Date: Aug 2010
Location: Glendale AZ
Posts: 315
Thanks: 0
Thanked 38 Times in 27 Posts
Marks02bonneville has a spectacular aura aboutMarks02bonneville has a spectacular aura aboutMarks02bonneville has a spectacular aura about
Default

But I wanted to add that this is a very interesting subject and good information for me as I intend to do some mods such as headers etc. So I'm watching with great interest. Mark L
Marks02bonneville is offline   Reply With Quote
Old 09-07-2010, 03:11 AM   #50
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

I agree with a turbo setup. Even simple logs capable of big power. Here'* the set I fabbed up for a friend:
http://www.clubgp.com/newforum/tm.asp?m=4144049
(I can't take credit for the nice TIGing though)

My longtubes are for a somewhat max-effort n/a build.
