Default Electric water pump and belts

I've been thinking about Meziere'* electric water pump. Does the belt run on an idler pulley in the original position, or does it avoid the water pump all together?
J Wikoff is offline   Reply With Quote
Old 11-21-2005, 11:52 PM   #2
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

It avoids the wp all together.

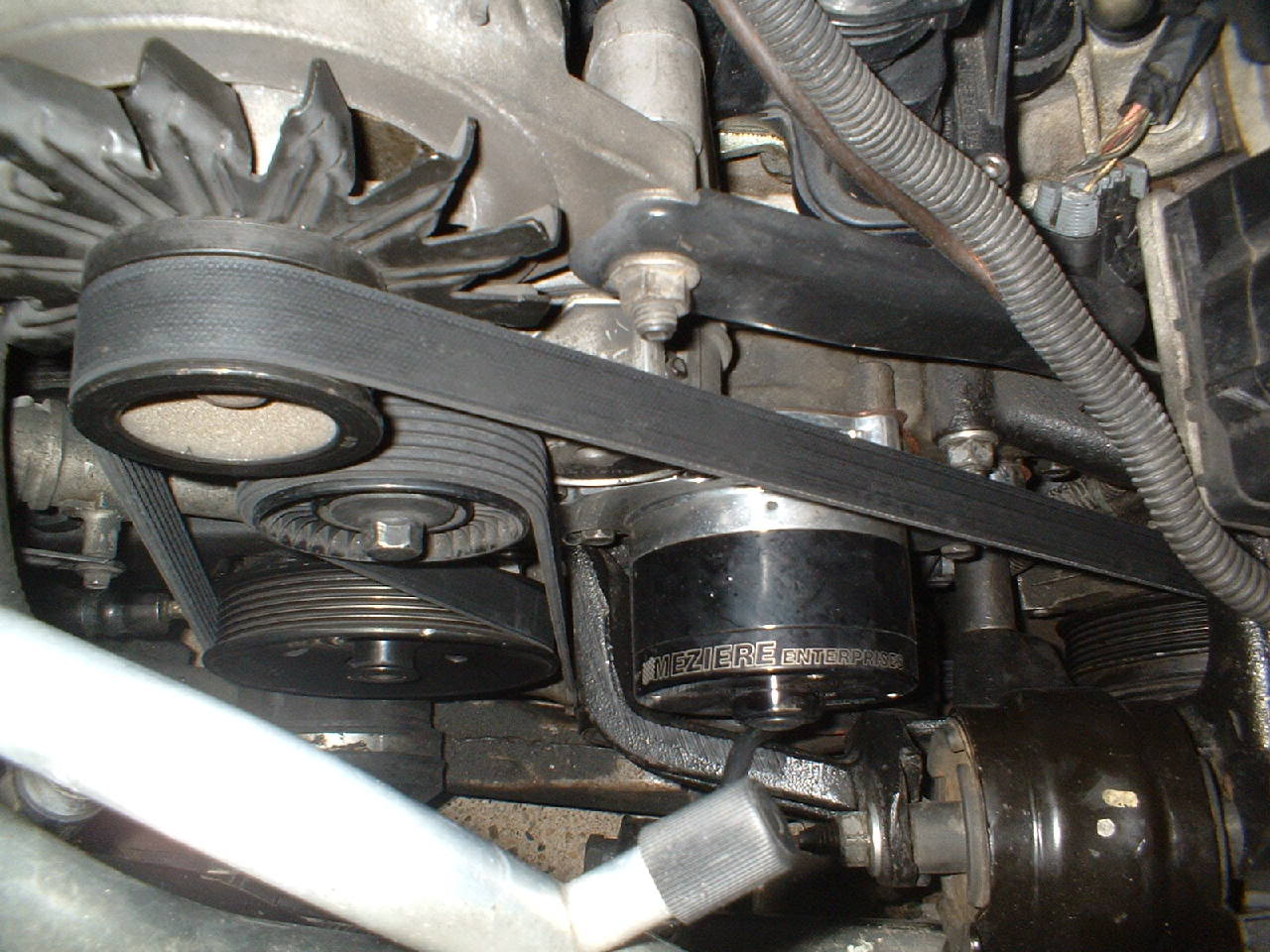

Not sure how it looks on a series 1 but heres how it looks on mine:
Name:  DSCF0036.jpg
Views: 3
Size:  184.8 KB
95naSTA is offline   Reply With Quote
Old 11-21-2005, 11:54 PM   #3
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

It avoids the waper pump all together...
llBlazin_llLo is offline   Reply With Quote
Old 11-22-2005, 12:41 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Ok, how does it route on an L67? We have 2 belts.
willwren is offline   Reply With Quote
Old 11-22-2005, 01:18 AM   #5
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by willwren
Ok, how does it route on an L67? We have 2 belts.
It routes fine on a series 2 L67. If I had a series 1 I would be able to tell you how and if the belt could be routed.
95naSTA is offline   Reply With Quote
Old 11-22-2005, 03:19 AM   #6
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

Quote:
Originally Posted by willwren
Ok, how does it route on an L67? We have 2 belts.
But only one belt runs the water pump. So the other belt would be ran the same.
llBlazin_llLo is offline   Reply With Quote
Old 11-22-2005, 06:38 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Yeah..if you omit the pump, you go from crank to AC to alt... I'd bet it'* a piece of cake.
BillBoost37 is offline   Reply With Quote
Old 11-22-2005, 09:56 AM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

That'* going to be quite interesting on a Series 1, since the SC/AC/WP run off one belt. AC delete with a shorter belt is possible, but I'm not sure about bypassing the WP.
willwren is offline   Reply With Quote
Old 11-22-2005, 10:58 AM   #9
Senior Member
Certified GM nut

Join Date: Sep 2005
Location: Home Sweet Home in New York
Posts: 2,009
Thanks: 0
Thanked 0 Times in 0 Posts
Mortehl is on a distinguished road
Default

What benefits come from converting the water pump to electric? I mean even if you're removing that much more work from the pulley system, aren't you just making your alterator work harder and losing whatever gain you get anyway?
Mortehl is offline   Reply With Quote
Old 11-22-2005, 11:32 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The electric pump shouldn't pull that much power. And the premise is a two fold I believe. First the pump runs at a constant speed regardless of engine rpm and you remove another pulley and power drain on the engine.
