Old 03-20-2006, 05:06 PM   #11
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

So I guess coating 'em not only looks the best but performs the best too.

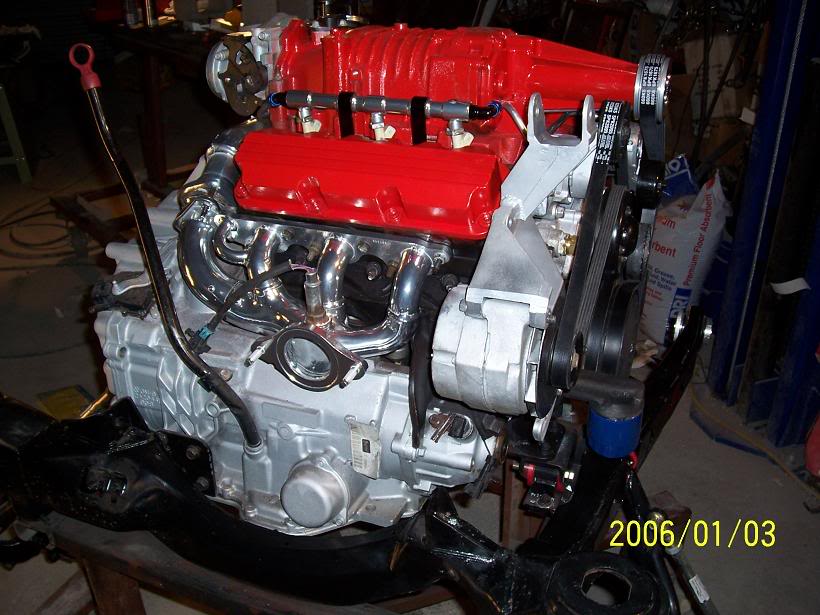

Name:  9.jpg
Views: 0
Size:  86.3 KB[/img]

Stock ported and coated Series 2 EM'*.
llBlazin_llLo is offline   Reply With Quote
Old 03-20-2006, 05:45 PM   #12
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

I have the cross-over for my TOGs heat wrapped. Seems to work fine in keeping the throttle body cooler and I haven't seen any change in underhood or engine temperature.

Cheers,
Foghorn is offline   Reply With Quote
Old 03-20-2006, 05:46 PM   #13
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

A little off-topic, but who painted an M90 and valve covers? I take it we're looking at a strictly show engine that doesn't care about heat retention? (vaguely on topic)
willwren is offline   Reply With Quote
Old 03-20-2006, 05:57 PM   #14
Guest
Posts like a Northstar

Join Date: Nov 2004
Posts: 584
Thanks: 0
Thanked 0 Times in 0 Posts
ssei1995 is on a distinguished road
Default

Quote:
I haven't seen any change in underhood or engine temperature.
The heat saturation is internal; it can even happen with coatings too.
This is an excerpt from Techline:
Quote:
Due to continued testing we are learning that simple thermal barrier action is not the only characteristic that is important. In fact certain TBC’* will move an engine into detonation.
I have known the owner, Leonard, for over 15 years. He was one of the principal engineers that developed the high tempearature coatings and adhesives for the Space Shuttle tiles. His first love was cars, so he left the aersopace business and was the first one and the pioneer to introduce these coatings to the automotive industry. Jet-Hot did not even existed at the time leonard introduce the coatings to racers.
ssei1995 is offline   Reply With Quote
Old 03-20-2006, 07:55 PM   #15
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

Quote:
Originally Posted by ssei1995
Quote:
I haven't seen any change in underhood or engine temperature.
The heat saturation is internal; it can even happen with coatings too.
This is an excerpt from Techline:
Quote:
Due to continued testing we are learning that simple thermal barrier action is not the only characteristic that is important. In fact certain TBC’* will move an engine into detonation.
I have known the owner, Leonard, for over 15 years. He was one of the principal engineers that developed the high tempearature coatings and adhesives for the Space Shuttle tiles. His first love was cars, so he left the aersopace business and was the first one and the pioneer to introduce these coatings to the automotive industry. Jet-Hot did not even existed at the time leonard introduce the coatings to racers.
I don't suffer any heat saturation of any kind, my car is tuned to run 19* of timing in 95*F heat with 91 octane fuel with an ECT of around 180*F.

I agree that thermal barriers are the best solution, however in my case, any many others I expect, I only have nickel coating on the headers. Since I have no radiant heat shileds or thermal barrier, wrapping the cross-over is an effective solution in keeping the temperatures that the throttle body is exposed to as low as possible without any adverse engine cooling or detonation problems.

Cheers,
Foghorn is offline   Reply With Quote
Old 03-20-2006, 08:16 PM   #16
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

You live in a much cooler climate, Foghorn. It probably suits you well. Pdad and the Bullet may benefit from it as well for that reason, other than their yearly trips down here. What are the effects on a crossover that heats and expands, then retracts at a lower rate than the two manifolds during extreme heat cycling?
willwren is offline   Reply With Quote
Old 03-20-2006, 08:34 PM   #17
Senior Member
Posts like a Corvette

Join Date: Jan 2004
Location: Montréal, QC
Posts: 1,374
Thanks: 0
Thanked 0 Times in 0 Posts
Foghorn is on a distinguished road
Default

Quote:
Originally Posted by willwren
You live in a much cooler climate, Foghorn. It probably suits you well.
Only in winter, in summer it'* quite hot here and the 95*F temps I referred to can persist for weeks on end. I have done tuning sessions for many hours at those temperatures, and I'm not exactly gentle with my car, and those are the specific conditions I had in mind while making my comments.

Cheers,
Foghorn is offline   Reply With Quote
Old 03-20-2006, 08:49 PM   #18
Senior Member
Posts like a Camaro

Join Date: Apr 2005
Location: montreal, Canada
Posts: 1,108
Thanks: 0
Thanked 0 Times in 0 Posts
mike_peperni is on a distinguished road
Default

Quote:
Originally Posted by Foghorn
Quote:
Originally Posted by willwren
You live in a much cooler climate, Foghorn. It probably suits you well.
in summer it'* quite hot here and the 95*F temps I referred to can persist.... and I'm not exactly gentle with my car
,
I can confirm both comments
mike_peperni is offline   Reply With Quote
Old 03-23-2006, 09:03 PM   #19
Senior Member
True Car Nut
Thread Starter

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Thanks: 0
Thanked 0 Times in 0 Posts
PontiacDad is on a distinguished road
Default

Im going to add about 12" of wrap to the cross over right below the tb along with a heat shield. Lots of guys with slp headers wind up wraping the downpipe for sound deadening and have so for many miles.
PontiacDad is offline   Reply With Quote
