Default Bypassing DRL Relay question.

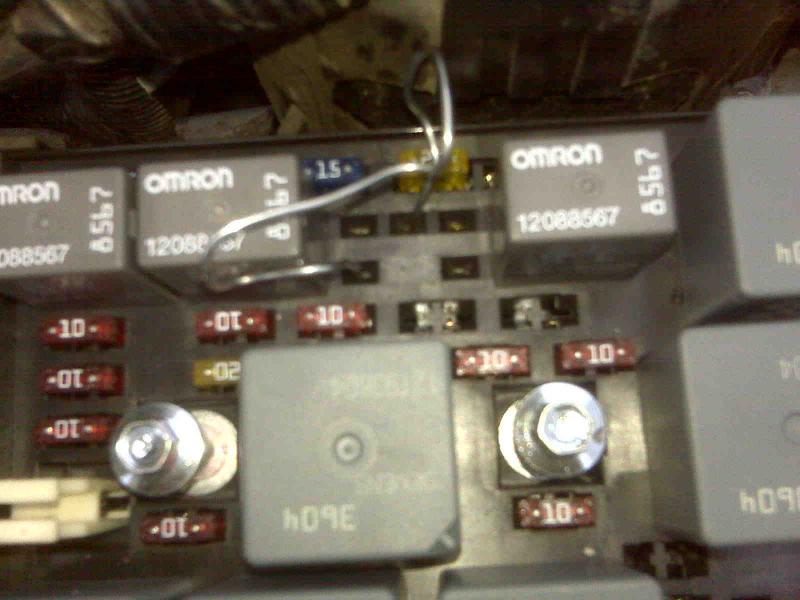

Ok guys I read your article on running a jumper wire from the 30 and 87 on the relay, and I think either you mistyped the correct terminals or its different from my model. Again I have a 200 bonneville. I actually jumped the ones you stated and nothing, I have the front left head light out, I tried a different testing combo, and came up with a 86 & 87 that worked for me. Just wanted to state that, incase anybody else is having problems. What years is it 30 & 87? Cuz technically there is 2 87'* on my relay, one actually looks like its tied in with the #30 terminal internally. Maybe a ground? Can I get some input to as if I have it right? Its ON obviously lol. The paper clip is just for testing, I ordered the terminals and have the wire here at the shop.
Attached Thumbnails
Bypassing DRL Relay question.-img00753.jpg

Last edited by 2000bonny; 01-21-2010 at 05:49 PM.
2000bonny is offline   Reply With Quote
Old 01-21-2010, 06:40 PM   #2
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

This is really weird. I'm curious to see what other people say, since all I had to do to disable DRL'* is to pull that relay.
xtremerevolution is offline   Reply With Quote
Old 01-21-2010, 08:44 PM   #3
Senior Member
Posts like a 4 Banger
Thread Starter

2000bonny's Avatar

Join Date: Jan 2010
Posts: 114
Thanks: 0
Thanked 0 Times in 0 Posts
2000bonny is on a distinguished road
Default

Jump 86 to 87a, I got it figured out, he musta made a typo and said 30 and 87.
2000bonny is offline   Reply With Quote
Old 05-08-2010, 04:30 PM   #4
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

Quote:
Originally Posted by xtremerevolution View Post
This is really weird. I'm curious to see what other people say, since all I had to do to disable DRL'* is to pull that relay.
You're right to just dis-able DRL'* all you need to do is pull the relay. You to make that jumper to get the function of your drivers high beam back. The highbeam is ground thru that relay
Black Pearl is offline   Reply With Quote
Old 05-08-2010, 04:35 PM   #5
Senior Member
True Car Nut

MouSe's Avatar

Join Date: Oct 2009
Location: Atlanta
Posts: 5,988
Thanked 2 Times in 2 Posts
MouSe is on a distinguished road
Default

We discussed this already. The jumper DOES go from 30 to 87, there'* a picture floating around that I made that proves this.
