Old 08-16-2004, 07:34 PM   #21
Senior Member
True Car Nut

Join Date: Oct 2003
Location: Pittsburgh, Pa.
Posts: 7,551
Thanks: 0
Thanked 0 Times in 0 Posts
SSsuperchargedEi is on a distinguished road
Default

wow, it appeared that mine was up all the way... 1/2"
SSsuperchargedEi is offline
Old 08-17-2004, 10:17 AM   #22
Senior Member
Posts like a Camaro

Join Date: Nov 2002
Location: Ottawa,Can
Posts: 1,038
Thanks: 0
Thanked 0 Times in 0 Posts
Paulnold is on a distinguished road
Default

Quick question,With this mod the boost kicks in faster,will this effect kr in anyway?
Paulnold is offline
Old 08-17-2004, 01:47 PM   #23
Senior Member
True Car Nut

Join Date: Feb 2003
Location: Bloomington-Normal, IL 1997 SE
Posts: 3,734
Thanks: 0
Thanked 0 Times in 0 Posts
macho_mike21 is on a distinguished road
Default

only one way to find out. This would be a nice thing to do when going on a trip, you can probably get better mileage if you set it all the way up so you get minimum boost. A lever to adjust it on the fly would be nice...
macho_mike21 is offline
Old 09-13-2004, 07:40 PM   #24
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

i just did this mod...

moved it down about 1/4" i think.



the throttle response is there alright!!

best mod i have ever done

TPS is next

--------------------------------------------

now let me tell you whats up

when i first got my car, it ran like sh*t compared to what is now, but i had no idea, i had ever driven a series 1 sc before.

since i have joined the site, i have:
made my car run like a champ
upped my hp to about 250
decreased my 0-60 time by 1.5 secs
made my car look a hell of a lot better

i NEED to get to a track

i want to thank everyone, Jeff Keacher mostly...this site rules

my rice pipe is sittin in the closet, and rx-4750 is in the mail right now...
harofreak00 is offline
Old 09-13-2004, 07:52 PM   #25
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

The combination of those two is insane. My car really came to life.
willwren is offline
Old 09-21-2004, 06:53 PM   #26
Senior Member
Posts like a 4 Banger

Join Date: Apr 2004
Location: Lakewood, WA 98499
Posts: 128
Thanks: 0
Thanked 0 Times in 0 Posts
armyguy2us is on a distinguished road
Default re:

ok everyone is talking about this boost bypass but i can't seem to open the site and it'* getting to the point were i'm going to tie this comp to the back bumper and show it what running fast is all about! can anyone shed some light on this subject, like maybe a pic or something. i think i know what to adjust but i want to make sure before doing so.
armyguy2us is offline
Old 09-21-2004, 07:36 PM   #27
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Remove your engine cover.

Remove the BCS from the BCA on the front of the SC. One 10mm nut (Boost control solonoid.....little thing attached to the boost control actuator on the front bracket, has vacuum lines going to it).

Now loosen the remaining 10mm'* and turn the BCA all the way counter clockwise to 'pre-load' it.

Put it all back, tighten it up. 5 minute job.
willwren is offline
Old 09-21-2004, 11:05 PM   #28
Senior Member
Posts like a 4 Banger

Join Date: Apr 2004
Location: Lakewood, WA 98499
Posts: 128
Thanks: 0
Thanked 0 Times in 0 Posts
armyguy2us is on a distinguished road
Default re-

ok, done that. moved it all the way up. it was all the way down. think i'm going to keep it this way to conserve gas. considering that the only time it gets driven right now is for out of town trips. i just recently bought a ford ranger w/ a 2.0 4 banger for 150.00 that runs decent and i'm looking at an 83 mustang with a 3.8 v-6 for 50.00. this will make a good doaner drive train for the truck. so all mods on the bonny are on hold until i get this truck done and then i'll resume mods on the bonny. needless to say i'm working 2 jobs right now so time is little to none. but eventually i'll get everything like i want it. but aside of all the blah,blah,blah about the truck i got er' done. thanks for the info and that'* what i thought it was but wanted too be sure before doing anything.

cliff

p.*. i'm painting the truck general lee orange and thinking of putting 0.5 on the doors.lol
armyguy2us is offline
Old 10-15-2004, 03:42 PM   #29
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

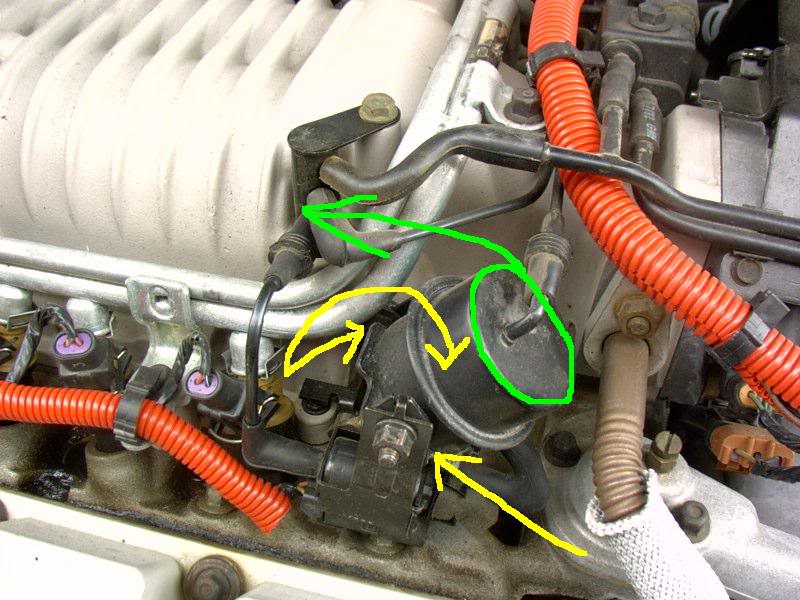

well here it is for series 1

ver crude picture, but i didnt feel like running outside again for a different angle

in the yellow, you see the 3 bolts will is talking about. the one in front, and the 2 in back...loosen em all...

then the green, move that all the way to bottom, moving in a counter clockwise direction, you will see what is going on once you do it...

Name:  PDR_0010der.jpg
Views: 0
Size:  89.6 KB
harofreak00 is offline
Old 10-15-2004, 04:47 PM   #30
Senior Member
Posts like a Northstar

Join Date: Oct 2003
Location: Greater Cleveland area, Ohio
Posts: 514
Thanks: 0
Thanked 0 Times in 0 Posts
kevo is on a distinguished road
Default

Let me see if I got this.... If I move it down AND turn it to the left, I will have done both the free mods for better boost response?

I printed out and understand the one P-dad gave the link for, but am trying to figure out the turning of it part that wil is talking about. I plan on doing this this weekend, maybe tonight.

Also, has anyone had any problems after doing either of these mods?

I know the depressing of the solinoid is for response, but the bypass does exactly what?
kevo is offline
