Default Beating a dead horse?

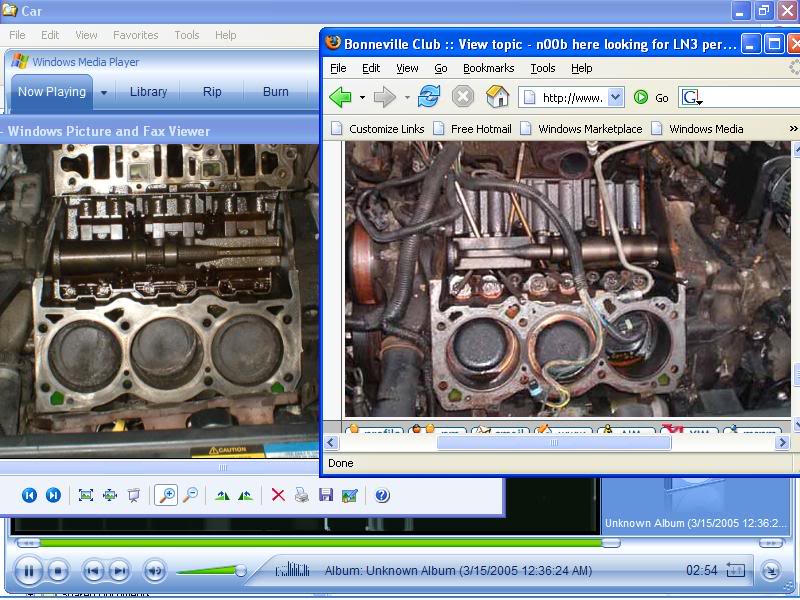

ok, so i was looking a opensourceguys sig (LN3) and it looked waaay too much like my L36
so i found a pic from when i took my engine apart and compared it.
Name:  comparison.jpg
Views: 1
Size:  102.9 KB
They definitely do have subtle differences but nothing wayy off by visual inspection.
So, do we know for sure a series 2 top end can be put on a LN3 or L27?
I'm changing my head gaskets this summer and i'll be able to take various measurements if someone is interested.
95naSTA is offline   Reply With Quote
Old 03-15-2005, 08:43 AM   #2
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

if i'm thinking correctly, then you're still not able to do it.

the sII'* have the symetric heads, intake-exhaust, intake-exhaust, while the LN3 does not (someone correct me if i'm wrong). so even though you *might* be able to get the heads to bolt up, you'd need a new cam besides.

if you give me part numbers, you can avoid that whole 'measurement' hassle
mkaake is offline   Reply With Quote
Old 03-15-2005, 09:24 AM   #3
Senior Member
Certified GM nut

Join Date: Feb 2003
Location: Georgia
Posts: 2,095
Thanks: 0
Thanked 0 Times in 0 Posts
DrJay is on a distinguished road
Default

Name:  comparison2.jpg
Views: 1
Size:  53.2 KB

And yeah, Series I valves are offset: EIEIIE while Series II is EIEIEI. You'd need a SII cam, the coolant ports obviously don't match up, you'd need the exhaust, you'd need the intake, then hope its got the same mounts for all the junk on the front end. All that is even hoping the cam is the same diameter, or you're in for some blockwork too.

Its good you were looking for things like that, one day it'll be met with "that just might work!"
DrJay is offline   Reply With Quote
Old 03-15-2005, 12:06 PM   #4
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Oh man... You all have me drooling on the keyboard....

Its all like Dr Jay said...

But I get the feeling that if you had a series 1 cam ground for the series II engine, I'll almost bet that you could attach the series 1 heads to the series II block... That would be funny, series 1 LN3 heads and intake attached to a series 2 block...

Now what we need to see are pics of the series I and series II heads side by side..

If you look at the L36 and LN3 pistons you see the diffrence in the dish.... The L36 pistons are damn near flat tops...

Let me get a little more into detail..

We need good quality Macro pics pf the heads from both 3800 I and 3800 II heads, both the valve side and rocker side to include bolt hole locations... Another question that come to mins is, are the threads the same between the engine blocks? What are the diffrences in head bolt length between the 2 engines? And how would the LN3 Puter handle 9.4-1 compression?

If this would be possible on the LN3, being that we could find the right cam, and get it to mount in the LN3-L27 cradle with the proper mounts I would think it would also be possible to do this with L27 heads as well...

But this is something that would take a lot of time and research, as no one yet knows what the end results would be...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-15-2005, 04:08 PM   #5
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by mkaake
if i'm thinking correctly, then you're still not able to do it.

the sII'* have the symetric heads, intake-exhaust, intake-exhaust, while the LN3 does not (someone correct me if i'm wrong). so even though you *might* be able to get the heads to bolt up, you'd need a new cam besides.

if you give me part numbers, you can avoid that whole 'measurement' hassle
Damn, i totally forgot about the diffrent valve arangement but that might be fixed with a diffrent cam. good idea w/ the part # but i'm sure there will be some things somewhere with diffrent part #'* that will work.
Quote:
Originally Posted by DrJay
the coolant ports obviously don't match up, you'd need the exhaust, you'd need the intake, then hope its got the same mounts for all the junk on the front end. All that is even hoping the cam is the same diameter, or you're in for some blockwork too.
The coolant ports look damn close esp the ones on the bottom. The top coolant ports would flow into the series 2 head without any work it looks like but definitely not too good. Why not port the coolant ports on the heads and cut the head gaskets to make them match up better? Head gaskets don't match the coolant ports exactly anyways.
I've got 2 L36 cams just sitting in my garage that i could take rough measurements of (i don't have a mic or calipers)
What work would have to be done to the block?
Quote:
Originally Posted by jr's3800
Now what we need to see are pics of the series I and series II heads side by side..

Let me get a little more into detail..

We need good quality Macro pics pf the heads from both 3800 I and 3800 II heads, both the valve side and rocker side to include bolt hole locations... Another question that come to mins is, are the threads the same between the engine blocks? What are the diffrences in head bolt length between the 2 engines? And how would the LN3 Puter handle 9.4-1 compression?

If this would be possible on the LN3, being that we could find the right cam, and get it to mount in the LN3-L27 cradle with the proper mounts I would think it would also be possible to do this with L27 heads as well...

But this is something that would take a lot of time and research, as no one yet knows what the end results would be...
these are all the pics i have of my heads:
http://img.photobucket.com/albums/v2.../DSCF002g2.jpg
http://img.photobucket.com/albums/v2...A/DSCF0025.jpg
http://img.photobucket.com/albums/v2...A/DSCF0012.jpg
http://img.photobucket.com/albums/v2...A/DSCF0011.jpg
http://img.photobucket.com/albums/v2...A/DSCF0014.jpg
I didn't think about the bolt/threads... that'* something i can find out this summer.
As for the computer, it might be able to be chipped but i don't think the compression would go all the way up to 9.4 with just the heads.

I am not saying this is going to or will work, i'm just curious because there is not concrete evidence to tell me otherwise. These engines have major diffrences but there is nothing saying it can't be done.
95naSTA is offline   Reply With Quote
Old 03-15-2005, 04:17 PM   #6
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

We need Justin in here to throw a few pics of his heads in... I forget if the LN3 used the heart chamber heads...

I was really thinking along the lines of attaching a set of LN3 heads to the L36 Block and dropping it into an 88-91 Bonnie... But the cam would have to be a series 2 style with the series one unsymetrical cam...

Another thing I was looking at was the pistons... If you have a set of LN3 heads making 8.5 to 1 compression with a dish that deep, what will it do with the L36 pistons being almost flat... Another concern would be the height of the mating surfaces for the LN3 intake onto the L36 block, It does actually look the same as far as thats concerned tho... Hard to say without actually having an LN3 and L36 apart to compare... But that would make for one fun 88-91 SSE with the 3.33 gear ratio....lol

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-15-2005, 06:54 PM   #7
Senior Member
Posts like a Camaro

Join Date: Jan 2004
Posts: 1,166
Thanks: 0
Thanked 1 Time in 1 Post
mkaake is on a distinguished road
Default

Quote:
Originally Posted by 95naSTA
Damn, i totally forgot about the diffrent valve arangement but that might be fixed with a diffrent cam. good idea w/ the part # but i'm sure there will be some things somewhere with diffrent part #'* that will work.
the point was more that if you get me p/n'*, i can get dimensions really easy like
mkaake is offline   Reply With Quote
Old 03-15-2005, 08:34 PM   #8
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by mkaake
Quote:
Originally Posted by 95naSTA
Damn, i totally forgot about the diffrent valve arangement but that might be fixed with a diffrent cam. good idea w/ the part # but i'm sure there will be some things somewhere with diffrent part #'* that will work.
the point was more that if you get me p/n'*, i can get dimensions really easy like
ohhhhhhhhhhh
nice.
heres a part number for a 89 bonnie head:
24500759
one for a 93 n/a head:
24501418
and a 96 n/a head:
24508132
