Old 04-19-2009, 09:46 PM   #21
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

A cold air intake is an intake of air from a cold area. This area is cold relative to the engine, so generally as long as your car isn't breathing in air as hot as the engine or around there, you are set. A fender well intake is an intake of air from the fender well. That'* around your wheel, and it'* isolated from the engine bay.

Your dual filter setup both reduces the possibility of smooth-flowing air and also heats the air that goes into the engine so that it defeats the purpose of your CAI. I think too many ricers say "cold air intake" for pretty much anything, so lots of people get confused. As long as you're not drawing in hot air, you're set. Because in your case you are drawing in hot air, you are not set. Even if you were to insulate the K&N filter, you would still have turbulent air flow from the intake split.

The CAI housing you have is really nice, so put in a K&N filter that fits and see that you actually have more power. Your setup gives you better gas mileage, though. That'* a plus.
radomirthegreat is offline   Reply With Quote
Old 04-19-2009, 09:48 PM   #22
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

CAI is Cold Air Intake, FWI is Fender Wall Intake.
Danthurs is offline   Reply With Quote
Old 04-19-2009, 09:50 PM   #23
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Ok, I have a picture. A FWI on a car draws air from here:



radomirthegreat is offline   Reply With Quote
Old 04-19-2009, 09:58 PM   #24
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

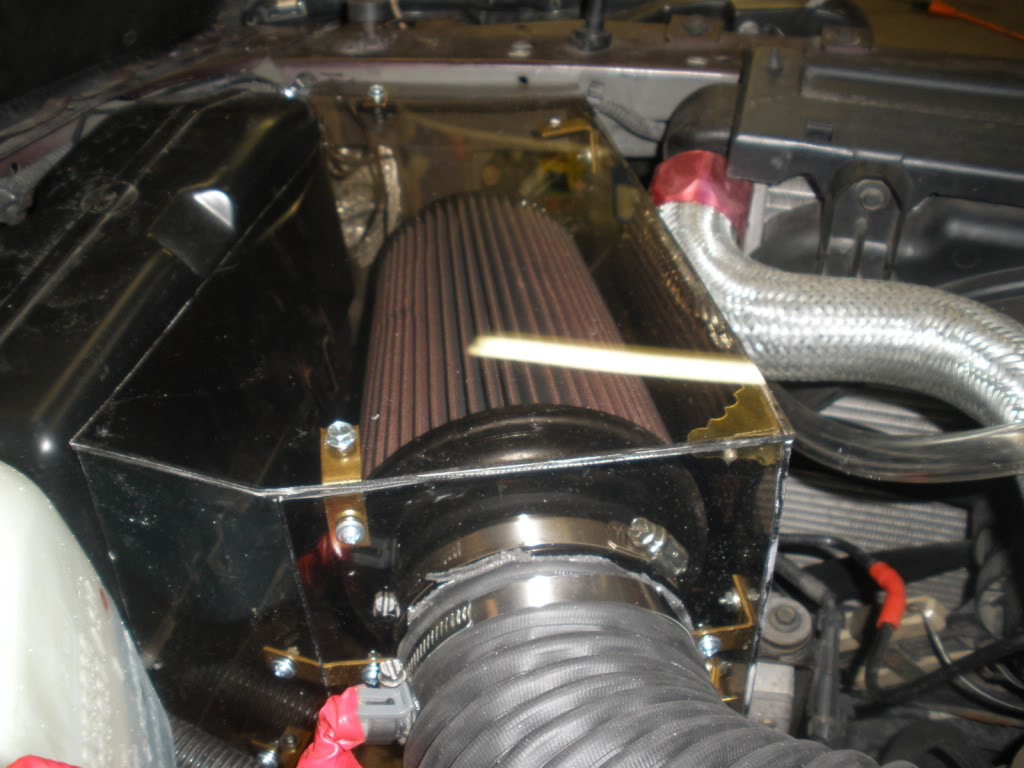

Here'* a cold box.

Name:  P4020126.jpg
Views: 0
Size:  104.3 KB
Danthurs is offline   Reply With Quote
Old 04-19-2009, 10:30 PM   #25
Member
Posts like a V-Tak

Join Date: Apr 2009
Location: Niagara Falls
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Turnerd89 is on a distinguished road
Default

Witch one would be better i have both intake. i still need to the crome tube to get the intake away from the engine. and i would also have to (Buy or Make???) the Box if i used it. Is it possible to use the CAI with the box. Porting air from the fender.
Turnerd89 is offline   Reply With Quote
Old 04-19-2009, 10:34 PM   #26
Senior Member
True Car Nut

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

I think you want to put your shiny CAI part inside a box. No need for that because it'* already good to go. If you want to build a box, put just an open filter into it. Also, that rubbery accordion tubing leading to the throttle body easily causes turbulent air flow and reduces your potential power. The best thing would be to get a metal pipe that'* slightly larger in diameter than the throttle body, and then take that straight to a filter. Whether the filter is in the housing you have now or inside a box as shown above doesn't really matter. I suggest keeping your current filter enclosure.
radomirthegreat is offline   Reply With Quote
Old 04-19-2009, 10:38 PM   #27
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

This is how I made my cold box.

https://www.gmforum.com/t280372/

I used a 3" dryer hose to pull cold air from the front of the car in to the box.
Danthurs is offline   Reply With Quote
Old 04-20-2009, 01:38 AM   #28
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: orlando fl
Posts: 140
Thanks: 0
Thanked 0 Times in 0 Posts
BADBUICK is on a distinguished road
Default

Quote:
Originally Posted by radomirthegreat View Post
A cold air intake is an intake of air from a cold area. This area is cold relative to the engine, so generally as long as your car isn't breathing in air as hot as the engine or around there, you are set. A fender well intake is an intake of air from the fender well. That'* around your wheel, and it'* isolated from the engine bay.

Your dual filter setup both reduces the possibility of smooth-flowing air and also heats the air that goes into the engine so that it defeats the purpose of your CAI. I think too many ricers say "cold air intake" for pretty much anything, so lots of people get confused. As long as you're not drawing in hot air, you're set. Because in your case you are drawing in hot air, you are not set. Even if you were to insulate the K&N filter, you would still have turbulent air flow from the intake split.

The CAI housing you have is really nice, so put in a K&N filter that fits and see that you actually have more power. Your setup gives you better gas mileage, though. That'* a plus.
why would his setup give him better gas mileage???
BADBUICK is offline   Reply With Quote
Old 04-20-2009, 02:11 AM   #29
Member
Posts like a V-Tak

Join Date: Apr 2009
Location: Niagara Falls
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Turnerd89 is on a distinguished road
Default

THis is my idea right now. The CAI in general gives more power, so im going ot use that. Im soign ot get a chrome pipe that goes from the throttel body to the intake. Im goign to but the intake in a box , keepign the hot engine air out. Also port air from the grill to the box for more cool air. Unless you think fender is better.
Turnerd89 is offline   Reply With Quote
Old 04-20-2009, 02:44 AM   #30
Member
Posts like a V-Tak

Join Date: Apr 2009
Location: Niagara Falls
Posts: 46
Thanks: 0
Thanked 0 Times in 0 Posts
Turnerd89 is on a distinguished road
Cool

Dan thanks for all the Picture. I was wonderign where you got the stuff to make it. How much i would need. And if i could Make the box a lil bigger for the CAI i have instead of the K&N filter.

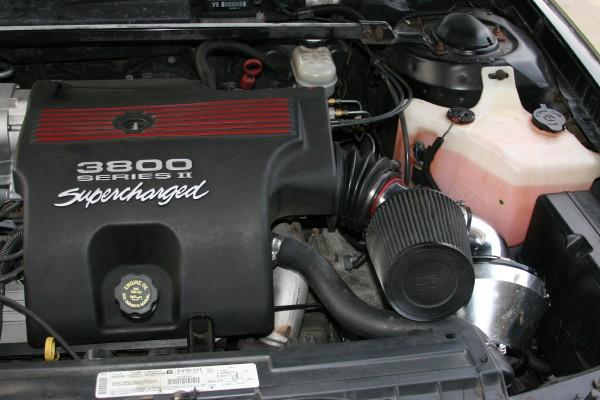

Heres a pic of it now. Im assumeing you know what the CAI looks like. but it not let me know ill send a better picture. Its the one under the K&N.
Attached Thumbnails
Air Intake Systems-l_05952cf6f12448d5a76257b89b0e5bbc.jpg
Turnerd89 is offline   Reply With Quote
