I am a college instructor. That is why I need reliable transportation in winter.

I do not have the budget for a device that costs hundreds of dollars. This is supposed to be an inexpensive modification.
Troubleshooter is offline   Reply With Quote
Old 10-04-2011, 11:57 PM   #12
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

Some information:

A link to the page I found:
https://www.gmforum.com/showthread.p...ond+gear+start

My Haynes manual identifies the pin needed as "Shift Select" on the PCM, used by the Ride Control (which I do not have). But it covers too many years and models with one diagram. What it does not tell me is how to find this wire in the car.

Does anyone have info on the Ride Control (where it is connected, and its wiring)?
Troubleshooter is offline   Reply With Quote
Old 10-08-2011, 01:39 PM   #13
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

Does anyone have the details of the Ride Control in the 2002 Pontiac Bonneville? Winter weather is only one month away, and I need a fix for this.
Troubleshooter is offline   Reply With Quote
Old 10-10-2011, 04:22 PM   #14
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

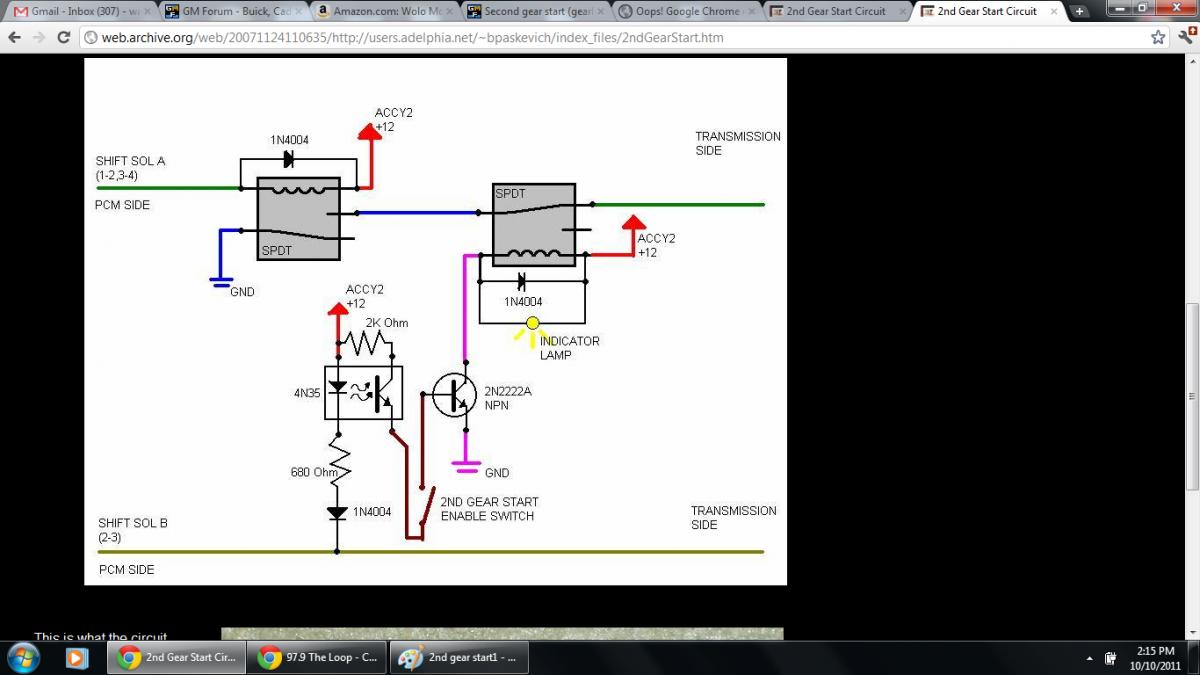

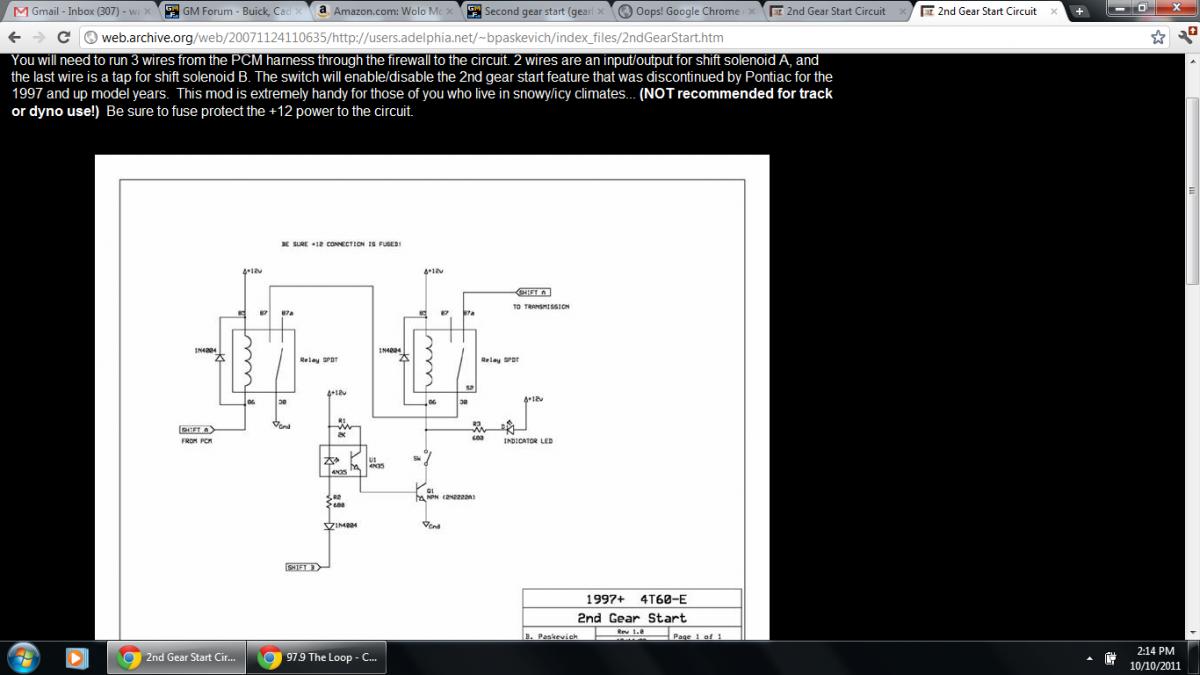

looking at that thread, i think i have found the solution to your problem. plugged those broken links into the wayback machine and this is what i found. as long as you know electrical theory this shouldn't be too difficult. not sure if ive got the guts to attempt it myself though.



Attached Thumbnails
2002 Bonneville second gear start-2ndgearstart1.jpg   2002 Bonneville second gear start-2ndgearstart2.jpg
eltatertoto is offline   Reply With Quote
Old 10-17-2011, 01:23 PM   #15
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

That'* the brute force way, and it causes some problems with the PCM thinking the transmission failed.

There is supposed to be a pin on the PCM for second gear start.
Troubleshooter is offline   Reply With Quote
Old 11-08-2011, 10:35 PM   #16
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

Does anyone know what the PCM will really do if I tried El TATERTOTO'* idea? Will it set trouble codes that require a mechanic to clear them?

BTW, I found a way to do it with only one relay and the switch.
Troubleshooter is offline   Reply With Quote
Old 11-09-2011, 03:42 AM   #17
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,854
Thanked 298 Times in 246 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

Typically, if the computer completely freaks out, and thinks the transmission is failing (this procedure will not make it happy I bet), then I believe it will set a trouble code, check engine light, and at worst, cause the vehicle to go to limp home mode. If that happens, I believe you will need to restart once it gets out of the driveway, but on the restart, you should be home free I believe. Codes can usually be cleared by a code reader, or by disconnecting the battery. Code readers can be had cheaply enough, so that is not too much of a concern. The codes may show up in history when scanned, but once you recognize which codes it sets, I think you will be able to manage.

Keep in mind though, I am a series 1 guy with OBD 1, so I am not an expert in the field, but I wouldn't be worried about it based on what I know.
rjolly87 is offline   Reply With Quote
Old 11-13-2011, 04:27 AM   #18
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

I now have a diagram of the circuitry needed and a tune table for the transmission, thanks to some people at HP Tuners. I found out that the Performance shift switch and the Second Gear Start switch are the same thing, with different transmission tunes.
Troubleshooter is offline   Reply With Quote
Old 11-13-2011, 11:14 AM   #19
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

what are you going to use to program your computer? hpt is expensive
jwfirebird is offline   Reply With Quote
Old 11-13-2011, 11:27 PM   #20
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Oct 2011
Posts: 21
Thanks: 0
Thanked 0 Times in 0 Posts
Troubleshooter is on a distinguished road
Default

A mechanic I am doing this with has all the equipment.
