Default 00+ Alternator on a 97 (For Electric WP)

I've done the research at Advance on their alternator test station as to which wires go where and there'* only two required wires on each alternator in addition to the power output.

Got an 00+ alternator from the yard and also found the 98 GP'* run the same style (visually) as the 00+'* bonnies.

It appears that it'* an easy enough swap with the right accessory bracket/tensioner and slightly modified coolant outlets (the 97 are elbows and the 00'* are straight).

Anyone know any reasons why it'* not possible to change over with regards to the two wires that go to each of these alternators?
BillBoost37 is offline   Reply With Quote
Old 10-30-2007, 04:27 PM   #2
Member
Posts like a V-Tak

Join Date: Jun 2007
Location: St. Pete Beach, FL
Posts: 30
Thanks: 0
Thanked 0 Times in 0 Posts
PortugalFocus is on a distinguished road
Default

I see no reason they should not fit. There would be no amperage advantage though as they are both rated at 105 amps. The best upgrade would be a direct swap out of a :

B: EIGHTY EIGHT 96 140 amp
B: LESABRE 96
B: LUMINA CAR 98-99 6-231 (3.8L), 140 amp
B: MONTE CARLO 98-99 6-231 (3.8L), 140 amp
B: MONTE CARLO 99 3.8L, 140 amp
B: NINETY EIGHT 96 140 amp
B: PARK AVENUE 96

All are 140 amp and they are a direct bolt in.

Good luck!
PortugalFocus is offline   Reply With Quote
Old 10-30-2007, 05:19 PM   #3
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

I'm not so convinced it will work...

I know this thread is full of false information by me, but in the end, the 98 tensioner bracket did not work in my car.. I assume it would not work in the reverse?

http://www.bonnevilleclub.com/forum/...43802&start=40
harofreak00 is offline   Reply With Quote
Old 10-30-2007, 09:50 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by harofreak00
I'm not so convinced it will work...

I know this thread is full of false information by me, but in the end, the 98 tensioner bracket did not work in my car.. I assume it would not work in the reverse?

http://www.bonnevilleclub.com/forum/...43802&start=40
Ahhh I agree and remembered your problems with the bolts that hold the water tubes to the bracket. I'm planning on swapping to the 00+ bracket, this way the bolts won't be an issue. Also..I'll be moving the ps pump out to the same place the 00'* are. In essence...turning my accessories into all 00+ with the belt to boot. That way I should be able to guarantee success from a fitment strategy.

My only real concern is the wiring to the alternator being the same. (Even have the new connector)
BillBoost37 is offline   Reply With Quote
Old 10-30-2007, 10:47 PM   #5
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

What'* the reason you wouldn't want to be able to run a 96-99 alternator? Do you have a spare or two? Are they rated the same?
willwren is offline   Reply With Quote
Old 10-30-2007, 11:13 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by willwren
What'* the reason you wouldn't want to be able to run a 96-99 alternator? Do you have a spare or two? Are they rated the same?
Please revisit the post Andrew linked us to. It'* an interference issue with the 96-99 accessory bracket. I wouldn't change if it was not required. Currently I'm running on a lifetime warranteed alt.

My hopes with this post was to find out if anyone knew of a reason why I couldn't swap from the electrical aspect of the two wires that plug into the alt. Anyone have any experience with that part of the swap?
BillBoost37 is offline   Reply With Quote
Old 10-31-2007, 11:47 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Any ideas?

bumperoni...
BillBoost37 is offline   Reply With Quote
Old 10-31-2007, 11:48 AM   #8
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

harofreak00 is offline   Reply With Quote
Old 10-31-2007, 11:55 AM   #9
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
yes they do. and Bill has figured out the differences to make the newer alt Work

plus the newer alt will give some extra clearance for Genny
1993 SLE is offline   Reply With Quote
Old 10-31-2007, 12:31 PM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by harofreak00

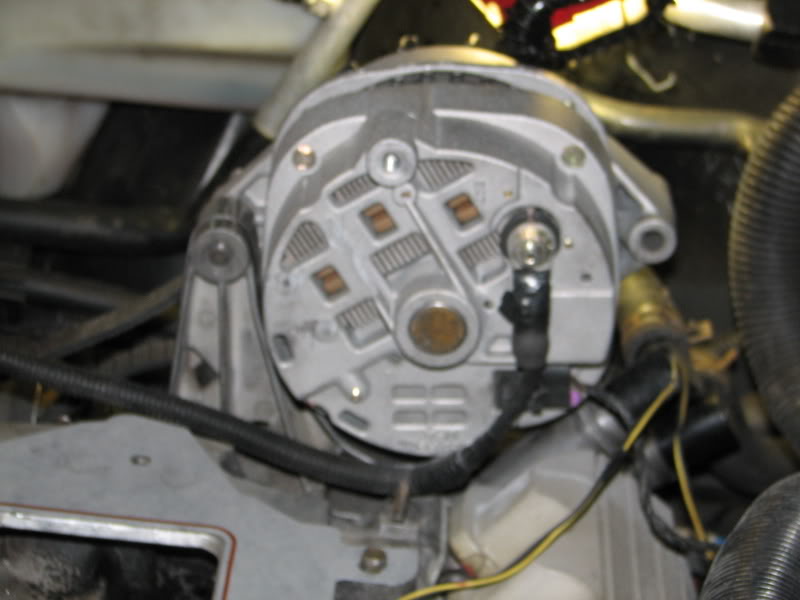

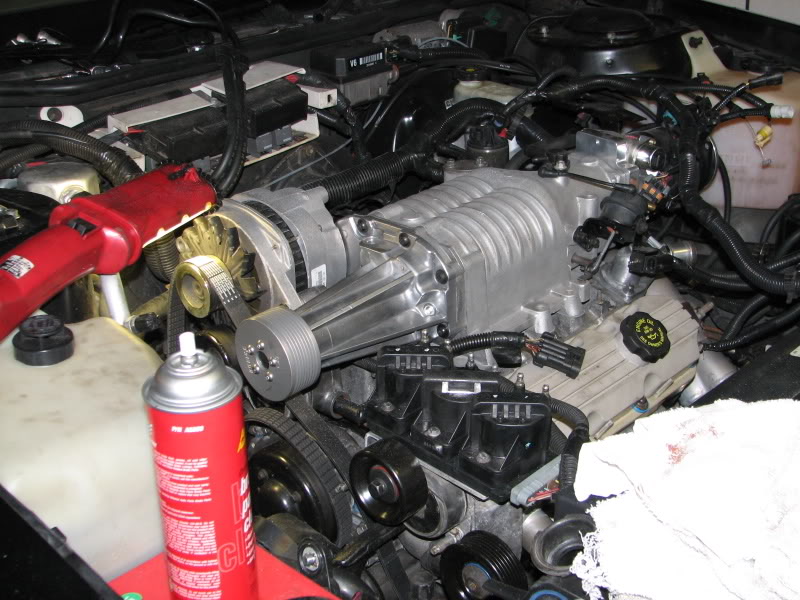

The 97 Bonne ( pretty sure that also covers 96-99) have a different style alt.
Name:  IMG_1702.jpg
Views: 1
Size:  106.6 KB
Name:  IMG_1701.jpg
Views: 2
Size:  49.4 KB

This results in a different shape connector to the alty..however the 98 GP and 97 Bonne only use 2 wires. After research of the connectors etc on the Advance test bench..the 00 and 97 Bonne were found to be basically identical in wiring and operation.

I'm merely triple checking that this should work without any surprises.

The nice thing here is this will allow me to put on the PS bracket from an 00+ and run the electric water pump.

It'* all about the water pumper
BillBoost37 is offline   Reply With Quote
