Default Rear Strut Mount

Shockwarehouse.com | 901953 Upper Mount GM Cars $16.13

Is this the actual assembly diagram for correct placement of washers?

Rear Strut Mount 97 olds 88
johnblazer is offline   Reply With Quote
Old 04-06-2013, 09:17 PM   #2
Senior Member
Posts like a Turbo

LoveNutz's Avatar

Join Date: Mar 2011
Location: Rochester, NY
Posts: 261
Thanks: 0
Thanked 0 Times in 0 Posts
LoveNutz is on a distinguished road
Default

These are the instructions that came with mine. Part number SM5017

Hope that helps...
Attached Thumbnails
Rear Strut Mount-photo-1.jpg
LoveNutz is offline   Reply With Quote
Old 04-06-2013, 09:41 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2013
Location: Florida
Posts: 206
Thanked 0 Times in 0 Posts
johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer
Default

I did mine like attached pic but rattle like they are loose

used impact too
Attached Thumbnails

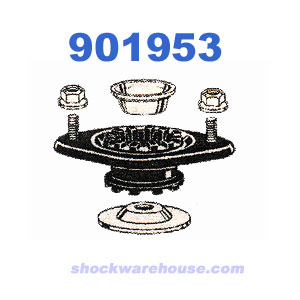

Rear Strut Mount-901953-300.jpg
johnblazer is offline   Reply With Quote
Old 04-11-2013, 01:12 AM   #4
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2013
Location: Florida
Posts: 206
Thanked 0 Times in 0 Posts
johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer
Default

I finally got them tight....no more rattle from strut working up and down

re lubed the threads and hammered with impact
johnblazer is offline   Reply With Quote
Old 04-11-2013, 09:07 AM   #5
Senior Member
Posts like a Turbo

LoveNutz's Avatar

Join Date: Mar 2011
Location: Rochester, NY
Posts: 261
Thanks: 0
Thanked 0 Times in 0 Posts
LoveNutz is on a distinguished road
Default

Glad to hear you got it fixed. I did the same thing with my fronts lol.
LoveNutz is offline   Reply With Quote
Old 01-05-2014, 04:11 PM   #6
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Mar 2013
Location: Florida
Posts: 206
Thanked 0 Times in 0 Posts
johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer johnblazer
Default

update.. Rattle was from sensen struts, some kind of defect inside strut valve body .. made a rattle as if strut was loose... replaced struts with Monroe... problem solved
johnblazer is offline   Reply With Quote
Old 01-14-2014, 09:32 AM   #7
Junior Member
Posts like a Ricer Type-R

Join Date: Feb 2013
Location: Southeast Michigan
Posts: 11
Thanks: 0
Thanked 0 Times in 0 Posts
FE3-1SD-R8A is on a distinguished road
Default

I had the same problem with Autozone struts. I replaced them with NOS GM units though. The fronts are fine, and not every Autozone strut does it.
FE3-1SD-R8A is offline   Reply With Quote
