Default '93 Olds Eighty-Eight 4T60E Issues

Hi forum,

I've got a rather pressing issue with my Eighty-Eight again; this time it'* the transmission. About a few days ago when I started up Ol'Roy I heard a clattering noise coming from the engine. I immediately thought that I had busted something with the internals of the engine, but as I inspected and searched for the source of the noise (did the stethoscope trick), I happened to locate it on the bell-housing of the transaxle where the torque converter is located. I checked the fluid and it seemed fine, in fact the fluid was still red, and I also lost my reverse gear. I can still use the forward ones, but it felt sluggish when I tested it out by rolling it back in neutral and going into drive while still on the driveway. Also, the clattering noise goes away when in non-stationary gears. I'm most certain that I need to drop the transaxle, tear it apart, and put new parts in it. I've scoured other forums for answers, but alas I couldn't find a solution, so I'm in need of some help to somewhat figure out what'* wrong with my Oldsmobile'* transmission.

Parts suggestions are also helpful as always.

Stay awesome guys,
-Martin
Martinnhs12 is offline   Reply With Quote
Old 04-30-2015, 05:53 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,645
Thanked 998 Times in 774 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Master overhaul kit is the only thing I can think of. Of course, as with all trans issues, it can be difficult to speculate what'* broken until you get it all apart.
Mike is offline   Reply With Quote
Old 04-30-2015, 12:11 PM   #3
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Sounds like the reverse drum.....think there was a TSB on the "fingers" breaking off....
Tech II is offline   Reply With Quote
Old 04-30-2015, 09:28 PM   #4
Senior Member
Posts like a 4 Banger
Thread Starter

Martinnhs12's Avatar

Join Date: May 2011
Location: Tucson, Arizona
Posts: 124
Thanked 2 Times in 2 Posts
Martinnhs12 is on a distinguished road
Default

That'* exactly what my hunch and my shop buddy say, Mike. I also read up on that TSB, Tech II. Either way, my Olds isn't gonna be up and running anytime soon. Looks like I've got some things to do; thanks guys!
Martinnhs12 is offline   Reply With Quote
Old 05-02-2015, 01:08 AM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Martinnhs12's Avatar

Join Date: May 2011
Location: Tucson, Arizona
Posts: 124
Thanked 2 Times in 2 Posts
Martinnhs12 is on a distinguished road
Default

**Update**

I checked the dip for the transmission today and it looks like it needs a fluid and filter change. The color of the fluid is kind of orange, but when I wiped the dip on a white napkin, it was light brown. I'm still going to take the transmission apart and give it some TLC since it'* internals have racked up 100,000+ miles between fluid and filter changes.

-Martin
Martinnhs12 is offline   Reply With Quote
Old 06-09-2015, 10:57 PM   #6
Senior Member
Posts like a 4 Banger
Thread Starter

Martinnhs12's Avatar

Join Date: May 2011
Location: Tucson, Arizona
Posts: 124
Thanked 2 Times in 2 Posts
Martinnhs12 is on a distinguished road
Default

**UPDATE**

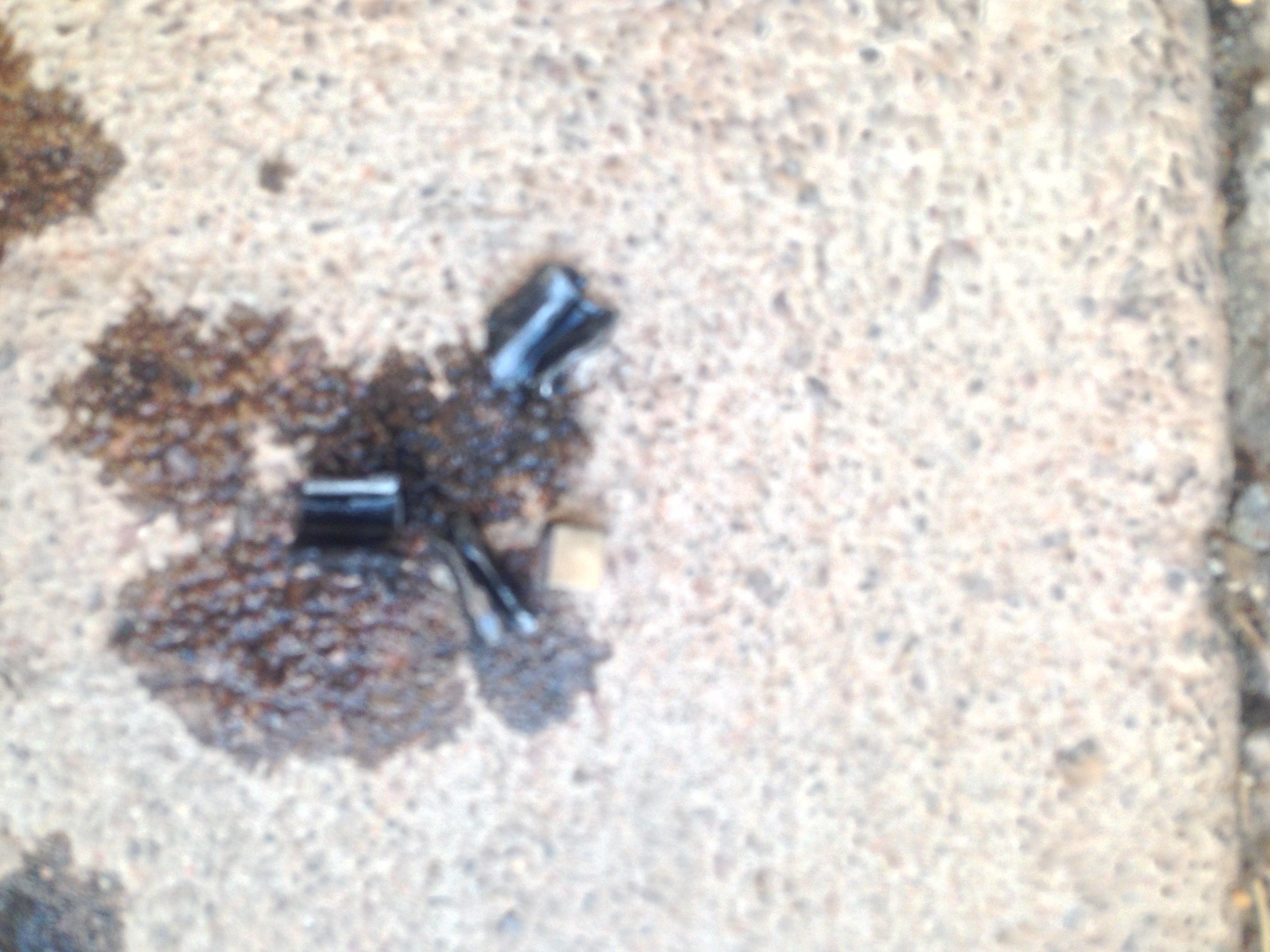

I dropped the pan and I noticed some pieces of metal and a plastic piece. I guess something inside the transaxle is broken and causing it to make noise and not go into reverse. Attached is a pic of the pieces that came out of the sump.
Attached Thumbnails
'93 Olds Eighty-Eight 4T60E Issues-15-3.jpg
Martinnhs12 is offline   Reply With Quote
Old 06-12-2015, 09:21 PM   #7
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,143
Thanked 780 Times in 609 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

DEFINITELY not a good sign....
Tech II is offline   Reply With Quote
Old 06-15-2015, 08:52 PM   #8
Senior Member
Posts like a 4 Banger
Thread Starter

Martinnhs12's Avatar

Join Date: May 2011
Location: Tucson, Arizona
Posts: 124
Thanked 2 Times in 2 Posts
Martinnhs12 is on a distinguished road
Default

I know Tech II. I'm dropping the whole transaxle today with a buddy to tear it apart. I'm hoping that these pieces came from the reverse reaction drum and not from the clutches. The pan is still dry if you're wondering.
